NAKAMURA TOME WT100MMY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
NAKAMURA TOME
Model:
WT100MMY
Condition:
Not Specified
Year:
2015
Stock #:
35133
Status:
Sold
Description:
NAKAMURA-TOME WT100MMY
Location:
Oregon, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

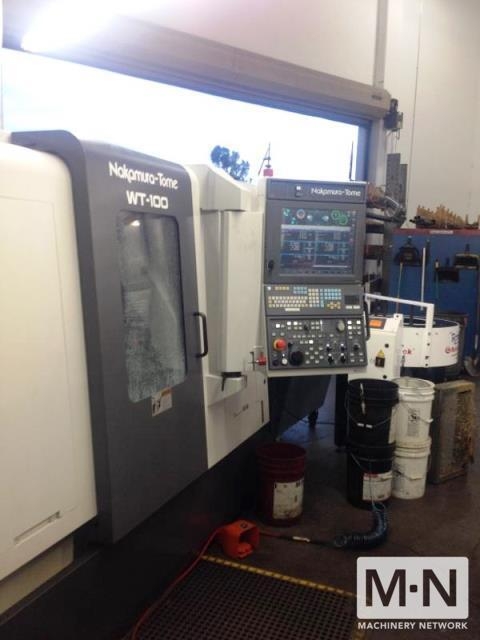

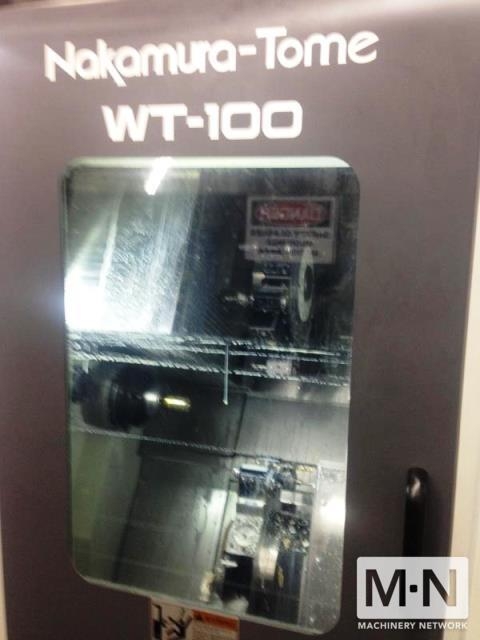

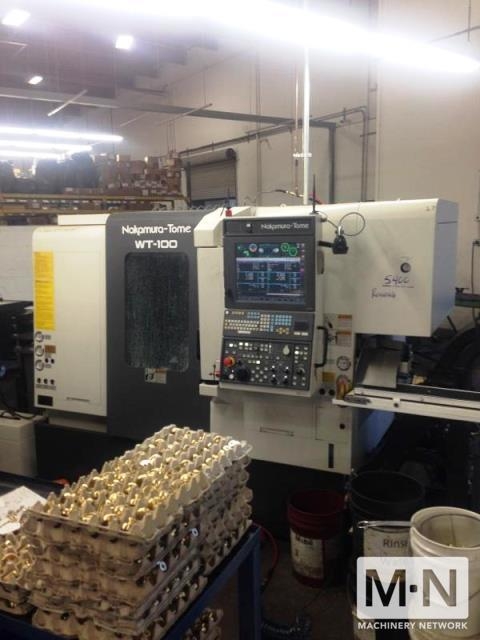

(1) USED NAKAMURA-TOME WT 100MMY CNC MULTI PURPOSE TURNING CENTER
NEW 2015
SPECIFICATIONS:
MAX. TURNING DIAMETER/MAX. TURNING LENGTH....19"
MAX DISTANCE BETWEEN SPINDLE NOSE............28"
BAR CAPACITY.................................1.6"
CHUCK SIZE...................................6"
AXIS TRAVEL
SLIDE TRAVEL X1/X2...........................5.3"/5.3"
SLIDE TRAVEL Z1/Z2/B.........................19"/19"/20"
SLIDE TRAVEL Y UPPER TURRET.................±1.2"
LEFT SPINDLE RIGHT SPINDLE
SPINDLE SPEED................................6,000 RPM
LEFT SPINDLE MOTOR...........................9.8 HP
RIGHT SPINDLE MOTOR..........................9.8 HP
EQUIPPED WITH:

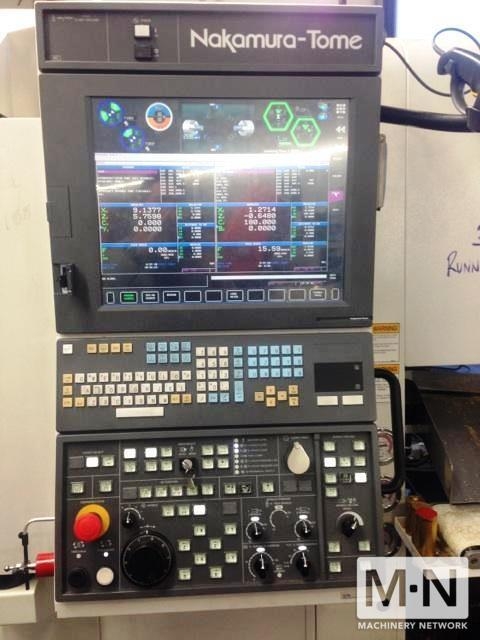

FANUC 31I CONTROL & NTIPS

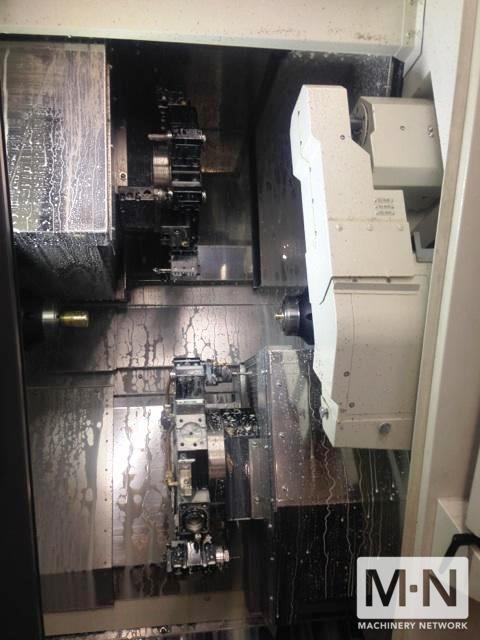

TWO TURRETS TWO SPINDLES
1 5/8" BAR CAPACITY
6" 3-JAW HYD CHUCK
RIGID TAPPING
CHIP CONVEYOR LIFT TYPLE
TOOL PRESETTER
GANTRY TYPE PARTS CATCHER
WORK EXIT CONVEYOR
AIR BLOW RIGHT SPINDLE
JF BERNS 1600-340 QUICK CHANGE ADAPTER PLATE FOR SPINDLE LINERS
JF BERNS QUICK CHANGE SPINDLE LINERS (1". 1/8", 1 1/4" 1 1/2")
(5) ALBERTI A26330C AXIAL MILL HOLDERS ER25
(1) HEIMATEC UNIVERSAL HEAD #804344001 (ER16)
(5) HEIMATEC RADIAL HOLDERS #803045173 (ER32)
Live Holders Available for additional cost....
UNDER 100 CUTTING HOURS !!
UNDER POWER
IMMEDIATE DELIVERY
NEW 2015
SPECIFICATIONS:
MAX. TURNING DIAMETER/MAX. TURNING LENGTH....19"
MAX DISTANCE BETWEEN SPINDLE NOSE............28"
BAR CAPACITY.................................1.6"
CHUCK SIZE...................................6"
AXIS TRAVEL
SLIDE TRAVEL X1/X2...........................5.3"/5.3"
SLIDE TRAVEL Z1/Z2/B.........................19"/19"/20"
SLIDE TRAVEL Y UPPER TURRET.................±1.2"
LEFT SPINDLE RIGHT SPINDLE
SPINDLE SPEED................................6,000 RPM
LEFT SPINDLE MOTOR...........................9.8 HP
RIGHT SPINDLE MOTOR..........................9.8 HP
EQUIPPED WITH:
FANUC 31I CONTROL & NTIPS
TWO TURRETS TWO SPINDLES
1 5/8" BAR CAPACITY
6" 3-JAW HYD CHUCK
RIGID TAPPING
CHIP CONVEYOR LIFT TYPLE
TOOL PRESETTER
GANTRY TYPE PARTS CATCHER
WORK EXIT CONVEYOR
AIR BLOW RIGHT SPINDLE
JF BERNS 1600-340 QUICK CHANGE ADAPTER PLATE FOR SPINDLE LINERS
JF BERNS QUICK CHANGE SPINDLE LINERS (1". 1/8", 1 1/4" 1 1/2")
(5) ALBERTI A26330C AXIAL MILL HOLDERS ER25
(1) HEIMATEC UNIVERSAL HEAD #804344001 (ER16)
(5) HEIMATEC RADIAL HOLDERS #803045173 (ER32)
Live Holders Available for additional cost....
UNDER 100 CUTTING HOURS !!
UNDER POWER
IMMEDIATE DELIVERY
