JOHNFORD SDMC 7000
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
JOHNFORD
Model:
SDMC 7000
Condition:
Not Specified
Year:
1998
Stock #:
28343
Status:
Sold
Description:
15M, 275"x98"x31.5", 35 HP, 4500 RPM, 20 ATC, CT 50
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

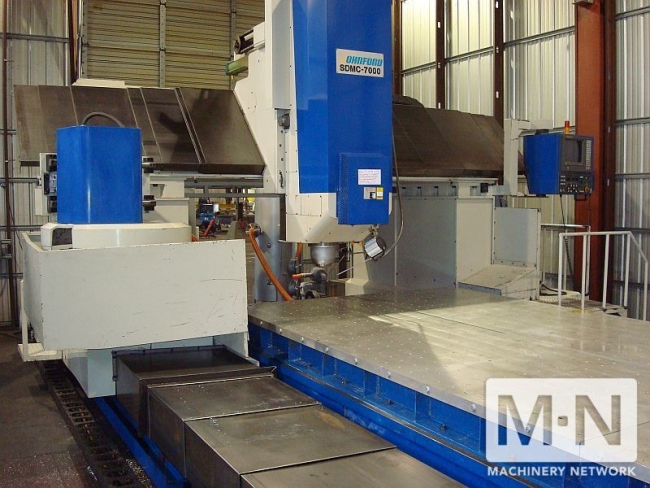

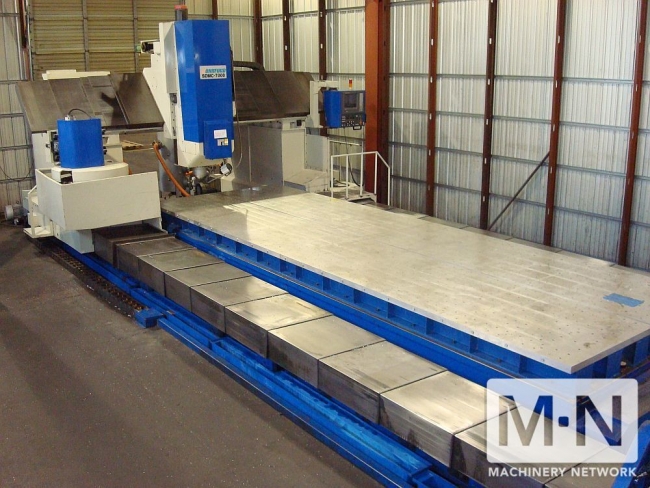

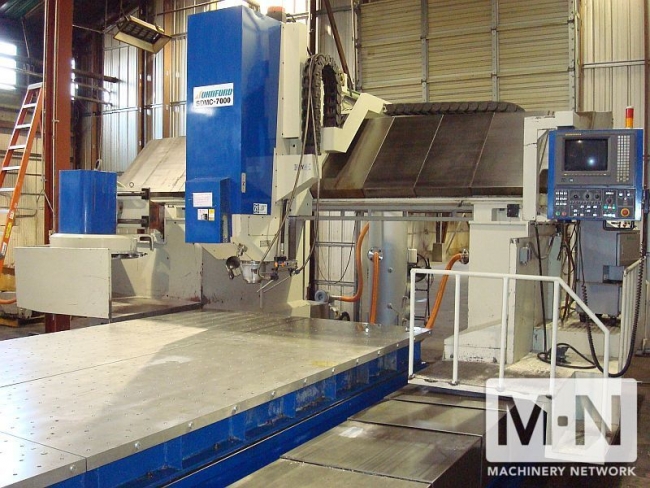

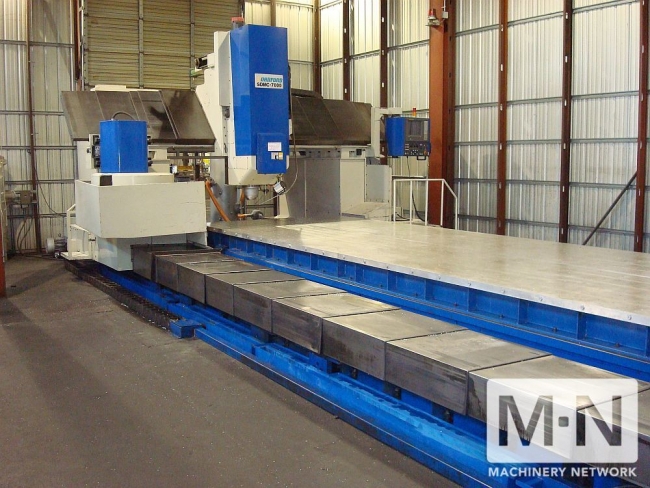

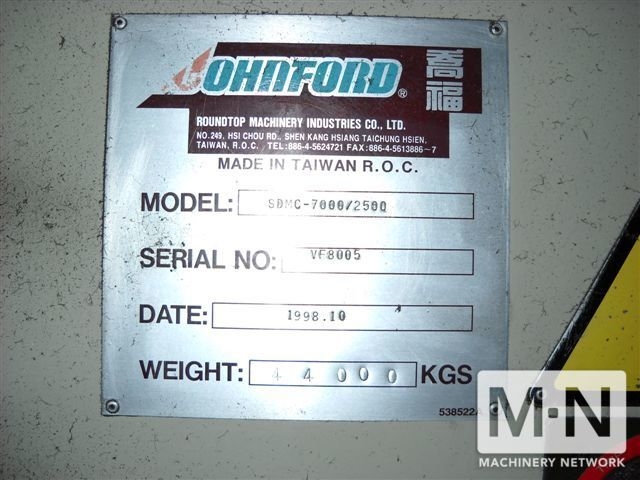

(1) USED JOHNFORD SDMC-7000x2500 GANTRY-TYPE CNC VERTICAL MACHINING CENTER, NEW 1998
SPECIFICATIONS:
TABLE SIZE: 275" x 86.5"
TRAVELS - X-AXIS: 275"
Y-AXIS: 98.4"
Z-AXIS: 31.5"
DISTANCE BETWEEN COLUMNS: 108"

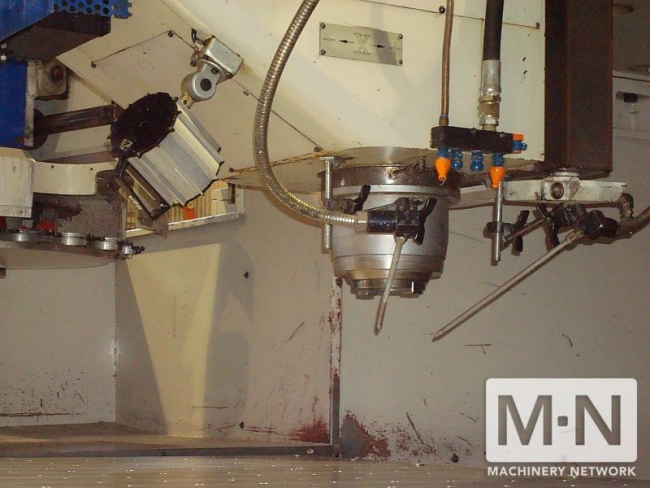

SPINDLE TAPER: CAT # 50
SPINDLE RPM: 4500 RPM
SPINDLE MOTOR: 35 HP
TOOL CHANGER CAPACITY: 20 TOOLS
RAPID TRAVERSE RATE (X&Y/Z): 472/393 IPM
MAX. CUTTING FEEDRATE: 315 IPM
MAX TOOL LENGHT: 13.7"
MAX TOOL DIAMETER: 7.8"
MAX TOOL WEIGHT: 44
MAX WORKPIECE WEIGHT: 33,069 LBS
APPROX. MACHINE WEIGHT: 98,000 LBS
EQUIPPED WITH:

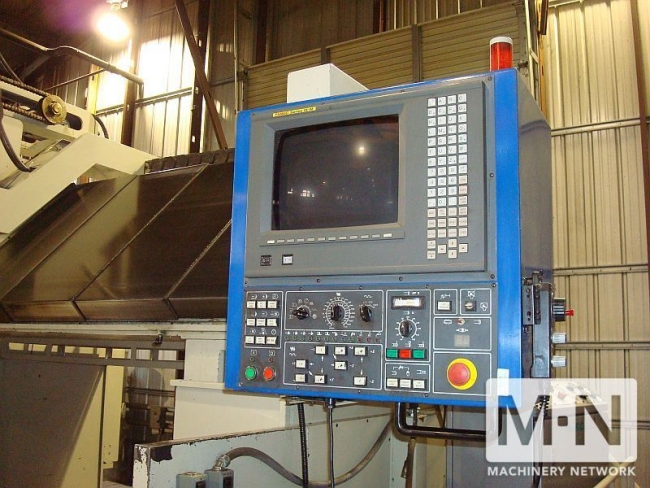

FANUC 15MB CONTROL - INCLUDING CUSTOM MACRO B
SCALE FEEDBACK ON X AXIS
275" x 90" VACUUM TABLE W/2X BUSCH VACUUM PUMPS

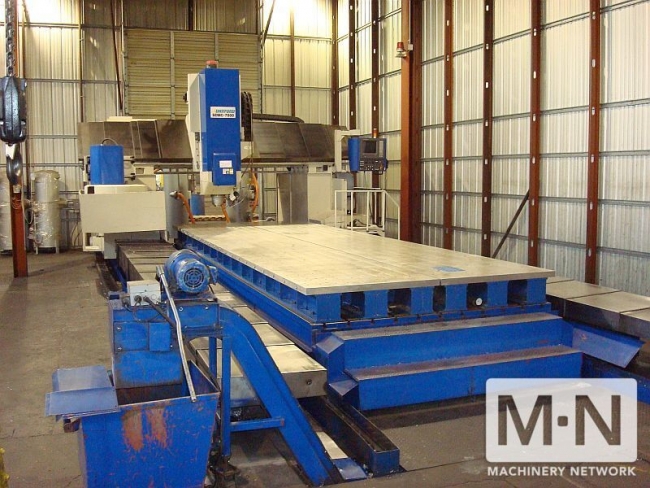

CHIP REMOVAL SYSTEM
FLOOD COOLANT
STANDARD GUARDING
OPTIONAL RENISHAW TS-27R TOOL PRESETTER
SOL. SHIFT GEARBOX UPGRADE
AIR CYLINDER BALL SCREW SUPPORT
MIST-R-COOL PORTABLE MIST COOLANT PUMP
SPECIFICATIONS:
TABLE SIZE: 275" x 86.5"
TRAVELS - X-AXIS: 275"
Y-AXIS: 98.4"
Z-AXIS: 31.5"
DISTANCE BETWEEN COLUMNS: 108"
SPINDLE TAPER: CAT # 50
SPINDLE RPM: 4500 RPM
SPINDLE MOTOR: 35 HP
TOOL CHANGER CAPACITY: 20 TOOLS
RAPID TRAVERSE RATE (X&Y/Z): 472/393 IPM
MAX. CUTTING FEEDRATE: 315 IPM
MAX TOOL LENGHT: 13.7"
MAX TOOL DIAMETER: 7.8"
MAX TOOL WEIGHT: 44
MAX WORKPIECE WEIGHT: 33,069 LBS
APPROX. MACHINE WEIGHT: 98,000 LBS
EQUIPPED WITH:
FANUC 15MB CONTROL - INCLUDING CUSTOM MACRO B
SCALE FEEDBACK ON X AXIS
275" x 90" VACUUM TABLE W/2X BUSCH VACUUM PUMPS
CHIP REMOVAL SYSTEM
FLOOD COOLANT
STANDARD GUARDING
OPTIONAL RENISHAW TS-27R TOOL PRESETTER
SOL. SHIFT GEARBOX UPGRADE
AIR CYLINDER BALL SCREW SUPPORT
MIST-R-COOL PORTABLE MIST COOLANT PUMP
