MYFORD MG-12

Type:

GRINDERS, CYLINDRICAL, UNIVERSAL

Manufacturer:

MYFORD

Model:

MG-12

Condition:

Not Specified

Year:

1974

Stock #:

26108

Status:

Sold

Description:

HF WITH ID SPINDLE

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

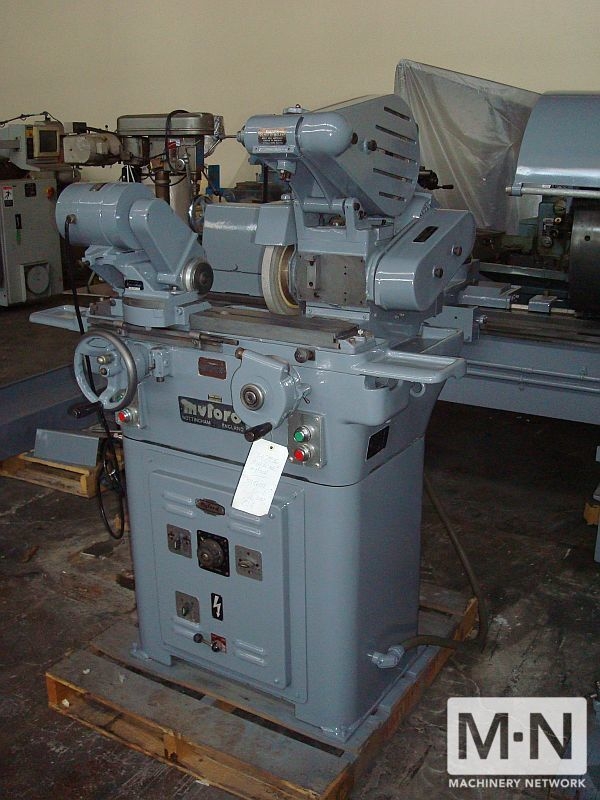

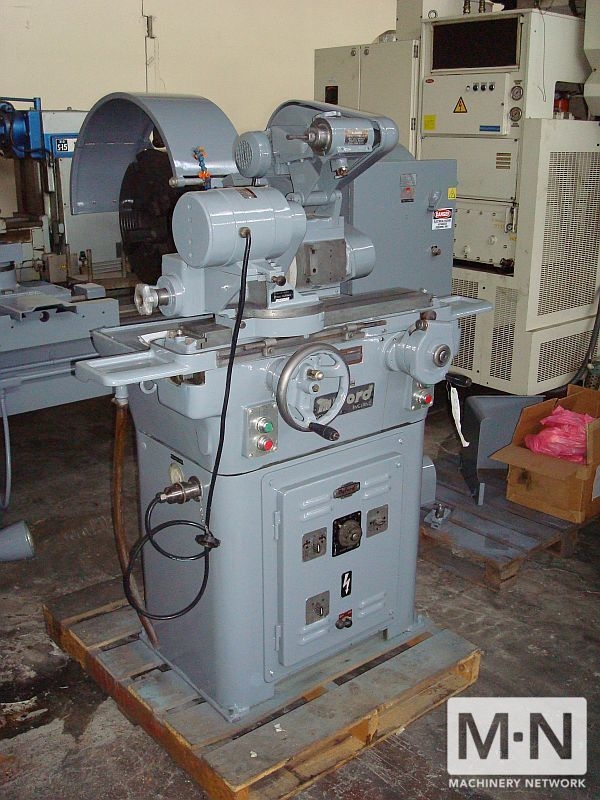

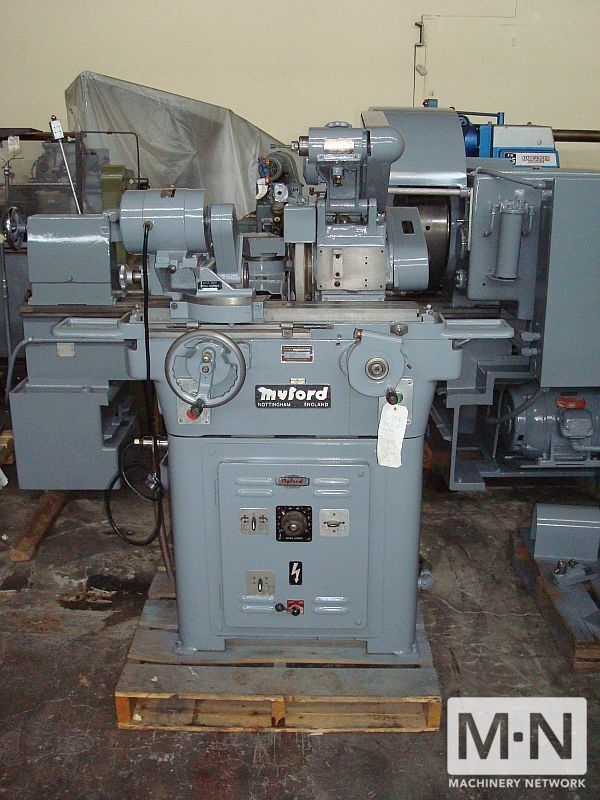

(1) Used 5"x12" Myford MG-12M Universal ID/OD Cylindrical Grinder, s/n: S118608, New 1974

Specifications:
Maximum Grinding Diameter .......... 3"
Swing Over Table ................... 5"
Maximum Table Travel ............... 13-1/2"
Capacity Between Centers ........... 12"
Table Swivels ...................... 7 Degrees
Table Travel Per Handwheel Rev ..... .7 & 2.04"
Wheel Head Graduations ............. .0001"
Fine Feed To Dead Stop ............. .000025"
Wheel Speeds ....................... 1830 & 1988 RPM
Grinder Wheel Recessed ............. 12" x 1-1/2" x 5"
Wheel Head Motor ................... 3 HP
Workhead Speeds .................... 50 To 900 RPM
Maximum Workhead Collet Capacity ... 3/4"
Capacity Through Standard Drawtube . 3/4"
Workhead Motor ..................... 1/3 HP
Approx. Weight ..................... 2400 Lbs.

Equipped With:

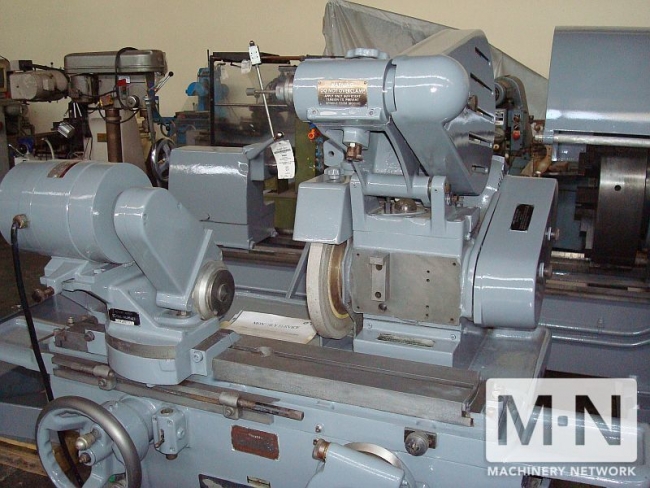

Swing Down ID spindle
Universal workhead
Collet Closer

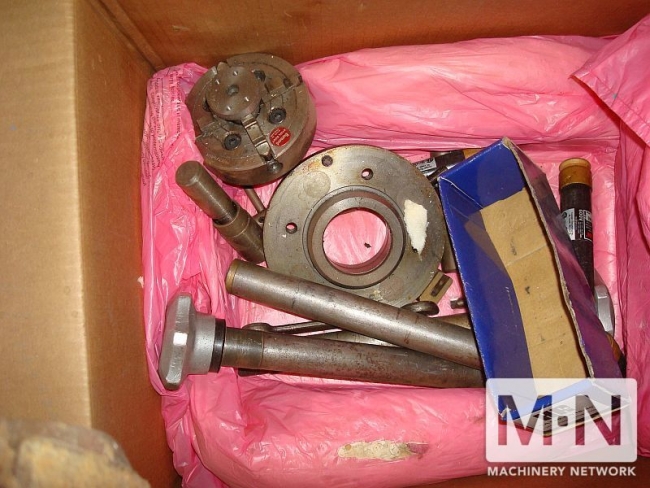

4" 4-jaw Chuck
Table Mounted Dresser

IN GOOD CONDITION AS REMOVED FROM SERVICE AT RAYTHEON FACILITY
INSPECT IN L.A. AREA
