SUPERTEC G10P-40M

Type:

GRINDERS, CYLINDRICAL, UNIVERSAL

Manufacturer:

SUPERTEC

Model:

G10P-40M

Condition:

Not Specified

Year:

2007

Stock #:

26526

Status:

Sold

Description:

NEW 8"x16", MANUAL FEED, 6 AVAIL.

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

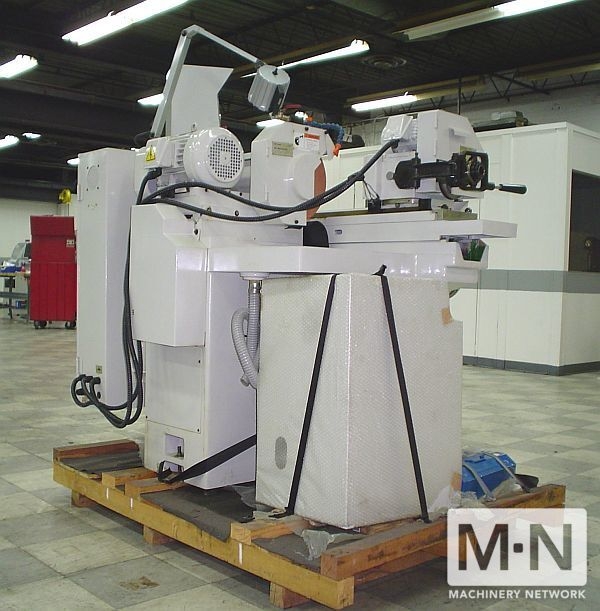

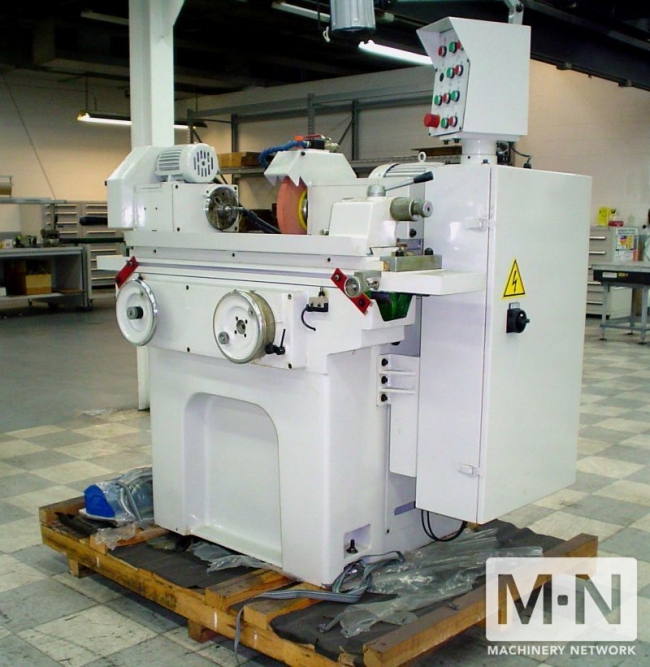

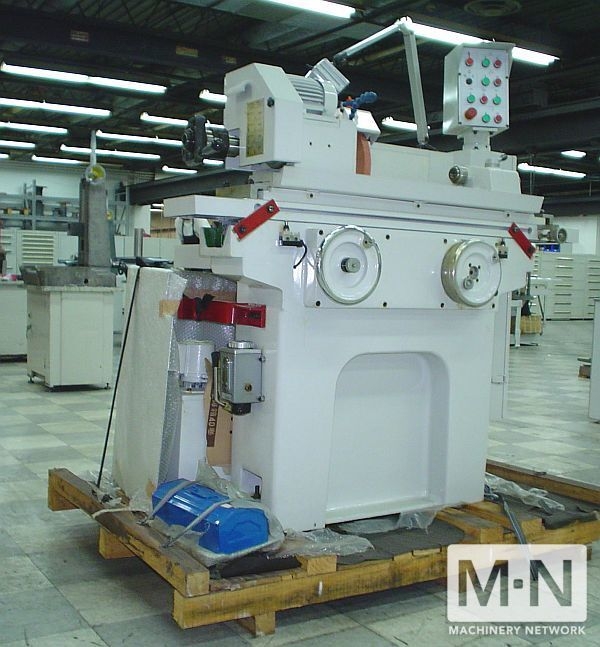

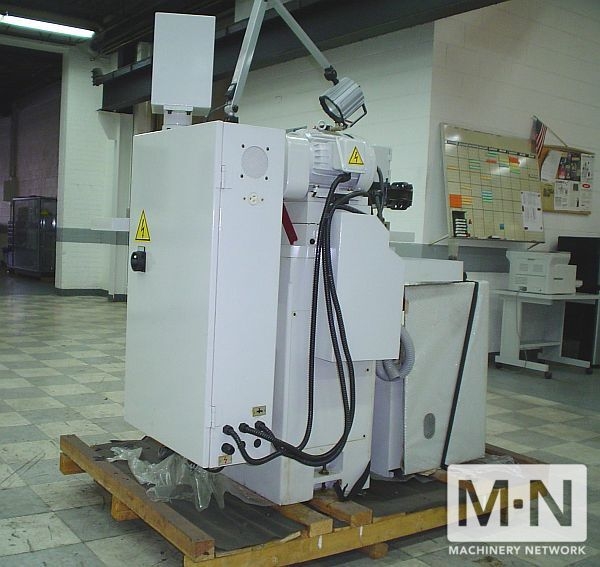

(1) 8" x 16" SUPERTEC G10P-40M UNIVERSAL CYLINDRICAL GRINDER, NEW 2007, NEVER USED!

SPECIFICATIONS
SWING OVER TABLE 8"
DISTANCE BETWEEN CENTERS 16"
MAX. WEIGHT B/W CENTERS: 110 LBS
WHEELHEAD - GRINDING WHEEL: 12" x 2" x 3" BORE
- GRINDING WHEEL SPEEDS: 1960 RPM
- HANDFEED TRAVEL: 4 1/5"
- INFEED PER H.W. REV.: 0.05"
- INFEED PER H.W. DIV.: 0.0002"
- MOTOR: 2 HP
TABLE - TRAVERSE SPEEDS: 67/108/211 RPM
- SWIVEL: +/- 8 DEG
WORKHEAD - SWIVEL: +/- 45 DEG
- SPINDLE TAPER: MT3
- SPINDLE SPEEDS (4): 150/264/356/480 RPM
- MOTOR: 1/4 HP
GROSS MACHINE WEIGHT: 2310 LBS
PACKING DIMS: 63"x45"x69"

EQUIPPED WITH:
Grinding wheel with flange
Balancing arbor
5C lever type collet closer
Tailstock
Auto lubrication system
Wheel extractor
Carbide tip center
Dressing attachment (mounted on tailstock)
Coolant system
Work light
Tool box with maintenance tools
Operator's manual and parts list

SWING DOWN INTERNAL GRINDING ATTACHMENT AND SPINDLE AVAILABLE FOR APPROX. $4500
