YANG GU27-100A
Type:
GRINDERS, CYLINDRICAL, UNIVERSAL
Manufacturer:
YANG
Model:
GU27-100A
Condition:
Not Specified
Year:
1996
Stock #:
34870
Status:
Sold
Description:
10.6"x40" ID/OD, auto infeed & plunge
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

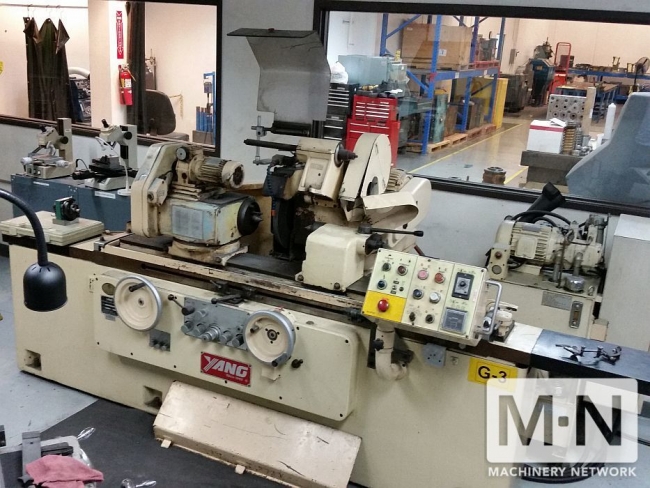

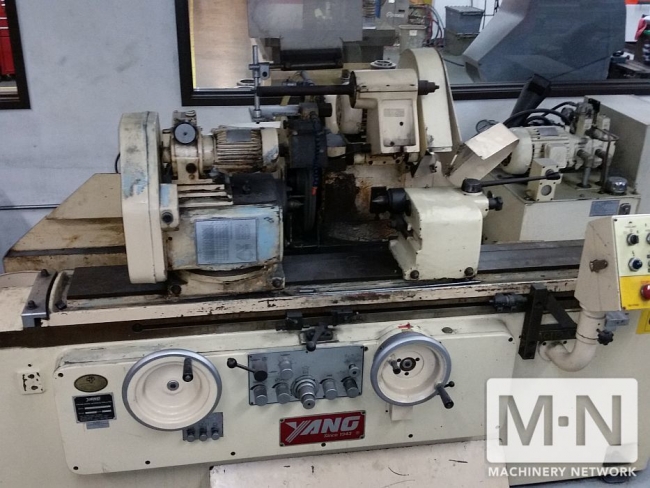

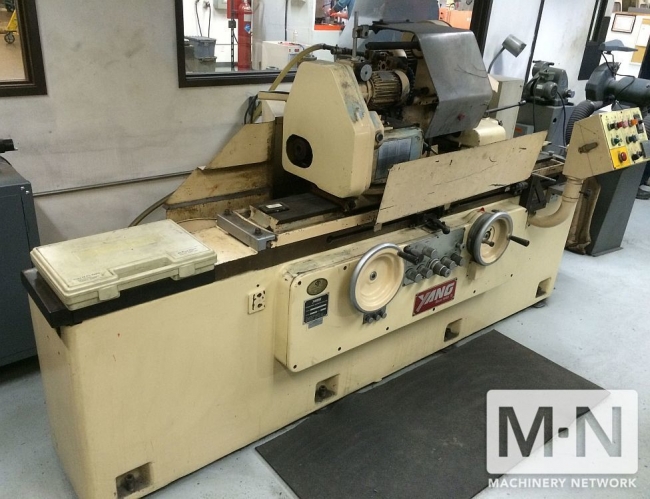

Untitled Document (1) USED 10.6" x 39.4" YANG GU27-100A UNIVERSAL ID/OD CYLINDRICAL GRINDER, NEW 1996
SPECIFICATIONS SWING OVER TABLE: 10.6" DISTANCE BETWEEN CENTERS: 39.4" MAX. WEIGHT B/W CENTERS: 286 LBS TABLE TRAVERSE SPEEDS: 2-155 IPM TABLE SWIVEL: 9 D.CW-4 D.CCW WHEEL HEAD - SWIVEL ANGLE: +/- 30 DEG. - STANDARD WHEEL SIZE: 14"OD x 2"W x 5"B - MAX WHEEL DIAMETER: 16" - WHEEL SPEEDS: 1700 - 1900 RPM - WHEEL MOTOR: 5 HP - MNL SLIDE TRAVEL: 6.9" - PWR RAPID SLIDE TRAVEL: 1.6" - AUTO INFEED INCREMENTS: 0.0001"-.0016" - AUTO PLUNGE: .0008-.060 IPM WORKHEAD - SWIVEL: 30 D.CW-45 D.CCW - SPINDLE SPEEDS: 46-360 RPM - SPINDLE MOTOR: 1 HP - SPINDLE TAPER: M.T. 4 TAILSTOCK - SPINDLE STROKE: 1 3/16" - SPINDLE TAPER: M.T. 4 APPROXIMATE MACHIN?E WEIGHT: 7500 LBS EQUIPPED WITH:

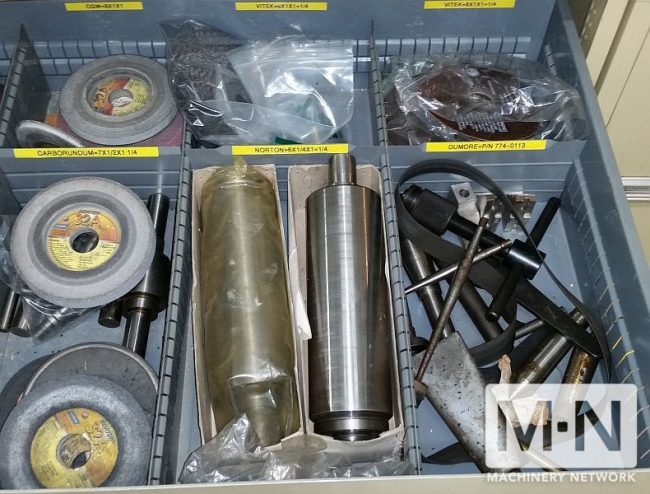

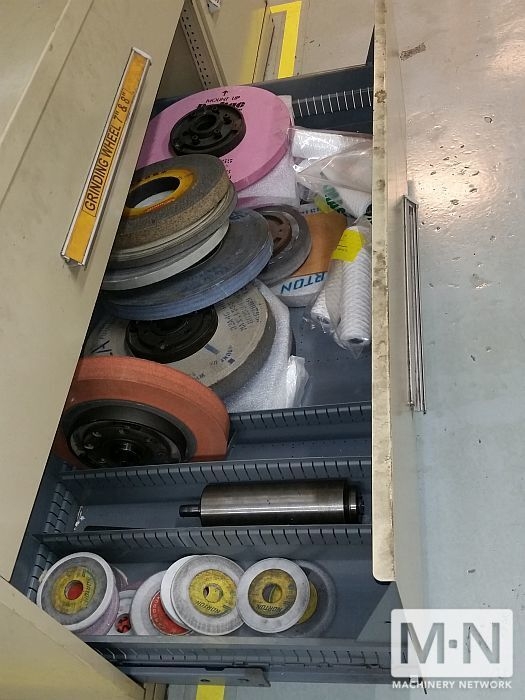

DROP-DOWN I.D. GRINDING ATTACHMENT HYDRODYNAMIC SPINDLE BEARINGS W/AUTO LUBE MEEHANITE CASTING DUAL RATE AUTO PLUNGE SPARKOUT TIMER HYD. WHEELHEAD RAPID ADVANCE & RETRACT 6" 3-JAW CHUCK DUAL LIVE/DEAD WORKHEAD SPINDLE 2 POINT STEADY REST, TABLE MOUNTED DRESSER, WHEEL BALANCER ASSORTMENT OF OD GRINDING WHEELS & ID GRINDING SPINDLES COOLANT SYSTEM WITH MAGNETIC SWARF SEPARATOR Video Available at https://youtu.be/LBB795T2Vf4
SPECIFICATIONS SWING OVER TABLE: 10.6" DISTANCE BETWEEN CENTERS: 39.4" MAX. WEIGHT B/W CENTERS: 286 LBS TABLE TRAVERSE SPEEDS: 2-155 IPM TABLE SWIVEL: 9 D.CW-4 D.CCW WHEEL HEAD - SWIVEL ANGLE: +/- 30 DEG. - STANDARD WHEEL SIZE: 14"OD x 2"W x 5"B - MAX WHEEL DIAMETER: 16" - WHEEL SPEEDS: 1700 - 1900 RPM - WHEEL MOTOR: 5 HP - MNL SLIDE TRAVEL: 6.9" - PWR RAPID SLIDE TRAVEL: 1.6" - AUTO INFEED INCREMENTS: 0.0001"-.0016" - AUTO PLUNGE: .0008-.060 IPM WORKHEAD - SWIVEL: 30 D.CW-45 D.CCW - SPINDLE SPEEDS: 46-360 RPM - SPINDLE MOTOR: 1 HP - SPINDLE TAPER: M.T. 4 TAILSTOCK - SPINDLE STROKE: 1 3/16" - SPINDLE TAPER: M.T. 4 APPROXIMATE MACHIN?E WEIGHT: 7500 LBS EQUIPPED WITH:
DROP-DOWN I.D. GRINDING ATTACHMENT HYDRODYNAMIC SPINDLE BEARINGS W/AUTO LUBE MEEHANITE CASTING DUAL RATE AUTO PLUNGE SPARKOUT TIMER HYD. WHEELHEAD RAPID ADVANCE & RETRACT 6" 3-JAW CHUCK DUAL LIVE/DEAD WORKHEAD SPINDLE 2 POINT STEADY REST, TABLE MOUNTED DRESSER, WHEEL BALANCER ASSORTMENT OF OD GRINDING WHEELS & ID GRINDING SPINDLES COOLANT SYSTEM WITH MAGNETIC SWARF SEPARATOR Video Available at https://youtu.be/LBB795T2Vf4
