SUPERTEC G25P-50NC

Type:

GRINDERS, CYLINDRICAL, UNIVERSAL

Manufacturer:

SUPERTEC

Model:

G25P-50NC

Condition:

Not Specified

Year:

2008

Stock #:

29388

Status:

Sold

Description:

10"x20", ID SPDL, PRGM INFEED

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

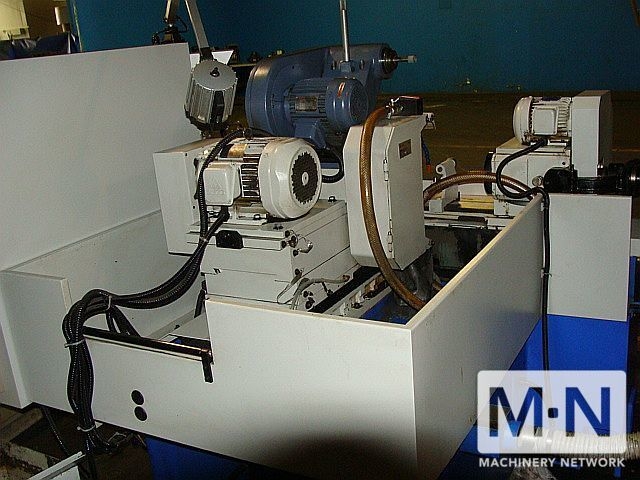

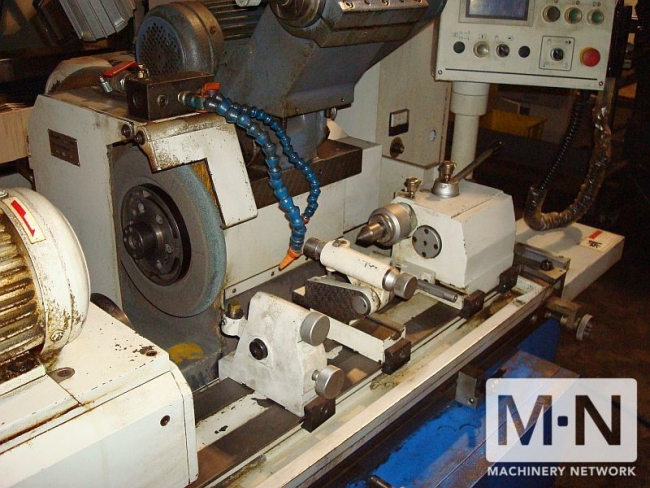

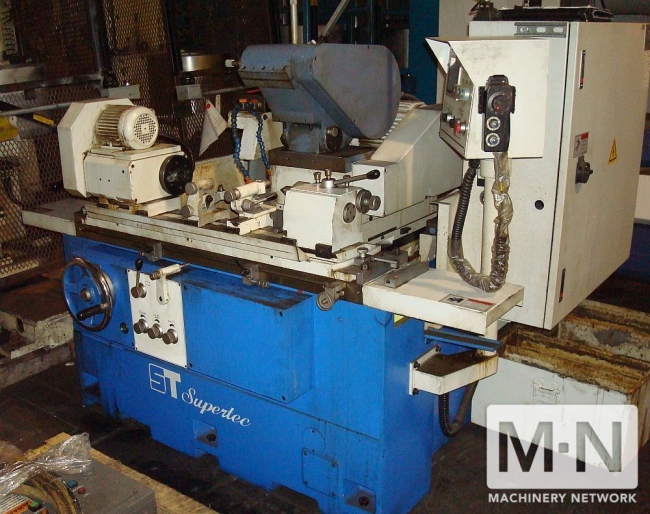

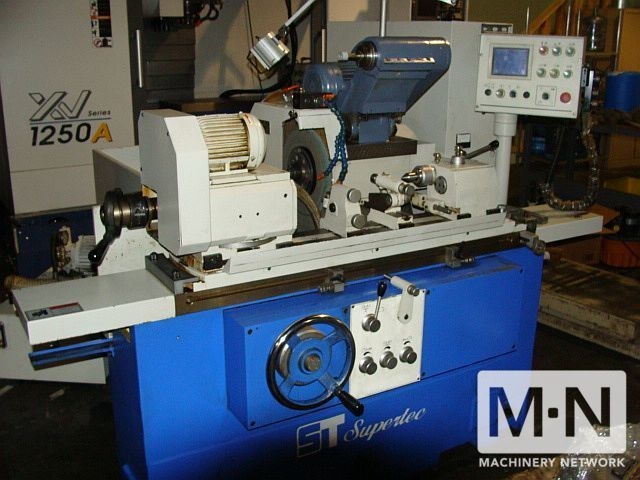

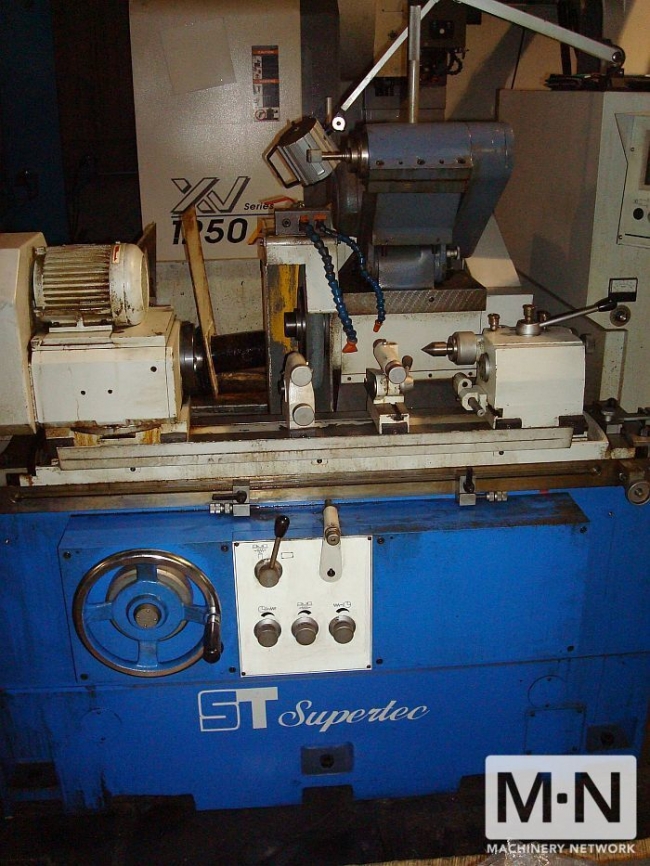

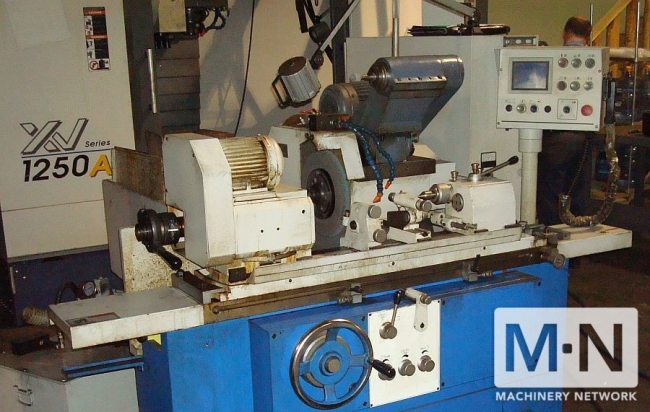

(1) USED 10"x20" SUPERTEC G25P-50NC UNIVERSAL ID/OD CYLINDRICAL GRINDER - S/N: GR08003, NEW 2008

SPECIFICATIONS
SWING OVER TABLE: 10.2"
MAX GRINDING DIAMETER: 10"
DISTANCE BETWEEN CENTERS: 20"
MAX WEIGHT B/W CENTERS: 175 LBS
GRINDING WHEEL DIMS: 14" X 1.5" X 5"B
SPINDLE SPEEDS: 1620 RPM
WHEELHEAD
- INFEED TRAVEL: 6.3"
- TOPSLIDE TRAVEL: 7"
- AUTO RAPID INFEED: 1.75"
- AUTO INFEED INCREMENT: .0001"-.0999"
- HAND FEED, PER REVOLUTION: .1"
- HAND FEED, PER GRADUATION: .0002"
- SPINDLE MOTOR: 3 HP
I.D SPINDLE
- MAX. GRINDING BORE: 2.76"
- MAX. GRINDING LENGTH: 2.8"
- MAX. CHUCKING LENGTH: 10.8"
- MAX CHUCKING DIAMETER: 4"
- SPINDLE MOTOR: .5 HP
WORKHEAD
- SWIVEL: 45 DEG.
- TAPER: MT 3
- SPINDLE SPEEDS: 150, 480 RPM
TAILSTOCK
- CENTER TAPER: MT 3
- QUILL TRAVEL: 1"
TABLE
- SWIVEL: +/- 8 DEG
- TRAVERSE SPEEDS: 33, 58 & 100 FPM
GROSS WEIGHT: 5000 LBS
APPROX DIMENSIONS: 87"x55"x75"

EQUIPPED WITH:

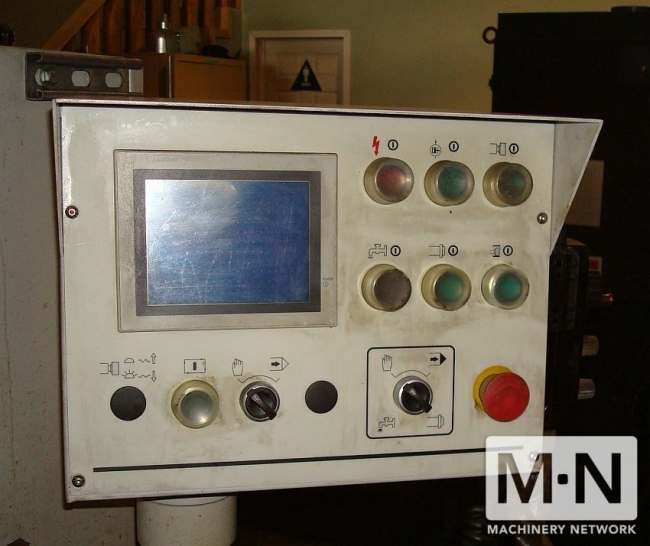

PROGRAMMABLE AUTOMATIC INFEED VIA PLC CONTROL

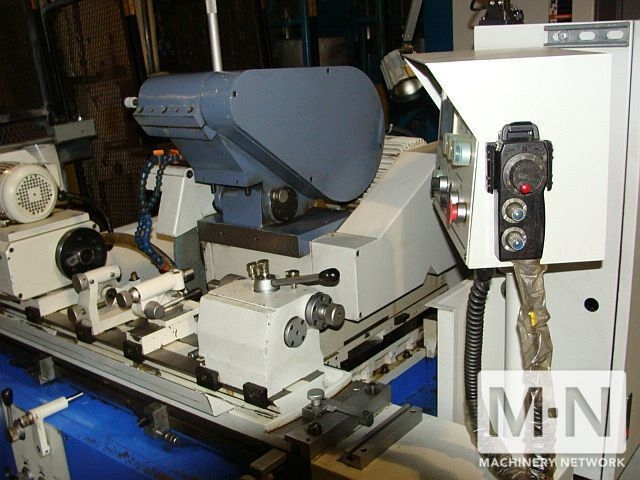

MANUAL PULSE GENERATOR
25,000 RPM I.D. SPINDLE
TABLE MOUNTED DRESSER
STEADY REST
MANUAL

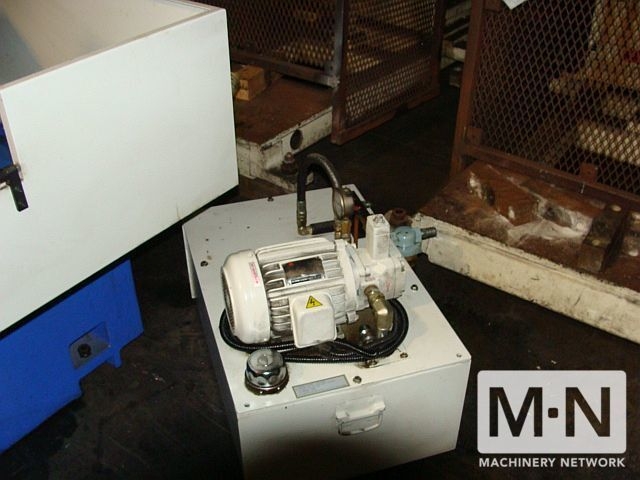

COOLANT TANK

INSPECT IN L.A. AREA
