OKAMOTO OGM-820UST

Type:

GRINDERS, CYLINDRICAL, UNIVERSAL

Manufacturer:

OKAMOTO

Model:

OGM-820UST

Condition:

Not Specified

Year:

1998

Stock #:

35228

Status:

Sold

Description:

8" x 20" Universal OD/ID Grinder, auto feed, coolant

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

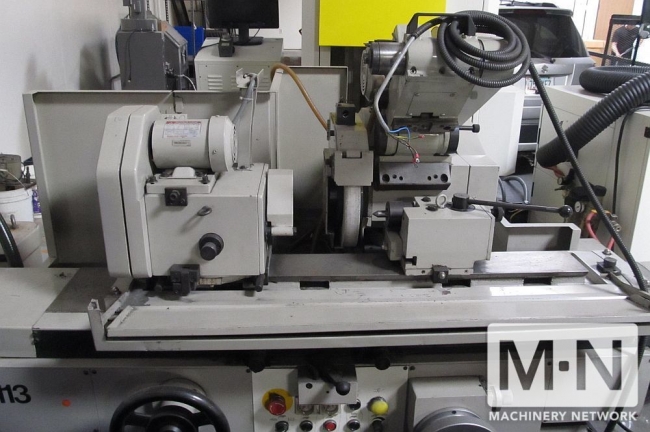

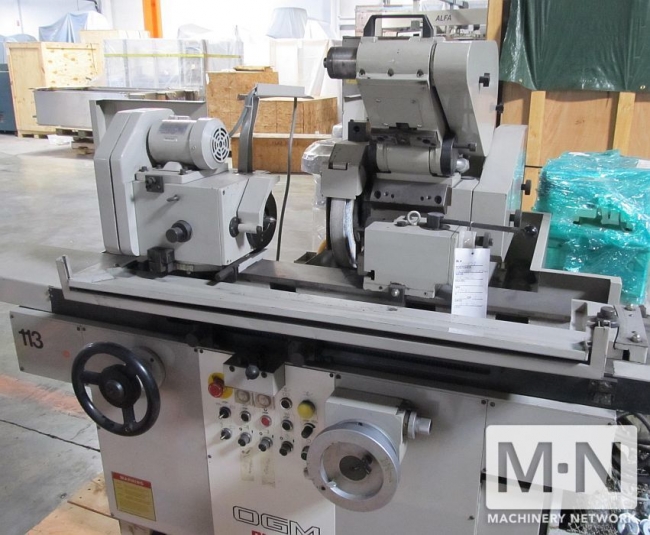

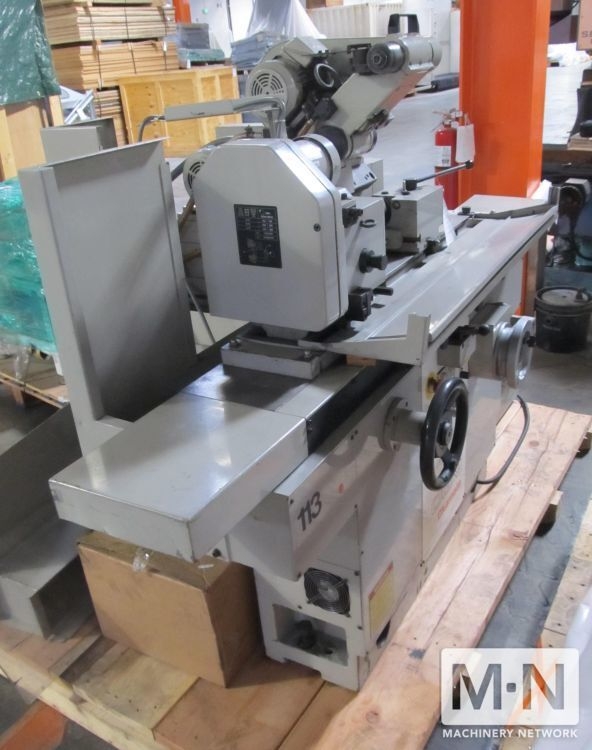

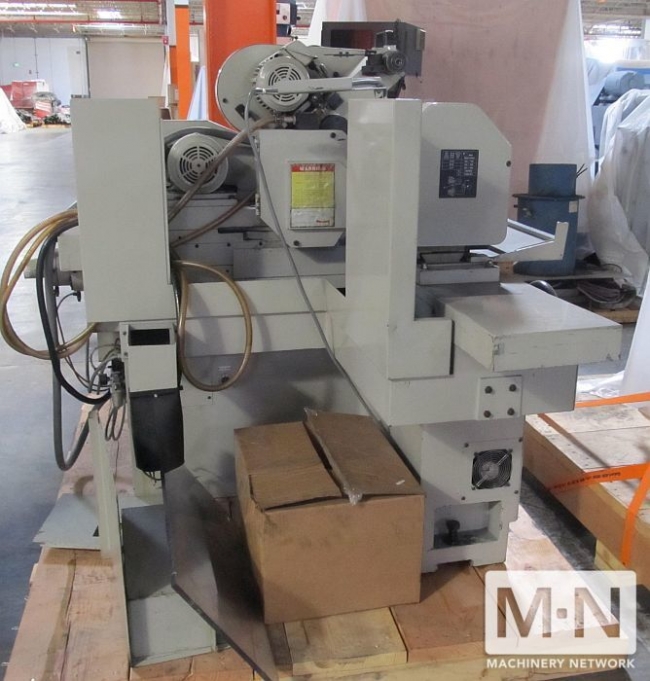

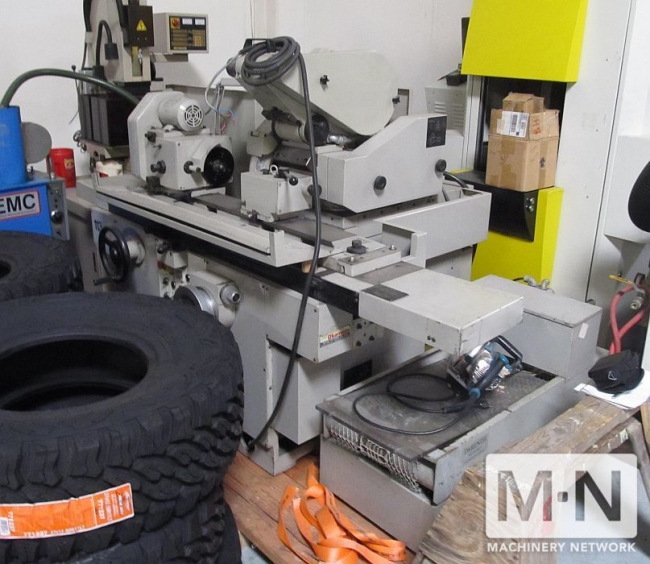

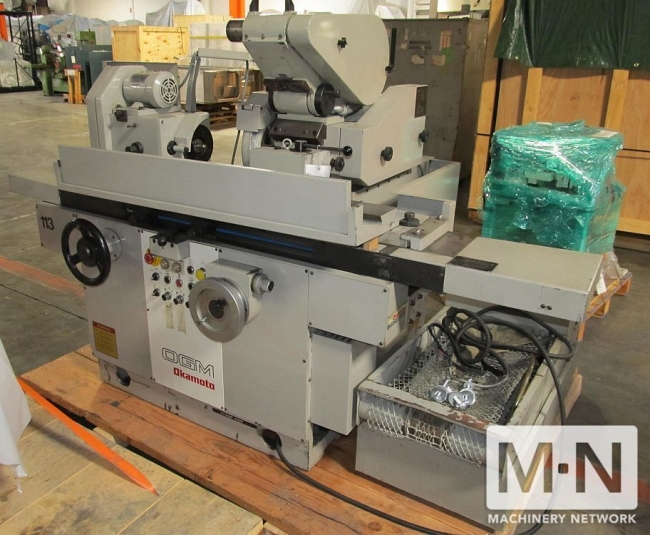

(1) Used 8" x 20" Okamoto OGM-820UST Precision Universal ID/OD Cylindrical Grinder
s/n 13021, New 1998

Specifications
Swing over table 8.66"
Distance between centers 19.68"
Maximum working diameter 7.87"
Maximum weight between centers 132 lbs
Wheelhead
Grinding wheel dimensions 12"D x 1"W x 5" bore
Grinding wheel motor 2 HP
Max. working surface speed 6557 FPM
Travel 7.2"
Swivel 30 degrees.
Least travel increment 0.0005" on diameter
Fine adjustment 0.0001" on diameter
Handwheel feed rate, per rev. 0.1" travel
Table
Z-axis travel 25.59"
Table swivel +4 to -9 degrees
Handwheel feed rate, per rev. 0.3" travel
Automatic feed rate 2-157.5 IPM

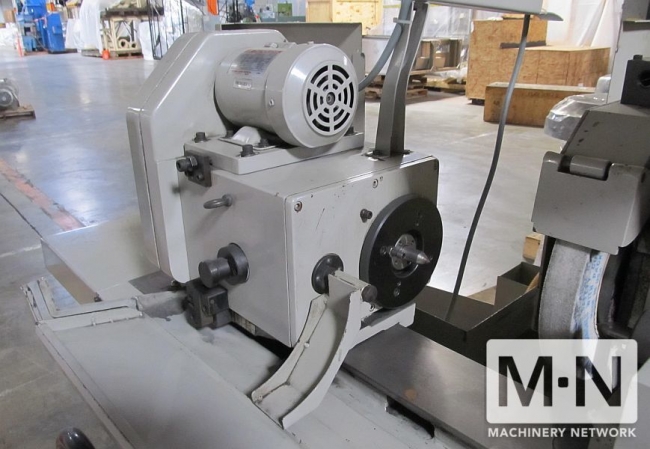

Workhead
Spindle Dead-live
Center taper #2 Morse
Thru-hole diameter 0.55"
Speeds, via belt change on step pulley 180, 300, 480, 515, 650 RPM
Swivel +30 to - 90
Tailstock
Spindle Travel 0.79"
Center Taper #2 Morse
Approximate Weight 4,180 Lbs.
Approximate Dims (Machine Only): 89" LR x 63" FB x 50.79"H

Equipped with:
Automatic incremental infeed

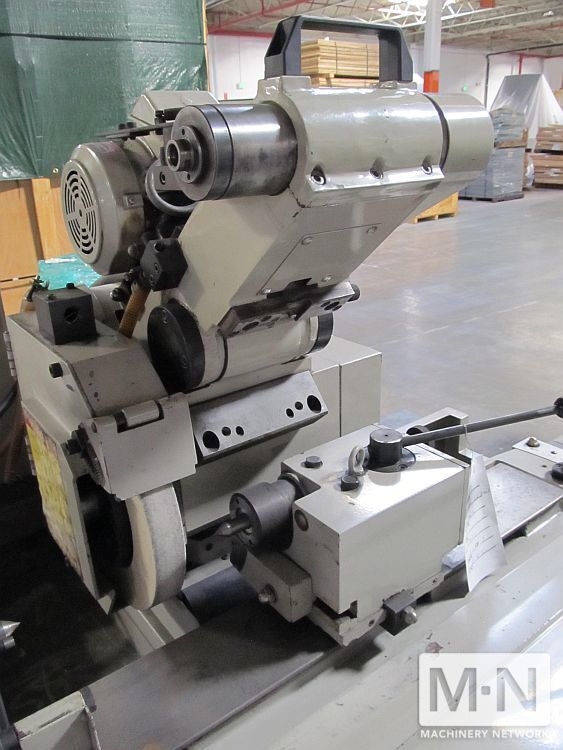

Swing down ID attached with ID grinding spindle

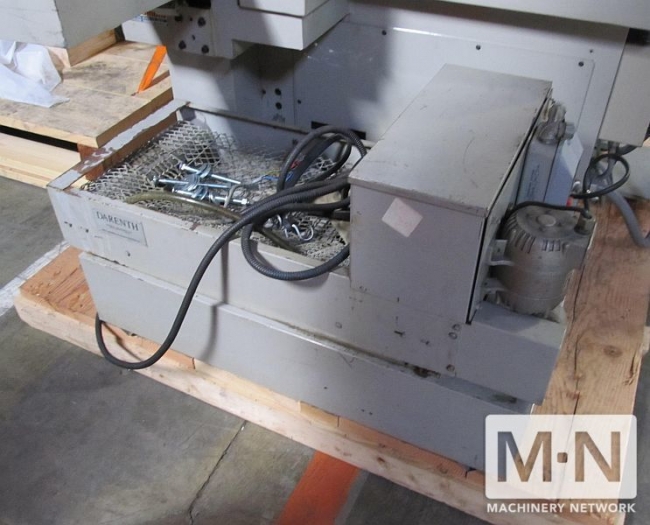

Darenth coolant tank with paper filter & swarf conveyor
Manual
