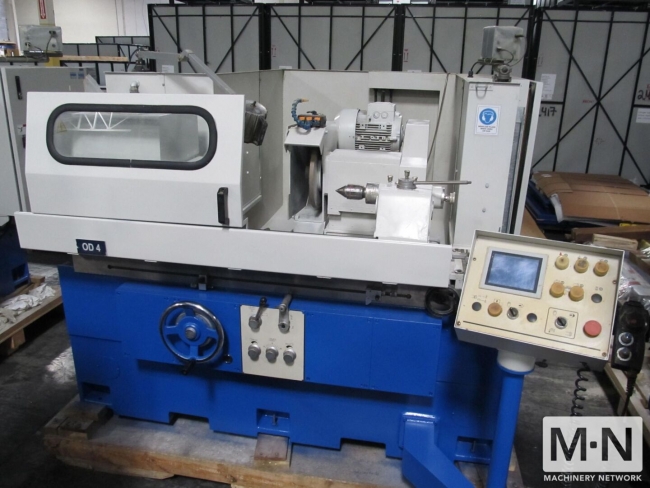

Supertec G38P-60NC Universal Cylindrical Grinder

Type:

GRINDERS, CYLINDRICAL, UNIVERSAL

Manufacturer:

SUPERTEC

Model:

G38P-60NC

Condition:

Used - Good

Year:

2010

Stock #:

36345

Status:

For Sale

Description:

auto, metric

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) Used Supertec G38P-60NC Programmable Universal Cylindrical Grinder
New 2010
* Metric machine

Specifications:
Swing over table 15"
Max. grinding diameter 14"
Distance between centers: 24"
Max. load between centers: 330 lbs
Wheelhead
Hand feed travel: 7.8"
Auto infeed increment: 0.0001 - 0.0999"
Auto rapid infeed: 1.75"
Swivel: +/- 30 deg
Grinding wheel dims: 16" x 2"W x 5" bore
Grinding wheel speed: 1650 RPM
Grinding spindle motor: 7.5 HP
Table
Swivel: +/- 9 deg
Traverse speeds (inf variable): 1.2 - 275 IPM
Workhead
Swivel: 90 deg
Spindle taper: MT4
Spindle speeds (inf, variable): 30 - 350 RPM
Motor: 2 HP
Tailstock
Quill travel: 1"
Taper: MT4
Machine dimensions: 120" x 90" x 79"H
Machine weight 9500 lbs

Equipped with:
Mitsubishi PLC control - can only be programmed in metric increments
Programmable infeed
Digital readouts
Coolant system
