TOSHIBA MPF-2140(5A)
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
TOSHIBA
Model:
MPF-2140(5A)
Condition:
Not Specified
Year:
1998
Stock #:
24626
Status:
Sold
Description:
TOSNUC T888 , TBLE: 157.5" X 70.9", TRVLS: 157.5"" x 82.7" x 23.6", 12K RPM, #50, 36ATC
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

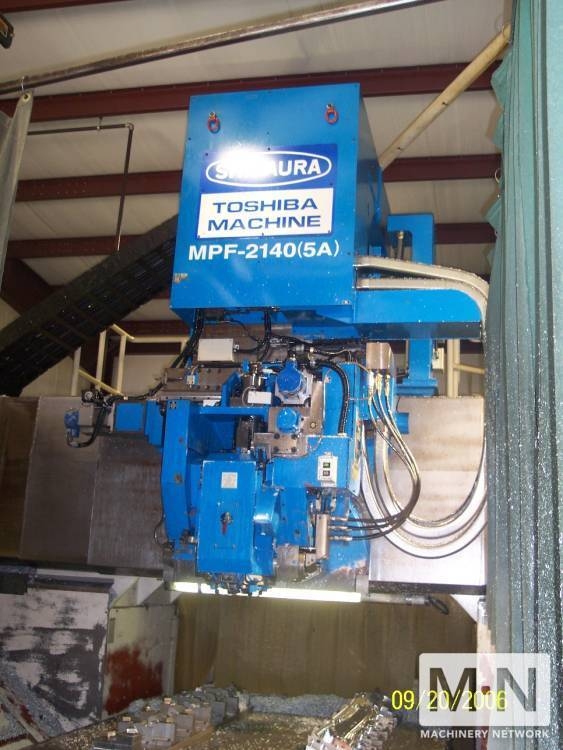

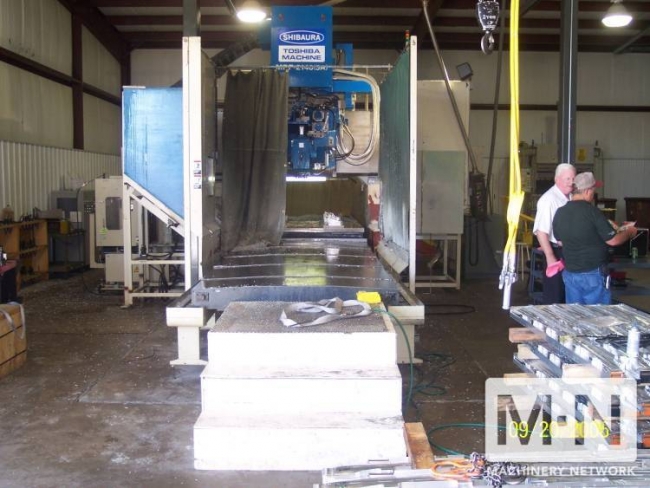

(1) USED TOSHIBA 5-AXIS MODEL MPF-2140(5A) DOUBLE COLUMN MACHINING CENTER NEW 1999
SPECIFICATIONS:
TABLE SIZE 157.5" X 70.9"
TABLE TRAVELS (X-AXIS) 157.5"
(Y-AXIS) 82.7"
(Z-AXIS) 23.6"
DISTANCE BETWEEN COLUMNS 82.7"
DISTANCE TBL TOP - SDL NOSE 43.3"
MAIN SPINDLE SPEEDS 50 - 12,000 RPM
RAPID TRAVERSE RATE (X,Y) 787.4" IPM
RAPID TRAVERSE RATE (Z) 939.7" IPM
CUTTING FEEDRATE OF TBL 939.7" IPM
SPINDLE TAPER #50
SPINDLE MOTOR: 50/60HP
SPINDLE TOOL CHANGER: 24 ATC
SPINDLE NOSE TO TABLE TOP 1" - 24.6"
SPINDLE TORQUE 31.8 FT. LBS.
A: +/- 30 DEGREES
B: +/- 30 DEGREES
TABLE LOAD CAPACITY 44,000 LBS.
TOOL CHANGE TIME 14 SECONDS
MAX TOOL DIAMETER 9.4"
MAX TOOL LENGTH 17.7"
MAX TOOL WEIGHT 55 LBS.
MACHINE DIMENSIONS (LWH) 501.8" X 286.1" X 171.8"
MACHINE WEIGHT 89,288 LBS.
EQUIPPED WITH:
TOSNUC 888 CNC 5-AXIS CONTROL 32 BIT CPU PROCESSOR
5-AXIS MACHINING CAPABILITY

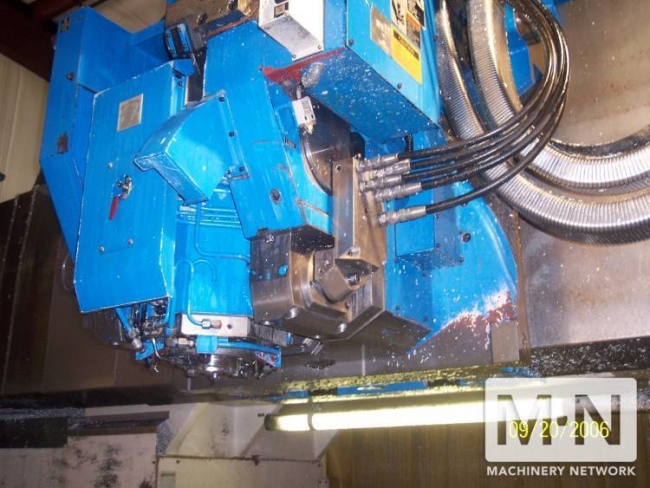

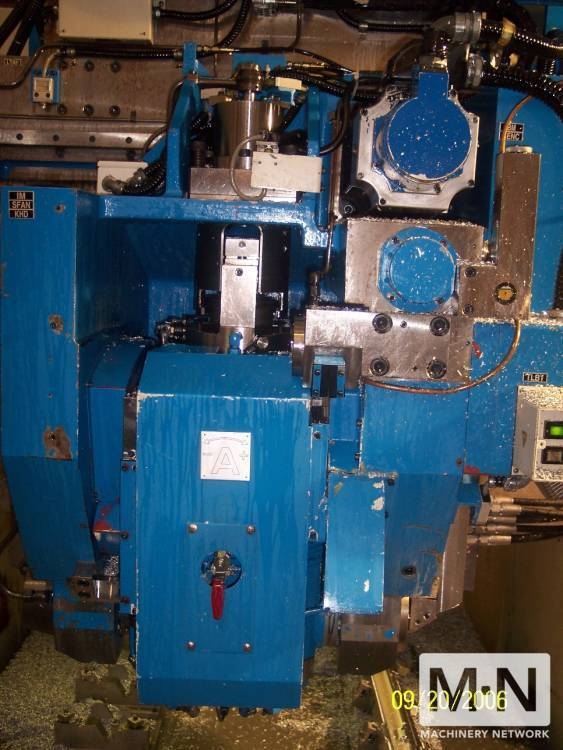

ARTICULATING HEAD WITH 60 DEGREE TILT AND SWIVEL CAPABILITY
A & B AXIS USES PINION SYSTEM FOR EXTRA RIGIDITY.
X,Y,Z FEEDBACK SCALES, AIR BLOW,SIDE MOUNT COVERS,
PORTABLE EXTERNAL DATA INPUT/OUTPUT UNIT

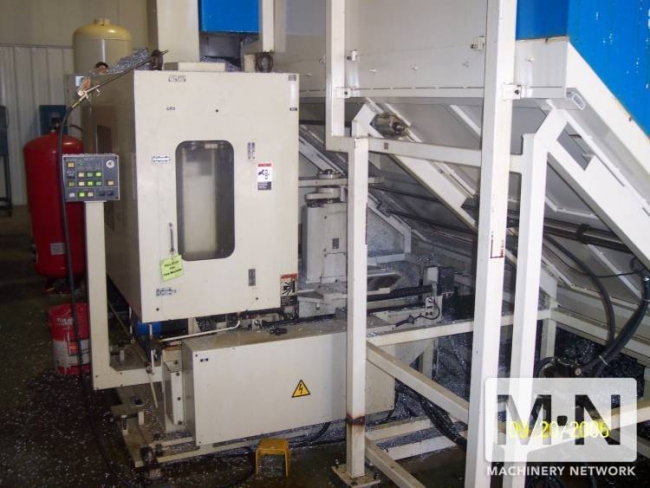

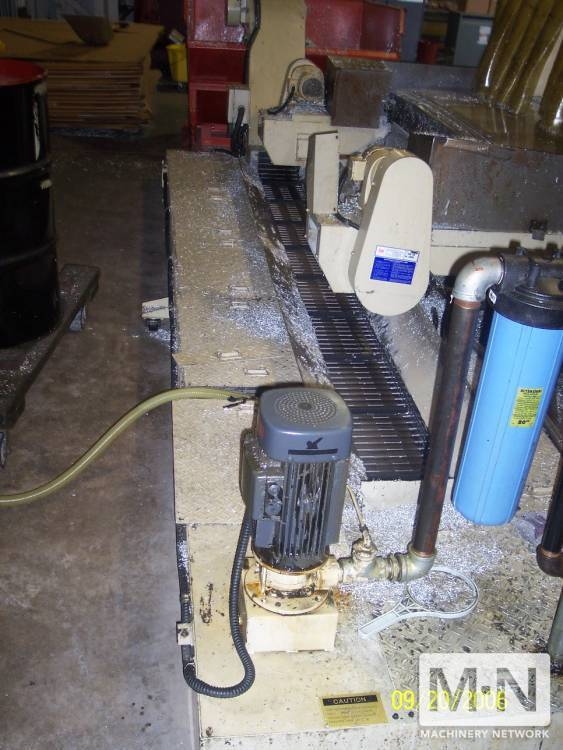

DUAL FILTRATION CHIP CONVEYORING SYSTEM,
MACHINING OF REFERENCE GROOVES ON TABLE SURFACE
SWING TYPE PENDENT OPERATION BOX
AUTOMATIC TOOL LENGTH MEASUREMENT
AUTOMATIC MEASURING SYSTEM
DNC OPERATION, EXTERNAL DATA INPUT
MACHINE SELLS NEW FOR $1,4 MILLION WITH A 2 YEAR DELIVERY
SPECIFICATIONS:
TABLE SIZE 157.5" X 70.9"
TABLE TRAVELS (X-AXIS) 157.5"
(Y-AXIS) 82.7"
(Z-AXIS) 23.6"
DISTANCE BETWEEN COLUMNS 82.7"
DISTANCE TBL TOP - SDL NOSE 43.3"
MAIN SPINDLE SPEEDS 50 - 12,000 RPM
RAPID TRAVERSE RATE (X,Y) 787.4" IPM
RAPID TRAVERSE RATE (Z) 939.7" IPM
CUTTING FEEDRATE OF TBL 939.7" IPM
SPINDLE TAPER #50
SPINDLE MOTOR: 50/60HP
SPINDLE TOOL CHANGER: 24 ATC
SPINDLE NOSE TO TABLE TOP 1" - 24.6"
SPINDLE TORQUE 31.8 FT. LBS.
A: +/- 30 DEGREES
B: +/- 30 DEGREES
TABLE LOAD CAPACITY 44,000 LBS.
TOOL CHANGE TIME 14 SECONDS
MAX TOOL DIAMETER 9.4"
MAX TOOL LENGTH 17.7"
MAX TOOL WEIGHT 55 LBS.
MACHINE DIMENSIONS (LWH) 501.8" X 286.1" X 171.8"
MACHINE WEIGHT 89,288 LBS.
EQUIPPED WITH:
TOSNUC 888 CNC 5-AXIS CONTROL 32 BIT CPU PROCESSOR
5-AXIS MACHINING CAPABILITY
ARTICULATING HEAD WITH 60 DEGREE TILT AND SWIVEL CAPABILITY
A & B AXIS USES PINION SYSTEM FOR EXTRA RIGIDITY.
X,Y,Z FEEDBACK SCALES, AIR BLOW,SIDE MOUNT COVERS,
PORTABLE EXTERNAL DATA INPUT/OUTPUT UNIT
DUAL FILTRATION CHIP CONVEYORING SYSTEM,
MACHINING OF REFERENCE GROOVES ON TABLE SURFACE
SWING TYPE PENDENT OPERATION BOX
AUTOMATIC TOOL LENGTH MEASUREMENT
AUTOMATIC MEASURING SYSTEM
DNC OPERATION, EXTERNAL DATA INPUT
MACHINE SELLS NEW FOR $1,4 MILLION WITH A 2 YEAR DELIVERY
