INGERSOLL IMTA POWERMILL 378

Type:

MACHINING CENTERS, GANTRY TYPE, N/C & CNC

Manufacturer:

INGERSOLL IMTA

Model:

POWERMILL 378

Condition:

Not Specified

Year:

1999

Stock #:

23799

Status:

Sold

Description:

SELCO S4040D CTRL, 144.5" x 97" x 43", HSK 63, 16 ATC, 24K RPM, RENISHAW PROBE, BALANCER

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

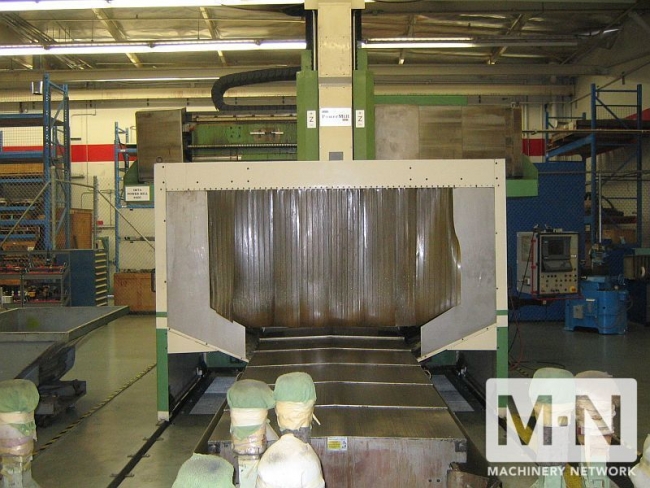

(1) USED IMTA POWERMILL 378 CNC HIGH SPEED BRIDGE-TYPE MACHINE MANUFACTURED BY: INGERSOLL
NEW:1999 INSTALLED:2000

SPECIFICATIONS:

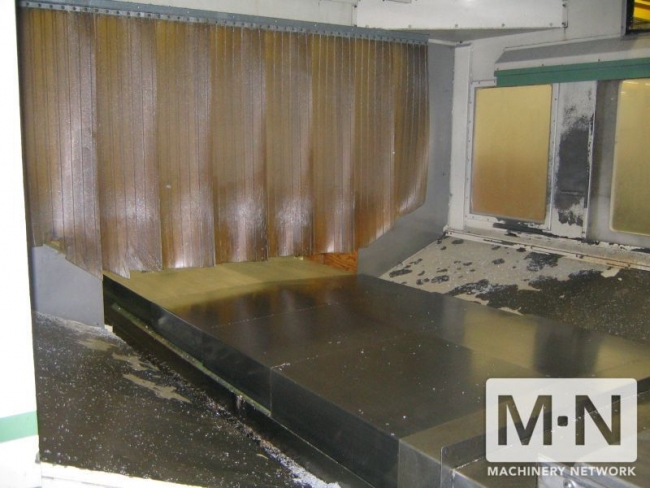

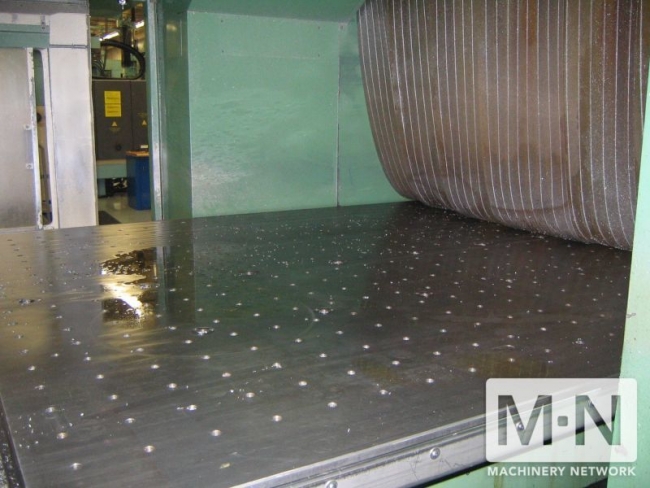

TABLE SIZE: 82" X 145.5"
TRAVELS -X AXIS: 144.5"
-Y AXIS: 97"
-Z AXIS: 43"

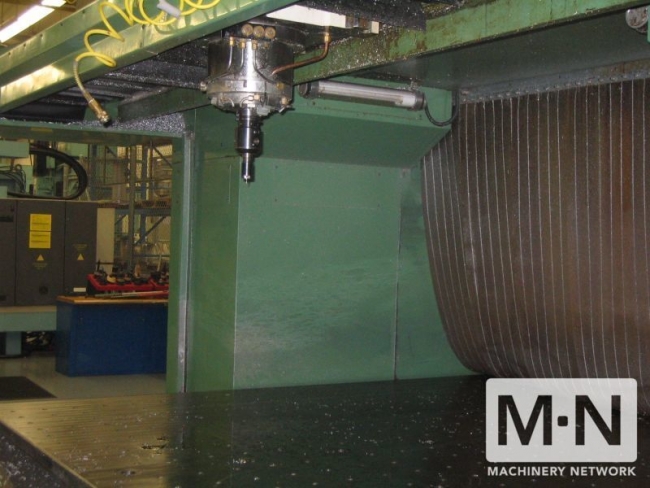

SPINDLE SPEED: 24000 RPM
SPINDLE TAPER: HSK-63 E TAPER
AXIS FEEDRATES: 20,000MM/MIN. 787 IPM (X;Y;Z)
RAPID TRAVERSE RATE 20,000MM/MIN 787 IPM (X;Y;Z)
HORESPOWER: 44/53HP
TOOLS: 16 ATC
POWER: 460 V

EQUIPPED WITH:

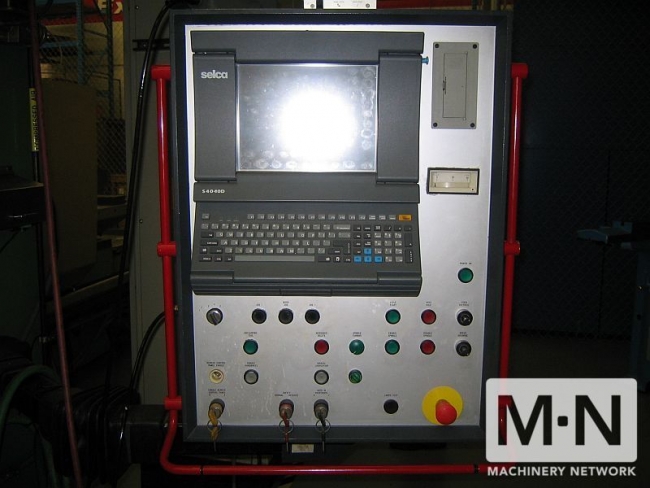

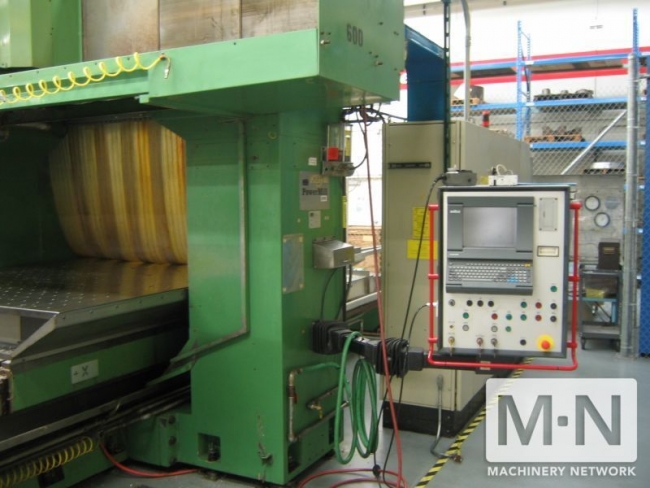

SELCA S4040D WINDOWS NT BASED FULL COLOR CNC CONTROL

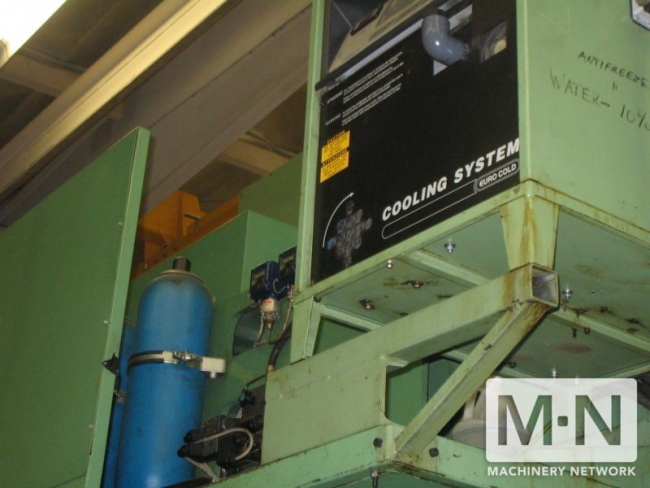

COOLANT THRU SPINDLE (550 PSI)
RENISHAW PART PROBE - MP-1
CEB TOOL BALANCER MODEL :ZE20
SUB-TABLE(NEVER USED)
BULLET PROOF GLASS FOR HIGH SPEED MACHINING
CIRCULAR INTERPOLATION
99 OFFSETS

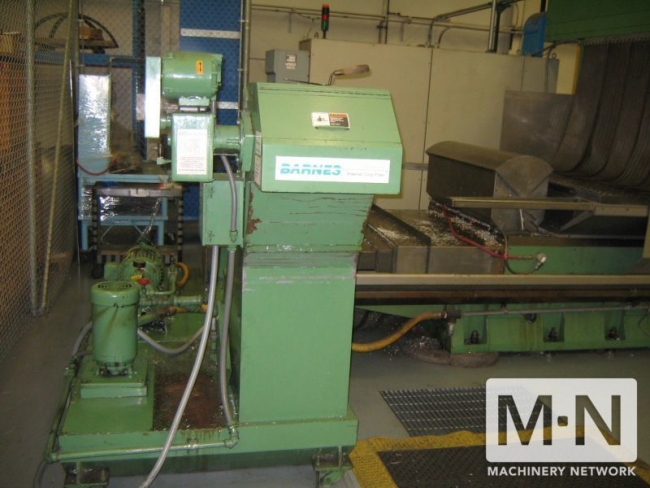

CHIP CONVEYOR(BARNES)
FULL ENCLOSURES
ASSORTMENT OF TOOLING
ADDITIONAL SAFETY FEATURES
ALL AVAILABLE MANUALS

MACHINE HAS ONLY RUN ALUMINNUM IN FORTUNE 500 COMPANY ON
THE WEST COAST. THIS MACHINE WAS BUILT FOR SPEED,POWER AND ACCURACY!!CAN RUN ALUMINUM,COPPER AND DO FINISHING WORK ON
STEEL PARTS.

**** BROCHURE AVAILABLE ON REQUEST *****
