SHIGIYA GUA 27-60

Type:

GRINDERS, CYLINDRICAL, UNIVERSAL

Manufacturer:

SHIGIYA

Model:

GUA 27-60

Condition:

Not Specified

Year:

1981

Stock #:

23384

Status:

Sold

Description:

UNIV W/ID, AUTO, S.O.

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

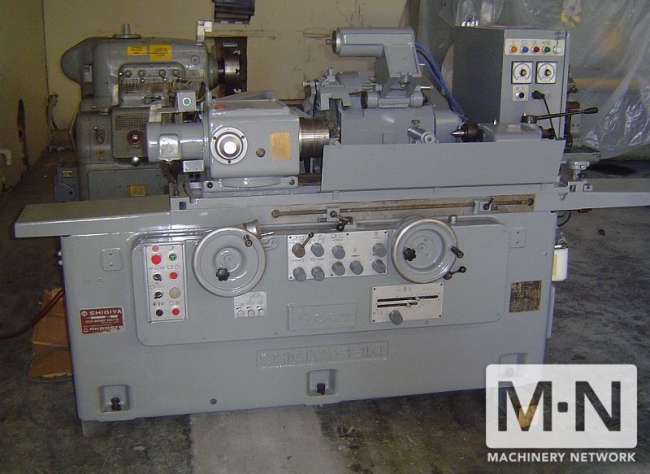

(1) USED SHIGIYA SEIKI GUA 27-60 UNIVERSAL ID/OD
CYLINDRICAL GRINDER, S/N: 30031, NEW 1981

SPECIFICATIONS
SWING OVER TABLE 10.6"
DISTANCE BETWEEN CENTERS 24"
WHEEL HEAD:
- SWIVEL ANGLE +/- 30 DEG.
- WHEEL SIZE 14" X 6" X 2"
- WHEEL SPEEDS 1660 - 1880 RPM
- WHEEL MOTOR 5 HP
- MNL SLIDE TRAVEL 6.9"
- PWR RAPID SLIDE TRAVEL 1.6"
WORKHEAD:
- SWIVEL 120 DEGREES
- SPINDLE SPEEDS (STEPLESS) 20 - 300 RPM
- SPINDLE MOTOR 1 HP
- SPINDLE TAPER M.T. 4
TAILSTOCK:
- SPINDLE STROKE 1.2"
- SPINDLE TAPER M.T. 4
APPROX. MACHINE WEIGHT: 5800 LBS

EQUIPPED WITH:

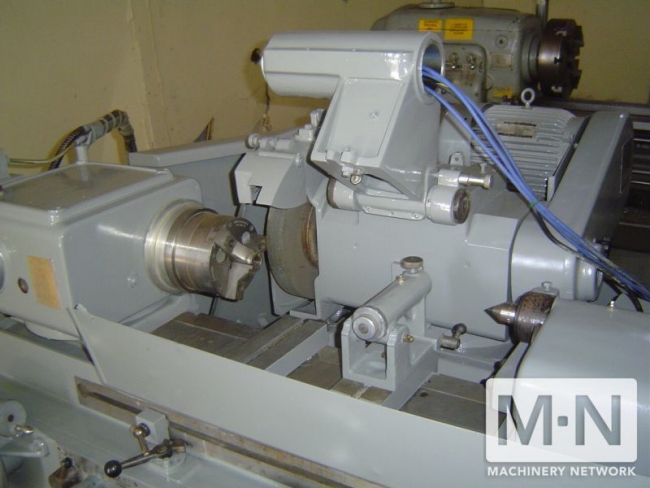

DROP DOWN I.D. GRINDING ATTACHMENT

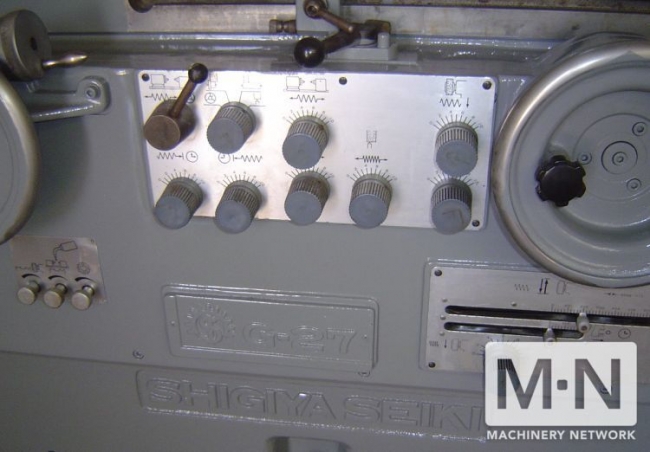

HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-ADJUSTABLE TABLE DWELL
-AUTO INFEED
-PLUNGE INFEED
-RAPID WHEELHEAD ADVANCE & RETRACTION

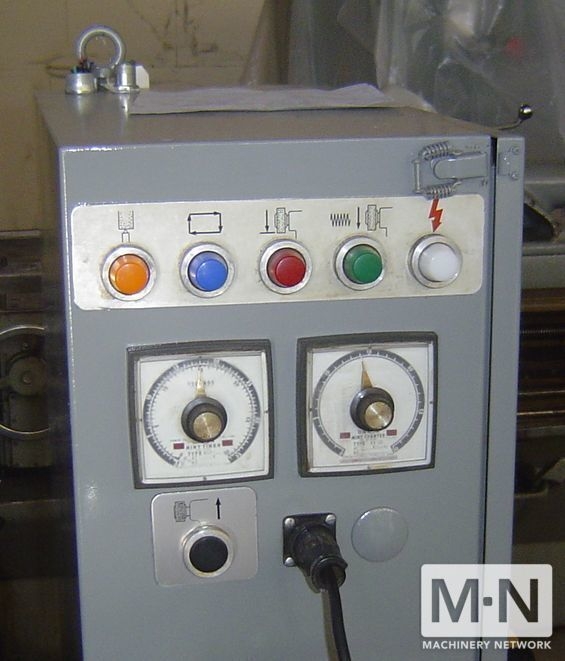

INDEPENDENT SPARKOUT TIMERS FOR AUTO INFEED & PLUNGE GRINDING OPERATIONS
WHEELHEAD FEATURES HYDROSTATIC BEARING DESIGN
(AUTO-PRESSURE LUBRICATED)
EXTERNAL HYDRAULIC SYSTEM
AUTOMATIC LUBRICATION SYSTEM
DUAL LIVE/DEAD WORKHEAD SPINDLE
6" 3-JAW CHUCK

*INSPECT IN CALIFORNIA
