DOOSAN DBC130
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
DOOSAN
Model:
DBC130
Condition:
Not Specified
Year:
2012
Stock #:
37823
Status:
Sold
Description:
5" DIAM, FANUC 31-iA, APC, 157"x98"x78", (2) 79" X 71" PLLTS,, 60 ATC, 2500 RPM, CTS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

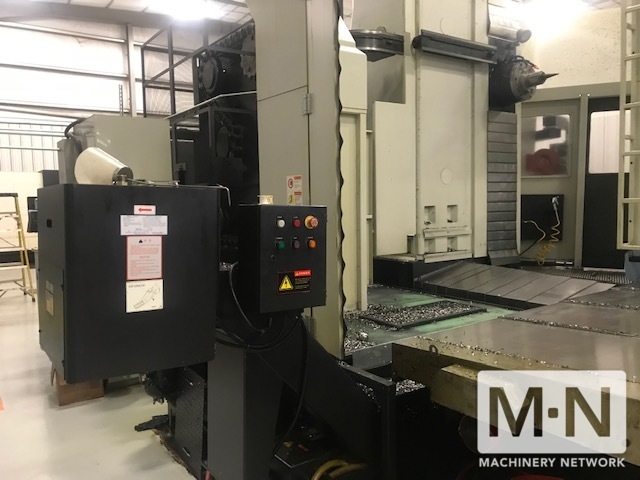

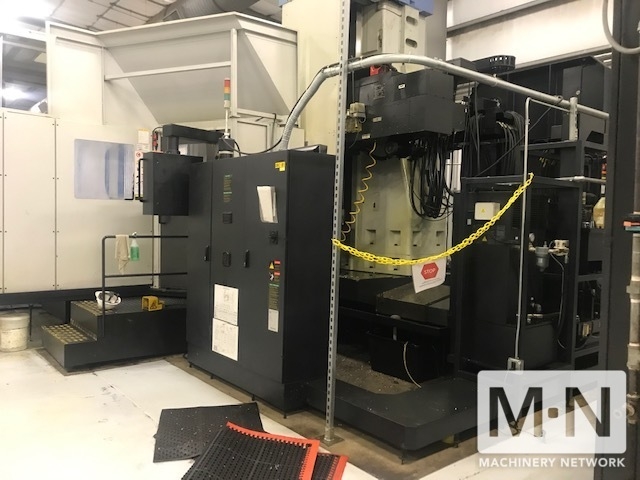

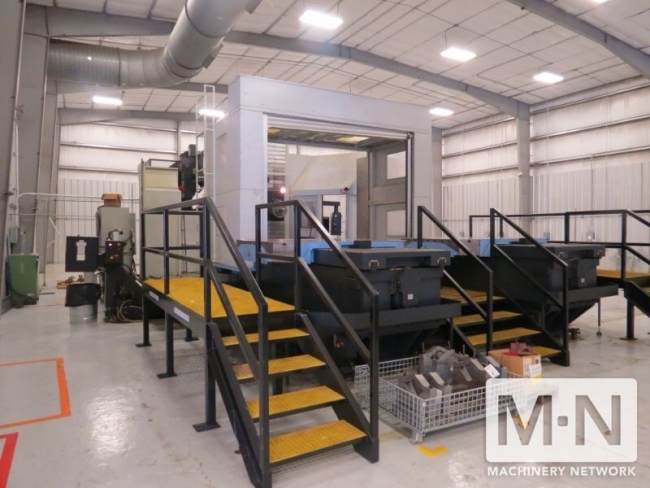

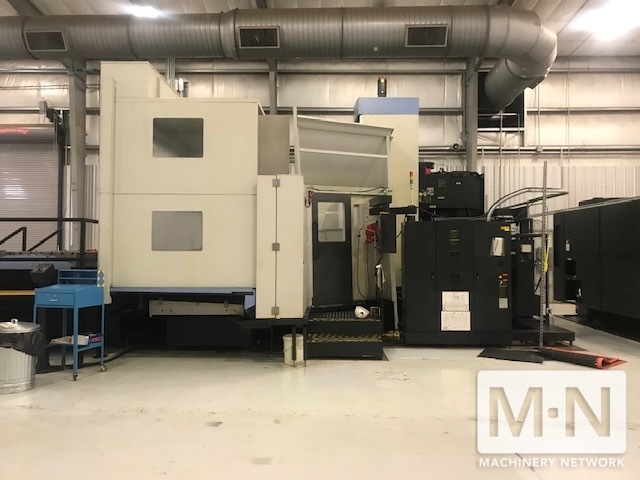

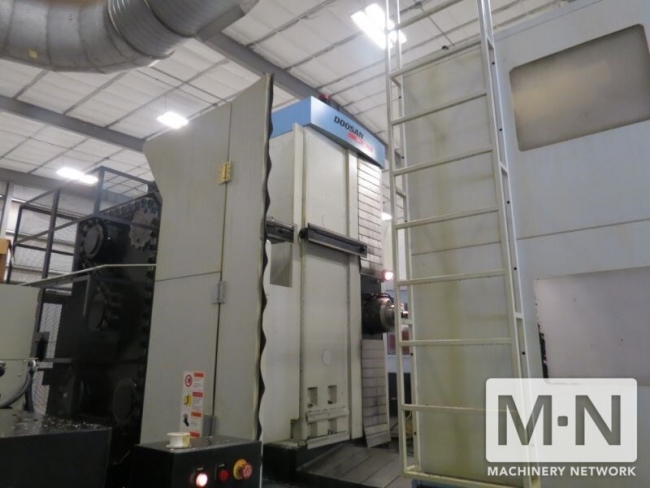

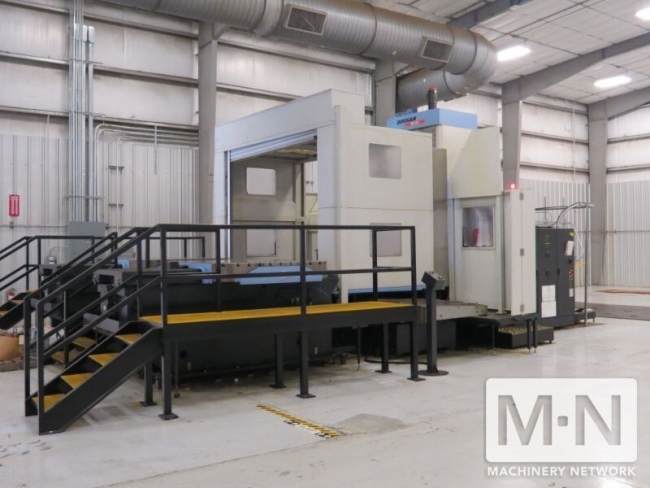

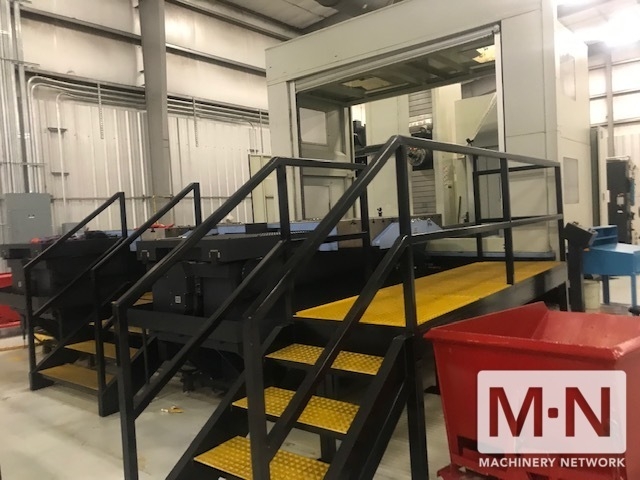

(1) USED 5" DOOSAN DBC130 HORIZONTAL BORING MILL W/ APC
NEW 2012
SPECIFICATIONS:
SPINDLE RPM .......................... 2500
SPINDLE DIAMETER ..................... 5.12"
SPINDLE TAPER ........................ CAT/BT 50#
X-AXIS LONGITUDINAL TABLE TRAVEL ..... 157.5”
Y-AXIS VERTICAL SPINDLE TRAVEL ....... 98.43”
Z-AXIS CROSS COLUMN TRAVEL ........... 78.75”
W-AXIS SPINDLE TRAVEL ................ 27.6”

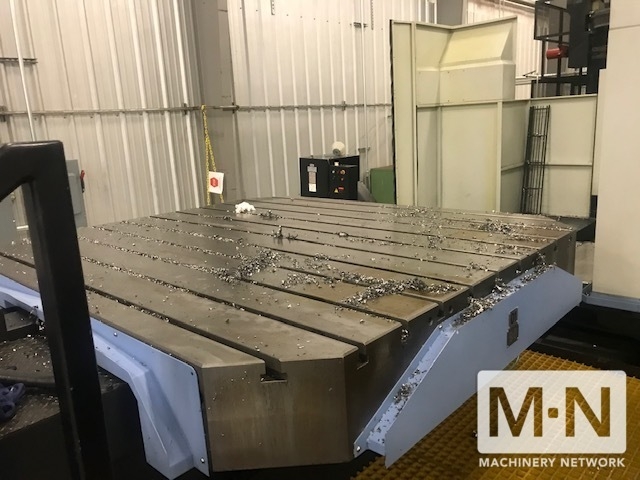

WORKING SURFACE OF TABLE ............. 71.00” x 78.75”
MAIN MOTOR ........................... 35/30 HP

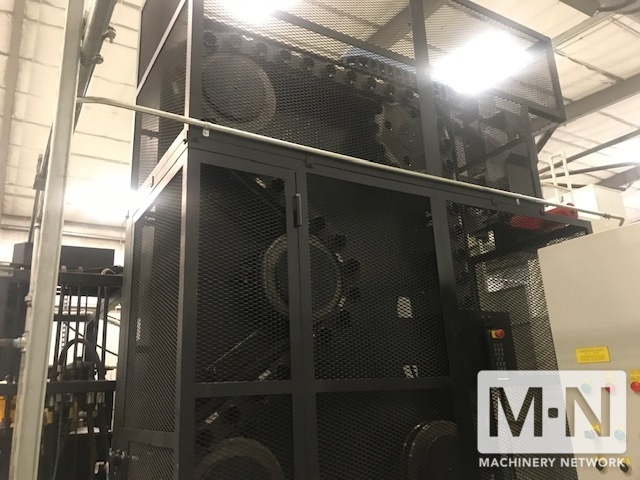

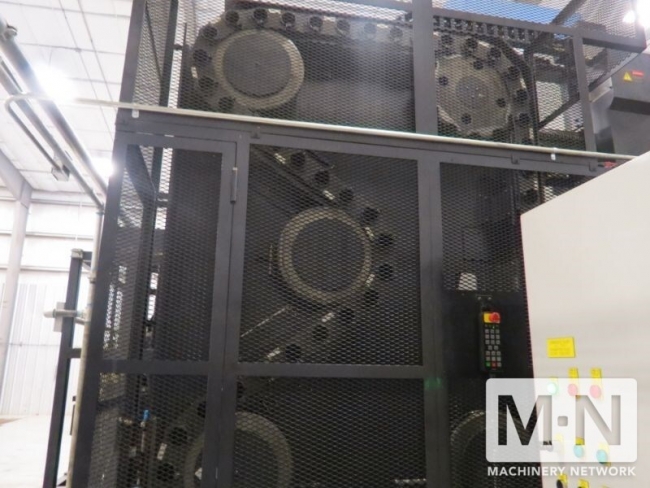

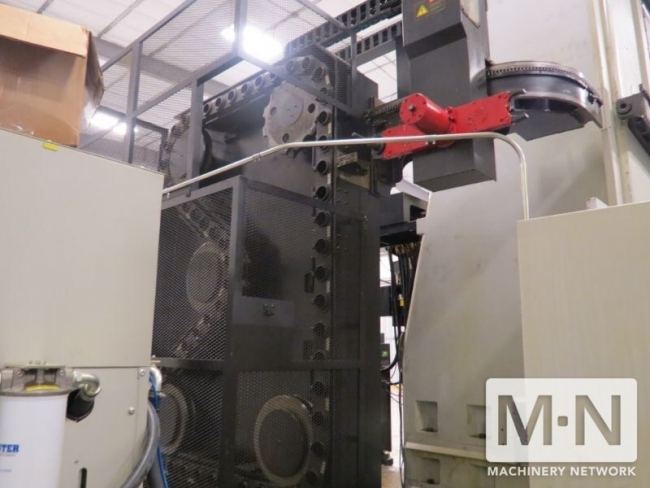

TOOL CHANGER CAPACITY ................ 60 TOOLS
MAXIMUM WORK PIECE WEIGHT ............ 28,659 lbs.
FLOOR SPACE .......................... 307” X 370”
HEIGHT................................ 212.6"
WEIGHT (APPROXIMATE) ................. 110,231 lbs.
EQUIPPED WITH:

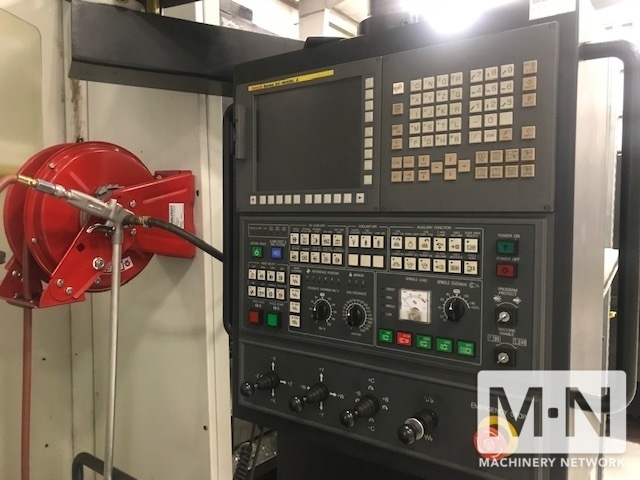

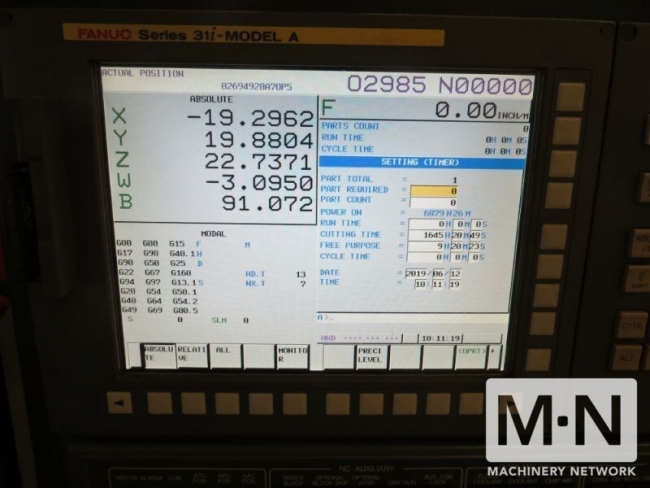

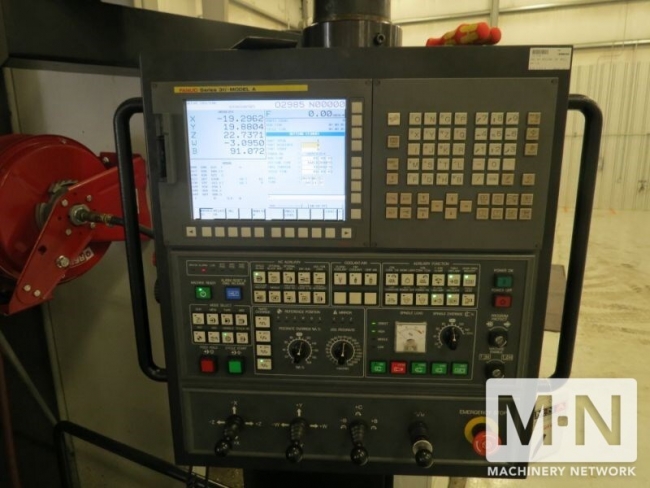

FANUC 31i-A

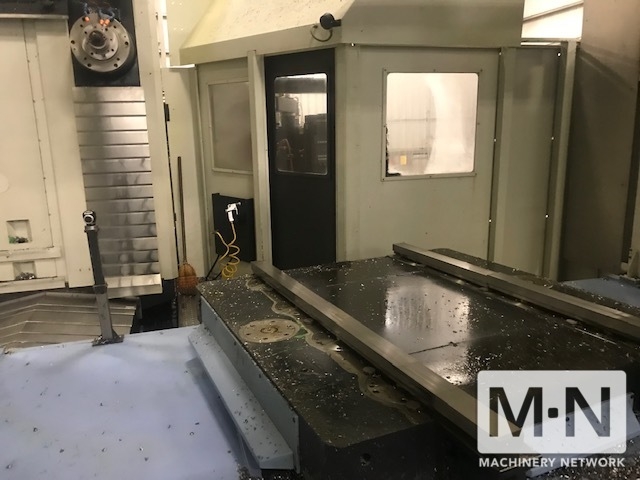

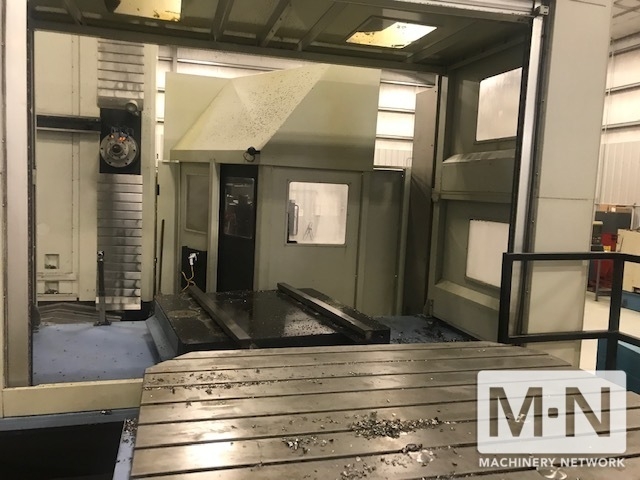

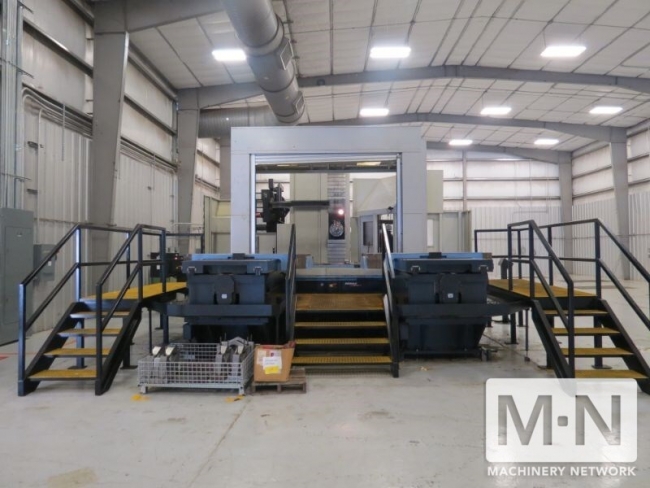

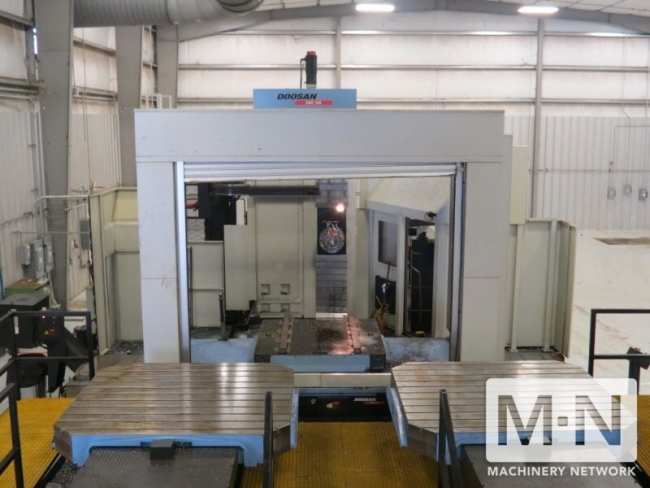

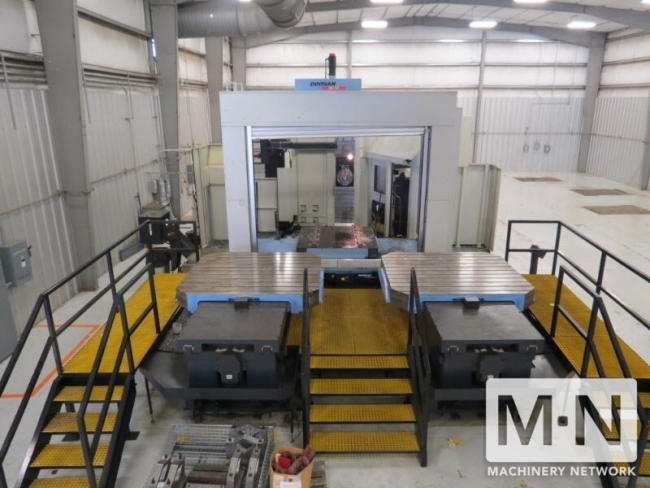

PALLET CHANGER

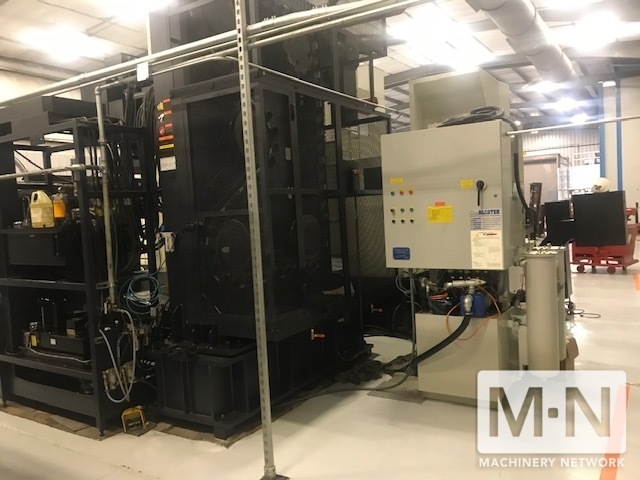

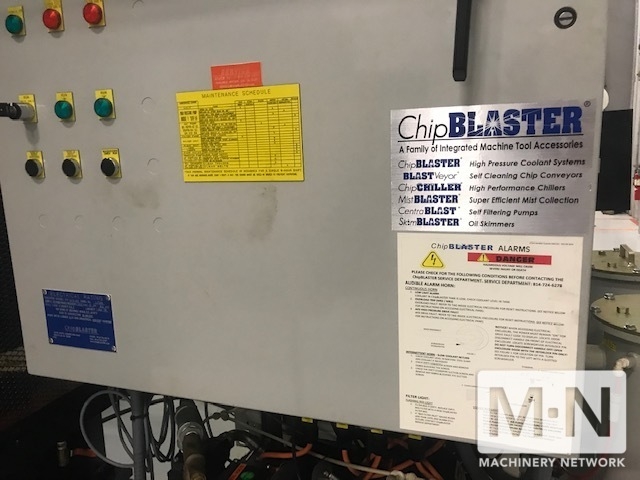

HIGH PRESSURE COOLANT THRU THE SPINDLE (1000 PSI)
PART PROBING
CHIP CONVEYOR
RIGID TAPPING
GLASS SCALES (X,Y,Z)
NEW 2012
SPECIFICATIONS:
SPINDLE RPM .......................... 2500
SPINDLE DIAMETER ..................... 5.12"
SPINDLE TAPER ........................ CAT/BT 50#
X-AXIS LONGITUDINAL TABLE TRAVEL ..... 157.5”
Y-AXIS VERTICAL SPINDLE TRAVEL ....... 98.43”
Z-AXIS CROSS COLUMN TRAVEL ........... 78.75”
W-AXIS SPINDLE TRAVEL ................ 27.6”
WORKING SURFACE OF TABLE ............. 71.00” x 78.75”
MAIN MOTOR ........................... 35/30 HP
TOOL CHANGER CAPACITY ................ 60 TOOLS
MAXIMUM WORK PIECE WEIGHT ............ 28,659 lbs.
FLOOR SPACE .......................... 307” X 370”
HEIGHT................................ 212.6"
WEIGHT (APPROXIMATE) ................. 110,231 lbs.
EQUIPPED WITH:
FANUC 31i-A
PALLET CHANGER
HIGH PRESSURE COOLANT THRU THE SPINDLE (1000 PSI)
PART PROBING
CHIP CONVEYOR
RIGID TAPPING
GLASS SCALES (X,Y,Z)
