AWEA BL-2018FM
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
AWEA
Model:
BL-2018FM
Condition:
Not Specified
Year:
2012
Stock #:
37160
Status:
Sold
Description:
4.7", FANUC 31iB, 78"X70"X51", FULL 4TH, CAT-50, 60 TOOLS, Dimensions 24'L x 20'W x 16'4H
Videos:
Location:
Mexico
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

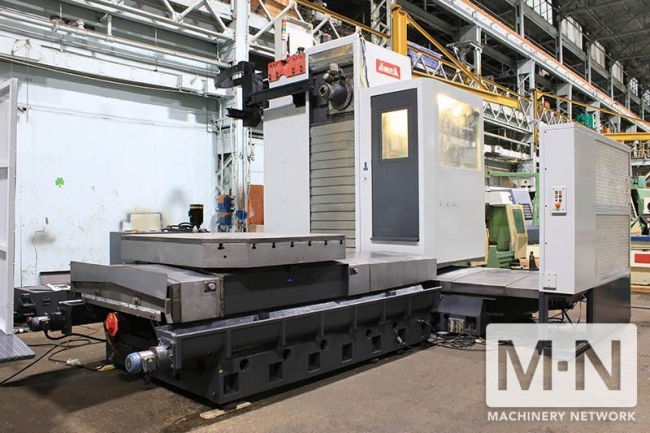

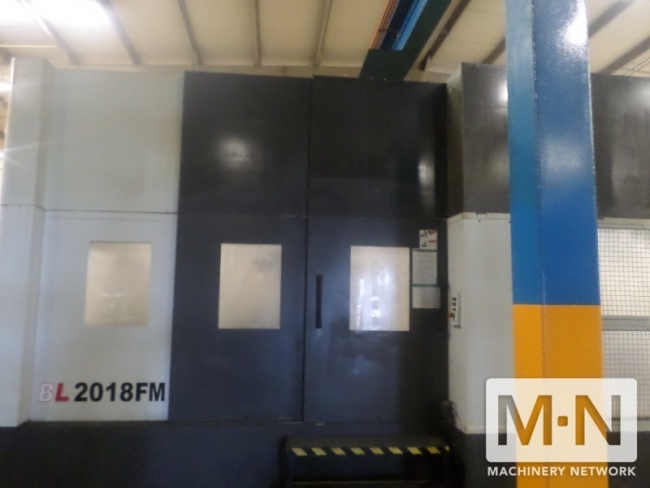

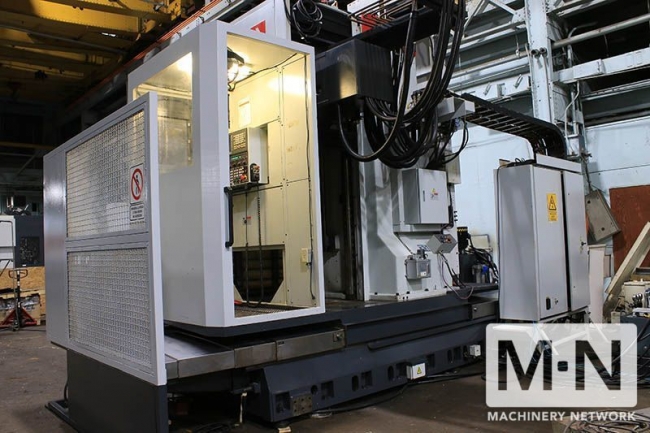

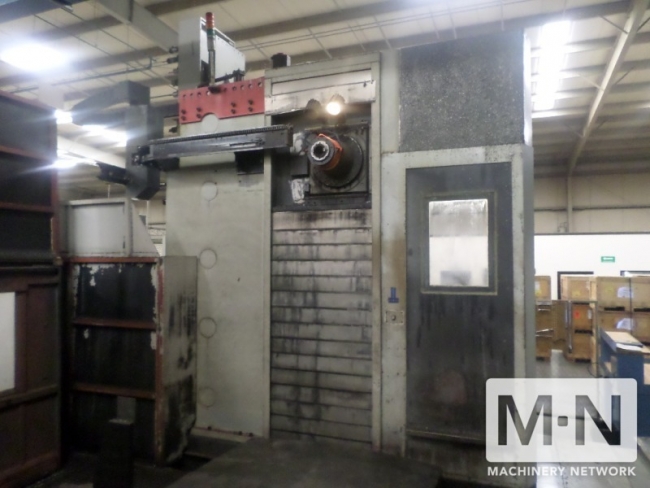

(1) USED AWEA BL-2018FM TABLE TYPE HORIZONTAL BORING MILL

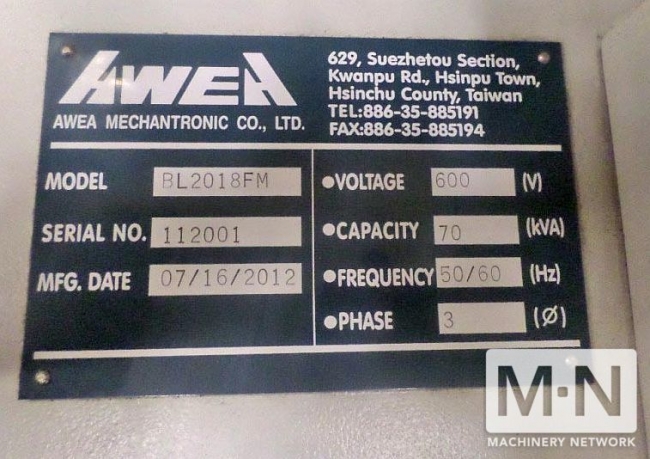

- S/N 112001, NEW 2012
SPECIFICATIONS:
TRAVEL - X AXIS TRAVEL: 78.7"
- Y AXIS TRAVEL: 70.8"
- Z AXIS TRAVEL: 51.1"
- W AXIS TRAVEL: 23.6"
- B AXIS: 0.001 DEG/360,000 POSITIONS
DISTANCE-SPNDL TO TABLE: 34.8"

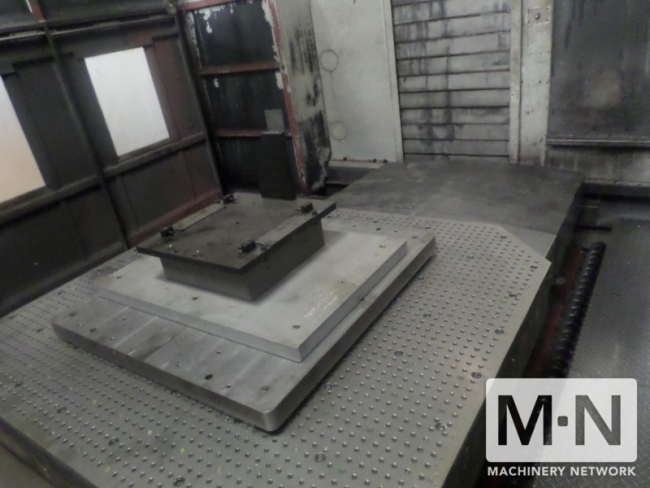

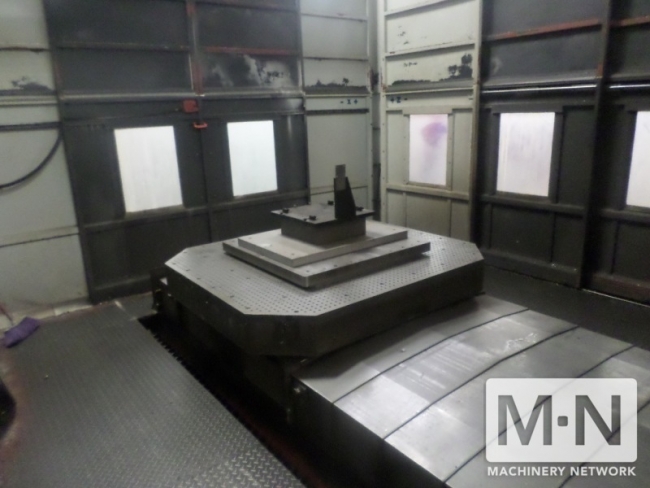

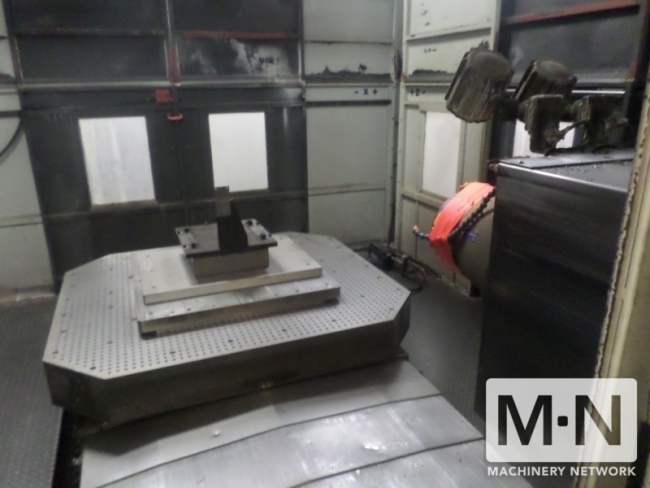

TABLE SIZE: 62.9" X 70.8"
TABLE LOAD CAPACITY: 26,400 LBS.

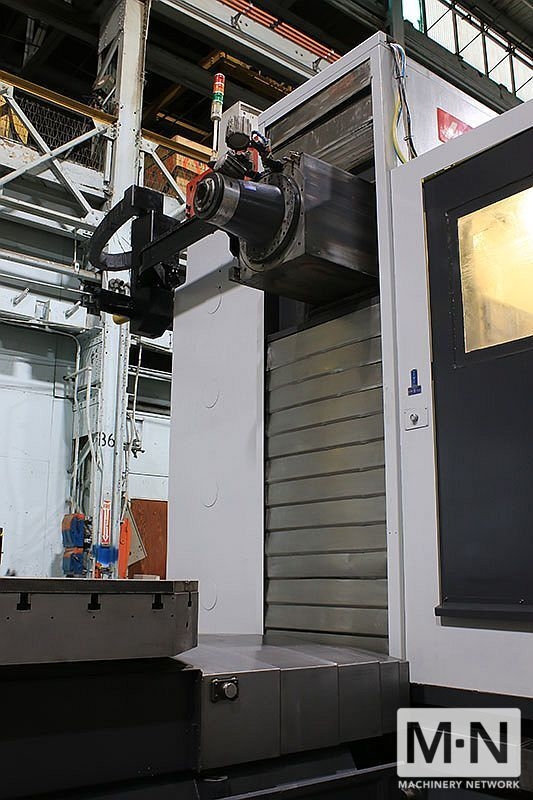

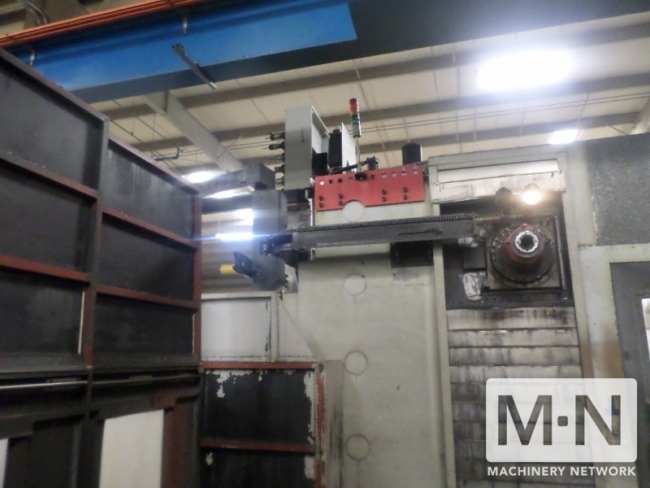

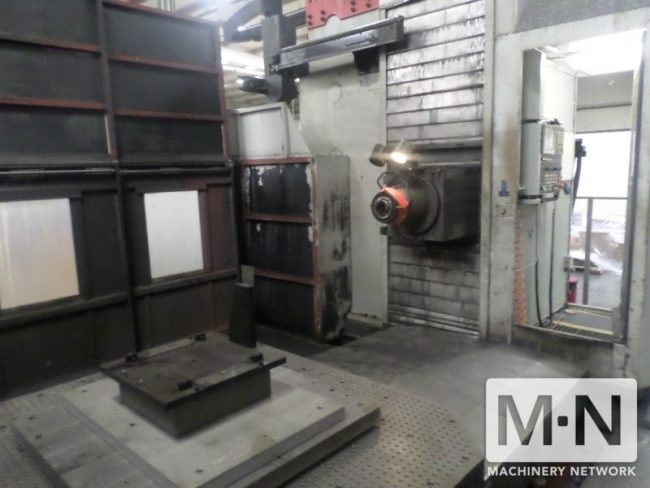

SPINDLE DIAMETER: 4.7"
SPINDLE MOTOR: 30 HP
MAX. SPINDLE SPEED: 6,000 RPM
SPINDLE TAPER: CAT-50

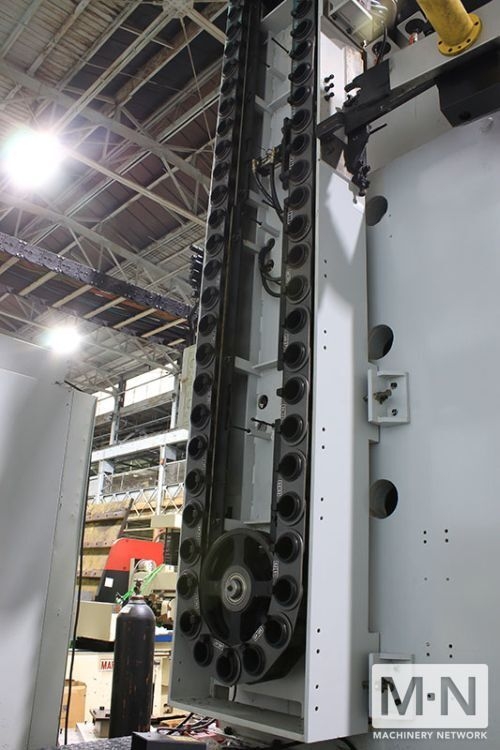

TOOL CHANGER CAPACITY: 60 TOOLS
MACHINE WEIGHT: 68,343 LBS.
EQUIPPED WITH:

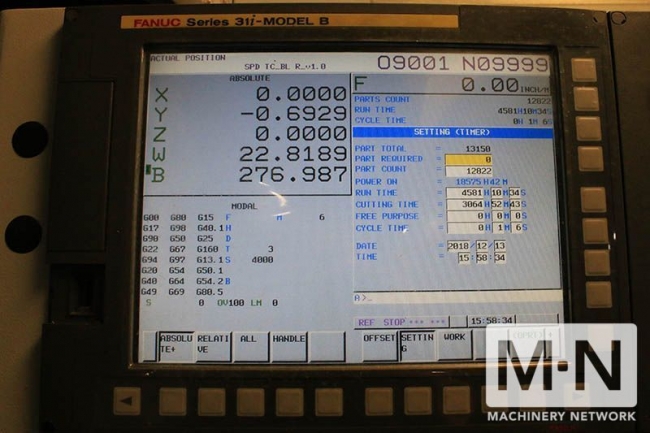

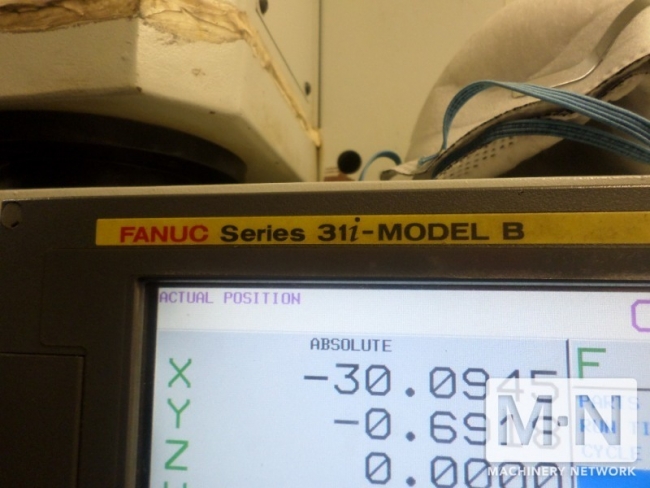

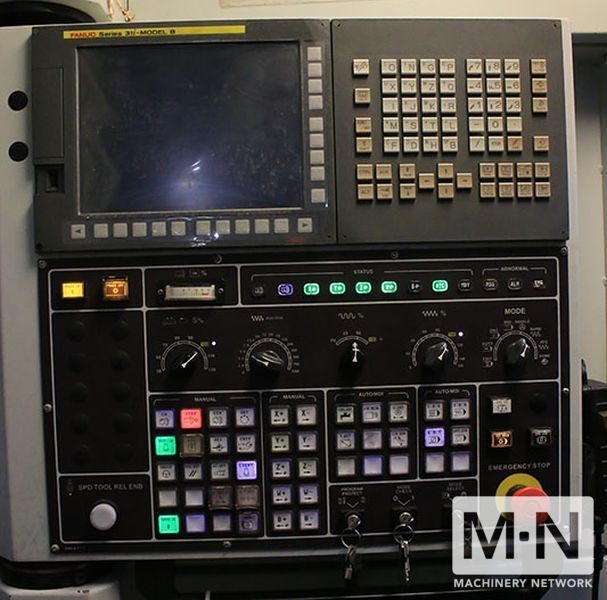

- FANUC 31I-MODEL B CNC CONTROL
- RENISHAW TOOL PROBE INTERFACE
- COOLANT THRU SPINDLE
- SPINDLE CHILLER
- CHIP CONVEYOR
- T-SLOTTED TABLE

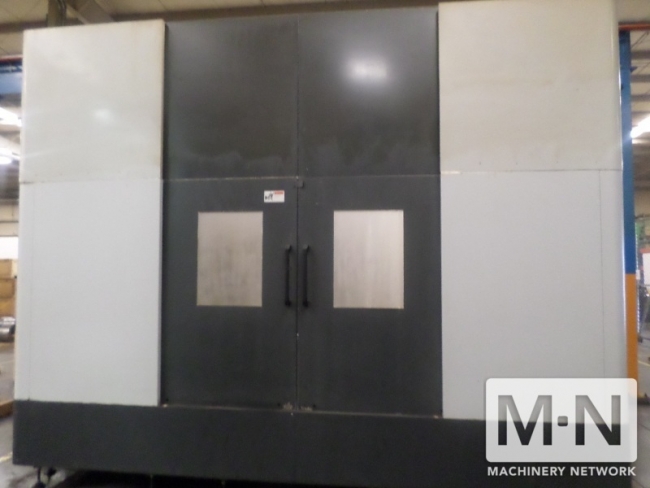

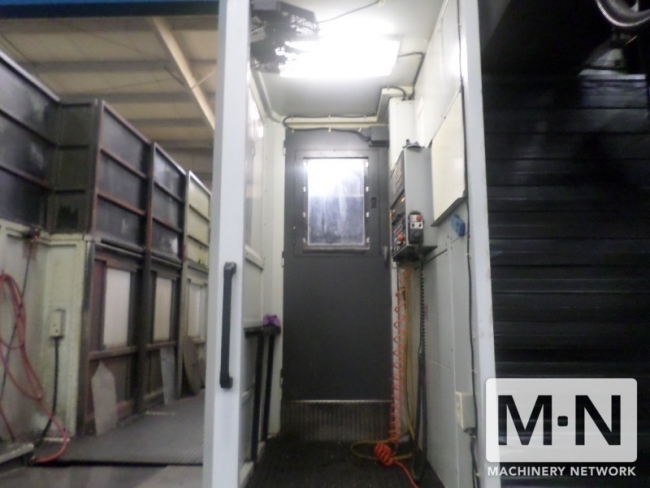

* FULL ENCLOSURE
- ALL AVAILABLE MANUALS

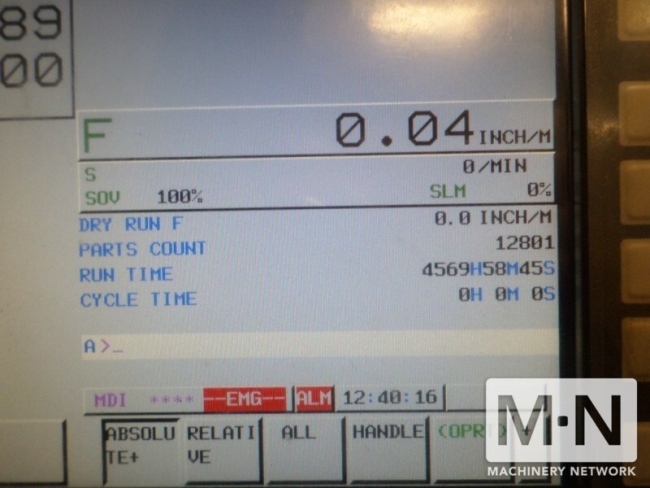

RUN TIME: 4,569 HRS
INSPECT UNDER POWER IN NEW JERSEY
- S/N 112001, NEW 2012
SPECIFICATIONS:
TRAVEL - X AXIS TRAVEL: 78.7"
- Y AXIS TRAVEL: 70.8"
- Z AXIS TRAVEL: 51.1"
- W AXIS TRAVEL: 23.6"
- B AXIS: 0.001 DEG/360,000 POSITIONS
DISTANCE-SPNDL TO TABLE: 34.8"
TABLE SIZE: 62.9" X 70.8"
TABLE LOAD CAPACITY: 26,400 LBS.
SPINDLE DIAMETER: 4.7"
SPINDLE MOTOR: 30 HP
MAX. SPINDLE SPEED: 6,000 RPM
SPINDLE TAPER: CAT-50
TOOL CHANGER CAPACITY: 60 TOOLS
MACHINE WEIGHT: 68,343 LBS.
EQUIPPED WITH:
- FANUC 31I-MODEL B CNC CONTROL
- RENISHAW TOOL PROBE INTERFACE
- COOLANT THRU SPINDLE
- SPINDLE CHILLER
- CHIP CONVEYOR
- T-SLOTTED TABLE
* FULL ENCLOSURE
- ALL AVAILABLE MANUALS
RUN TIME: 4,569 HRS
INSPECT UNDER POWER IN NEW JERSEY
