NOMURA HBA110T-R2
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
NOMURA
Model:
HBA110T-R2
Condition:
Not Specified
Year:
2015
Stock #:
36119
Status:
Sold
Description:
4.33" SPDL, 51.2" X 45.3" X 34.4" X 15.7", 45" SQ TBL, FANUC, 3K RPM, 30 ATC
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

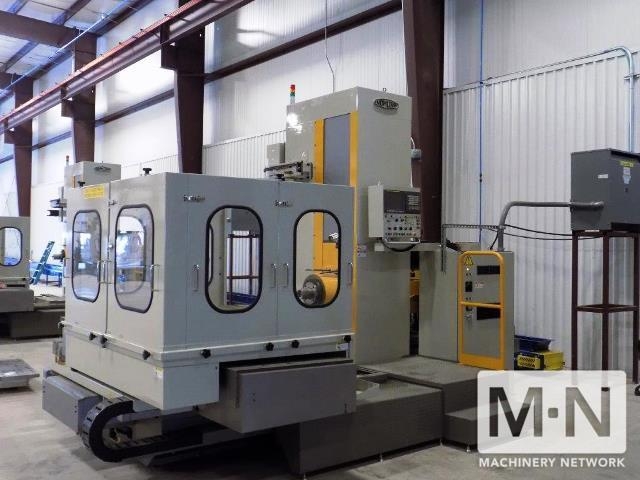

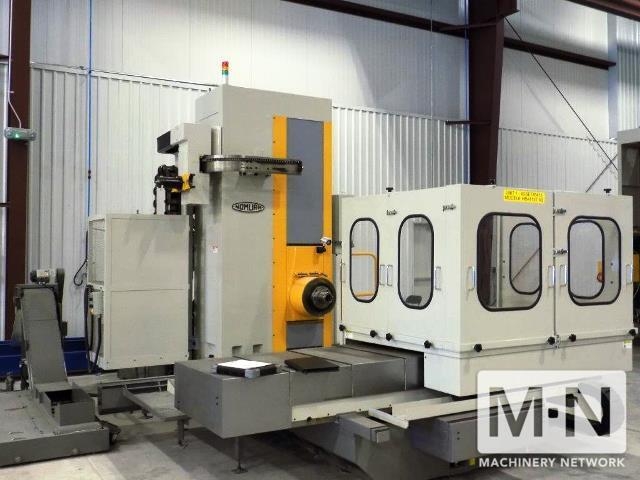

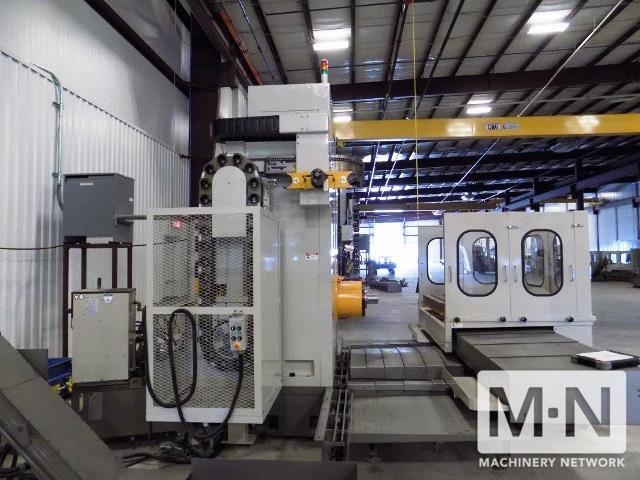

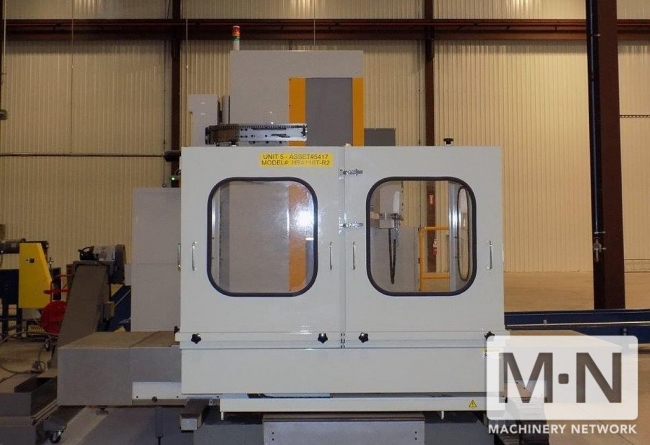

(1) 4.33" Nomura HBA110-R2 5-axis CNC Table-Type Horizontal Boring Mill - New 2015
Specifications:
Table size: 45" x 45" Table capacity: 6,600 lbs Spindle diameter:
4.33" Spindle taper: CT-50 Max spindle speeds: 3000 RPM Spindle motor: 30 HP Travels - X axis: 51.2" - Y axis: 46.3" - Z axis: 34.4" - W axis 15.7" N/C Rotary table indexing: 0.001 deg/360,000 position Max. cutting feedrate: 236 IPM Rapid traverse: 472 IPM Tool changer capacity: 30 tools Floor space required: 145" x 223" Machine height: 139"
EQUIPPED WITH:
FANUC 0iM CNC control
Coolant through spindle
Spindle oil cooler
Rigid tapping
Helical interpolation
Chip conveyor
Specifications:
Table size: 45" x 45" Table capacity: 6,600 lbs Spindle diameter:
4.33" Spindle taper: CT-50 Max spindle speeds: 3000 RPM Spindle motor: 30 HP Travels - X axis: 51.2" - Y axis: 46.3" - Z axis: 34.4" - W axis 15.7" N/C Rotary table indexing: 0.001 deg/360,000 position Max. cutting feedrate: 236 IPM Rapid traverse: 472 IPM Tool changer capacity: 30 tools Floor space required: 145" x 223" Machine height: 139"
EQUIPPED WITH:
FANUC 0iM CNC control
Coolant through spindle
Spindle oil cooler
Rigid tapping
Helical interpolation
Chip conveyor
