FEMCO BMC-110R2
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
FEMCO
Model:
BMC-110R2
Condition:
Not Specified
Year:
2007
Stock #:
36807
Status:
Sold
Description:
4.3" Spindle, Fanuc-16iMB Control, 5 axis, 79" x 61" x 67" trvls,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

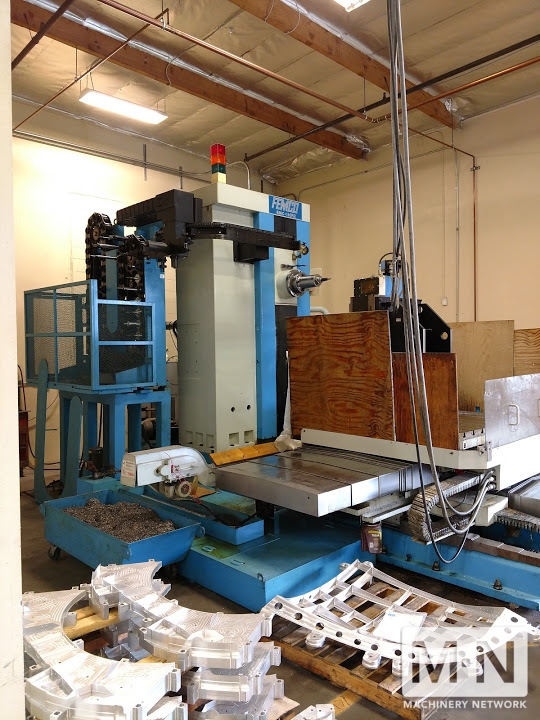

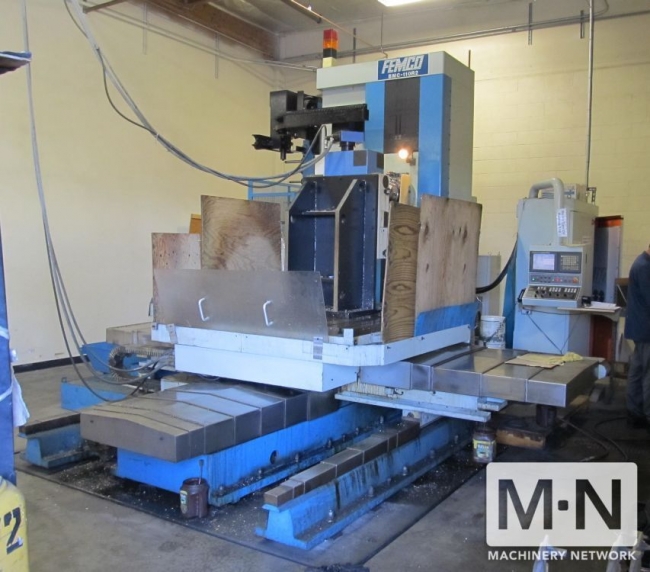

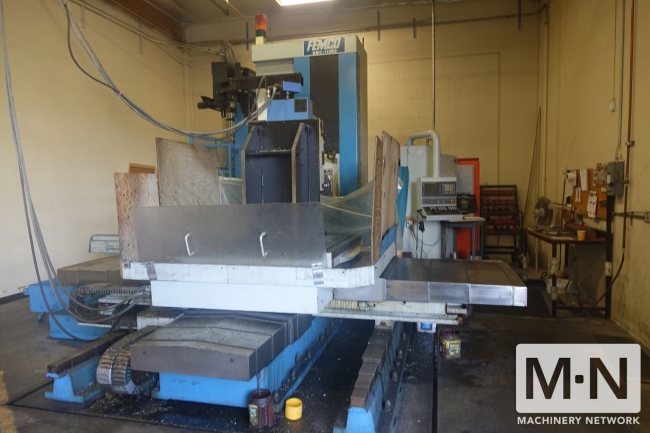

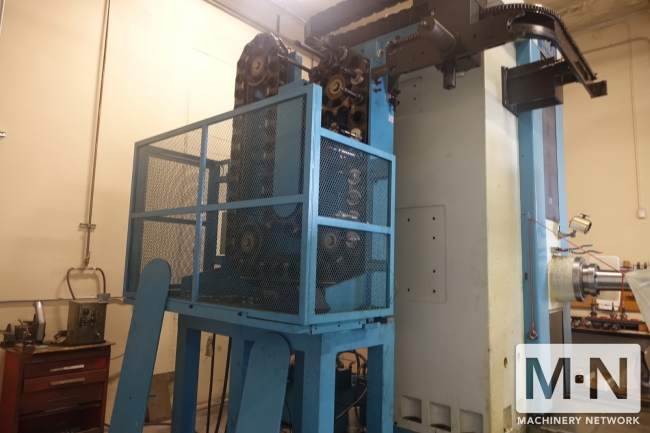

(1) Used Femco BMC-110R2 CNC Horizontal Table-Type Boring Mill,
New 2007
Specifications::
Travel - X axis (long.): 78.7" - Y axis (vertical):

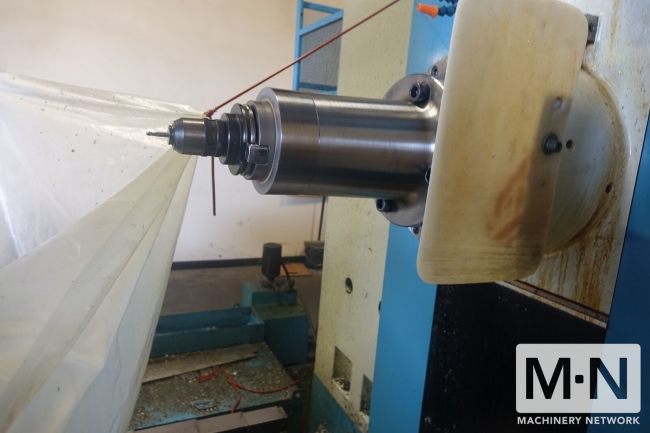

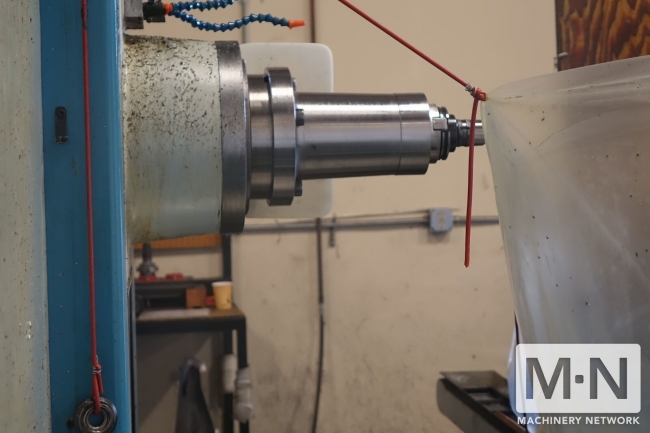

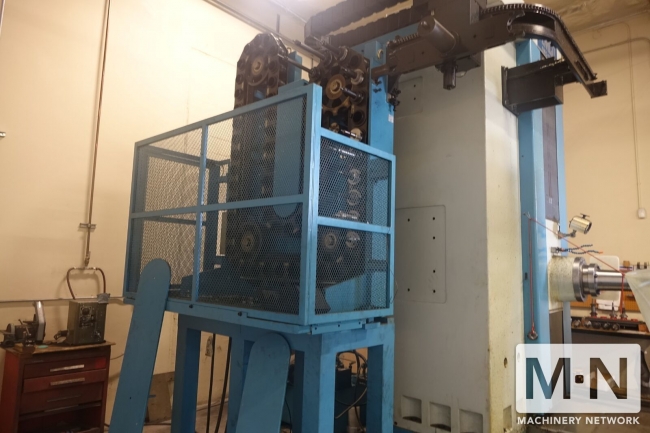

70.9" - Z axis (cross): 66.9" - W axis (spindle): 16.7" - B axis: 360,000 position Table dimensions: 56.7" x 62.9" Max. table load: 13,900 lbs Spindle diameter: 4.3" Spindle speeds ( Low & high range) : 5-2500 RPM Spindle motor: 30 HP Spindle taper: CT-50 Tool changer capacity 60 tools Approx machine dims: 260" x 215" x 147"H Approx. machine weight: 45,000 lbs
Equipped with:

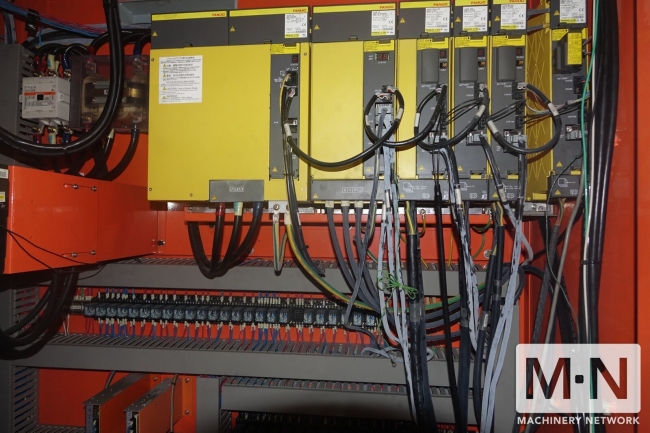

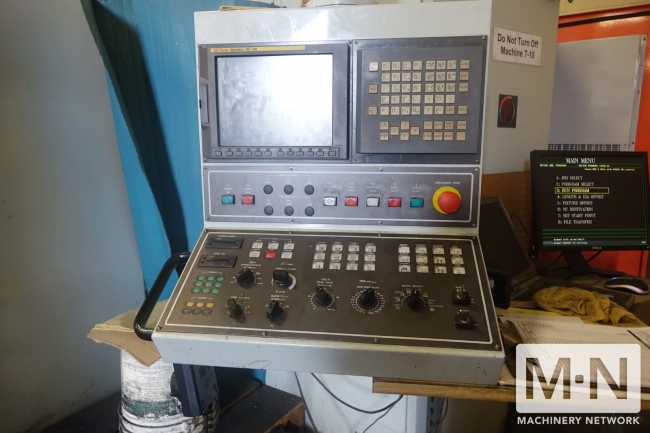

Fanuc 16iMB CNc control

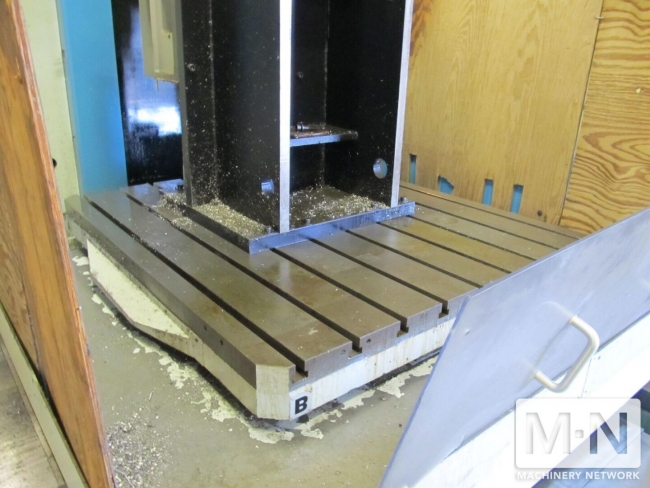

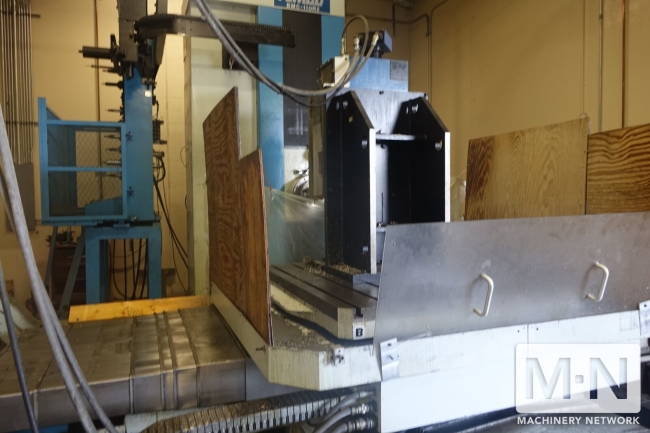

Rotary table
Flood coolant

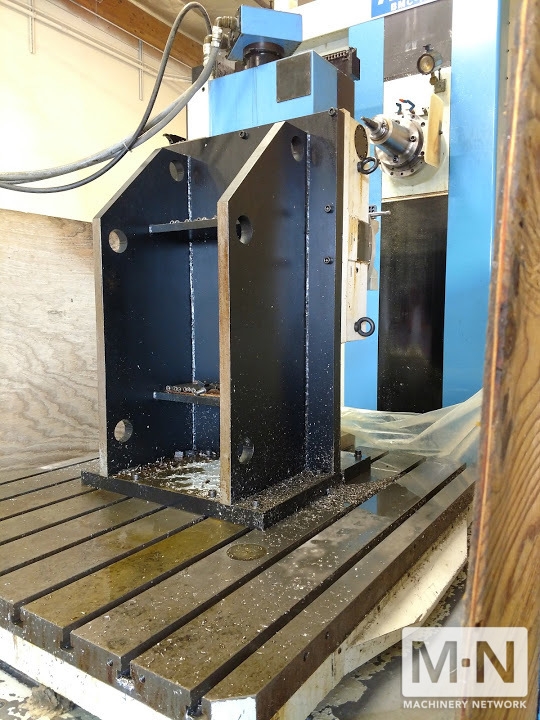

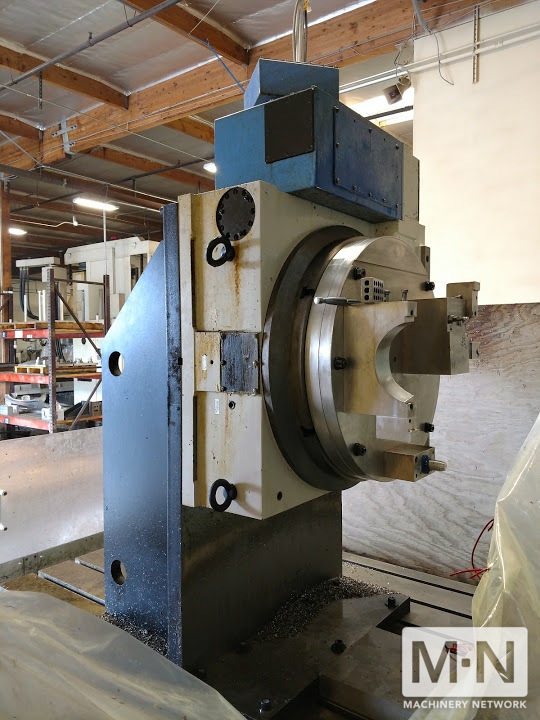

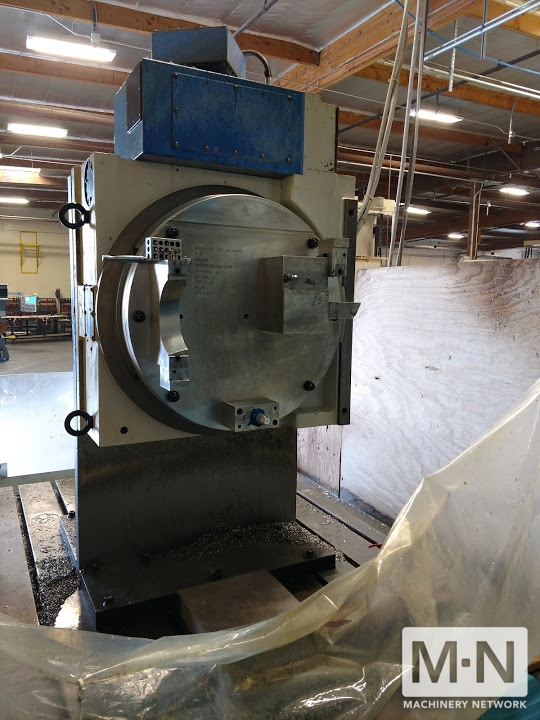

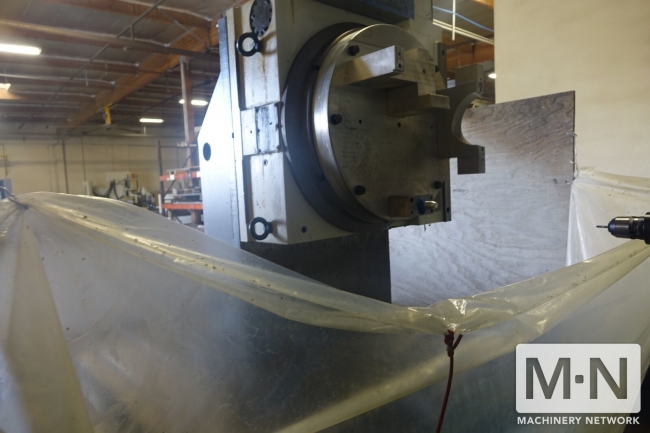

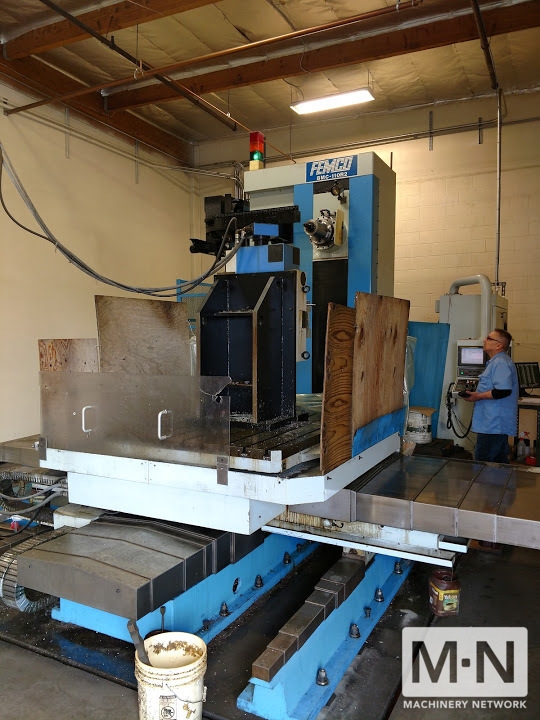

*Rotary fixture in photos not included
New 2007
Specifications::
Travel - X axis (long.): 78.7" - Y axis (vertical):
70.9" - Z axis (cross): 66.9" - W axis (spindle): 16.7" - B axis: 360,000 position Table dimensions: 56.7" x 62.9" Max. table load: 13,900 lbs Spindle diameter: 4.3" Spindle speeds ( Low & high range) : 5-2500 RPM Spindle motor: 30 HP Spindle taper: CT-50 Tool changer capacity 60 tools Approx machine dims: 260" x 215" x 147"H Approx. machine weight: 45,000 lbs
Equipped with:
Fanuc 16iMB CNc control
Rotary table
Flood coolant
*Rotary fixture in photos not included
