WOTAN CUTMAX 2
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
WOTAN
Model:
CUTMAX 2
Condition:
Not Specified
Year:
1997
Stock #:
30612
Status:
Sold
Description:
HH 430 CNC CTRL, 55" X 63" TBL, 4.73" SPDL DIAM, ISO 50 CAT,
Location:
Texas, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

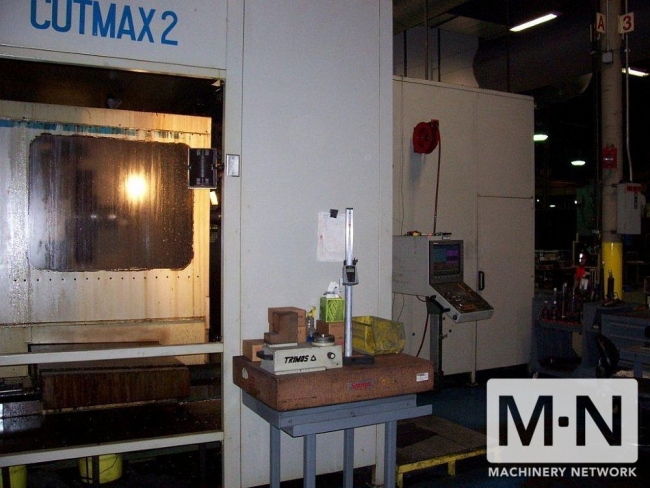

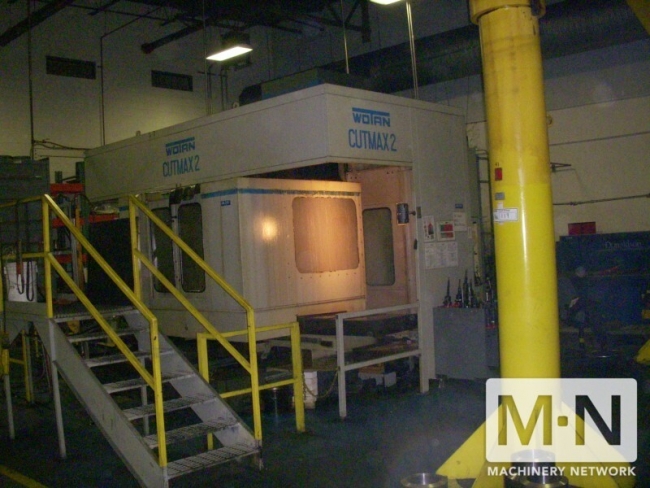

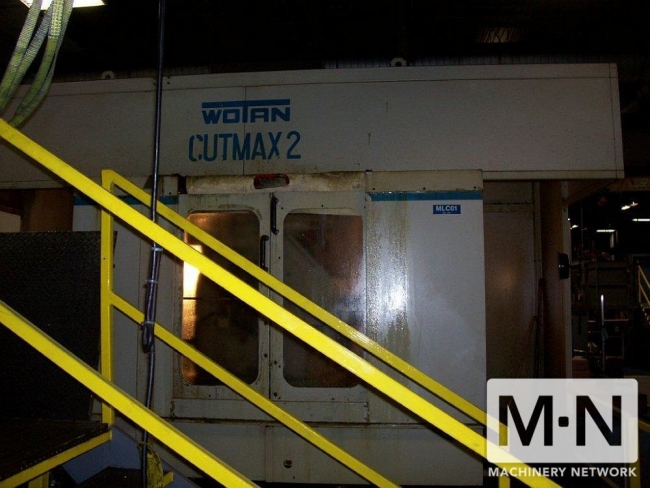

(1) Used Wotan Cutmax 2 6 Axis CNC Table Type Horizontal Boring Mill, New 1997
Specifications:

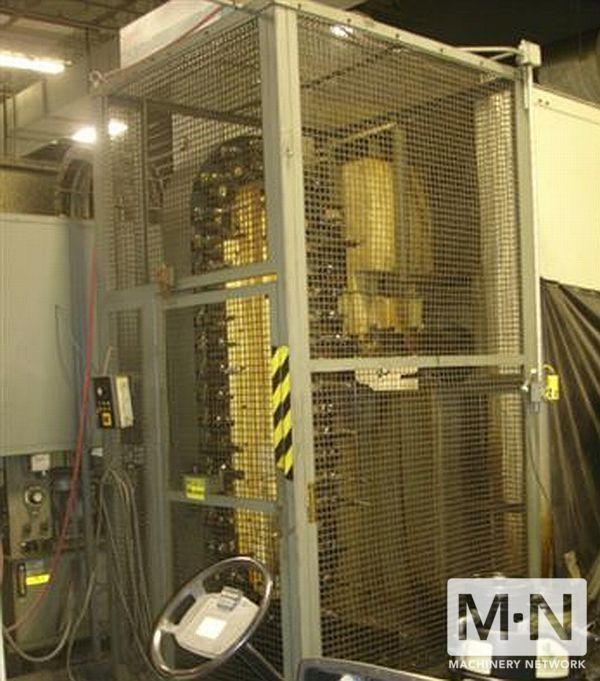

Spindle Diameter 4.73" Table size 55" X 63" Travels: X Axis - cross travel 70.8" Y Axis - vertical travel 66.9" Z Axis - quill travel 23.6" W Axis - longitudinal travel 53.5" B Axis - rotary table .001 deg/360,000 positions Spindle taper ISO 50 CAT Spindle speeds 20 - 3,000 RPM Main spindle motor 40 HP Rapid traverse rates ( X/Y/W & Z) 393 & 236 IPM Max. table load 13,225 LBS Tool changer capacity 40 tools Approx overall dims 22' F-B x 15' L-R x 13' H Approx weight 51,000 lbs
EQUIPPED WITH:

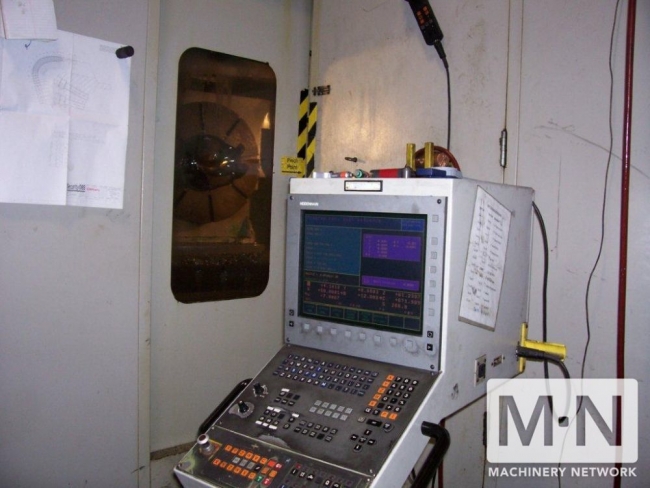

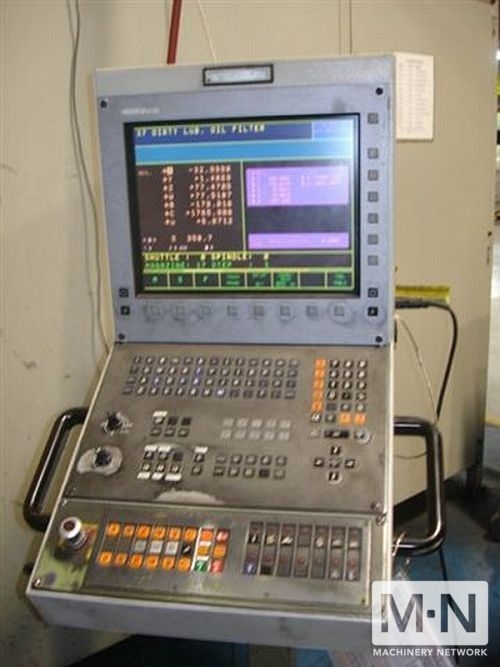

Heidenhain TNC 430 6 Axis CNC control - 4 linear, 2 rotary axes

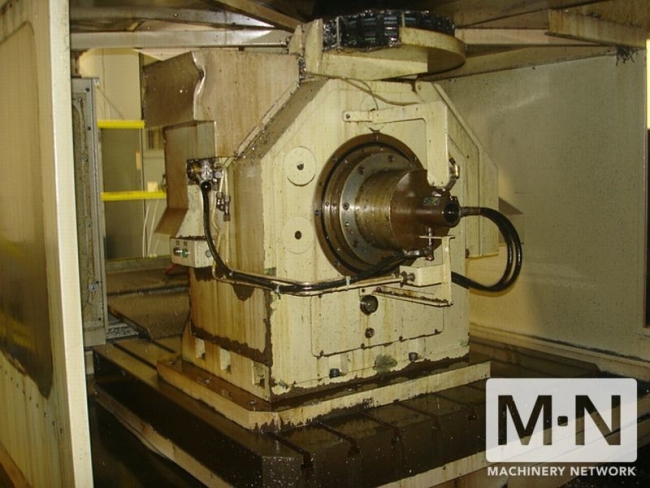

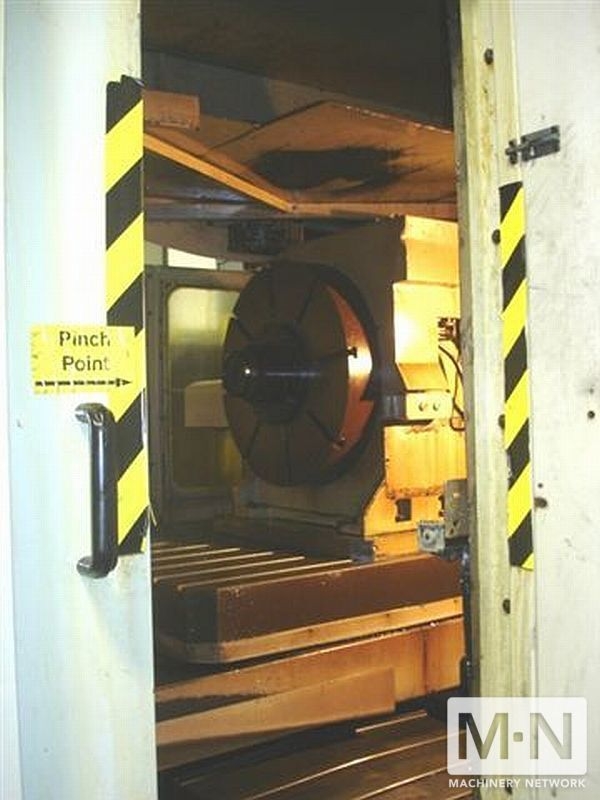

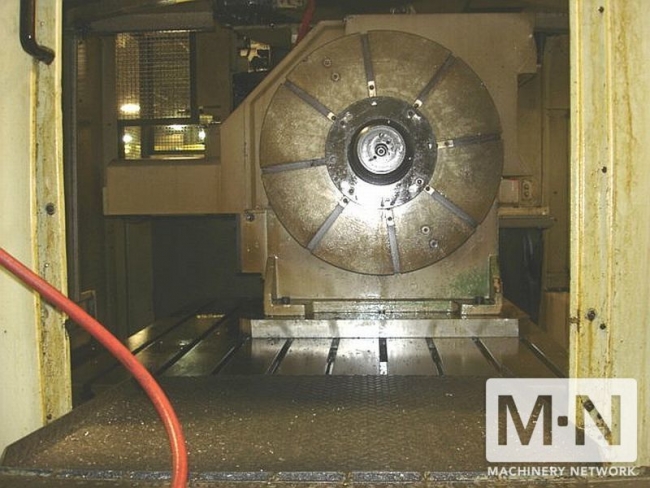

Additional 31.5" dia. Peisler AWU800CNC rotary fixture mounted on table
Coolant through the spindle (290 psi)
Scale feedback for X, Y, W and rotary axes

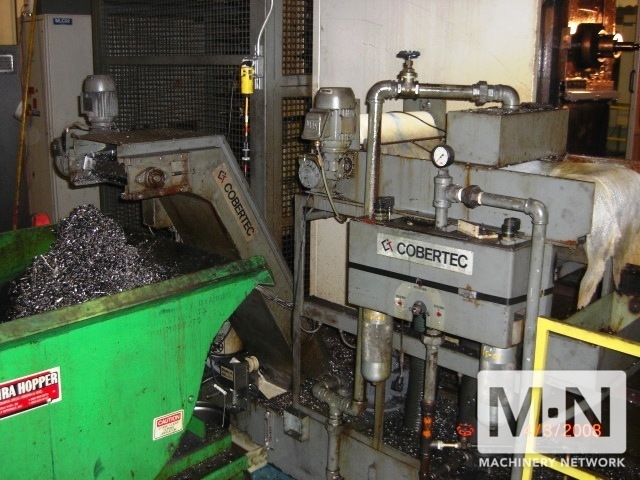

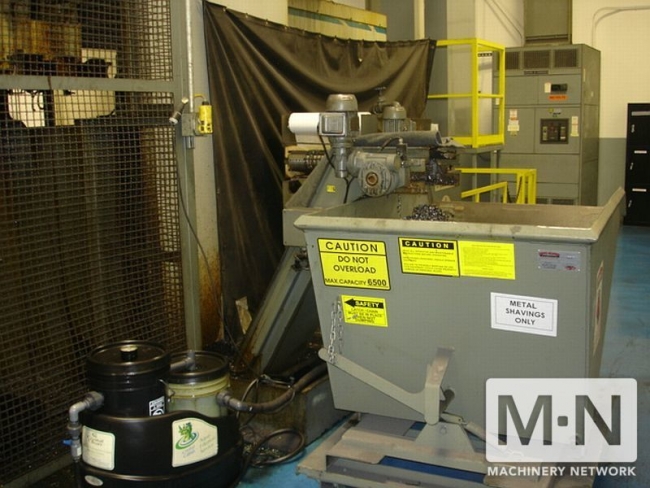

Chip conveyor
Full enclosure
Specifications:
Spindle Diameter 4.73" Table size 55" X 63" Travels: X Axis - cross travel 70.8" Y Axis - vertical travel 66.9" Z Axis - quill travel 23.6" W Axis - longitudinal travel 53.5" B Axis - rotary table .001 deg/360,000 positions Spindle taper ISO 50 CAT Spindle speeds 20 - 3,000 RPM Main spindle motor 40 HP Rapid traverse rates ( X/Y/W & Z) 393 & 236 IPM Max. table load 13,225 LBS Tool changer capacity 40 tools Approx overall dims 22' F-B x 15' L-R x 13' H Approx weight 51,000 lbs
EQUIPPED WITH:
Heidenhain TNC 430 6 Axis CNC control - 4 linear, 2 rotary axes
Additional 31.5" dia. Peisler AWU800CNC rotary fixture mounted on table
Coolant through the spindle (290 psi)
Scale feedback for X, Y, W and rotary axes
Chip conveyor
Full enclosure
