MIYANO BNJ42SY
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
MIYANO
Model:
BNJ42SY
Condition:
Not Specified
Year:
2008
Stock #:
36937
Status:
Sold
Description:
Fanuc 18iTB, 1-5/8" bar work, 5k rpm,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

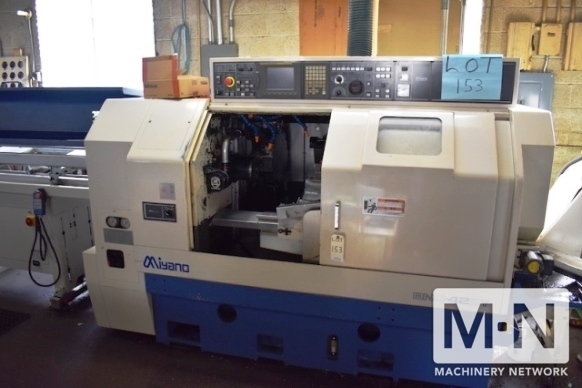

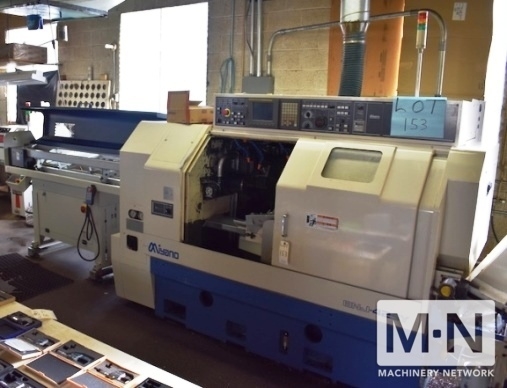

(1) USED MIYANO BNJ-42SY COMPACT CNC TURNING CENTER
NEW 2008
SPECIFICATIONS:
BAR WORK ROUND COLLET CAPACITY 1-5/8"
CHUCK SIZE, MAIN SPINDLE 5"
SUB SPINDLE 4"
WORK LENGTH, MAXIMUM WORK LENGTH 3.9"
MACHINING CAPACITY
MAXIMUM TURNING DIA MAIN SPINDLE 5"
MAX TURNING DIA SUB SPINDLE 4"
SPINDLE SPEED RANGE (INF VARIABLE) 67 TO 5,000 RPM
VARIABLE SPEED STEPS DIRECT DRIVE
SPINDLE DRIVE MOTOR (30 MINUTE RATING) AC 15 HP
SUB-SPINDLE (RIGHT)
COLLET CAPACITY 1-5/8"
SPINDLE SPEED RANGE (INF VARIABLE) 67 TO 5,000 RPM
SPINDLE DRIVE MOTOR (VARIABLE SPEED) AC 7.5 HP
SLIDE MOVEMENT (X2 & Z2-AXIS) NC CONTROL
SLIDE STROKE (X2-AXIS) 2.75"
SLIDE STROKE (Z2-AXIS) 20.27"
RAPID TRAVERSE RATE (X2-AXIS) 708 IPM
RAPID TRAVERSE RATE (Z2-AXIS) 787 IPM

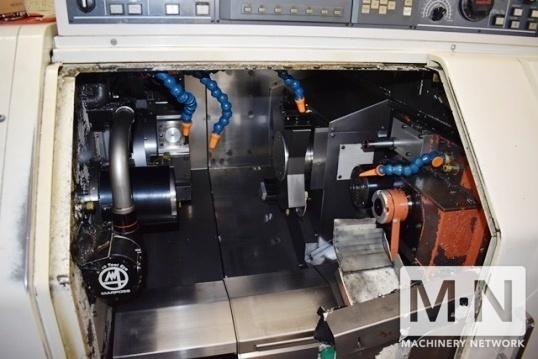

MAIN TURRET
NUMBER OF TOOL STATIONS 12
MAXIMUM SLIDE STROKE
X1-AXIS 5.59"
Z1-AXIS 9.84"
Y1-AXIS +/- 1.18"
RAPID TRAVERSE RATE
X1-AXIS 708 IPM
Z1-AXIS 708 IPM
Y1-AXIS 472 IPM
TURRET INDEXING TIME 0.2 SEC/POS.
TURRET INDEXING TYPE BI-DIRECTIONAL
REVOLVING TOOL ATTACHMENT, MAIN TURRET 3HP
SPINDLE TYPE HARDINGE S20 COLLET PADS
SUB TURRET
NUMBER OF TOOL STATIONS 6
TURRET INDEXING TIME 0.2 SEC./POS.
TURRET INDEXING TYPE BI-DIRECTIONAL
SPINDLE TYPE HARDINGE S16 COLLET PADS
FANUC CONTROL HAS .....
OVERLAPPING CONTROL FOR SIMULTANEOUS MACHINING
C-AXIS MAIN & SUB SPINDLE CONTROL
RIGID TAP FUNCTION FOR BOTH SPINDLES
4-AXIS SIMULTANEOUS MACHINING
FIRST AND SECONDARY OPERATION CAN BE PERFORMED SIMULTANEOUSLY
FREE POSITION INDEXING OF EACH CUTTING TOOL
MAIN & SUB SPINDLE ORIENTATION FOR HEXAGON AND SQUARE BAR WORK PART TRANSFER
INNER HIGH PRESSURE (160 PSI) COOLANT/AIR FOR RIGHT SPINDLE
EQUIPPED WITH
FANUC 18ITB CONTROL

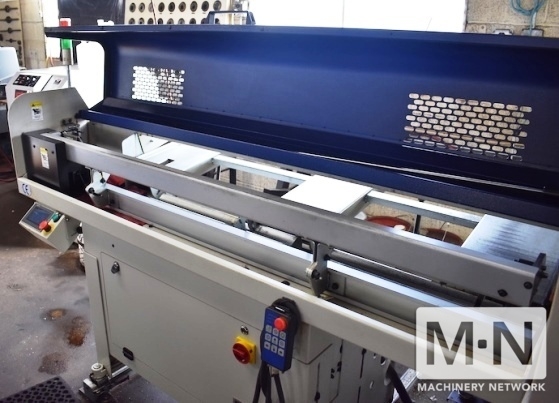

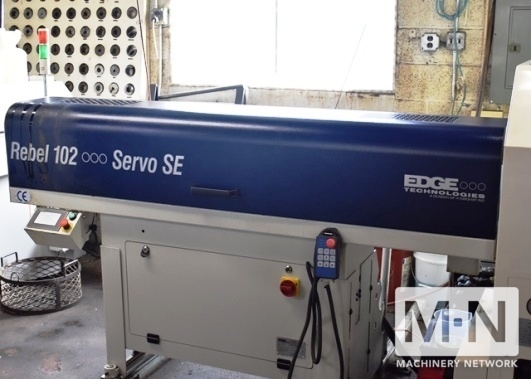

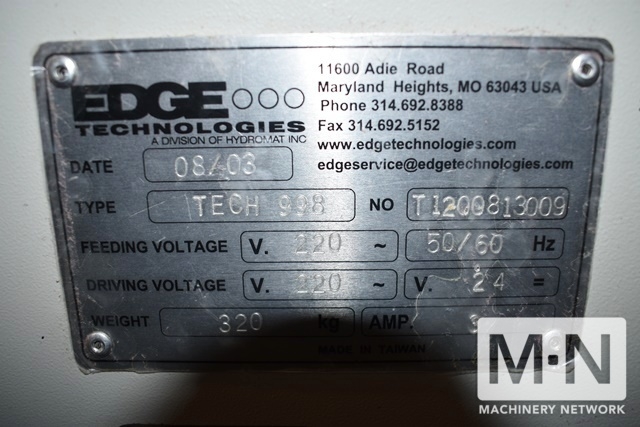

EDGE REBEL 102 SERVO SE BAR LOADER, S/N T1200813009
MARPOSE TOOL EYE SETTER
PARTS CONVEYOR

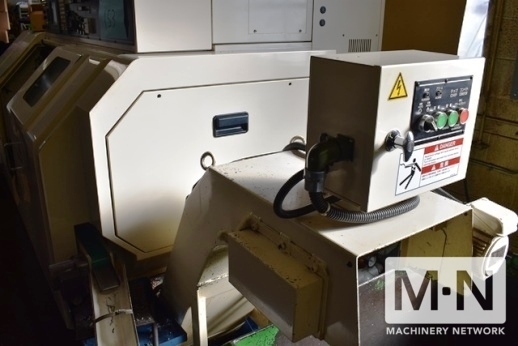

CHIP CONVEYOR
MISC TURRET TOOLING
NEW 2008
SPECIFICATIONS:
BAR WORK ROUND COLLET CAPACITY 1-5/8"
CHUCK SIZE, MAIN SPINDLE 5"
SUB SPINDLE 4"
WORK LENGTH, MAXIMUM WORK LENGTH 3.9"
MACHINING CAPACITY
MAXIMUM TURNING DIA MAIN SPINDLE 5"
MAX TURNING DIA SUB SPINDLE 4"
SPINDLE SPEED RANGE (INF VARIABLE) 67 TO 5,000 RPM
VARIABLE SPEED STEPS DIRECT DRIVE
SPINDLE DRIVE MOTOR (30 MINUTE RATING) AC 15 HP
SUB-SPINDLE (RIGHT)
COLLET CAPACITY 1-5/8"
SPINDLE SPEED RANGE (INF VARIABLE) 67 TO 5,000 RPM
SPINDLE DRIVE MOTOR (VARIABLE SPEED) AC 7.5 HP
SLIDE MOVEMENT (X2 & Z2-AXIS) NC CONTROL
SLIDE STROKE (X2-AXIS) 2.75"
SLIDE STROKE (Z2-AXIS) 20.27"
RAPID TRAVERSE RATE (X2-AXIS) 708 IPM
RAPID TRAVERSE RATE (Z2-AXIS) 787 IPM
MAIN TURRET
NUMBER OF TOOL STATIONS 12
MAXIMUM SLIDE STROKE
X1-AXIS 5.59"
Z1-AXIS 9.84"
Y1-AXIS +/- 1.18"
RAPID TRAVERSE RATE
X1-AXIS 708 IPM
Z1-AXIS 708 IPM
Y1-AXIS 472 IPM
TURRET INDEXING TIME 0.2 SEC/POS.
TURRET INDEXING TYPE BI-DIRECTIONAL
REVOLVING TOOL ATTACHMENT, MAIN TURRET 3HP
SPINDLE TYPE HARDINGE S20 COLLET PADS
SUB TURRET
NUMBER OF TOOL STATIONS 6
TURRET INDEXING TIME 0.2 SEC./POS.
TURRET INDEXING TYPE BI-DIRECTIONAL
SPINDLE TYPE HARDINGE S16 COLLET PADS
FANUC CONTROL HAS .....
OVERLAPPING CONTROL FOR SIMULTANEOUS MACHINING
C-AXIS MAIN & SUB SPINDLE CONTROL
RIGID TAP FUNCTION FOR BOTH SPINDLES
4-AXIS SIMULTANEOUS MACHINING
FIRST AND SECONDARY OPERATION CAN BE PERFORMED SIMULTANEOUSLY
FREE POSITION INDEXING OF EACH CUTTING TOOL
MAIN & SUB SPINDLE ORIENTATION FOR HEXAGON AND SQUARE BAR WORK PART TRANSFER
INNER HIGH PRESSURE (160 PSI) COOLANT/AIR FOR RIGHT SPINDLE
EQUIPPED WITH
FANUC 18ITB CONTROL
EDGE REBEL 102 SERVO SE BAR LOADER, S/N T1200813009
MARPOSE TOOL EYE SETTER
PARTS CONVEYOR
CHIP CONVEYOR
MISC TURRET TOOLING
