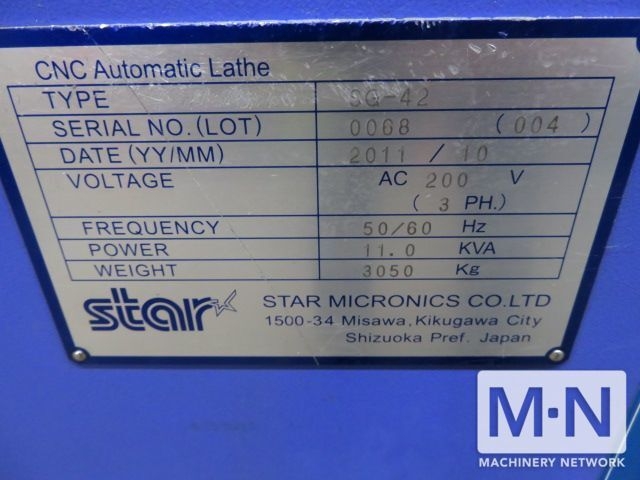

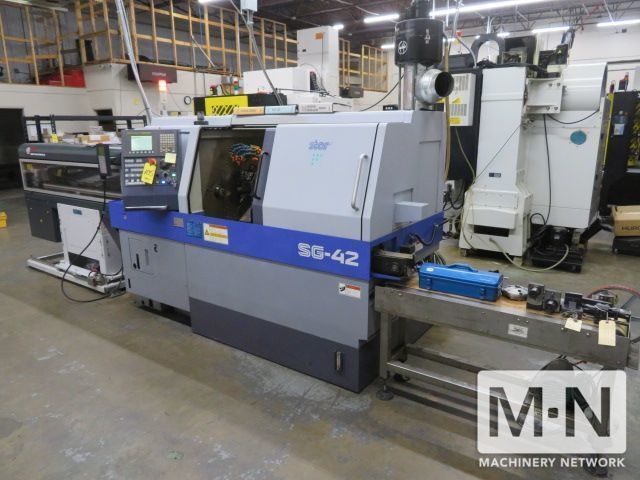

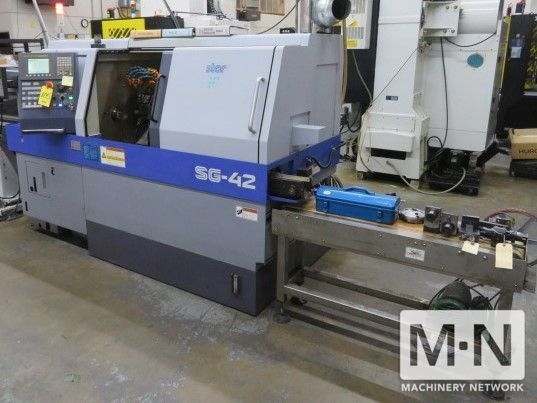

Star SG-42 Fixed Head CNC Swiss Automatic
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
STAR
Model:
SG-42
Condition:
Used - Good
Year:
2011
Stock #:
38775
Status:
Sold
Description:

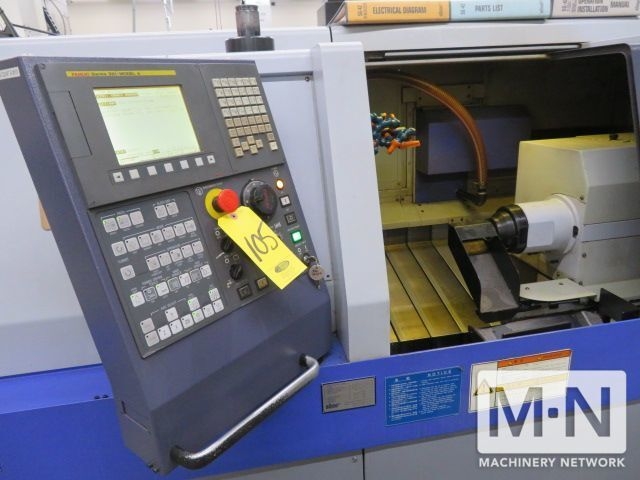

FANUC 32i-A CNC Control, 6-Axis, 7,000
RPM Spdl., Max Machining Dia. 1-21/32", Max Machining, 10
Station Turret, Live Tooling, Parts Conveyor, ROYAL Filtermist
RPM Spdl., Max Machining Dia. 1-21/32", Max Machining, 10
Station Turret, Live Tooling, Parts Conveyor, ROYAL Filtermist
Videos:
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Max Machining Diameter
Max Machining Length
Turret Tool Post
Sleeve Holder- Number of tools
Sleeve Holder- Max. drilling capability
Sleeve Holder- Max tapping capability
Power-driven att.- Number of tools
Power-driven att.- Max drilling capability
Power-driven att.- Max tapping capability
Main Spindle indexing angle
Main Spindle speed
Main Spindle motor
Power-driven att. spindle speed
Power-driven att. drive motor
Coolant tank capacity
Backworking Attachment- Max. chucking diameter
Backworking Attachment- Max. part length for pick-up
Backworking Attachment- Max. parts projection length
Backworking Attachment- Max. parts insertion length
BAckworking Attachment- Sub spindle indexing angle
Backworking Attachment- Sub spindle speed
Backworking Attachment- Sub spindle motor

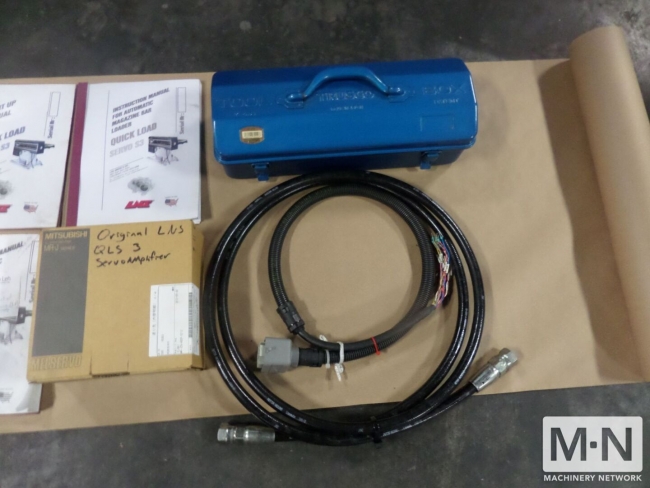

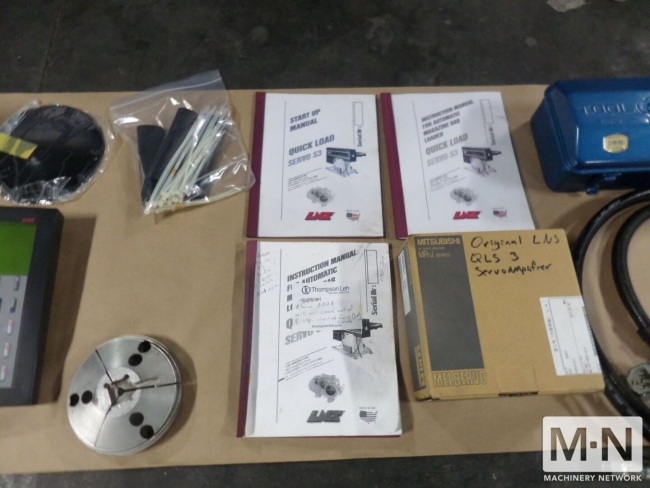

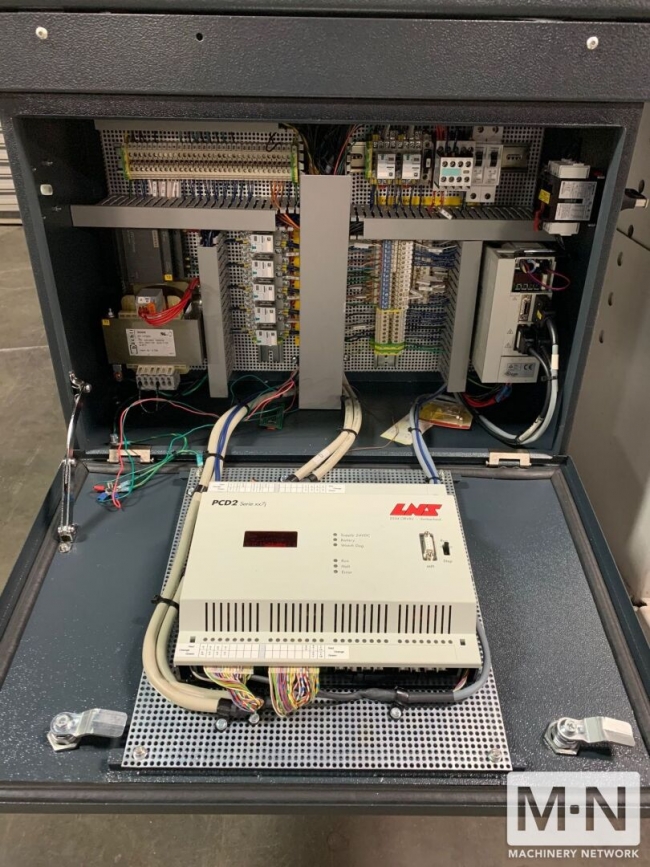

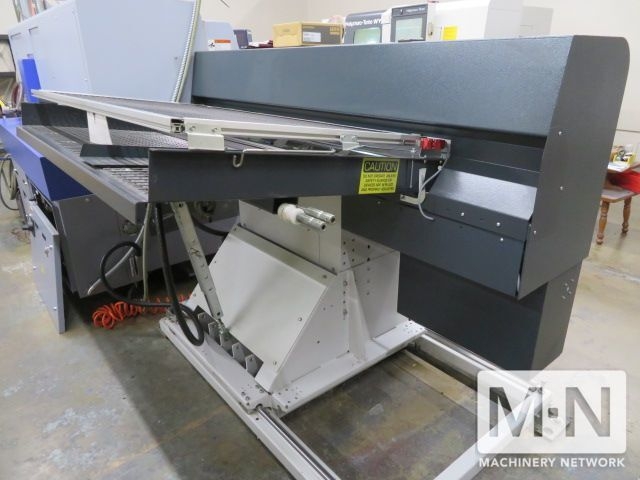

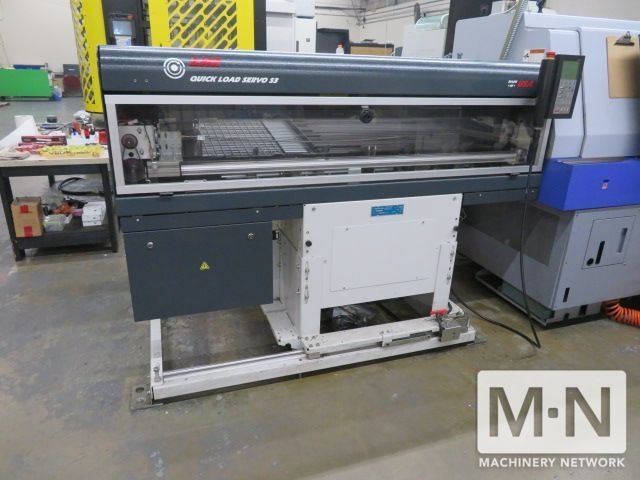

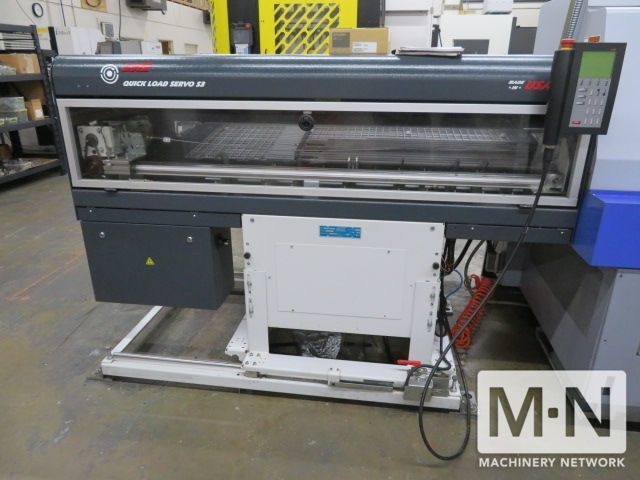

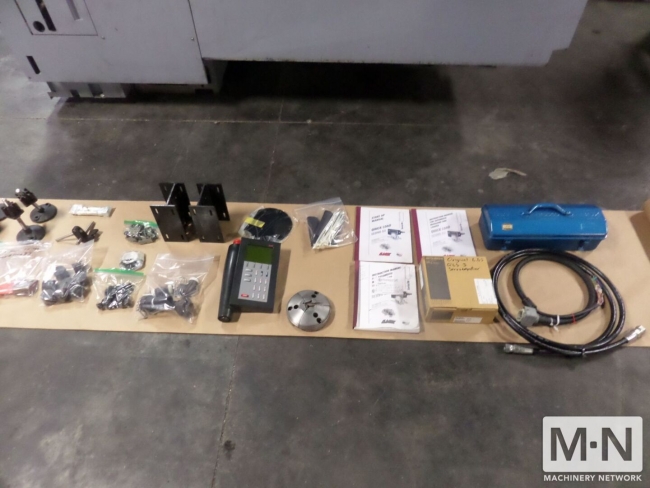

2012 LNS Quick Load Servo 3 Programmable Mag-Type Bar Loader
(2) 12mm Pushers / (1) 6mm Pusher

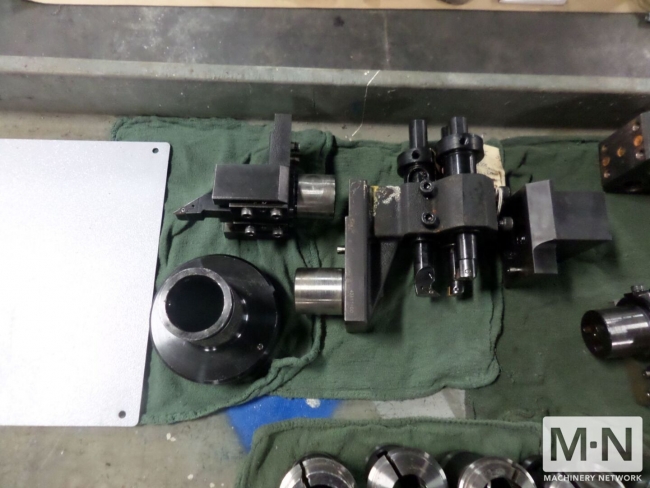

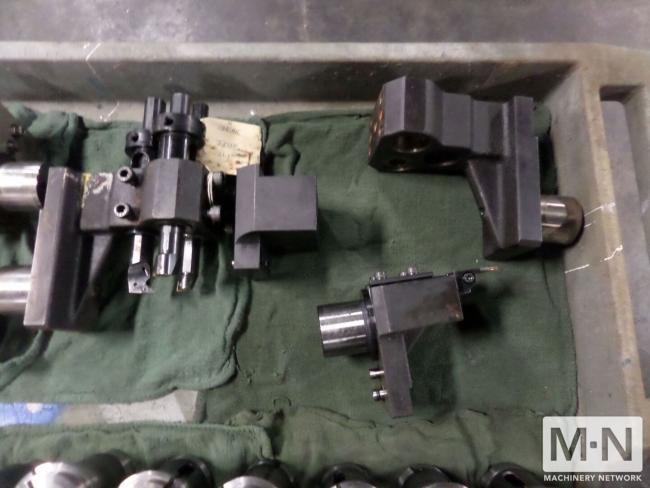

(2) Triple Drill Sleeve Holder (431-11)
(2) Double Stick Tool Holder (431-09)
Cross Unit ER16
(7) Live Tool Holders
Parts Conveyor
Part Catcher
Discharge Conveyor (043L-02-09)
Royal Filtermist FX-55
Data Card
Signal Light

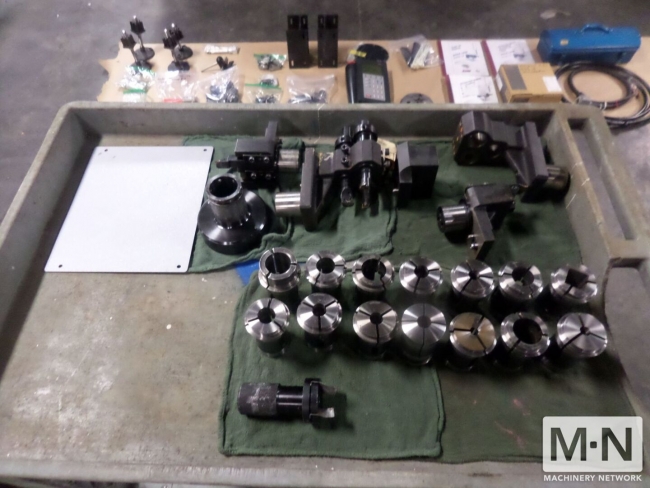

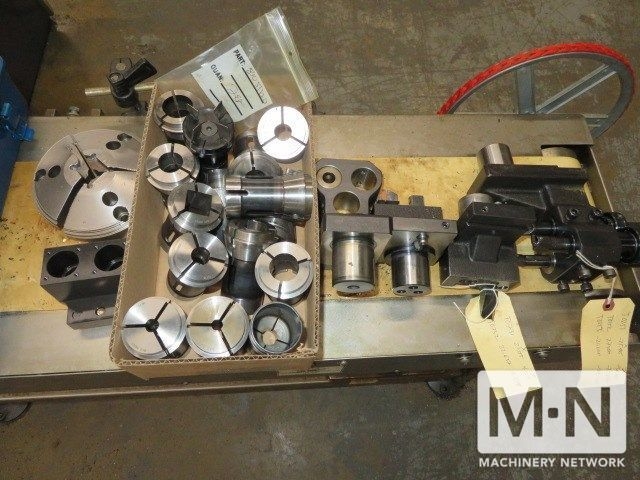

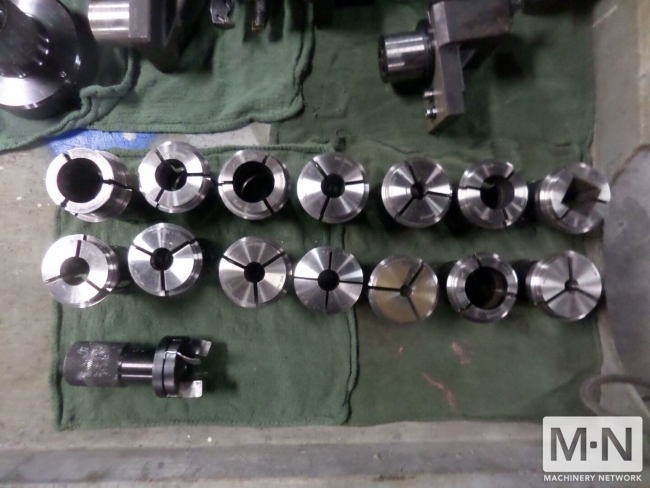

(14) Collets

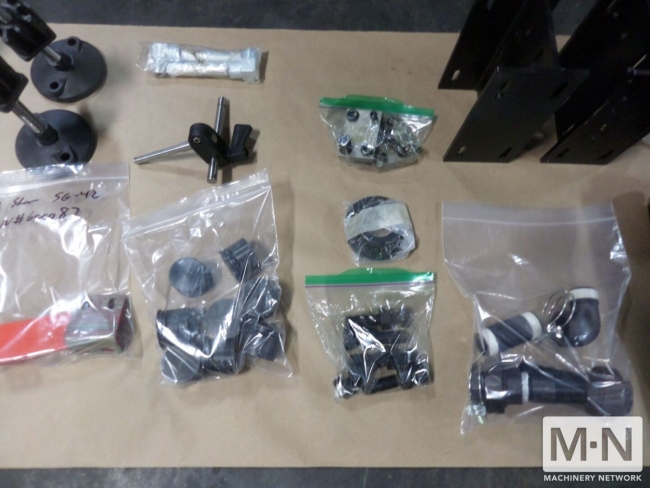

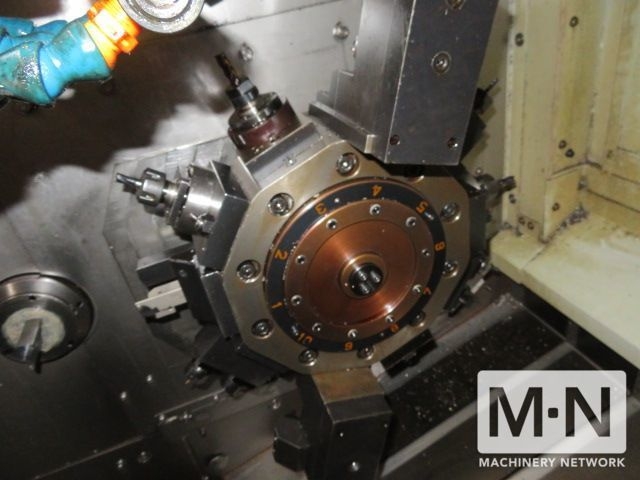

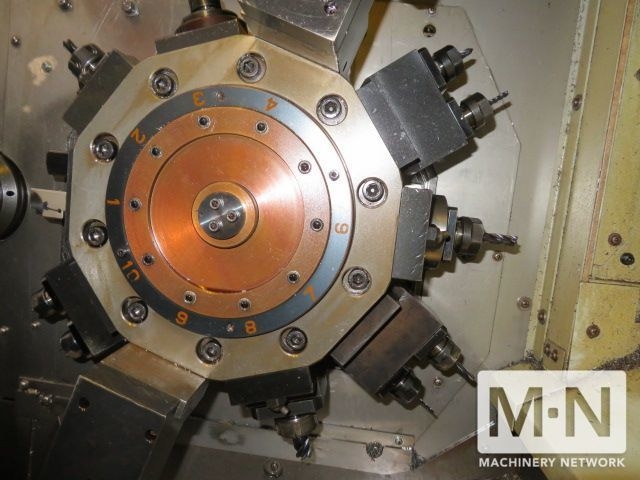

Tooling In Turret By Position:
1- Double Turning Tool Holder (Coolant Through)
2- Cross Drill (581-51-00)
3- Cross Drill (201-500-00) (Coolant Through)
4- Double End Drill
5- Cross Drill
6- Cross Drill (Coolant Through)
7- Double Cross Drill
8- Double Cross Drill/Mill (Coolant Through)
9- Double Cross Drill (Coolant Through)
10- Double Cross Drill
Note: Uses the same tooling as a Star SV32 or a KNC32
*13,494 Cutting Hours*
