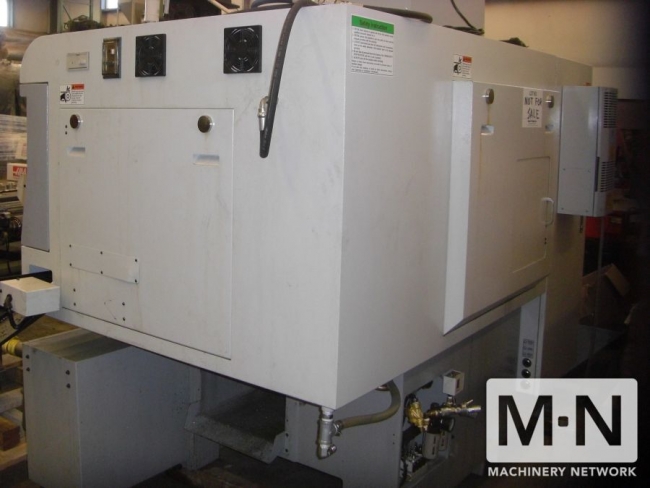

GANESH CYCLONE CS32

Type:

AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC

Manufacturer:

GANESH

Model:

CYCLONE CS32

Condition:

Not Specified

Year:

2007

Stock #:

30440

Status:

Sold

Description:

1.25", Mits 7 axis, Live tool, Sliding headstock, 12' Mag. Barfeed

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

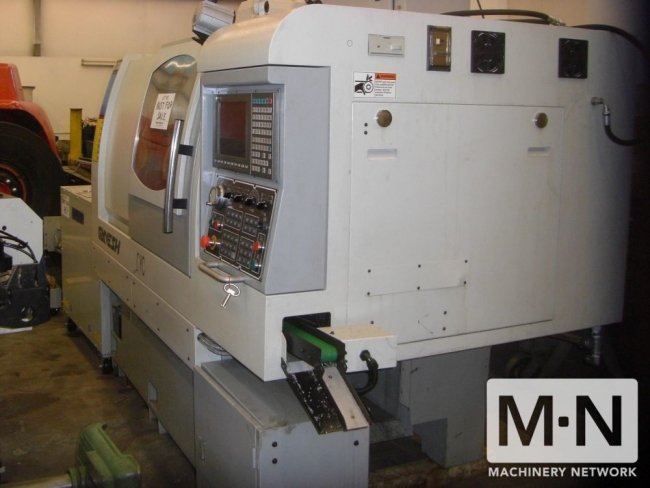

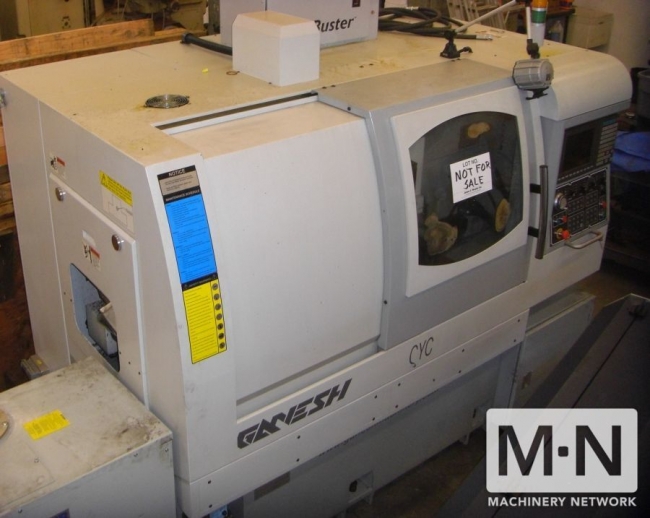

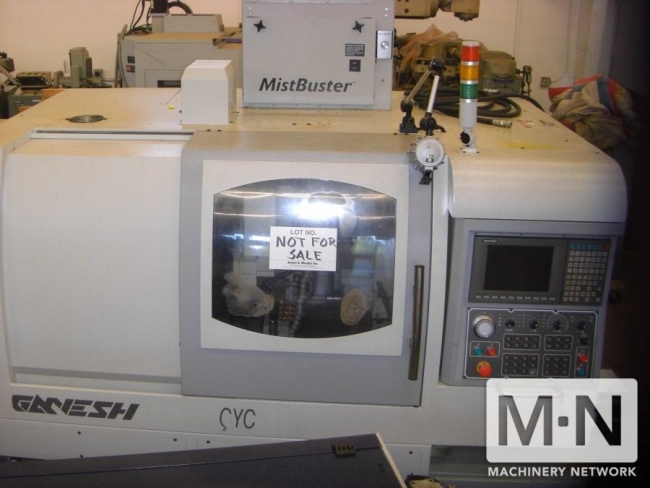

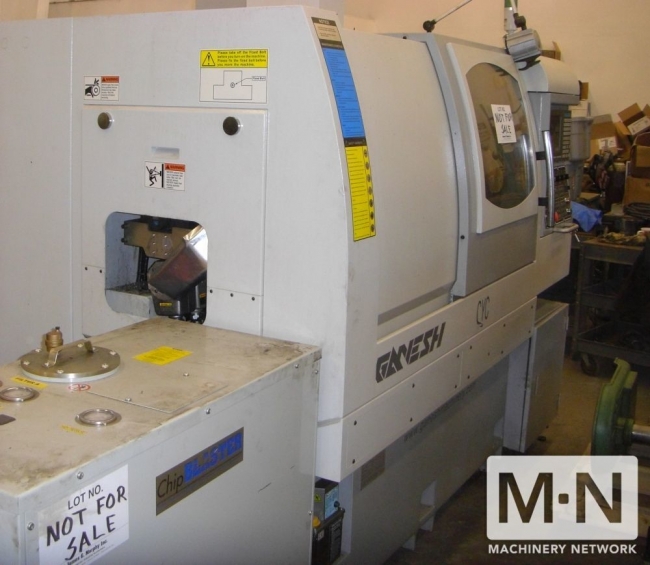

(1) Used Ganesh Cyclone 32 CS 7 Axis CNC Swiss Screw Machine - New 2007

Specifications:

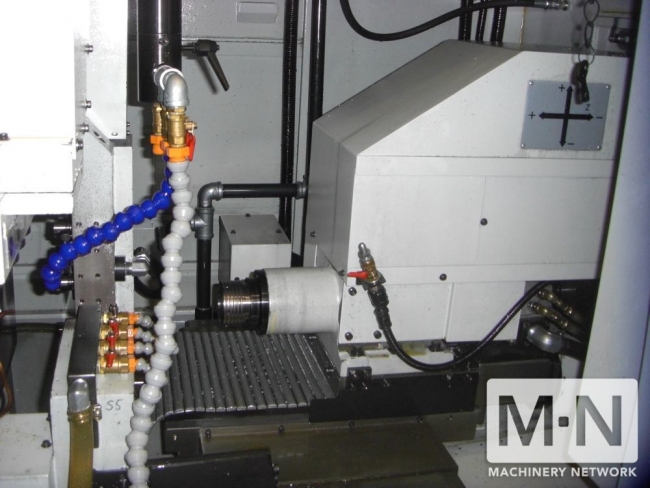

Main Spindle Spindle Motor 7.5 HP Maximum RPM 6,000 RPM Collet Nose Traub A-32 Maximum Barstock Diameter 1.25” (1.375” optional) X-axis Travel 7.28” Y-axis Travel 19.29” Z-axis Travel 6.50” Rapid Travel Speed 1,180 IPM (30m/ minute) Minimum input unit 50 millionths (0.00005”) OD Turning Tool Positions 6 OD Tools (½” or 12mm) (5-5/8” tool plate available) ID Turning Tool Positions 5 ID Tools OD Turning Tool size ½” or 12mm (5/8” or 16mm Optional) ID Turning Tool Bore Size 25 mm Spindle Center Height 38” Sub Spindle Sub spindle Motor 5 HP Continuous Duty (7.5 HP Peak) Maximum Barstock Diameter 1.25” Sub spindle RPM 6,000 RPM X-axis Travel 11.53” Z-axis Travel 11.61” Minimum input unit

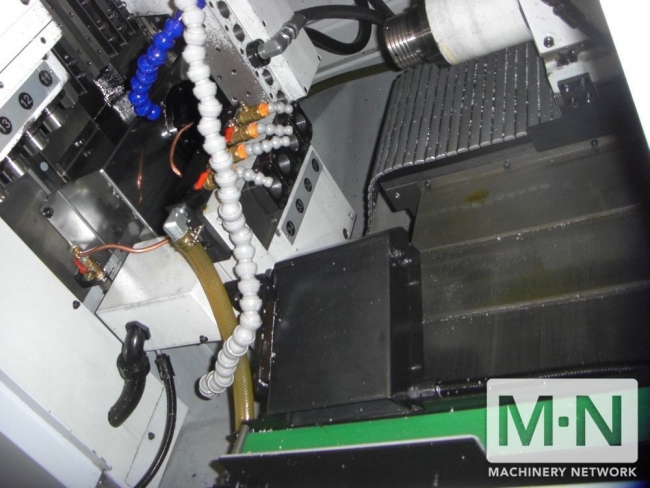

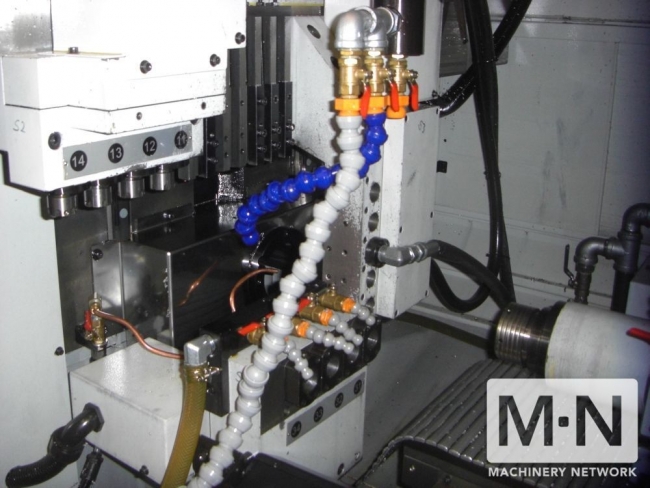

50 millionths (0.00005”) ID Turning Tool Bore Size 25mm Live Tooling Cross slide live tools 4 Cross slide live tools Front slide live tools 3 Front slide live tools Live tool collet size ER-20 collet, ½” (13mm) tool shank capacity Max RPM for live tools 4,000 RPM Machine Dimensions 95"x60"x76" Weight 8,360lbs (3800kgs)
Equipped with:

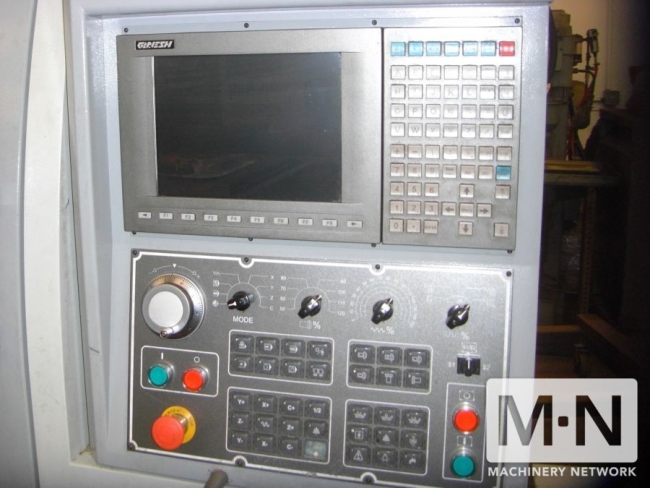

Mitsubishi 7 Axis CNC Control

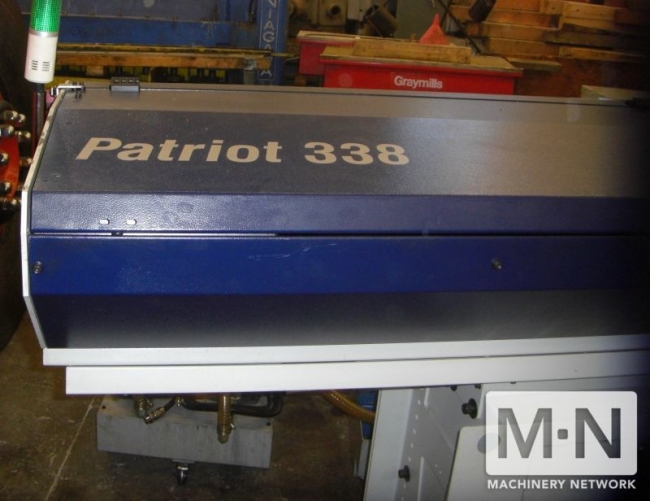

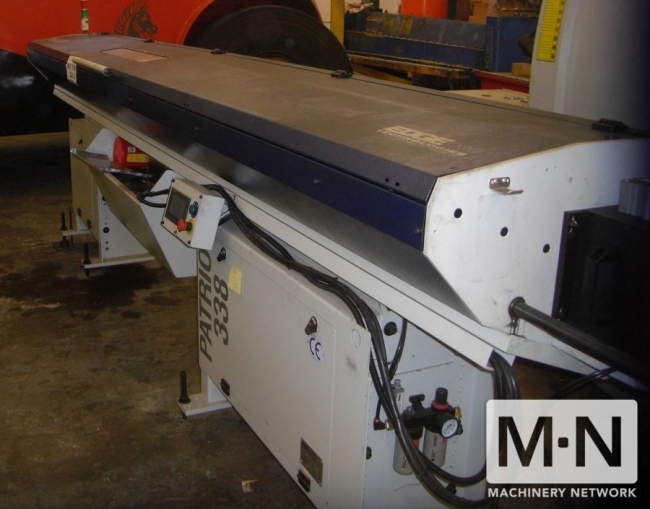

Edge Technologies Model Patriot 338 12' magazine type bar feed
Air Blast nozzle
Finished Parts Ejector
