TOYODA WELE UA2090

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

TOYODA

Model:

WELE UA2090

Condition:

Not Specified

Year:

2014

Stock #:

36063

Status:

Sold

Description:

FANUC 31I B5, 84.6" X 35.4" TBL., 78"X35"X27", 12K RPM, HSK63A TAPER

Location:

Oregon, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

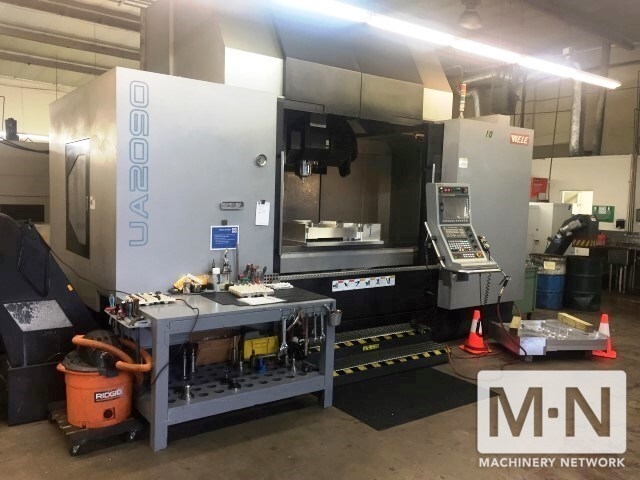

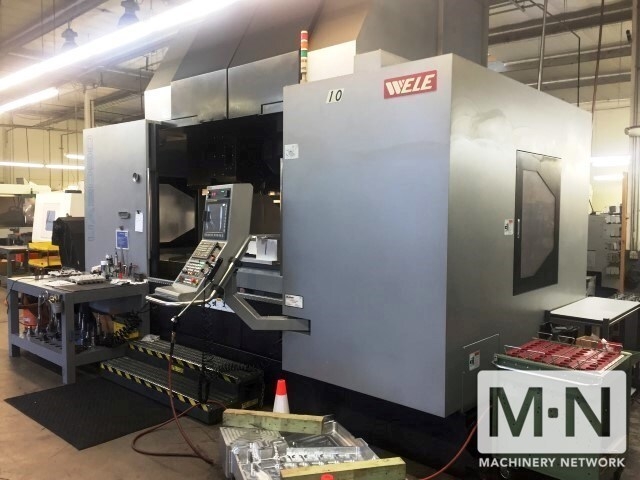

(1) USED TOYODA WELE UA2090 5-AXIS VMC
NEW 2014

SPECIFICATIONS:
CLAMPING AREA ........................84.6" X 35.4"
X-AXIS TRAVEL (TABLE MOVEMENT)..........78.7"
Y-AXIS TRAVEL (TABLE MOVEMENT)..........35.4"
Z-AXIS TRAVEL (HEADSTOCK MOVEMENT)......27.5"
DISTANCE FROM TABLE TOP TO
SPINDLE FACE IN VERTICAL POSITION ......3.1" TO 30.7"
A-AXIS SWIVELING RANGE................± 30°
B-AXIS ROTATING RANGE (TABLE).........± 30°
MAXIMUM TABLE LOAD......................4,850 LB
SPINDLE DRIVE MOTOR ....................40 HP
SPINDLE OUTPUT TORQUE ..................811 FT-LB
SPINDLE TAPER...........................HSK63A TAPER
SPINDLE SPEED ..........................12,000 RPM DIRECT DRIVE
SPINDLE TYPE............................DIRECT DRIVE
RAPID FEEDRATE (X AND Y AXES)...........944 IPM
RAPID FEEDRATE (Z AXIS).................708 IPM
MAXIMUM CUTTING FEEDRATE................394 IPM
TOOL STORAGE CAPACITY...................48 ATC
STANDARD FLOOR SPACE....................209" X 130" X 157"

EQUIPPED WITH:

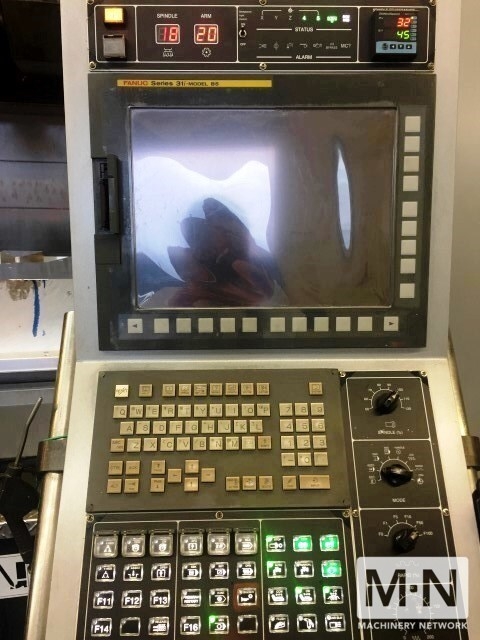

FANUC 31I B5
COOLANT SYSTEM AND TANK W/ 420 LTR. CAP.
DRUM FILTER TYPE CHIP CONVEYOR
BED FLUSHING
FINISH AND ALARM LAMP
HEAT EXCHANGER
MPG REMOTE HANDWHEEL
MAGNETIC SCALE ON X, Y, AND Z AXES
WORK LIGHT
RS-232 INTERFACE
ROOF ENCLOSURE GUARDING SYSTEM
MAGNETIC ROTARY ENCODER OF A / B AXES
