TOYODA FA 800
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
TOYODA
Model:
FA 800
Condition:
Not Specified
Year:
2004
Stock #:
28423
Status:
Sold
Description:
FANUC 16iMB, 31.5"x31.5" PLLTS, TRVLS: 53.1"x45.2"x45.2"
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

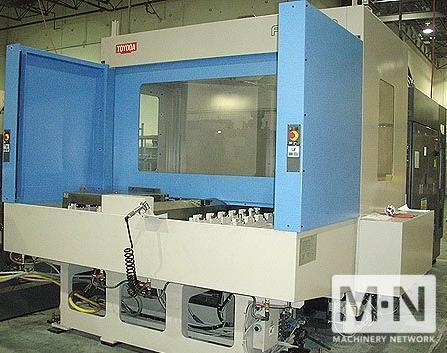

(1) USED TOYODA FA 800 5-AXIS CNC HORIZONTAL MACHINING CENTER
NEW 2004
SPECIFICATIONS:
PALLET SIZE: 31.5" X 31.5"
MAXIMUM PALLET LOAD: 5,500 LBS
TABLE INDEX INCREMENTS: 0.001" CONTOURING
X - AXIS TRAVEL: 53.1"
Y - AXIS TRAVEL: 45.2"
Z - AXIS TRAVEL: 45.2"
WORKPIECE SWING: 51.2" X 51.2"
RAPID TRAVERSE X,Y & Z: 944 IPM
CUTTING FEEDRATE: 0.04 - 944 IPM
AUTOMATIC TOOL CHANGER: 120
TOOLING TYPE: CAT # 50
SPINDLE SPEED RANGE: 35 - 12,000 RPM
SPINDLE DIAMETER: 4.33"
MAIN SPINDLE MOTOR: 40 H.P.
APPROXIMATE DIMENSIONS: 191"(LR)
301"(FB)
165"(H)
APPROXIMATE WEIGHT: 61,000 LBS.
EQUIPPED WITH THE FOLLOWING:

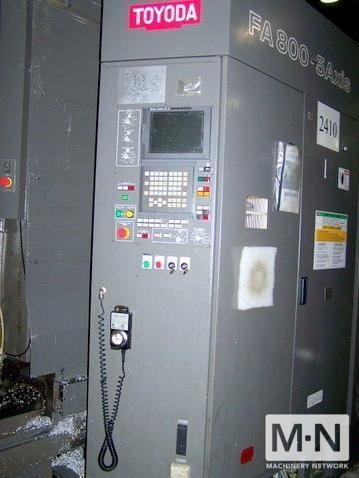

FANUC 16i MB CNC CONTROLLER
5 AXIS TRUNION TABLE & LOAD/UNLOAD STATION
COOLANT THROUGH SPINDLE
KNOLL FILTRATION SYSTEM
HPCC LOOK AHEAD
(SPECIFICATIONS SUBJECT TO VERIFICATIONS)
CONDITION: VERY GOOD
NEW 2004
SPECIFICATIONS:
PALLET SIZE: 31.5" X 31.5"
MAXIMUM PALLET LOAD: 5,500 LBS
TABLE INDEX INCREMENTS: 0.001" CONTOURING
X - AXIS TRAVEL: 53.1"
Y - AXIS TRAVEL: 45.2"
Z - AXIS TRAVEL: 45.2"
WORKPIECE SWING: 51.2" X 51.2"
RAPID TRAVERSE X,Y & Z: 944 IPM
CUTTING FEEDRATE: 0.04 - 944 IPM
AUTOMATIC TOOL CHANGER: 120
TOOLING TYPE: CAT # 50
SPINDLE SPEED RANGE: 35 - 12,000 RPM
SPINDLE DIAMETER: 4.33"
MAIN SPINDLE MOTOR: 40 H.P.
APPROXIMATE DIMENSIONS: 191"(LR)
301"(FB)
165"(H)
APPROXIMATE WEIGHT: 61,000 LBS.
EQUIPPED WITH THE FOLLOWING:
FANUC 16i MB CNC CONTROLLER
5 AXIS TRUNION TABLE & LOAD/UNLOAD STATION
COOLANT THROUGH SPINDLE
KNOLL FILTRATION SYSTEM
HPCC LOOK AHEAD
(SPECIFICATIONS SUBJECT TO VERIFICATIONS)
CONDITION: VERY GOOD
