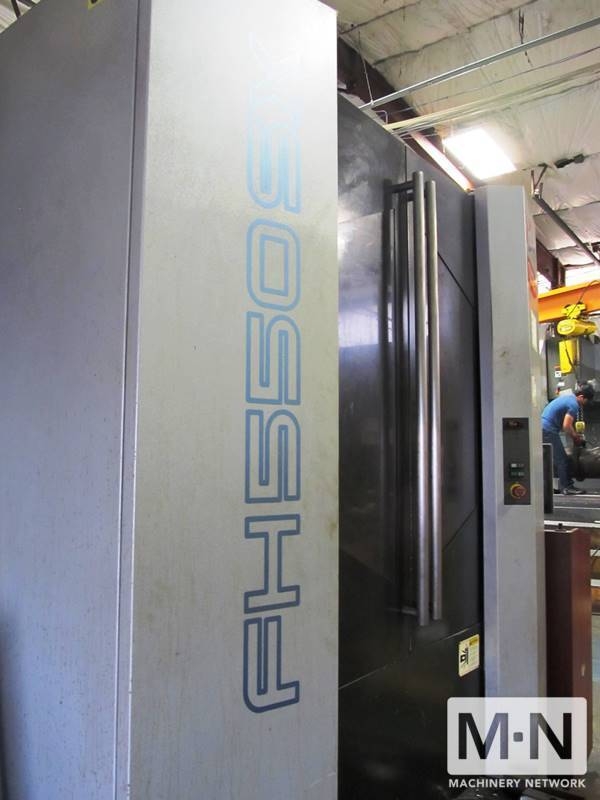

TOYODA FH550SX

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

TOYODA

Model:

FH550SX

Condition:

Not Specified

Year:

2006

Stock #:

35856

Status:

Sold

Description:

FANUC 31IA , 29"x31",33", 60 ATC, 4.7" MAX TOOL DIAM, C.T.S., BIG PLUS SPINDLE, C.C.,

Location:

Texas, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

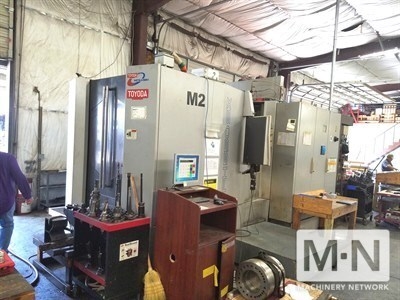

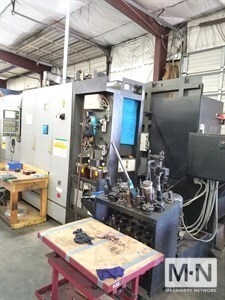

(1) USED TOYODA FH 550SX CNC HORIZONTAL MACHINING CENTER
NEW 2009

SPECIFICATIONS:
PALLET SIZE.......................21.65" X 21.65"
WORKPIECE SWING...................33.46" X 33.46"
PALLET WEIGHT CAPACITY............1760 LBS.
SPINDLE CENTER TO TABLE TOP.......3.94" - 35.43"
X - AXIS TRAVEL...................29.52"
Y - AXIS TRAVEL ..................31.5"
Z - AXIS TRAVEL ..................33.46"
TABLE INDEXING 1 DEGREE
RAPID TRAVERSE X, Z, Y, W.........2362, 2362, 2362 IPM
MAIN MOTOR........................30 HP AC
SPINDLE TAPER.....................50 CT
SPINDLE SPEEDS....................6,000 RPM
AUTO TOOL CHANGE CAPACITY.........60 ATC
MAX TOOL DIA. ....................4.72"
MAXIMUM TOOL WEIGHT...............59.4 LBS.
MAX TOOL LENGTH...................21.5"
MACHINE WEIGHT....................35,200 LBS.
DIMENSIONS........................266" X 126" X 131

EQUIPPED WITH:

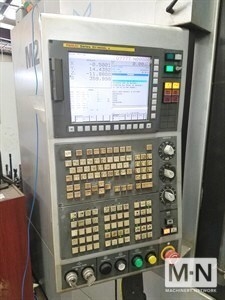

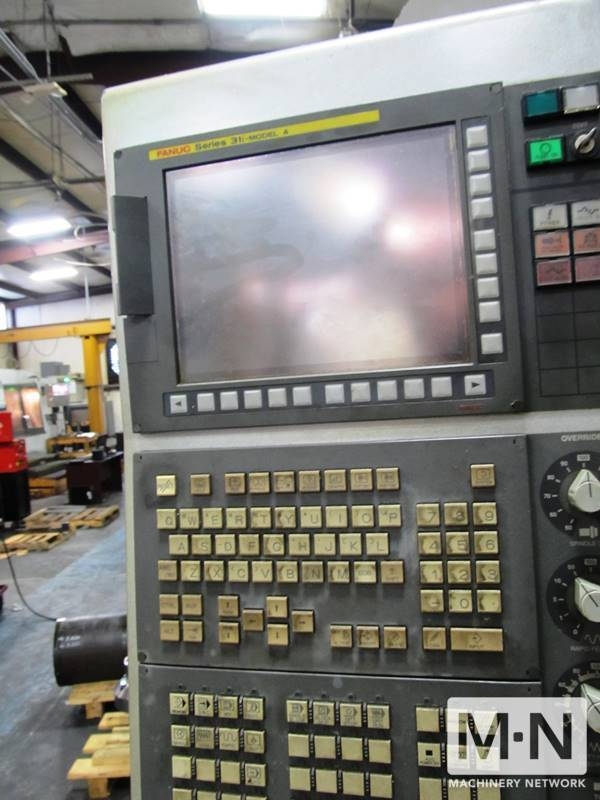

FANUC 31IA CNC CONTROL
3 POINT LEVELING SYSTEM
48 PAIRS WORK COORDINATES
ALL AVAILABLE MANUALS

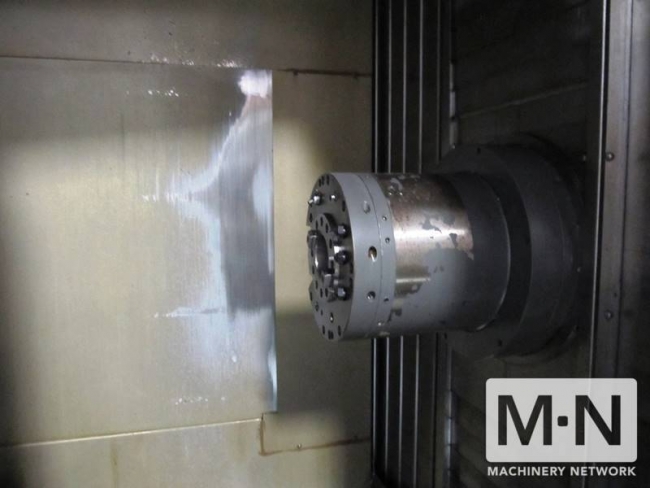

BIG PLUS SPINDLE
CHIP REMOVAL SYSTEM
OVERHEAD REMOTE SHOWER COOLANT
PROGRAM RESTART
REMOTE MANUAL PULSE GENERATOR
RIGID TAPPING
THRU SPINDLE COOLANT 1000 PSI
