TOYODA FH-630SX
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
TOYODA
Model:
FH-630SX
Condition:
Not Specified
Year:
2009
Stock #:
31367
Status:
Sold
Description:
Fanuc 31i Ctrl, 39"x31"x33", 60 ATC
Videos:
Location:
Washington, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

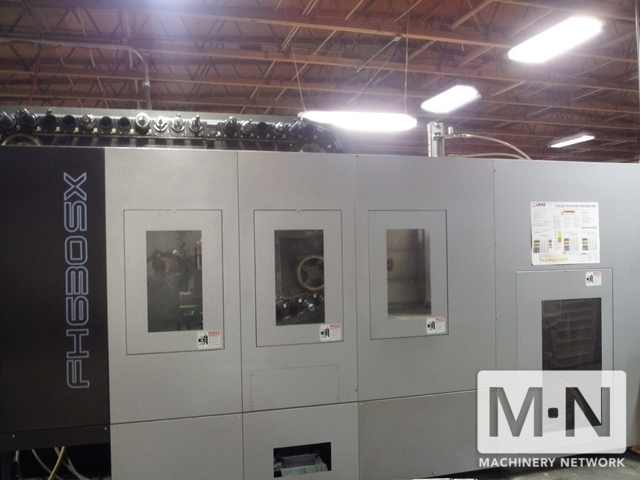

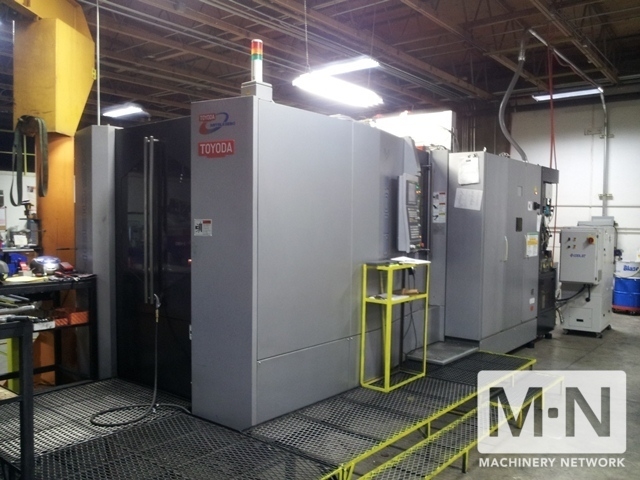

1) Used Toyoda FH-630SX CNC 4 -AXIS Horizontal Machining Center
Mfg Date 2009 Installed 2010
1,500 Cut Hours
Specifications
Full 4th Axis
Table Size - (2):24.800" X :24.800 SQ PALLETS
Travels -
X: 39.370
Y: 31.500
Z: 33.460

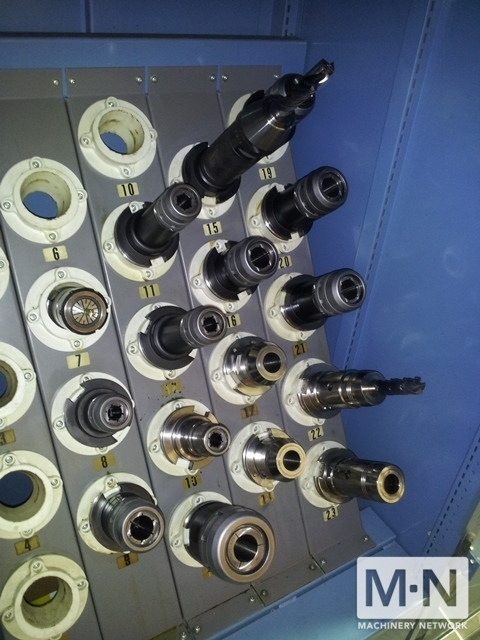

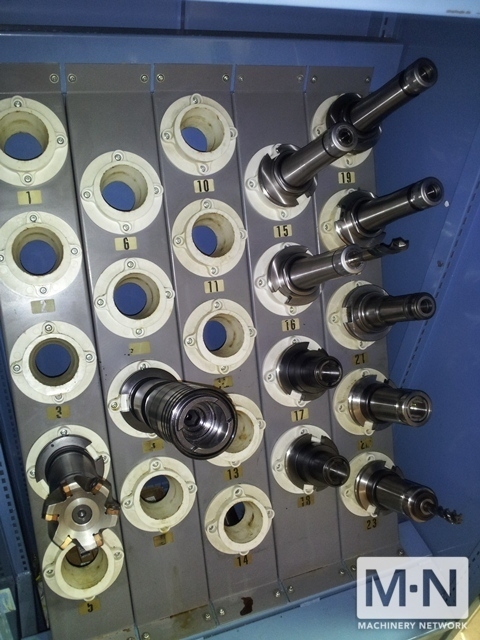

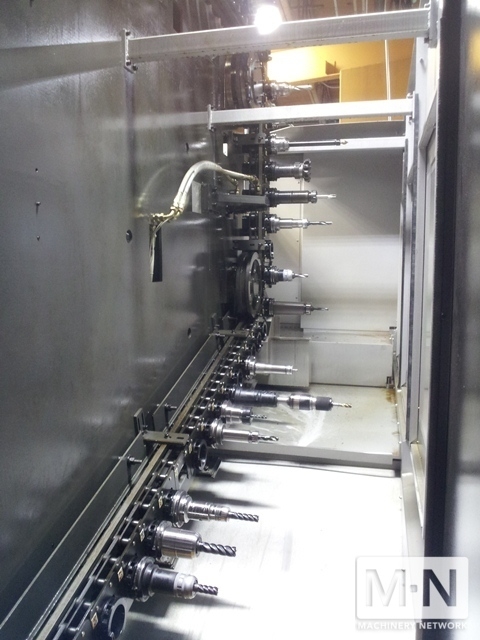

ATC...........................................................60 Tools
Taper..........................................................CAT #50
Spindle Speed............................................15,000 RPM
Motor..........................................................40HP
Max Table Load - 2640 lbs
Max Tool Length - 21.500
Max Tool Dia. - 12.590
Max Tool Weight - 59.50 lbs
Tool Change Time - 2.00 sec
Chip to Chip - 3.70 sec
Machine Dimensions - L:281 X W:141 X H:124
Machine Weight - 45,500 lbs
Equipped With:

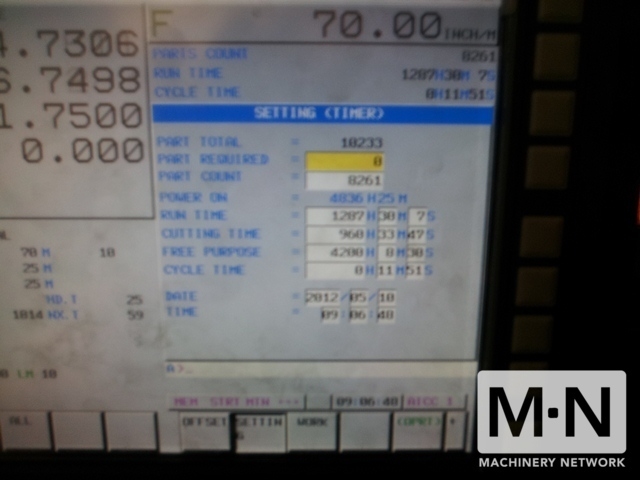

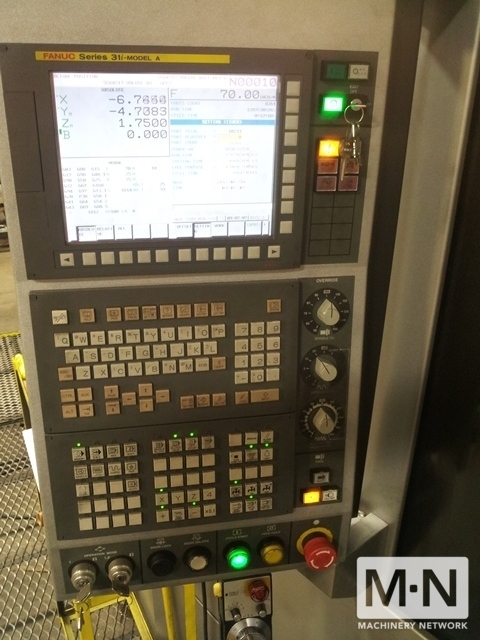

GE Fanuc 31i 4 axis Control
Renishaw NC-4 laser tool setter
Renishaw OMP-400 Spindle probe
Rotary wiper window
1000psi TSC Cool Jet
LNS Micro fine dual filtering chip conveyor
Shower coolant
Mfg Date 2009 Installed 2010
1,500 Cut Hours
Specifications
Full 4th Axis
Table Size - (2):24.800" X :24.800 SQ PALLETS
Travels -
X: 39.370
Y: 31.500
Z: 33.460
ATC...........................................................60 Tools
Taper..........................................................CAT #50
Spindle Speed............................................15,000 RPM
Motor..........................................................40HP
Max Table Load - 2640 lbs
Max Tool Length - 21.500
Max Tool Dia. - 12.590
Max Tool Weight - 59.50 lbs
Tool Change Time - 2.00 sec
Chip to Chip - 3.70 sec
Machine Dimensions - L:281 X W:141 X H:124
Machine Weight - 45,500 lbs
Equipped With:
GE Fanuc 31i 4 axis Control
Renishaw NC-4 laser tool setter
Renishaw OMP-400 Spindle probe
Rotary wiper window
1000psi TSC Cool Jet
LNS Micro fine dual filtering chip conveyor
Shower coolant
