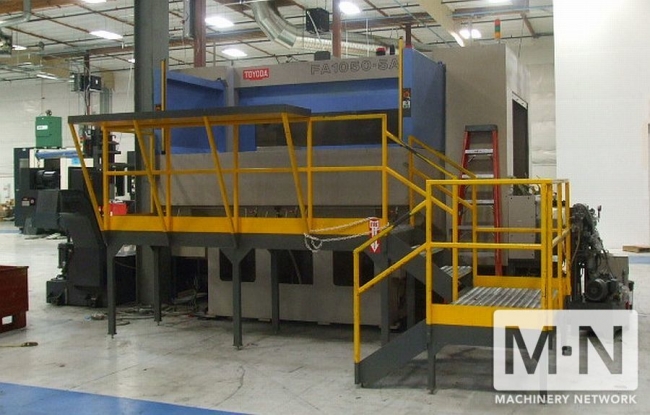

TOYODA FA1050-5A

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

TOYODA

Model:

FA1050-5A

Condition:

Not Specified

Year:

2004

Stock #:

31482

Status:

Sold

Description:

TOYODA FA1050-5A, 59"X55"X55", 120 TOOLS, 6K RPM

Location:

Washington, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED TOYODA MODEL FA1050 - 5-AXIS TRUNNION STYLE CNC HORIZONTAL MACHINING CENTER NEW 2004
SPECIFICATIONS: X-AXIS TRAVEL (COLUMN): ............... 59.1" Y-AXIS TRAVEL (SPINDLE VERTICAL): ..... 55.1" Z-AXIS TRAVEL (WORKTABLE CROSS): ...... 55.1" B-AXIS TRAVEL (ROTARY): ............... 0.001 DEGREE, 360,000 POSITIONS A-AXIS TRAVEL (TABLE TILT): ........... 110 DEG PALLET SIZE: .......................... 41.3" X 41.3" (1,050 MM X 1,050) MM) PALLET WORKLOAD CAPACITY: ............. 4,400 LB. (2,000 KG) SPINDLE MOTOR: ........................ 40 HP INTEGRAL DRIVE SPINDLE SPEED: ........................ 50 - 6,000 RPM SPINDLE OUTPUT TORQUES: ............... 193.9 FT LB (262.6 NM) SPINDLE TAPER: ........................ CAT 50 TOOL MAGAZINE CAPACITY: ............... 120 TOOLS RAPID FEEDRATE - X AXIS/Y & Z AXES: ... 787 IPM / 944 IPM MACHINE SIZE: ......................... 330.7" X 275.6" X 161.4" MACHINE WEIGHT: ....................... 120,000 LB

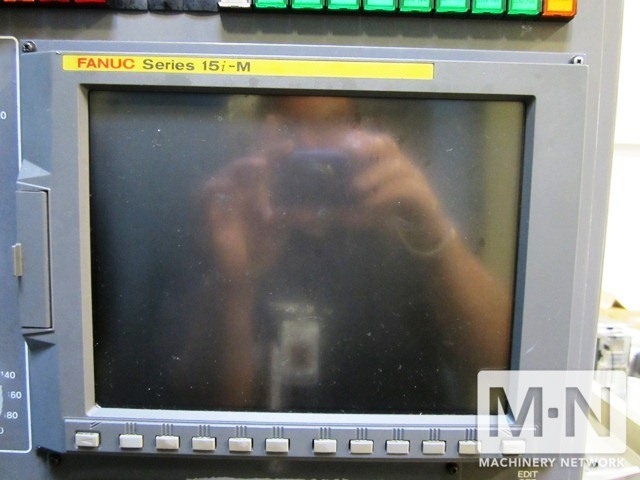

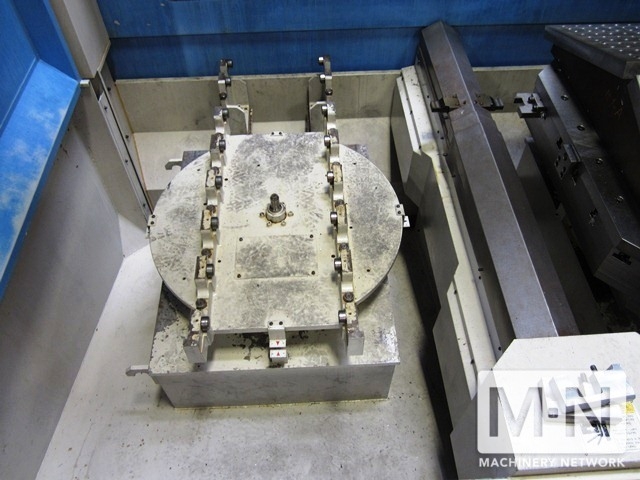

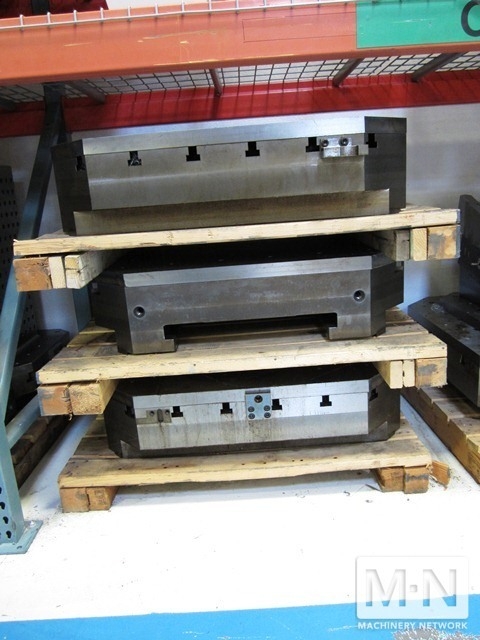

EQUIPPED WITH: FANUC 15I-M CONTROL - FULL CONTOURING PROBING COOLANT THRU SPINDLE CHIP CONVEYOR EXTRA PALLETS
