TOSHIBA TSS 20/40A

Type:

BORING MILLS, VERTICAL, N/C & CNC

Manufacturer:

TOSHIBA

Model:

TSS 20/40A

Condition:

Not Specified

Year:

1981

Stock #:

34624

Status:

Sold

Description:

157.5" Sw, 78.7" table, 86.2" u/r , Fanic 0iTD, Side head

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

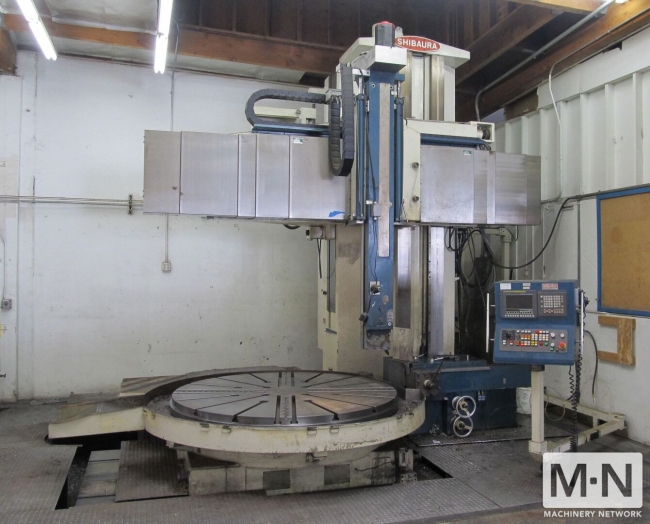

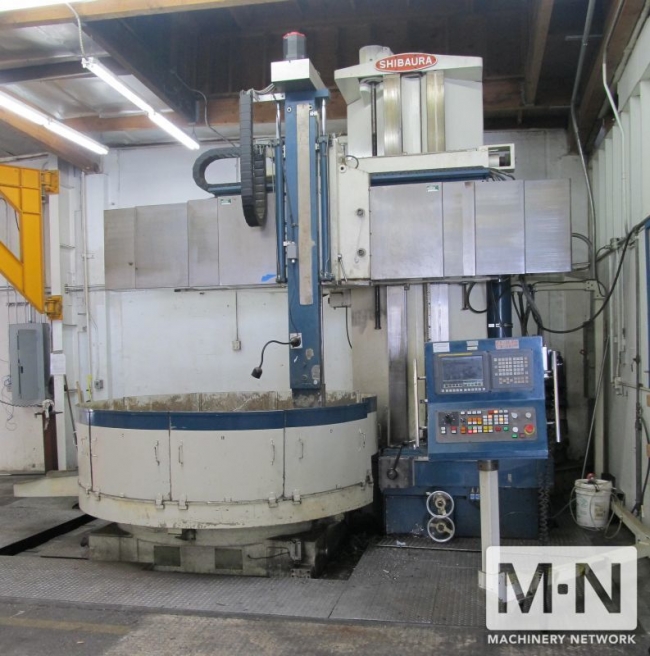

(1) USED 78.7" TOSHIBA SHIBAURA MODEL TSS-20/40A CNC VERTICAL BORING MILL, NEW 1981, RETROFITTED 2010

SPECIFICATIONS:
TABLE DIAMETER ....................... 78.70"
MAXIMUM SWING ........................ 157.50"
MAXIMUM HEIGHT UNDER RAIL ............ 86.2"
NUMBER OF HEADS ...................... (1)
SPINDLE SPEED......................... 100 RPM
MOTOR ................................ 50 (37KW) HP
MAX. TURNING DIAMETER TO CENTER....... 126"
MAX. TURNING HEIGHT ABOVE TABLE....... 78.70"
MAX. WORKPIECE WEIGHT................. 35,300 LBS.
VERTICAL TRAVEL OF TOOL HEAD.......... 42"
HORIZONTAL TRAVEL OF TOOL HEAD........ 68.50"

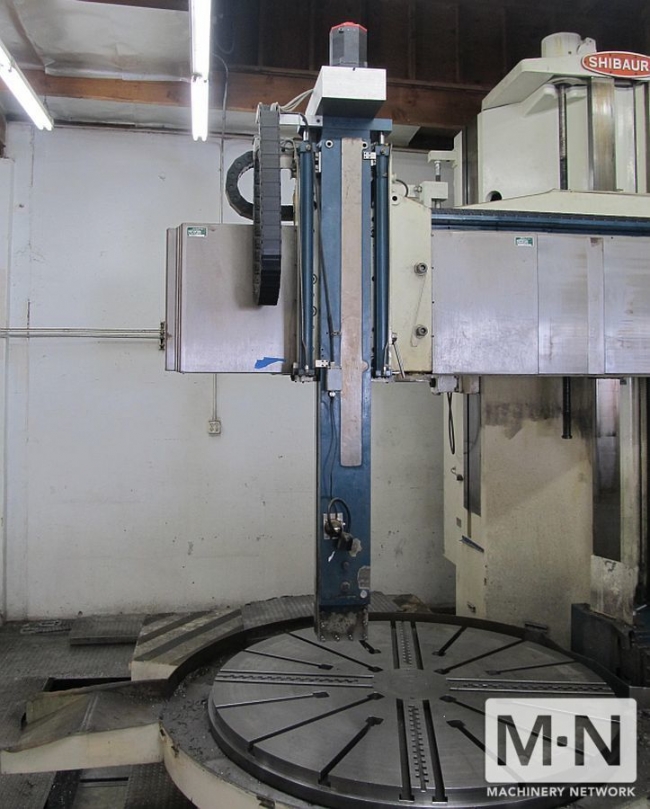

RAM SIZE.............................. 8.25" SQUARE

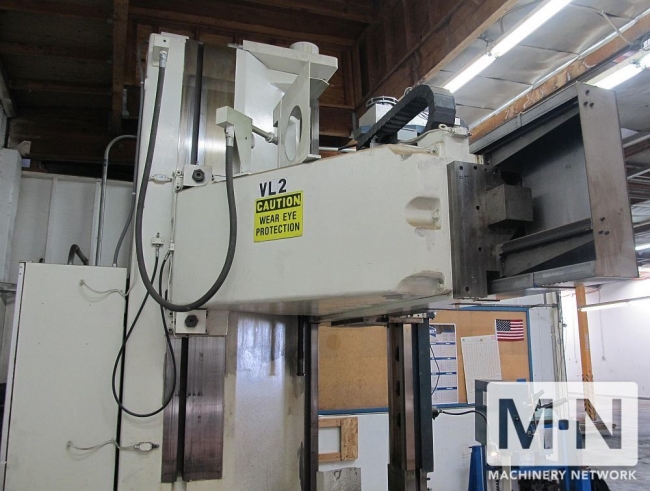

MAX. CLEARANCE CROSS RAIL TO TABLE ... 88.70"
VERTICAL TRAVEL OF CROSS RAIL......... 41.30"
FLOOR SPACE........................... 264" X 205" X 240"H
MACHINE WEIGHT........................ 69,000 LBS.

EQUIPPED WITH:

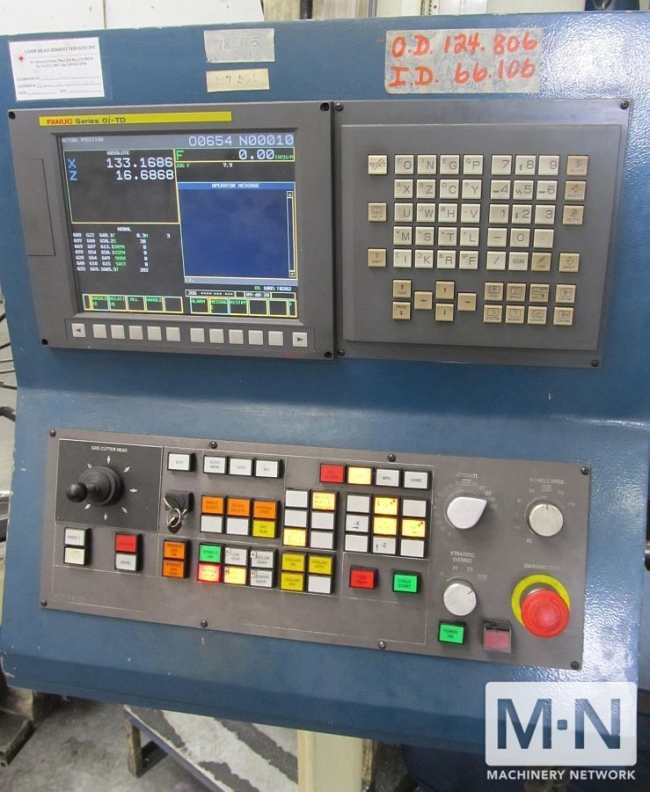

FANUC 0ITD CNC CONTROL

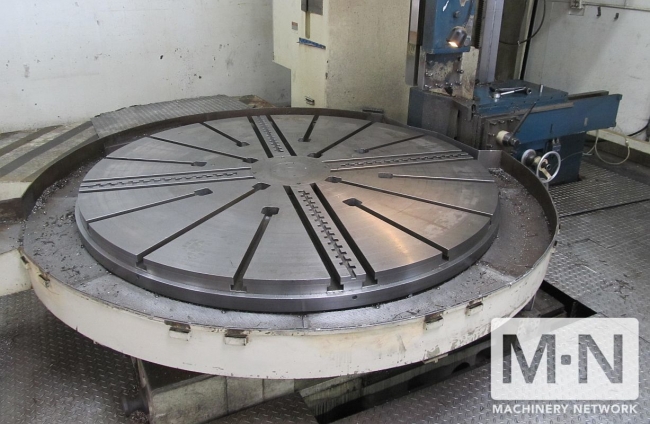

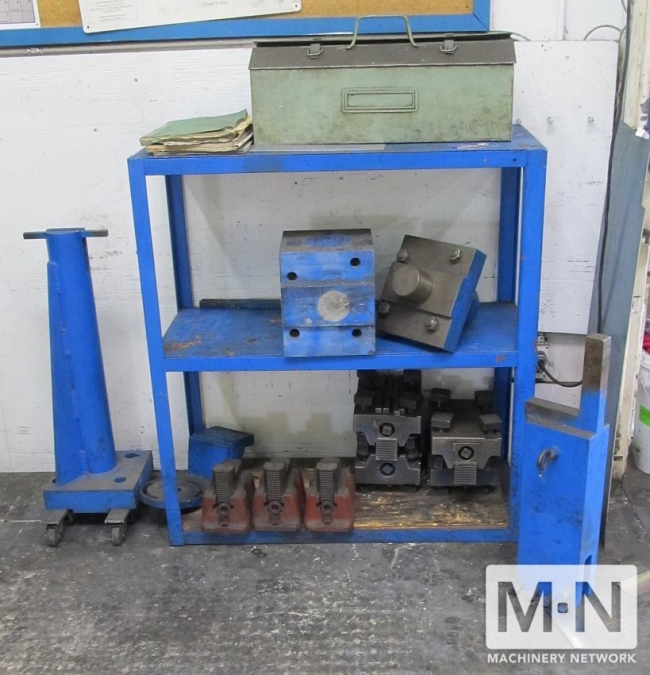

78.7" DIAMETER TABLE WITH 4 JAWS

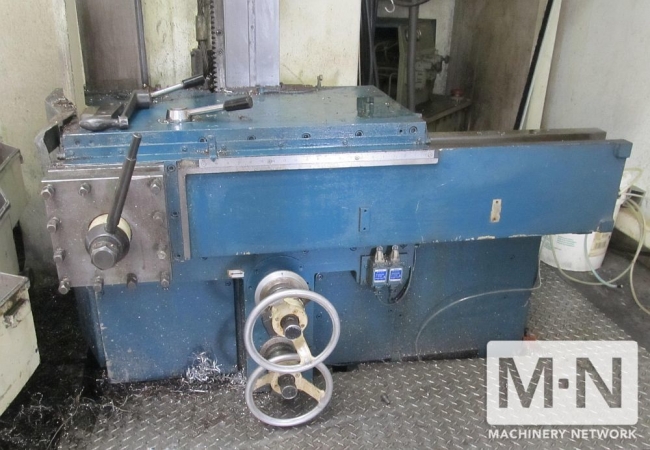

SIDE HEAD

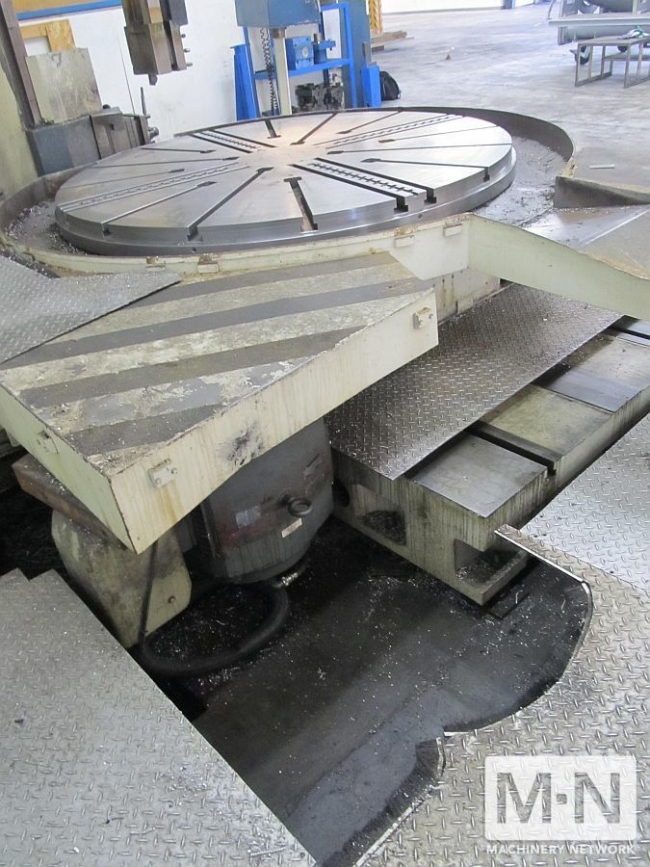

SINGLE COLUMN, SLIDING BED DESIGN
SPLASH GUARDS
