TOSHIBA TUE-20
Type:
BORING MILLS, VERTICAL, N/C & CNC
Manufacturer:
TOSHIBA
Model:
TUE-20
Condition:
Not Specified
Year:
2000
Stock #:
34140
Status:
Sold
Description:
78.7" Toshiba TUE-20, Fanuc 18T
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

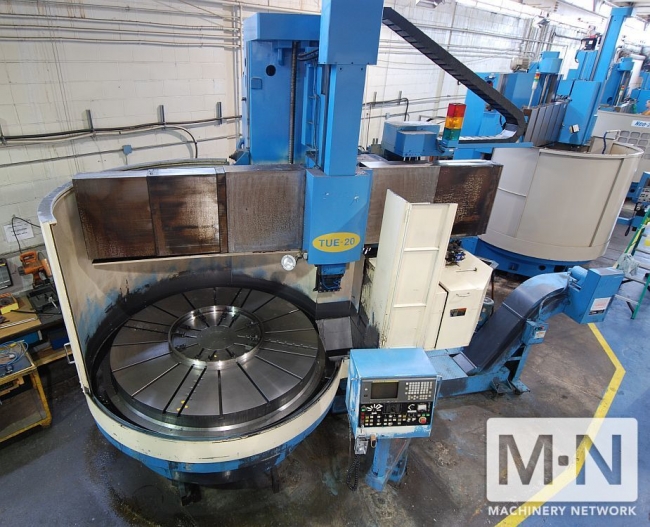

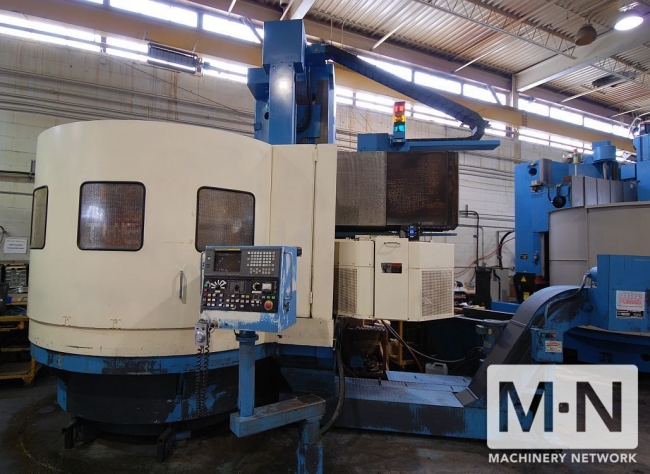

1) Used 78.7" Toshiba TUE-20 CNC Vertical boring Mill - New 2000
Specifications:
Table diameter: 78.7" Max swing: 93" Max height under rail: 67.7" Max cutting height: 59" Max cutting diameter: 90.5" Spindle speed: 1-200 RPM Spindle motor: 60 HP Max. cutting torque 11,250 ft/lbs Max table load: 33,069 lbs ATC capacity 12 tools Tool taper #50 Tool change time 30 seconds Travel - X axis
53.1" - Z axis: 35.4" Vertical traverse of rail: 41.3" Machine weight
49,000 lbs
Equipped with:

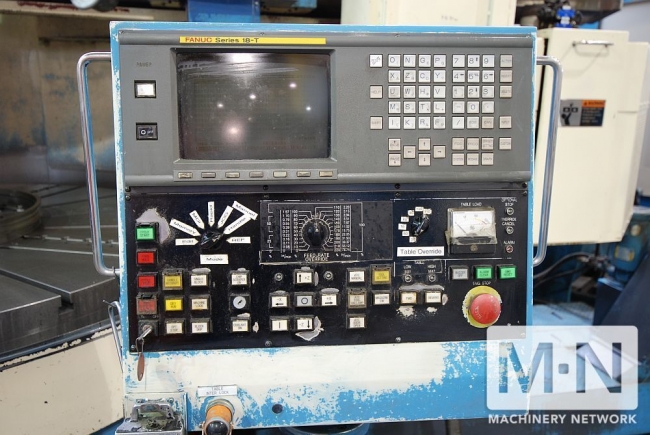

Fanuc 18T CNC control

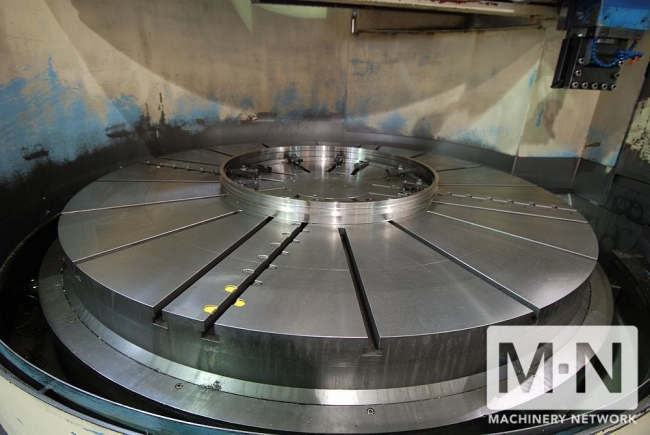

79" 4 jaw Table
Hand held MPG
Chip conveyor
Splash guard
Specifications:
Table diameter: 78.7" Max swing: 93" Max height under rail: 67.7" Max cutting height: 59" Max cutting diameter: 90.5" Spindle speed: 1-200 RPM Spindle motor: 60 HP Max. cutting torque 11,250 ft/lbs Max table load: 33,069 lbs ATC capacity 12 tools Tool taper #50 Tool change time 30 seconds Travel - X axis
53.1" - Z axis: 35.4" Vertical traverse of rail: 41.3" Machine weight
49,000 lbs
Equipped with:
Fanuc 18T CNC control
79" 4 jaw Table
Hand held MPG
Chip conveyor
Splash guard
