TOSHIBA TUE 15

Type:

BORING MILLS, VERTICAL, N/C & CNC

Manufacturer:

TOSHIBA

Model:

TUE 15

Condition:

Not Specified

Year:

1997

Stock #:

30146

Status:

Sold

Description:

59"/71", 59" MAX HT, F-18TA

Location:

New Jersey, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

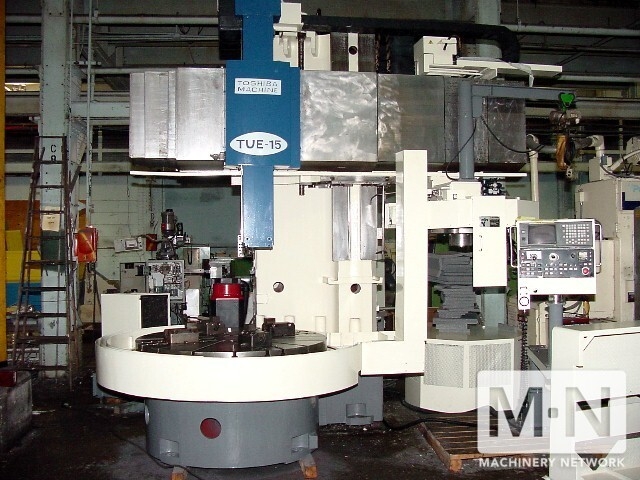

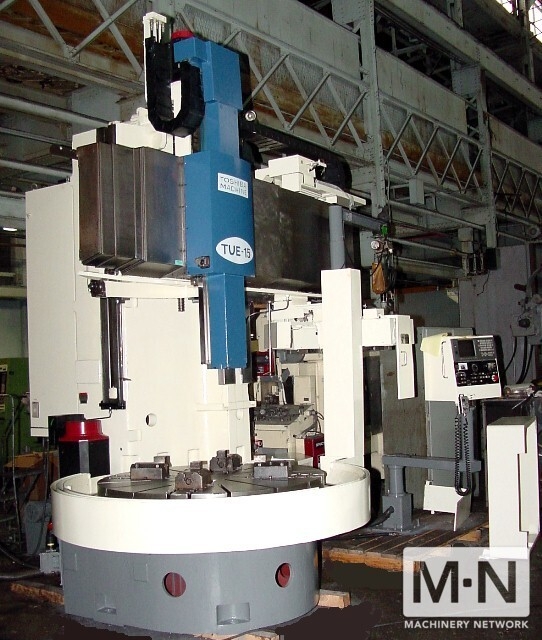

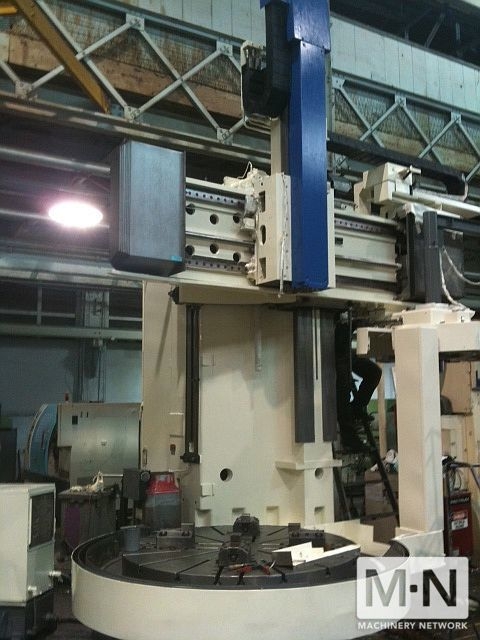

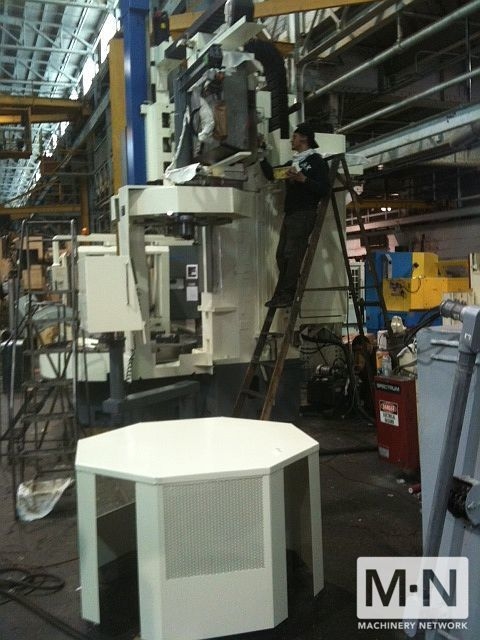

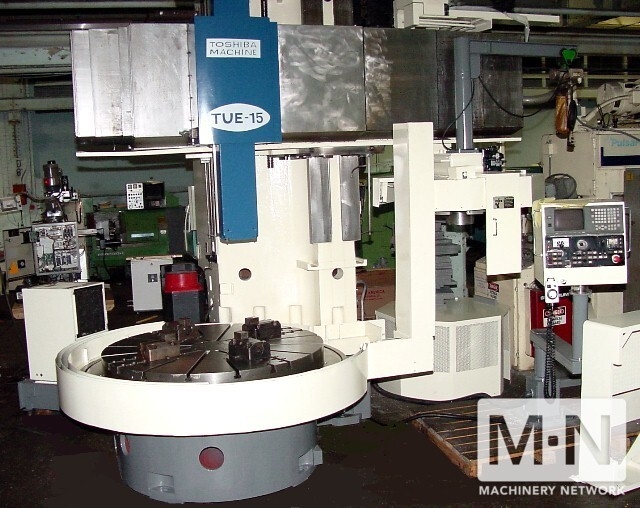

(1) TOSHIBA TUE-15 HIGH COLUMN CNC VERTICAL BORING MILL NEW 1997

SPECIFICATIONS:
MAXIMUM CUTTING DIAMETER....................... 71"
MAX. HEIGHT - TABLE TO RAM BOTTOM ....... 67.7"
MAXIMUM CUTTING HEIGHT............................. 59"
MAXIMUM TABLE LOAD .................................... 17,600 LBS
HORIZONTAL TRAVEL OF RAIL HEAD.............. -3.9" TO 43.3"
VERTICAL TRAVEL OF RAM................................ 35.4"
RAM SIZE............................................................... 9.8" X 8.7"
CROSS RAIL TRAVEL........................................... 19.7"
TABLE SPEEDS (2 SPEED).................................... 2 TO 250 RPM
TOOL TAPER.......................................................... 50 TAPER
AUTOMATIC TOOL CHANGER........................... 12 POSITIONS
APPROXIMATE WEIGHT ..................................... 37,500 LBS

EQUIPPED WITH:

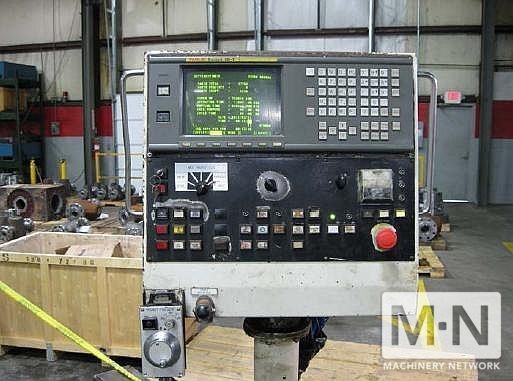

FANUC 18TA CNC CONTROL

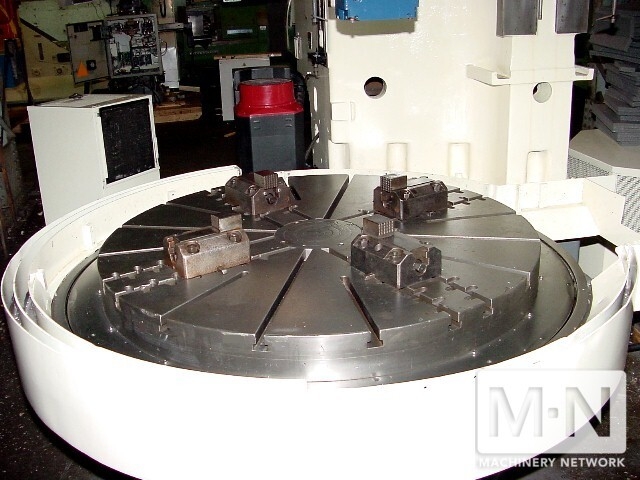

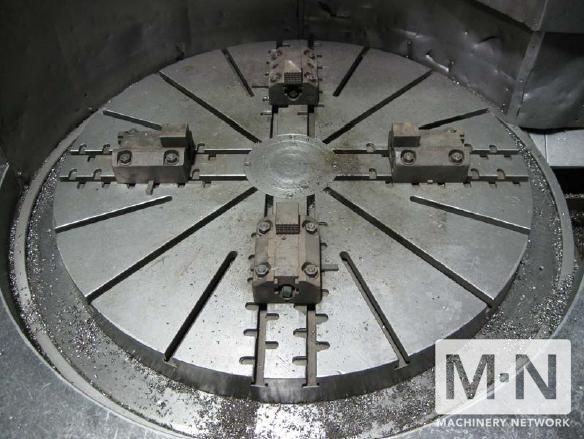

59" 4 JAW FACE PLATE
EXTENDED HEIGHT ATC
CHIP CONVEYOR
(2) BORING BAR HOLDERS (BFP TYPE)
(2) TURNING TOOL HOLDERS (ST TYPE)
COOLANT PUMP
MANUALS
