YAMA SEIKI GV-1600M

Type:

BORING MILLS, VERTICAL, N/C & CNC

Manufacturer:

YAMA SEIKI

Model:

GV-1600M

Condition:

Not Specified

Year:

2014

Stock #:

36803

Status:

Sold

Description:

63" tbl/ 71" swing, Fanuc 0iTD, milling & C axis

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

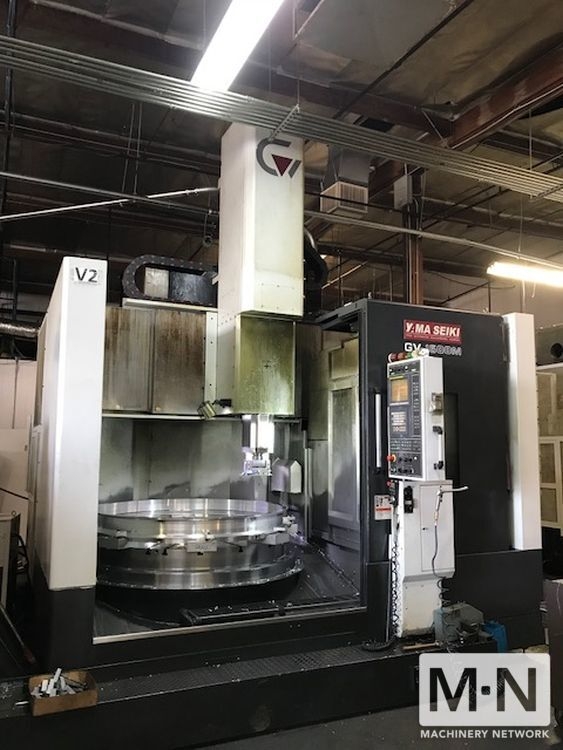

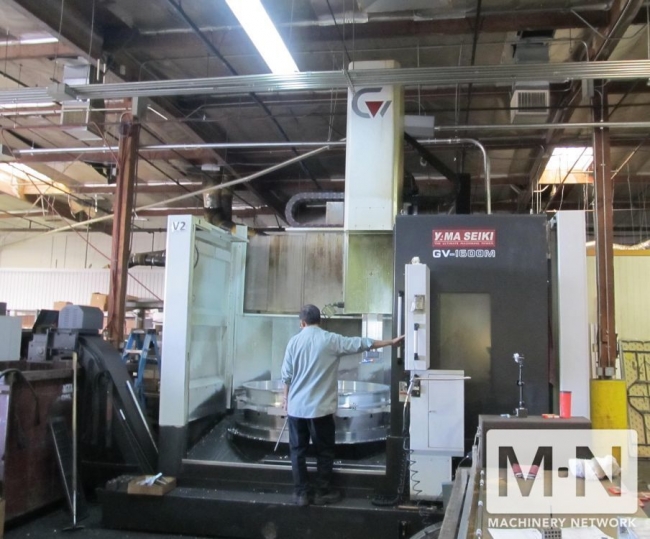

(1) Used Yama Seiki GV-1600M CNC Vertical Turning Center
New 2014

SPECIFICATIONS:
Table diameter ............... 63"
Swing ........................ 78"
Max. turning diameter ........ 71"
Max. turning height .......... 52"
Max. table load .............. 17,600 lbs
X axis travel ................ 45.8"
Z axis travel ................ 35.4"
W axis travel ................ 29.5"
C axis ....................... 360,000 position/.001 deg.
Table speeds ................. 18 -250 RPM
Table motor .................. 60 HP
Milling spindle speeds ....... 24 - 2400 RPM
Milling spindle motor ........ 10 HP
Milling spindle taper ........ CT50
Tool changer capacity ........ 16 TOOLS
Machine dimensions. approx. .. 150" x 148" x 221"H
Weight ....................... 60,000 lbs

EQUIPPED WITH:

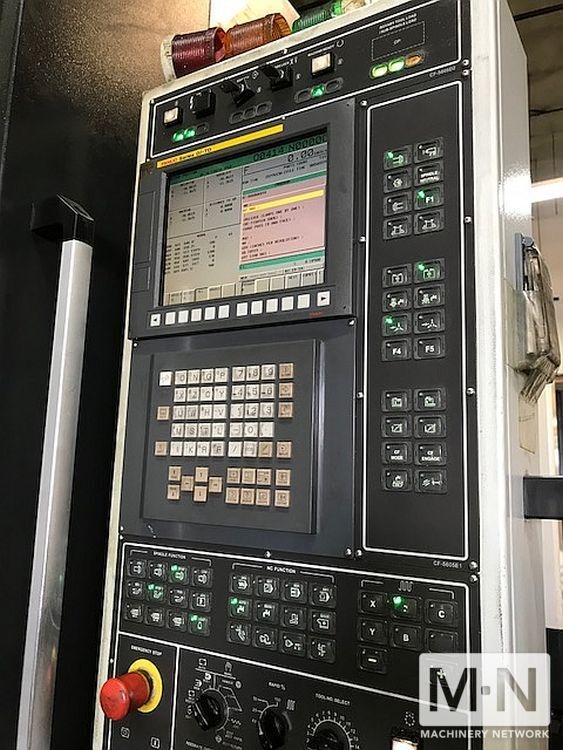

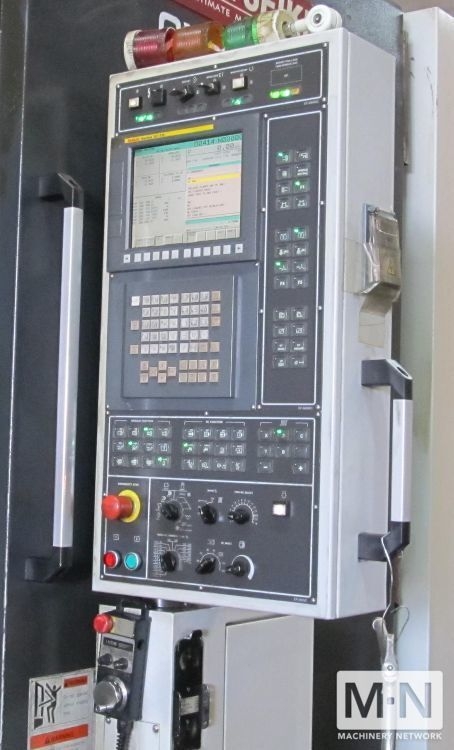

Fanuc 0iTD CNC control
Rigid tapping
Coolant thru the ram
Chip conveyor
