O-M OMEGA 50

Type:

BORING MILLS, VERTICAL, N/C & CNC

Manufacturer:

O-M

Model:

OMEGA 50

Condition:

Not Specified

Year:

2001

Stock #:

22600

Status:

Sold

Description:

FANUC 18iT, 49.5" swing, 2 APC, manual chucks

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

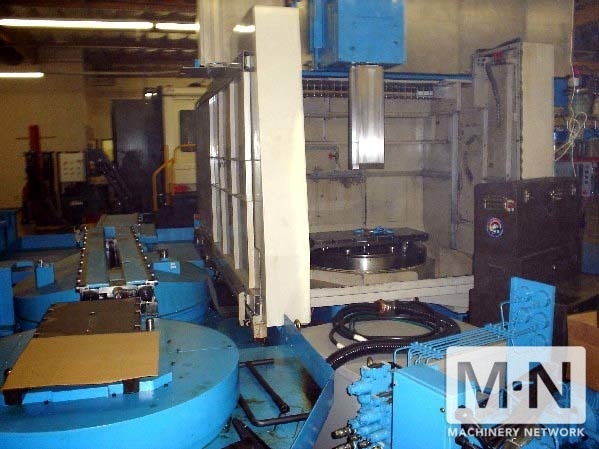

(1) USED O-M OMEGA 50 CNC VERTICAL BORING MILL WITH A.P.C.
NEW 2001

SPECIFICATIONS:
TABLE DIAMETER ................ 36"
MAX SWING ..................... 49.25"
TABLE SPEEDS (2) RANGE......... 4-500 RPM
MAX TURNING HEIGHT ............ 23.62"
MAX WORKPIECE WEIGHT CAPACITY . 3,300 LBS
MAX CUTTING FORCE ............. 5,500 LBS
MAX TABLE TORQUE .............. 4,699 FT/LBS
VERTICAL RAM TRAVEL ........... 31.5"
HORIZ. (X ) AXIS TRAVEL ....... 40" R/2" LEFT
RAM DIMENSION ................. 7" x 7" SQ
CUTTING TOOL SIZE ............. 1.25" x 1.25"
TOOL CHANGER .................. 12 ATC #50 TPR
RAPID TRAVERSE TOOL HEAD
-X AXIS ................. 551 IPM
-Z AXIS ................. 472 IPM
TABLE SPINDLE NOSE ............ A2-20
SPINDLE DRIVE MOTOR ........... 49/60 HP
APPROX DIMENSIONS ............. 159" x 148" x 168"
MACHINE WEIGHT ................ 39,252 LBS

EQUIPPED WITH:

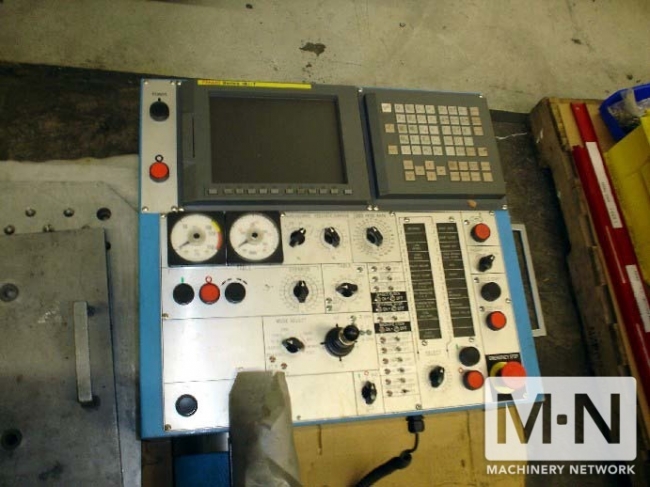

FANUC 18iT CNC CONTROL, AUTOMATIC PALLET CHANGER,

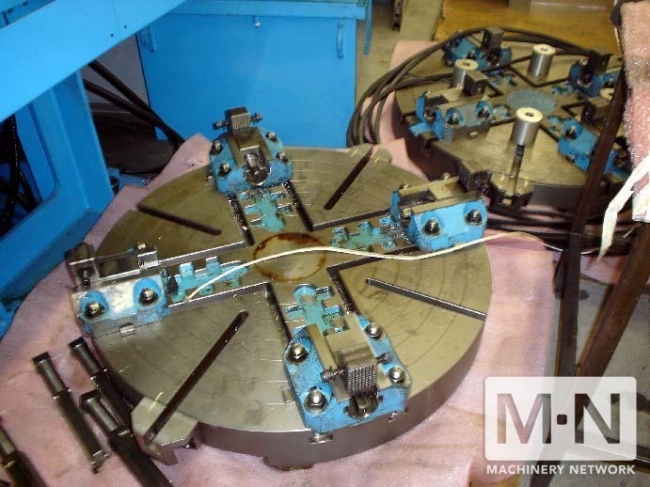

(2)MANUAL 36" 4-JAW CHUCKS, COOLANT THRU RAM/TOOL
HOLDER, (2) POSITION CROSS RAIL SECTION, FULL
ENCLOSURE WITH SPLASH TOP, BOX TYPE SLIDE WAY
BETWEEN SADDLE & CROSSRAIL, MAIN MOTOR SEPARATE
CONSTRUCTION (PREVENTS VIBRATION), CHIP CONVEYOR
