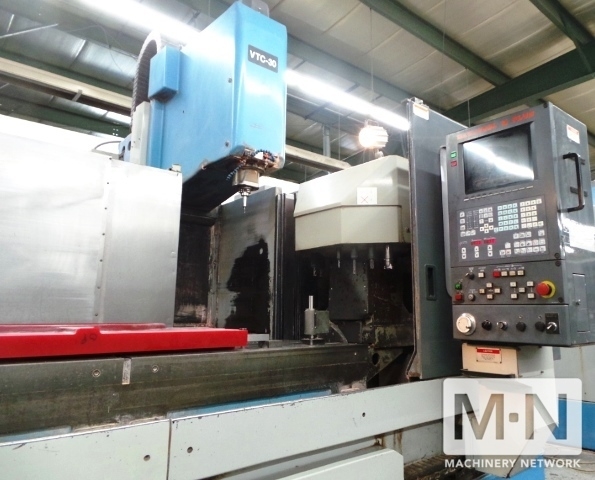

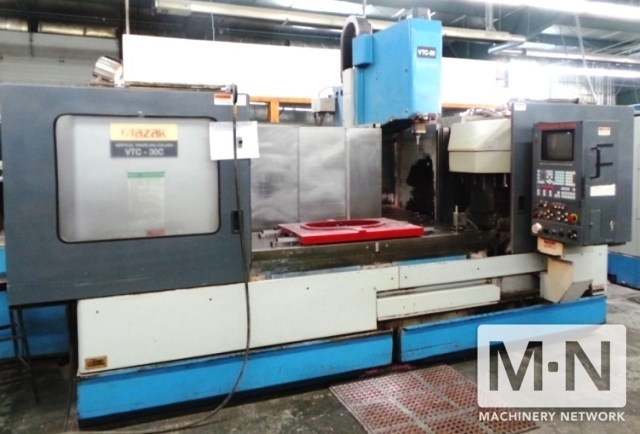

MAZAK VTC-30C
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VTC-30C
Condition:
Not Specified
Year:
1997
Stock #:
34300
Status:
Sold
Description:
MAZAK VTC-30C, 65"x29"x26", CAT 40, 8K RPM, 15 HP
Videos:
Location:
Wisconsin, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK VTC-30C
NEW 1997
WITH MAZATROL M-PLUS CNC CONTROL, HIGH-SPEED MOLD MACHINING OPTIONS INSTALLED WITH HIGH RESOLUTION OPTIONS
THIS IS A LIGHT MILLING APPLICATION MACHINE IDEAL FOR MOLD OR ALUMINUM SHOPS. EXCELLENT FOR MANY PROGRAMS AND COMPLEX PART MACHINING.
SPECIFICATIONS:
TRAVELS:
X AXIS..................65.35"
Y AXIS..................29.92"
Z AXIS..................26"
MAIN SPINDLE POWER......15 HP
MAX RPM'S...............8,000
AUTOMATIC TOOL CHANGER..24 STATION
TABLE-W.................29.92 "
TABLE-L.................79.78 "
TAPER...............CAT 40
DIMENSIONS..............170" X 133" X 112"
WEIGHT..................18,600 LBS.
EQUIPPED WITH:

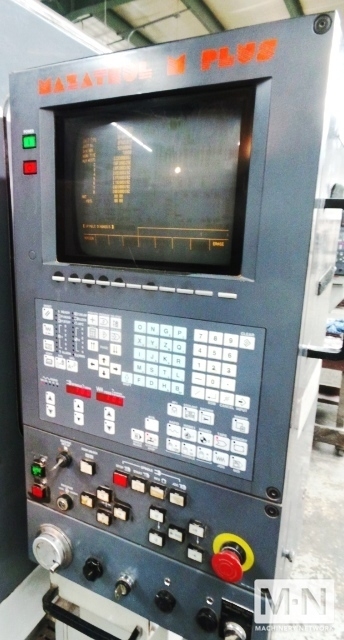

MAZATROL M-PLUS CNC CONTROL
SIDE DISCHARGE CHIP CONVEYOR.
NEW 1997
WITH MAZATROL M-PLUS CNC CONTROL, HIGH-SPEED MOLD MACHINING OPTIONS INSTALLED WITH HIGH RESOLUTION OPTIONS
THIS IS A LIGHT MILLING APPLICATION MACHINE IDEAL FOR MOLD OR ALUMINUM SHOPS. EXCELLENT FOR MANY PROGRAMS AND COMPLEX PART MACHINING.
SPECIFICATIONS:
TRAVELS:
X AXIS..................65.35"
Y AXIS..................29.92"
Z AXIS..................26"
MAIN SPINDLE POWER......15 HP
MAX RPM'S...............8,000
AUTOMATIC TOOL CHANGER..24 STATION
TABLE-W.................29.92 "
TABLE-L.................79.78 "
TAPER...............CAT 40
DIMENSIONS..............170" X 133" X 112"
WEIGHT..................18,600 LBS.
EQUIPPED WITH:
MAZATROL M-PLUS CNC CONTROL
SIDE DISCHARGE CHIP CONVEYOR.
