MAZAK VCU-400A-5X

Type:

Vertical Machining Centers

Manufacturer:

MAZAK

Model:

VCU-400A-5X

Condition:

Not Specified

Year:

2013

Stock #:

35870

Status:

Sold

Description:

MAZATROL MATRIX 2, 15"15"X20", BIG PLUS 40, 30 ATC,

Location:

Pennsylvania, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

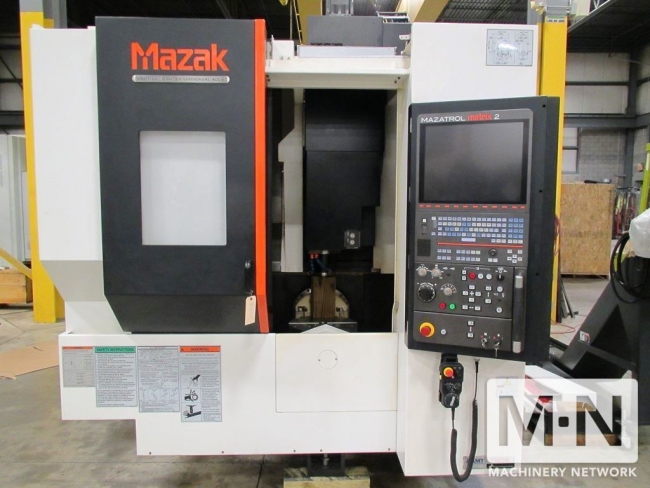

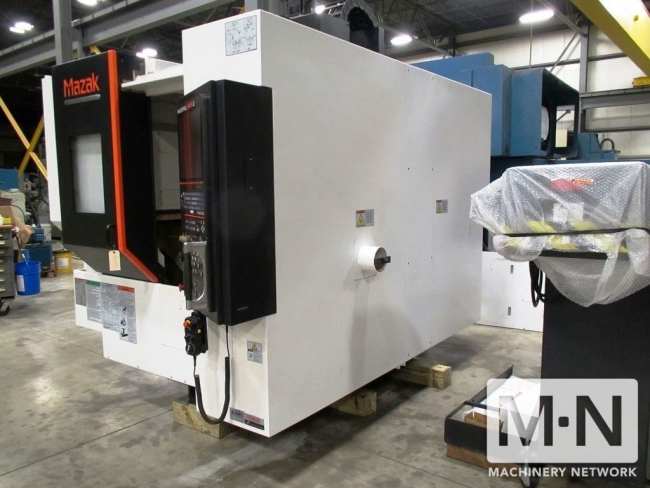

(1) USED MAZAK VCU-400A-5X 5-AXIS VERTICAL MACHINING CENTER
NEW 2013

SPECIFICATIONS
MAXIMUM WORK PIECE SIZE: .................15.75”
HEIGHT: 12”
MAXIMUM LOAD ON PALLET: 441 LBS
X-AXIS TRAVEL: 15.75”
Y-AXIS TRAVEL: 15.75”
Z-AXIS TRAVEL: 20.7”

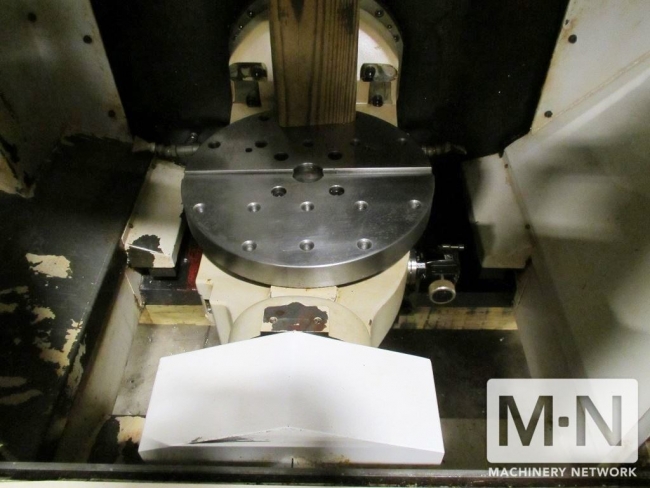

B-AXIS TRAVEL (TABLE TILTING): + 95° (INDEXING UNITS OF 0.0001°)
C-AXIS TRAVEL (TABLE ROTATION): + 360° (INDEXING UNITS OF 0.0001°)
SPINDLE NOSE TO TOP OF PALLET: 4.53” TO 24.61”
SPINDLE NOSE TO CENTER OF PALLET: 6.30” TO 26.38”

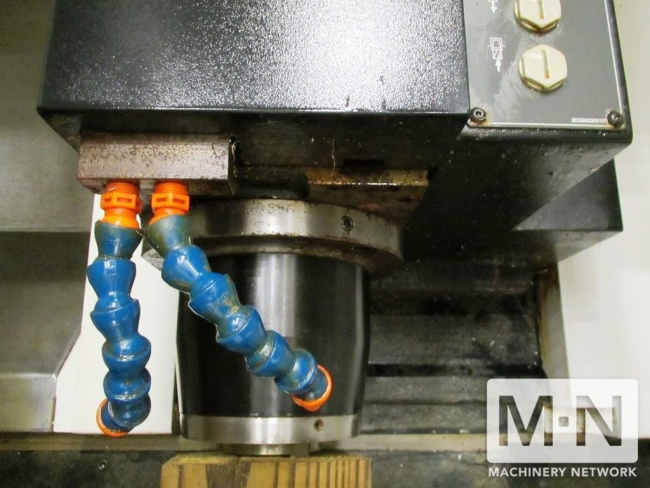

SPINDLE
SPINDLE TYPE: BIG PLUS #40
SPINDLE SPEED: 40 TO 12,000 RPM
SPINDLE SPEED SHIFTS: ELECTRIC TWO TYPES
SPINDLE BEARING ID: 2.76”
MOTOR (5 MIN RATING): 25 HP
MOTOR (10 MIN RATING): 20 HP
MOTOR (CONTINUOUS): 10 HP
FEED CONTROL
RAPIDS (X/Y/Z): 945 IPM
CUTTING FEED RATE (X/Y/Z): .04 TO 315 IPM

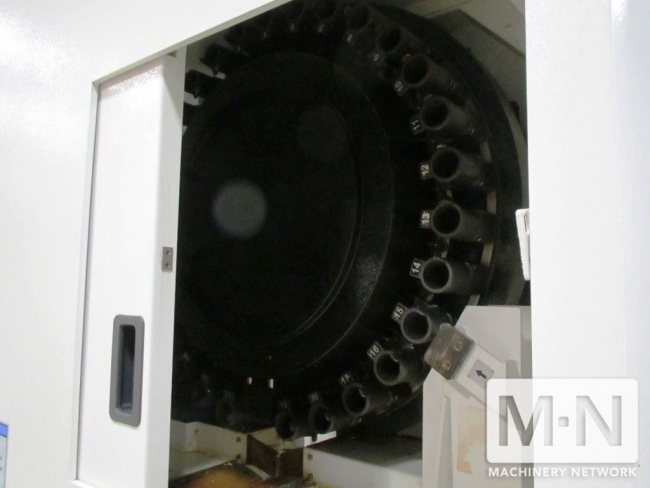

AUTOMATIC TOOL CHANGER
MAGAZINE CAPACITY: 30
TOOL SELECTION METHOD: RANDOM BY MAGAZINE POCKET NUMBER

EQUIPPED WITH

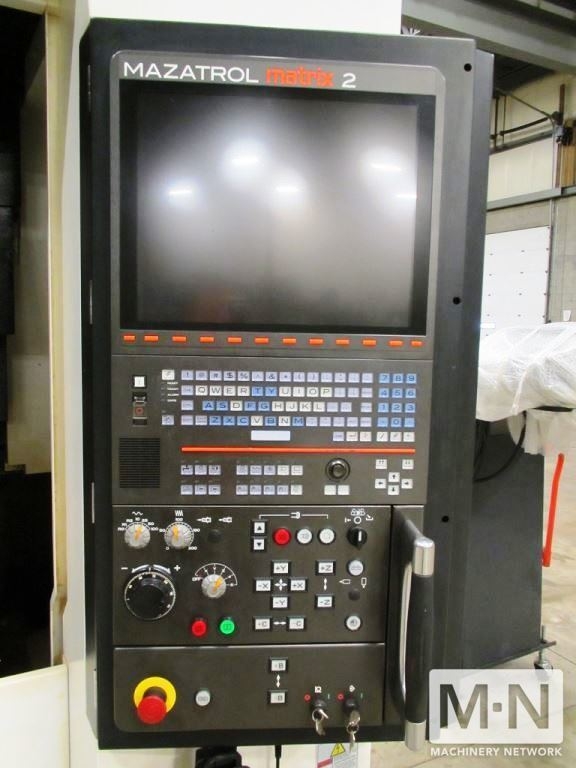

MAZATROL MATRIX 2 CONTROL

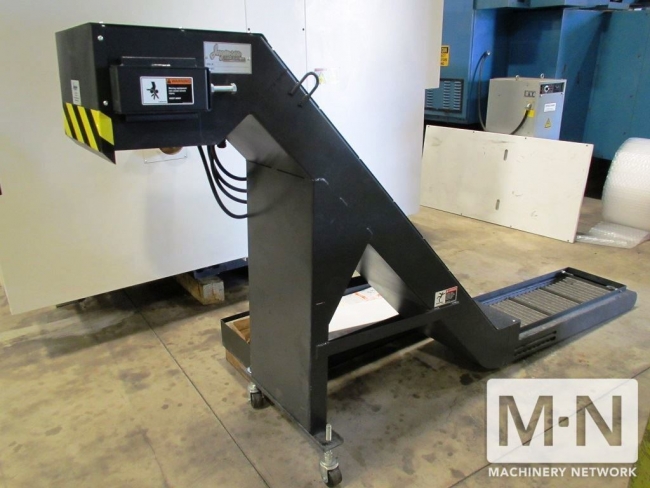

CHIP CONVEYOR

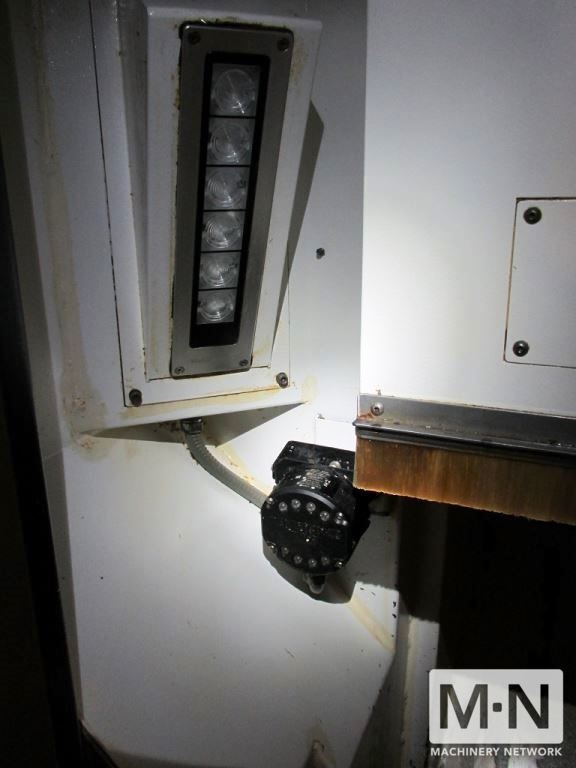

WORK LIGHT
12,000 RPM SPINDLE
SPINDLE MULTI-POINT ORIENT (M-CODE/1 DEG)
BIG PLUS TYPE SPINDLE (#40)
DUAL PROBE KIT

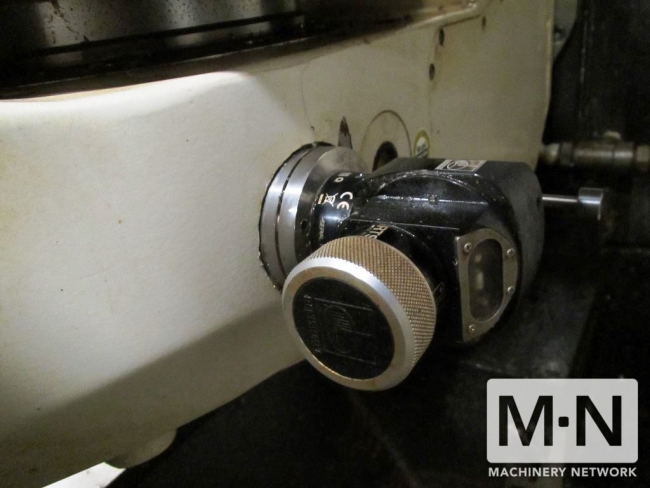

MANUAL PULSE GENERATOR
8MB MAXIMUM PROGRAM SIZE
SYNCHRONIZED TAPPING
TOOL TIP POINT CONTROL/SIMULTANEOUS 5-AXIS
TOOL RADIUS COMPENSATION
GOO SLOPE CONSTANT
MAZACC-25 HIGH-SPEED SOFTWARE PACKAGE
SHAPE COMPENSATION FOR ROTARY AXES
HIGH SMOOTHING CONTROL
WORK SETTING ERROR COMPENSATION
5-AXIS SPLINE INTERPOLATION

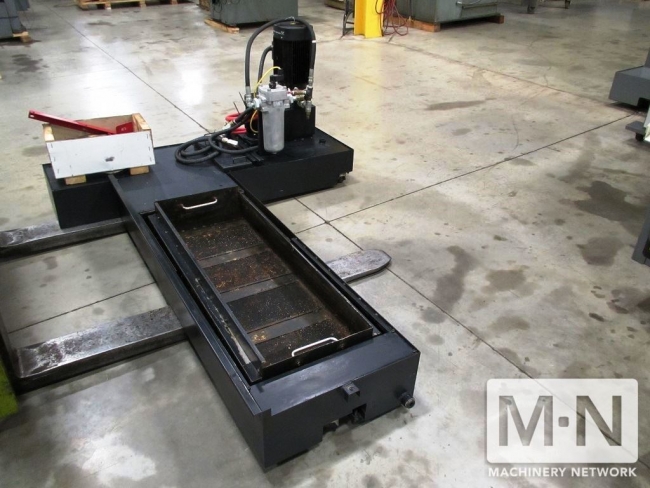

HI-PRESSURE COOLANT THRU SPINDLE (213 PSI)
