MAZAK VCU500A-5X
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VCU500A-5X
Condition:
Not Specified
Year:
2015
Stock #:
36456
Status:
Sold
Description:
19"X19"X20", BIG PLUS, 40 TAPER, 360 DEG., 30 ATC,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

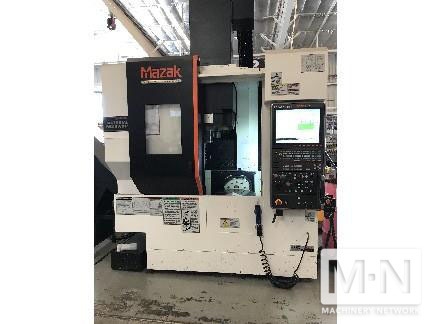

(1) USED MAZAK VCU500A-5X VMC
NEW 2015
SPECIFICATIONS:
X-AXIS TRAVELS 19"
Y-AXIS TRAVELS 19"
Z-AXIS TRAVELS 20"

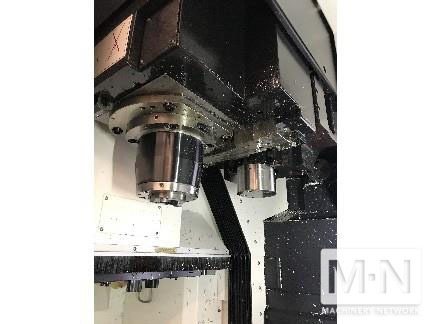

SPINDLE BIG PLUS
TAPER 40
SPEED 12000 RPM
MOTOR 25 HP

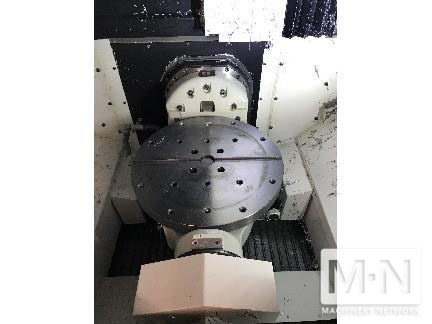

C-AXIS TABLE INDEXING 360,000 DEG.
TOOL CAPACITY 30 ATC
WEIGHT 16,500 LBS.
EQUIPPED WITH:

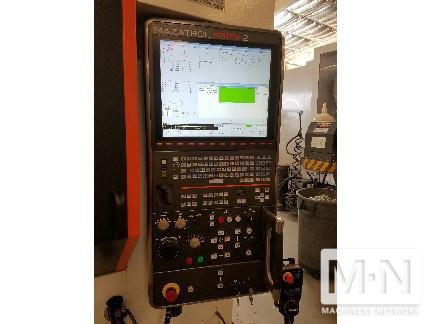

MAZATROL MATRIX 2 CONTROL,
REMOTE JOG HANDLE,
AIR GUN,
BIG PLUS TYPE SPINDLE,
12,000 RPM,
CAT40-TAPER,

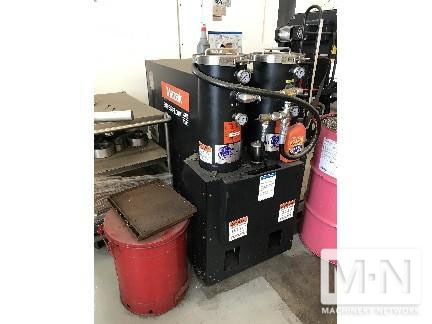

MAZAK SUPER FLOW V8M HIGH PRESSURE COOLANT, 1000 PSI SUPERFLOW PREP 71 PSI THRU SPINDLE COOLANT WITH FLOOD

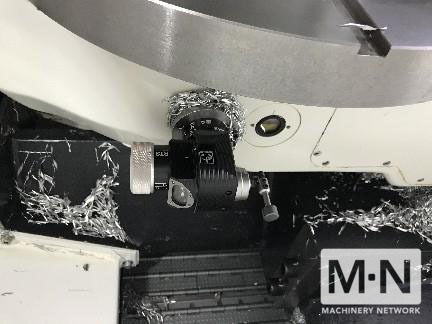

DUAL PROBING KIT RMP600/RTS-AA WITH EIA INSPECTION PLUS WITH RENISHAW RMP600 RADIO PROBE
TOOL SETTER
MANUAL PULSE GENERATOR
SYNCHRONIZED TAPPING
COMPACT FLASH CARD I/F USB
MAXIMUM PROGRAM SIZE: 8MB
GOO SLOPE CONSTANT
MAZACC-3D HIGH SPEED SOFTWARE
SHAPE COMPENSATION FOR ROTARY AXIS
TOOL RADIUS COMPENSATION/5-AXIS
TOOL TIP POINT CONTROL/SIMULTANEOUS 5-AXES, WORK SETTING ERROR COMPENSATION
HIGH SMOOTHING CONTROL
JORGENSEN HINGE CHIP CONVEYOR
Hours:
Power On: 4,383
Auto Ope: 273
Auto Cut: 50
Total Cut: 113
ALL AVAILABLE MANUALS
FOR MORE INFORMATION PLEASE CALL ALLEN MOFFAT AT 818-788-2260 EX 105
NEW 2015
SPECIFICATIONS:
X-AXIS TRAVELS 19"
Y-AXIS TRAVELS 19"
Z-AXIS TRAVELS 20"
SPINDLE BIG PLUS
TAPER 40
SPEED 12000 RPM
MOTOR 25 HP
C-AXIS TABLE INDEXING 360,000 DEG.
TOOL CAPACITY 30 ATC
WEIGHT 16,500 LBS.
EQUIPPED WITH:
MAZATROL MATRIX 2 CONTROL,
REMOTE JOG HANDLE,
AIR GUN,
BIG PLUS TYPE SPINDLE,
12,000 RPM,
CAT40-TAPER,
MAZAK SUPER FLOW V8M HIGH PRESSURE COOLANT, 1000 PSI SUPERFLOW PREP 71 PSI THRU SPINDLE COOLANT WITH FLOOD
DUAL PROBING KIT RMP600/RTS-AA WITH EIA INSPECTION PLUS WITH RENISHAW RMP600 RADIO PROBE
TOOL SETTER
MANUAL PULSE GENERATOR
SYNCHRONIZED TAPPING
COMPACT FLASH CARD I/F USB
MAXIMUM PROGRAM SIZE: 8MB
GOO SLOPE CONSTANT
MAZACC-3D HIGH SPEED SOFTWARE
SHAPE COMPENSATION FOR ROTARY AXIS
TOOL RADIUS COMPENSATION/5-AXIS
TOOL TIP POINT CONTROL/SIMULTANEOUS 5-AXES, WORK SETTING ERROR COMPENSATION
HIGH SMOOTHING CONTROL
JORGENSEN HINGE CHIP CONVEYOR
Hours:
Power On: 4,383
Auto Ope: 273
Auto Cut: 50
Total Cut: 113
ALL AVAILABLE MANUALS
FOR MORE INFORMATION PLEASE CALL ALLEN MOFFAT AT 818-788-2260 EX 105
