MAZAK 510CII 5AX

Type:

Vertical Machining Centers

Manufacturer:

MAZAK

Model:

510CII 5AX

Condition:

Not Specified

Year:

2012

Stock #:

38549

Status:

Sold

Description:

MAZAK NEXUS 510C-II, 41"X20"X20", 12K RPM, CAT 40

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

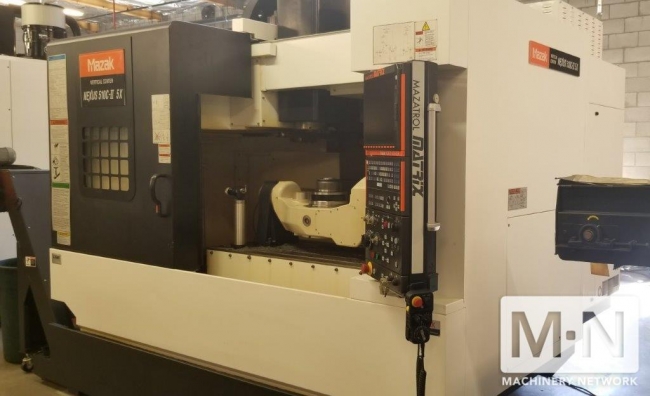

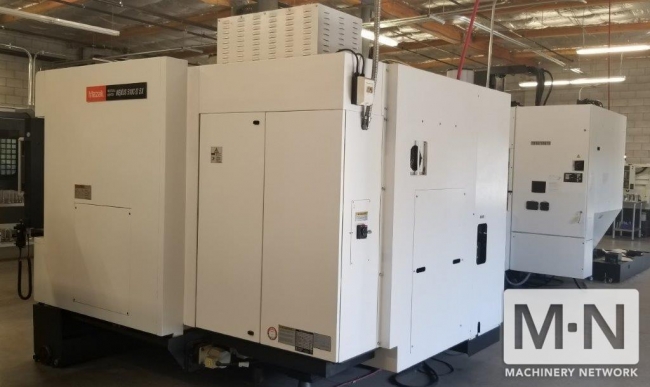

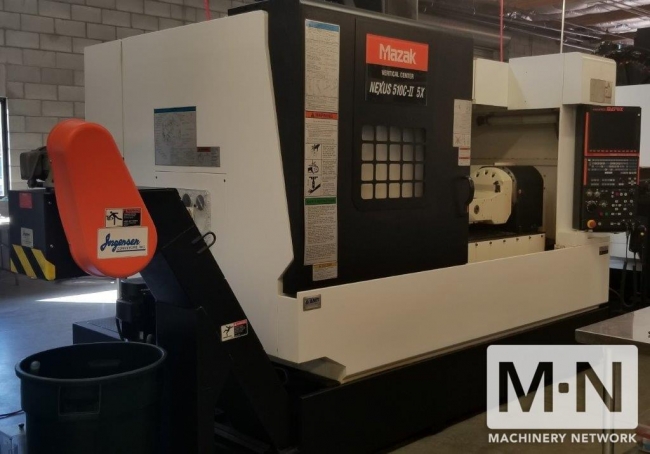

(1) USED MAZAK NEXUS VCN-510CII-5AX 5 AXIS VERTICAL MACHINING CENTER
YEAR: 2012

SPECIFICATIONS:
TABLE...................................51” X 21.6”
TRAVELS ................................41.3” X 20” X 20”
DIST. FROM COLUMN TO SPINDLE CENTER: ...22.67”
TABLE LOAD..............................2600 LBS
RPM.....................................12,000
TAPER.................................CT-40
SPINDLE MOTOR...........................25HP
ATC.....................................30 ARM TYPE
TOOL CHANGE TIME CHIP TO CHIP:..........2.9 SEC
WEIGHT..................................16,380 LBS.

EQUIPPED WITH:

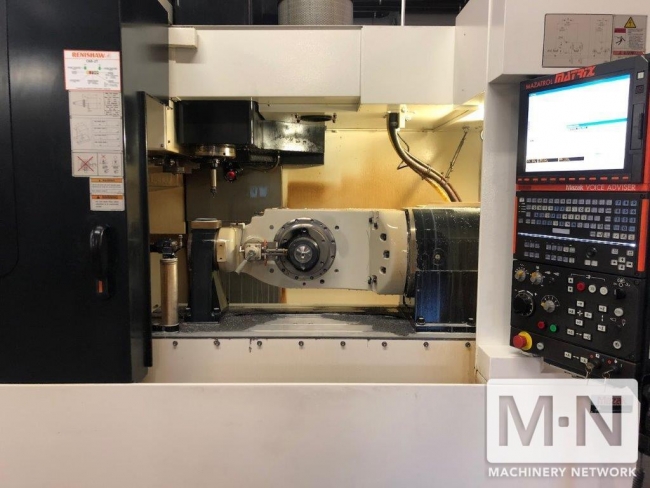

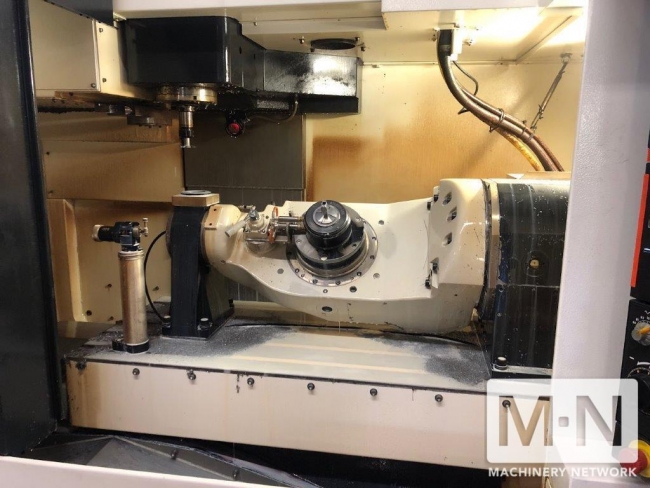

•5 AXIS TRUNNION TABLE

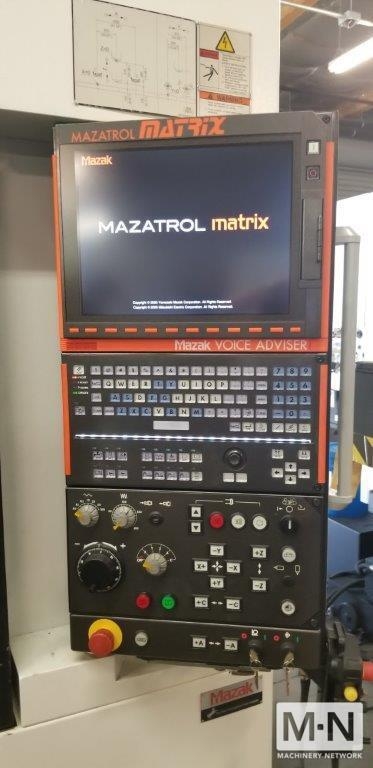

•MATRIX CNC CONTROL W/ 600 TOOL OFFSETS
•230 PSI COOLANT THRU SPINDLE
•RENISHAW OMP-60 PART PROBE

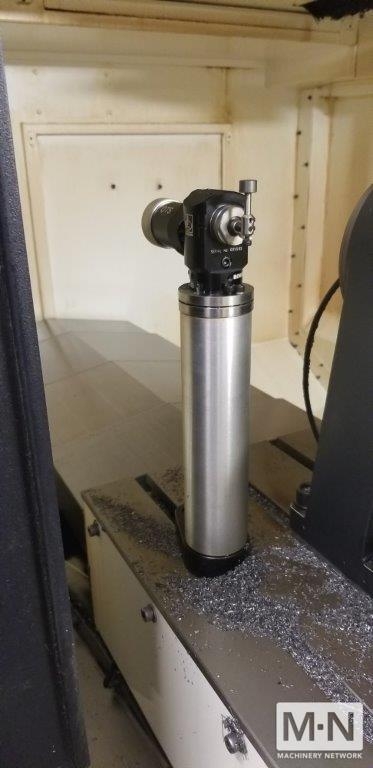

•RENISHAW OTS AUTO TOOL SETTER
•ROYAL FILTER MIST
•CHIP CONVEYOR

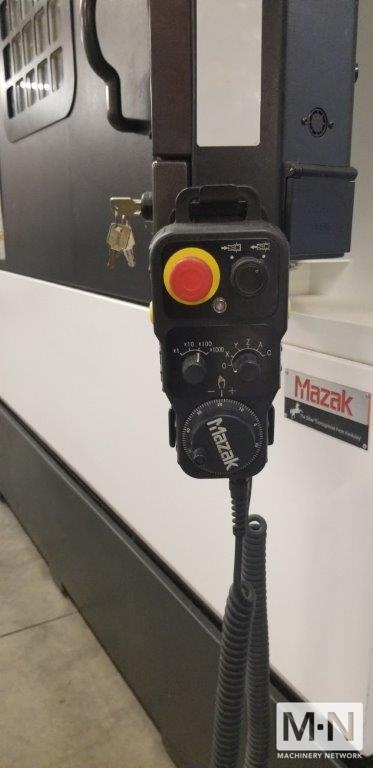

•PORTABLE MPG

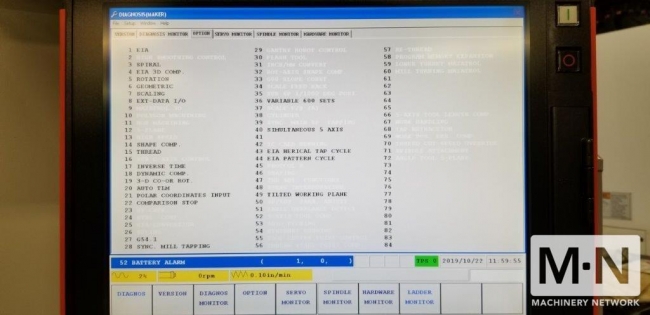

OPTIONS TURNED ON: EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATE I/O, SHAPE COMPENSATION, THREAD, INVERSE TIME, DYNAMIC COMP, 3D CO-OR ROTATION, AUTO TLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAPPING, VARIABLE 600 SETS, SIMULTANEOUS 5 AXIS, EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, TILTED WORKING PLANE
