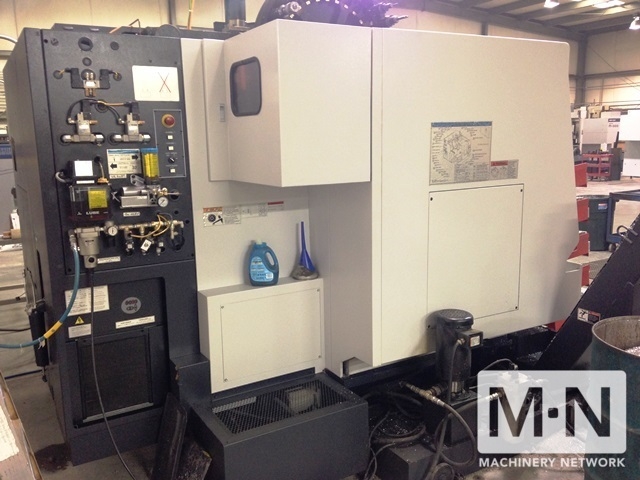

MAZAK NEXUS 510C-II
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
NEXUS 510C-II
Condition:
Not Specified
Year:
2007
Stock #:
33474
Status:
Sold
Description:
MAZAK NEXUS 510C-II, 41"X20"X20", 12K RPM, CAT 40
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

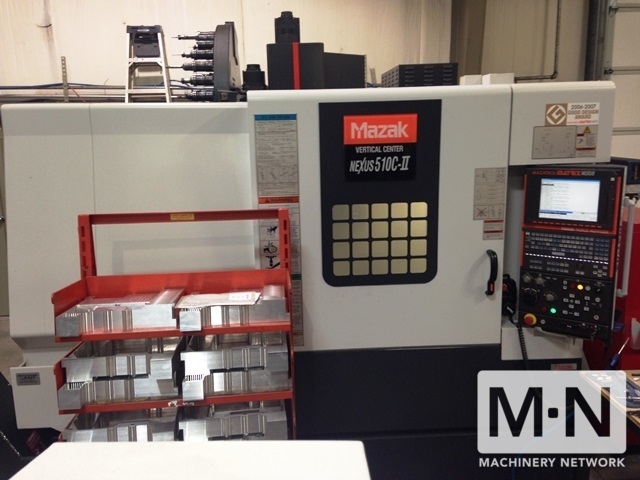

(1) USED MAZAK NEXUS 510C-II VERTICAL MACHINING CENTER NEW 2007

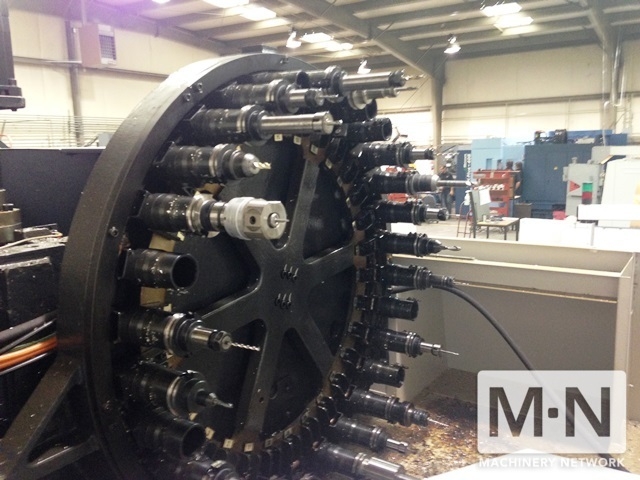

SPECIFICATIONS: TABLE SIZE: .......................... 51.2" X 21.6" X-AXIS STROKE: ....................... 41.3" Y-AXIS STROKE: ....................... 20.07" Z-AXIS STROKE: ....................... 20.0" SPINDLE FACE TO TABLE SURFACE: ....... 26.0" COLUMN FACE TO SPINDLE CENTER: ....... 22.6" MAXIMUM TABLE WEIGHT CAPACITY: ....... 2,646 LBS SPINDLE SPEED: ....................... 12,000 RPM SPINDLE MOTOR (5MIN/10MIN/CONT.): .... 25/20/10 HP SPINDLE TAPER: ....................... CAT#40 RAPID TRAVERSE (X,Y,Z): .............. 1417.3 IPM NUMBER OF TOOLS: ..................... 30 MAXIMUM TOOL DIAMETER: ............... 3.15" MAXIMUM TOOL DIAMETER : .............. 4.92" MAXIMUM TOOL LENGTH / WEIGHT: ........ 13.78" / 17.64 LBS TOOL CHANGE TIME (CHIP TO CHIP): ..... 2.9 SEC FLOOR SPACE: ......................... 113" X 111" X 110" MACHINE WEIGHT: ...................... 15,180 LBS
EQUIPPED WITH:

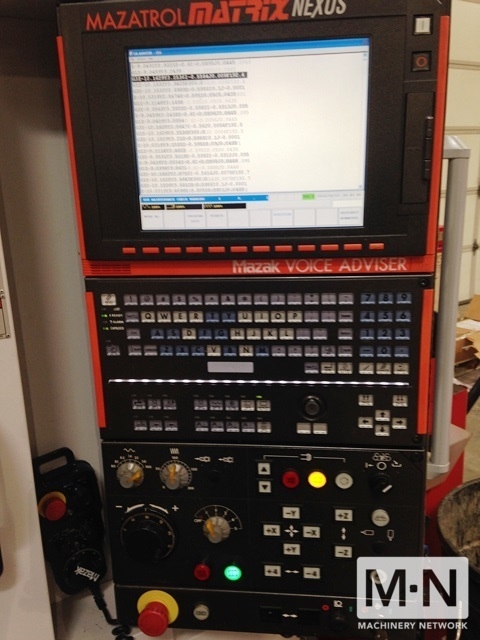

Mazatrol Matrix Nexus Control
12/1" Color LCD
(2) USB Ports
EIA/ISO Code Input Function
Manual Pulse Generator (detachable)
Work Light
Windows XP Operating System
Hi-Pressure Coolant Thru Spindle

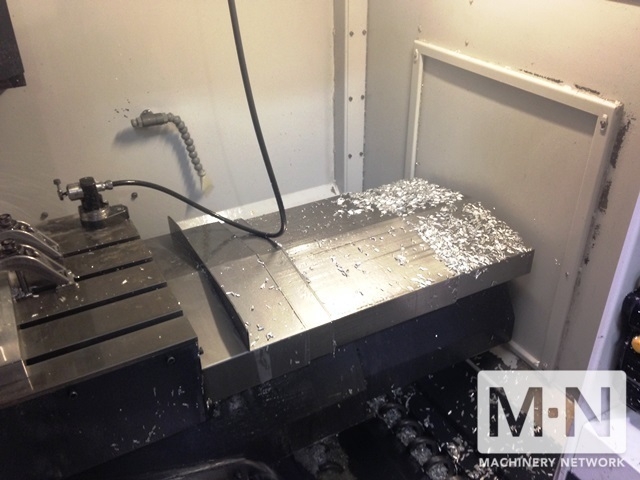

Chip Conveyor
Auto Tool Length Measurement Renishaw TS27R
Auto Pecking Cycle w/ Load Detection
Synchronized Tapping
Work Piece Air Blast
Slope Constant
Eithernet
High Speed Software Package
Machine Hours:
Power On 17,687
Auto Operation 7,228
Total Cut 4.036
SPECIFICATIONS: TABLE SIZE: .......................... 51.2" X 21.6" X-AXIS STROKE: ....................... 41.3" Y-AXIS STROKE: ....................... 20.07" Z-AXIS STROKE: ....................... 20.0" SPINDLE FACE TO TABLE SURFACE: ....... 26.0" COLUMN FACE TO SPINDLE CENTER: ....... 22.6" MAXIMUM TABLE WEIGHT CAPACITY: ....... 2,646 LBS SPINDLE SPEED: ....................... 12,000 RPM SPINDLE MOTOR (5MIN/10MIN/CONT.): .... 25/20/10 HP SPINDLE TAPER: ....................... CAT#40 RAPID TRAVERSE (X,Y,Z): .............. 1417.3 IPM NUMBER OF TOOLS: ..................... 30 MAXIMUM TOOL DIAMETER: ............... 3.15" MAXIMUM TOOL DIAMETER : .............. 4.92" MAXIMUM TOOL LENGTH / WEIGHT: ........ 13.78" / 17.64 LBS TOOL CHANGE TIME (CHIP TO CHIP): ..... 2.9 SEC FLOOR SPACE: ......................... 113" X 111" X 110" MACHINE WEIGHT: ...................... 15,180 LBS
EQUIPPED WITH:
Mazatrol Matrix Nexus Control
12/1" Color LCD
(2) USB Ports
EIA/ISO Code Input Function
Manual Pulse Generator (detachable)
Work Light
Windows XP Operating System
Hi-Pressure Coolant Thru Spindle
Chip Conveyor
Auto Tool Length Measurement Renishaw TS27R
Auto Pecking Cycle w/ Load Detection
Synchronized Tapping
Work Piece Air Blast
Slope Constant
Eithernet
High Speed Software Package
Machine Hours:
Power On 17,687
Auto Operation 7,228
Total Cut 4.036
