MAZAK AJV35/80
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
AJV35/80
Condition:
Not Specified
Stock #:
33719
Status:
Sold
Description:
MAZAK AJV35/80
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

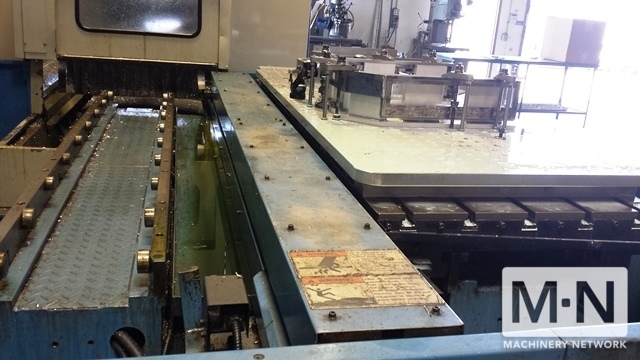

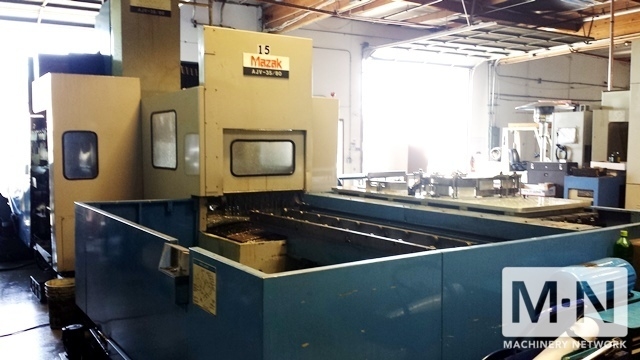

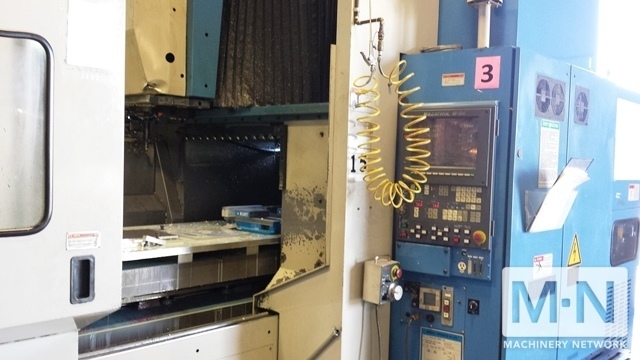

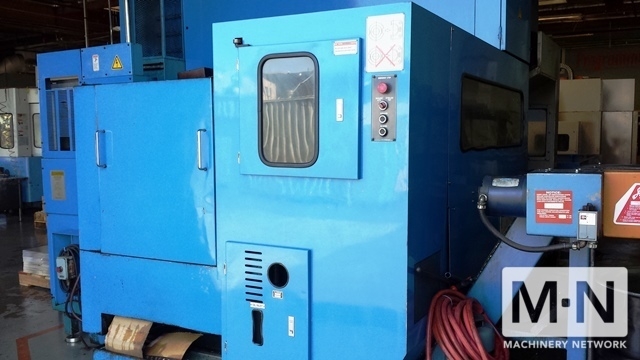

(1) USED MAZAK AJV35/80 4-AXIS CNC VERTICAL MACHINING CENTER
NEW
SPECIFICATIONS:
TRAVELS
X-AXIS: ........................79.4"
Y-AXIS: ........................31.55"
Z-AXIS: ........................20.11"
TABLE SIZE: ....................86" X 31"
TABLE LOAD CAPACITY: ...........4400 LBS
SPINDLE NOSE TO TABLE TOP: .....17.8" - 37.99"
DISTANCE BETWEEN COLUMNS: ......35"
RAPID TRAVERSE RATES (X,Y/Z): ..945 / 708 IPM
CUTTING FEED RATE: .............04 - 196.8 IPM
SPINDLE NOSE: .............CAT #50
SPINDLE SPEED: .................3150 RPM
SPINDLE MOTOR: .................30 HP
TOOLS: .........................30 ATC
MAX TOOL DIAMETER: .............4.92" / 5.91"
MAX TOOL LENGTH: ...............13.78"
MAX TOOL WEIGHT: ...............33.1 LBS
MACHINE WEIGHT: ................38960 LBS
EQUIPPED WITH:
NEW
SPECIFICATIONS:
TRAVELS
X-AXIS: ........................79.4"
Y-AXIS: ........................31.55"
Z-AXIS: ........................20.11"
TABLE SIZE: ....................86" X 31"
TABLE LOAD CAPACITY: ...........4400 LBS
SPINDLE NOSE TO TABLE TOP: .....17.8" - 37.99"
DISTANCE BETWEEN COLUMNS: ......35"
RAPID TRAVERSE RATES (X,Y/Z): ..945 / 708 IPM
CUTTING FEED RATE: .............04 - 196.8 IPM
SPINDLE NOSE: .............CAT #50
SPINDLE SPEED: .................3150 RPM
SPINDLE MOTOR: .................30 HP
TOOLS: .........................30 ATC
MAX TOOL DIAMETER: .............4.92" / 5.91"
MAX TOOL LENGTH: ...............13.78"
MAX TOOL WEIGHT: ...............33.1 LBS
MACHINE WEIGHT: ................38960 LBS
EQUIPPED WITH:
