MAZAK VTC-250/50D
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VTC-250/50D
Condition:
Not Specified
Year:
2001
Stock #:
31578
Status:
Sold
Description:

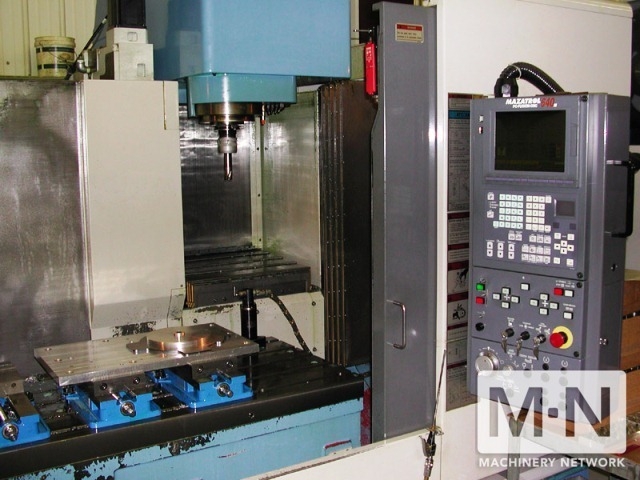

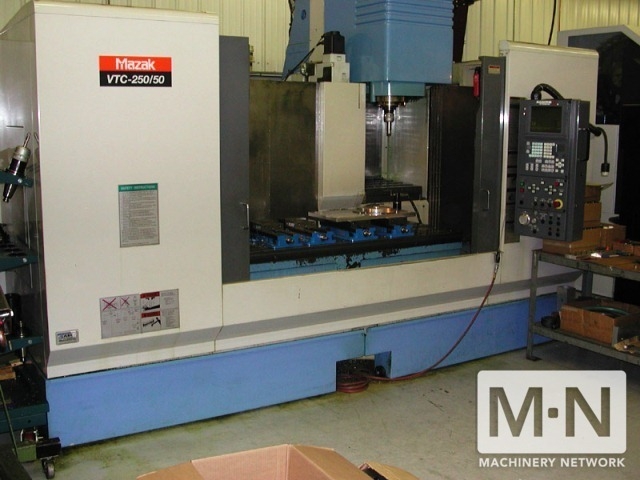

MAZAK VTC-250/50D, MAZATROL FUSION 640M CTRL, 69"X25"25", 50TAPER, 24 TOOLS
Location:
Florida, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK VTC-250/50D CNC VERTICAL MACHINING CENTER NEW 2001
SPECIFICATIONS: TABLE SIZE: ................................. 82.68" X 25" TABLE LOAD CAPACITY: ........................ 3000 LBS TRAVELS: X-AXIS TRAVEL: .............................. 69.3" Y-AXIS TRAVEL: .............................. 25" Z-AXIS TRAVEL: .............................. 25.9" DISTANCE FROM SPINDLE NOSE-TO-TABLE TOP: .... 7.09" MIN/33.07" MAX DISTANCE FROM SPINDLE C/L TO COLUMN: ........ 26" TABLE HEIGHT: ............................... 34.45" SPINDLE: SPINDLE NOSE: ............................... #50 SPINDLE SPEED: .............................. 26 - 6000 RPM NUMBER OF SPINDLE RANGES: ................... 2 (AUTO GEAR SHIFT) SPINDLE HORSEPOWER (30MIN/CONT): ............ 20/15 HP OBTAIN FULL HP @ (30 MIN) (LOW/HIGH): ....... 825/3300 RPM SERVO/AXIS DRIVES: TYPE OF SERVO DRIVES: ....................... DIGITAL AC MOTOR X-AXIS RAPID TRAVERSE: ...................... 1181 IPM Y-AXIS RAPID TRAVERSE: ...................... 1181 IPM Z-AXIS RAPID TRAVERSE: ...................... 1181 IPM AUTOMATIC TOOL CHANGER: SERVO MAGAZINE CAPACITY: .................... 24 TOOLS CHIP-TO-CHIP TOOL CHANGER TIME: ............. 5.2 SEC TOOL-TO-TOOL TOOL CHANGER TIME: ............. 2.0 SEC METHOD OF TOOL SELECTION: ................... RANDOM MAX. TOOL DIA. W/ALL POCKETS FULL: .......... 4.13" MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY: .... 8.27" MAX. TOOL LENGTH............................. 13.78" MAX. TOOL WEIGHT............................. 33.33 LBS FLOOR SPACE...(WITHOUT CHIP CONVEYOR)........ 183.27" X 132" MACHINE HEIGHT FROM MACHINE BASE............. 133.46" EQUIPPED WITH: MAZATROL FUSION 640M CONTROL WORK LIGHT / 3.5" FLOPPY DISK UNIT
SPECIFICATIONS: TABLE SIZE: ................................. 82.68" X 25" TABLE LOAD CAPACITY: ........................ 3000 LBS TRAVELS: X-AXIS TRAVEL: .............................. 69.3" Y-AXIS TRAVEL: .............................. 25" Z-AXIS TRAVEL: .............................. 25.9" DISTANCE FROM SPINDLE NOSE-TO-TABLE TOP: .... 7.09" MIN/33.07" MAX DISTANCE FROM SPINDLE C/L TO COLUMN: ........ 26" TABLE HEIGHT: ............................... 34.45" SPINDLE: SPINDLE NOSE: ............................... #50 SPINDLE SPEED: .............................. 26 - 6000 RPM NUMBER OF SPINDLE RANGES: ................... 2 (AUTO GEAR SHIFT) SPINDLE HORSEPOWER (30MIN/CONT): ............ 20/15 HP OBTAIN FULL HP @ (30 MIN) (LOW/HIGH): ....... 825/3300 RPM SERVO/AXIS DRIVES: TYPE OF SERVO DRIVES: ....................... DIGITAL AC MOTOR X-AXIS RAPID TRAVERSE: ...................... 1181 IPM Y-AXIS RAPID TRAVERSE: ...................... 1181 IPM Z-AXIS RAPID TRAVERSE: ...................... 1181 IPM AUTOMATIC TOOL CHANGER: SERVO MAGAZINE CAPACITY: .................... 24 TOOLS CHIP-TO-CHIP TOOL CHANGER TIME: ............. 5.2 SEC TOOL-TO-TOOL TOOL CHANGER TIME: ............. 2.0 SEC METHOD OF TOOL SELECTION: ................... RANDOM MAX. TOOL DIA. W/ALL POCKETS FULL: .......... 4.13" MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY: .... 8.27" MAX. TOOL LENGTH............................. 13.78" MAX. TOOL WEIGHT............................. 33.33 LBS FLOOR SPACE...(WITHOUT CHIP CONVEYOR)........ 183.27" X 132" MACHINE HEIGHT FROM MACHINE BASE............. 133.46" EQUIPPED WITH: MAZATROL FUSION 640M CONTROL WORK LIGHT / 3.5" FLOPPY DISK UNIT
