MAZAK VTC-20B
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VTC-20B
Condition:
Not Specified
Year:
1997
Stock #:
30857
Status:
Sold
Description:
M-Plus Control, 44"x20"x20"
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

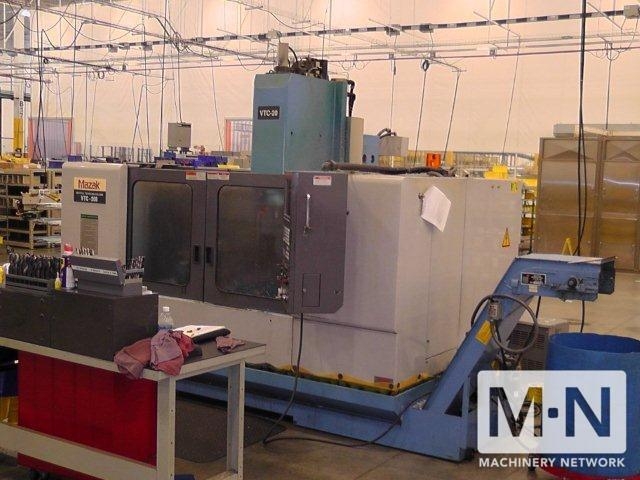

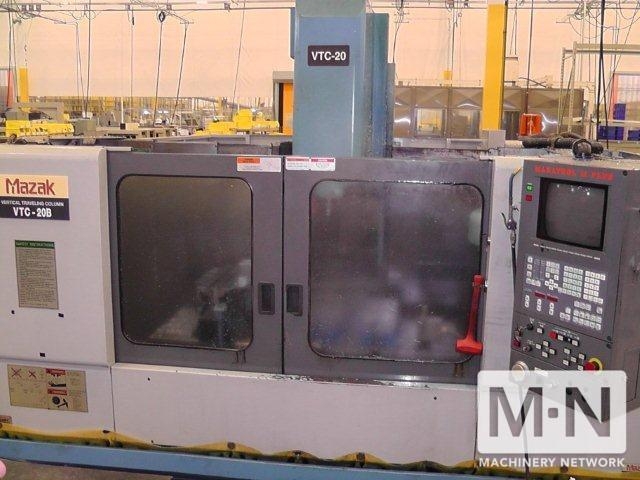

(1) Used Mazak VTC 20B Vertical Machining Center
Manufactured Year: 1997
Table (Inches) 57.48 x 20.08
X-Axis Travel (Inches) 44.09
Y-Axis Travel (Inches) 20.08
Z-Axis Travel (Inches) 20.0
Spindle Speed (RPM) 10,000
Taper 40
ATC Positions 24
Main Motor(HP) 15/10
Machine Weight 12,000 lbs.
Equipped with:

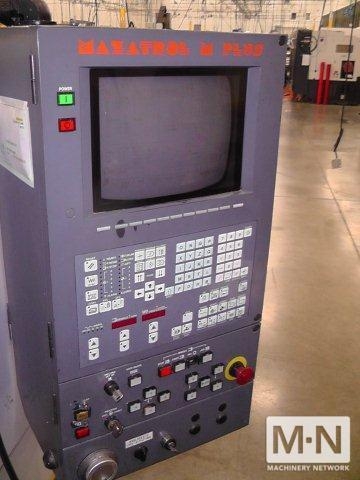

Mazatrol M-Plus
Coolant Through Spindle
Chip Conveyor
Auto Tool Length Measurement

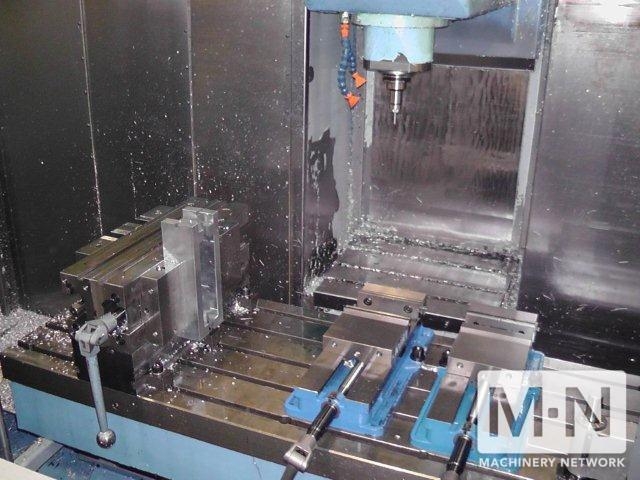

Full 4th Axis Table, Nikken CNC-200MA, S/N 3706
Manufactured Year: 1997
Table (Inches) 57.48 x 20.08
X-Axis Travel (Inches) 44.09
Y-Axis Travel (Inches) 20.08
Z-Axis Travel (Inches) 20.0
Spindle Speed (RPM) 10,000
Taper 40
ATC Positions 24
Main Motor(HP) 15/10
Machine Weight 12,000 lbs.
Equipped with:
Mazatrol M-Plus
Coolant Through Spindle
Chip Conveyor
Auto Tool Length Measurement
Full 4th Axis Table, Nikken CNC-200MA, S/N 3706
