HARDINGE QUEST-51
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
HARDINGE
Model:
QUEST-51
Condition:
Not Specified
Year:
2001
Stock #:
28784
Status:
Sold
Description:
FANUC 21IT, FULL C AXIS, Y AXIS, 12 STATION VDI, PARTS CATCHER, SUB-SPINDLE, 20HP
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

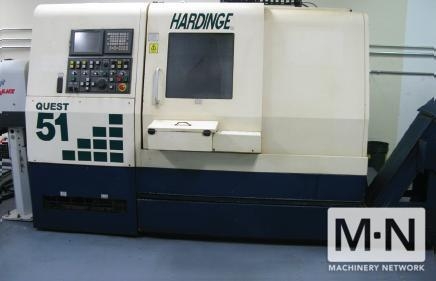

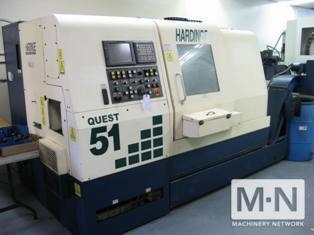

(1) USED HARDINGE QUEST-51 MULTI AXIS CNC LATHE
NEW 2001
SPECIFICATIONS:

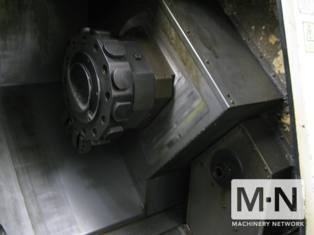

SPINDLE
SPINDLE CONFIGURATION: A2-6", 20C
SPINDLE THROUGH HOLE: 2.378"
ROUND COLLET THROUGH CAPACITY: 2"
NOMINAL WORK SIZE WITH COLLET: 2" X 24" (OD X L)
AC DIGITAL BELT DRIVE SYSTEM
POWER RATING: 20 HP
TORQUE RATING @ 525 RPM: 200 FT-LB
SPEED RANGE: 50-4,200 RPM
CARRIAGE AND CROSS SLIDE
SWING OVER WAY COVER: 20.44"
MAXIMUM TURNING DIAMETER: 12.151"
TRAVELS
X-AXIS: 7.45"
Z-AXIS: 24"
TRAVERSE RATE
X-AXIS: 1,100 IPM
Z-AXIS: 1,500 IPM

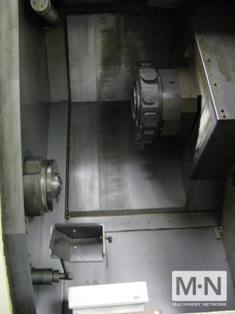

VDI TURRET WITH LIVE TOOLING
NUMBER OF STATIONS: 12
TOOL SHANK DIAMETER
WITH ER25 COLLETS: .04 TO .625"
POWER RATING AT TOOL TIP: 5 HP
TORQUE RATING AT TOOL TIP: 16 FT-LB
SPEED RANGE: 8-8,000 RPM
SPINDLE ORIENT: 1 DEGREE
ELECTRICS: 220 VOLTS, 3 PHASE, 60 CYCLE
EQUIPPED WITH

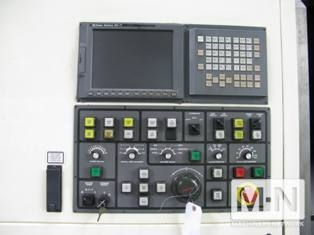

FANUC 21iT CONTROL
C-AXIS

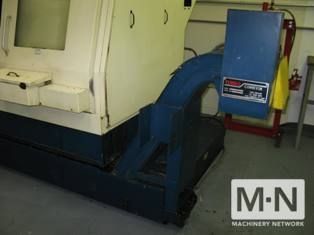

CHIP CONVEYOR
TAILSTOCK WITH MT4 TAPER

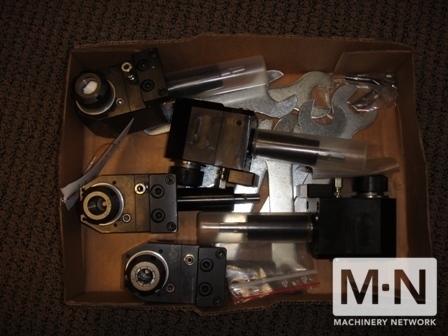

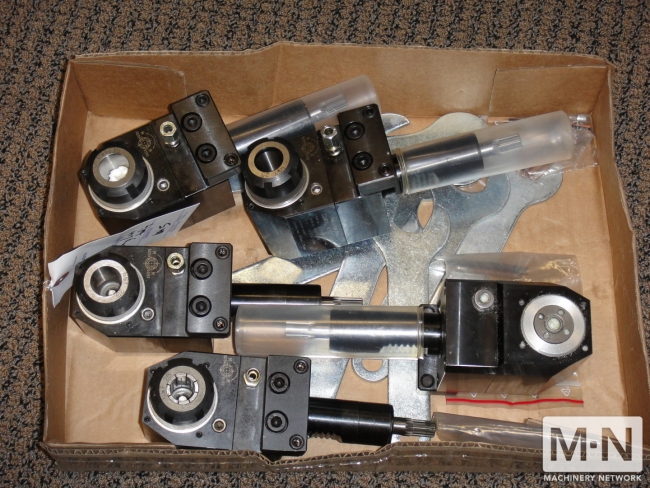

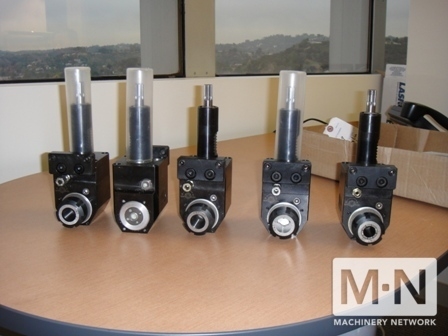

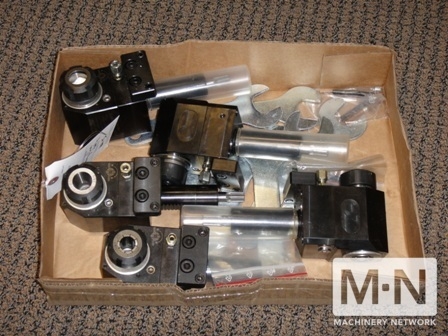

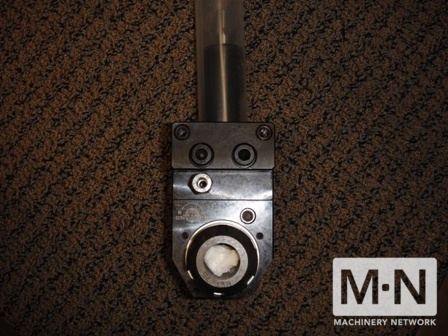

5 ROTARY END MILL/DRILL TOOL HOLDERS
COLLETS
STANDARD HOLDERS
BAR FEED INTERFACE
PARTS CATCHER
RIGID TAPPING
NEW 2001
SPECIFICATIONS:
SPINDLE
SPINDLE CONFIGURATION: A2-6", 20C
SPINDLE THROUGH HOLE: 2.378"
ROUND COLLET THROUGH CAPACITY: 2"
NOMINAL WORK SIZE WITH COLLET: 2" X 24" (OD X L)
AC DIGITAL BELT DRIVE SYSTEM
POWER RATING: 20 HP
TORQUE RATING @ 525 RPM: 200 FT-LB
SPEED RANGE: 50-4,200 RPM
CARRIAGE AND CROSS SLIDE
SWING OVER WAY COVER: 20.44"
MAXIMUM TURNING DIAMETER: 12.151"
TRAVELS
X-AXIS: 7.45"
Z-AXIS: 24"
TRAVERSE RATE
X-AXIS: 1,100 IPM
Z-AXIS: 1,500 IPM
VDI TURRET WITH LIVE TOOLING
NUMBER OF STATIONS: 12
TOOL SHANK DIAMETER
WITH ER25 COLLETS: .04 TO .625"
POWER RATING AT TOOL TIP: 5 HP
TORQUE RATING AT TOOL TIP: 16 FT-LB
SPEED RANGE: 8-8,000 RPM
SPINDLE ORIENT: 1 DEGREE
ELECTRICS: 220 VOLTS, 3 PHASE, 60 CYCLE
EQUIPPED WITH
FANUC 21iT CONTROL
C-AXIS
CHIP CONVEYOR
TAILSTOCK WITH MT4 TAPER
5 ROTARY END MILL/DRILL TOOL HOLDERS
COLLETS
STANDARD HOLDERS
BAR FEED INTERFACE
PARTS CATCHER
RIGID TAPPING
