HARDINGE QUEST 8/51 SP
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
HARDINGE
Model:
QUEST 8/51 SP
Condition:
Not Specified
Year:
2005
Stock #:
26364
Status:
Sold
Description:
FANUC 18i CTRL, 2.4" THRU-HOLE, 8" CHK
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

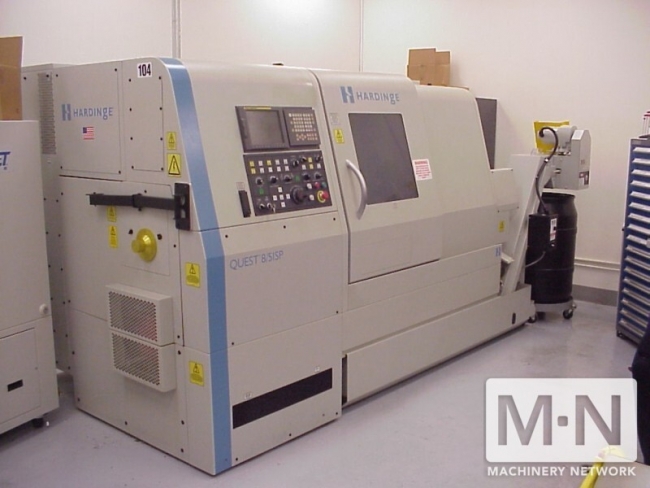

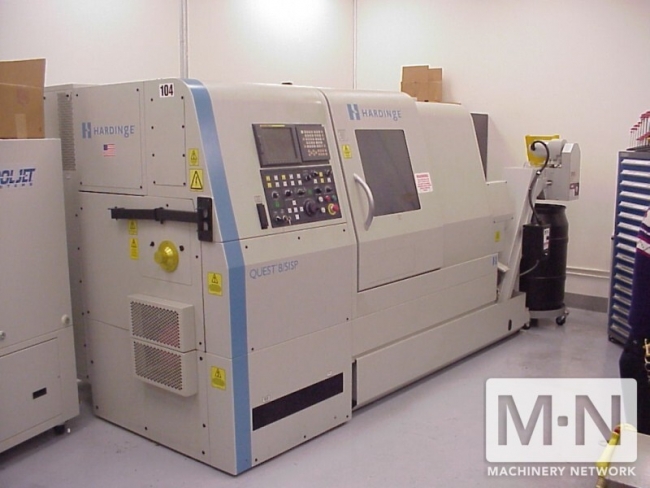

(1) USED HARDINGE QUEST 8/51 SP SUPER PRECISION CNC LATHE
NEW 2005
SPECIFICATIONS:
MAX. TURNING DIAMETER: 12"
MAX. TURNING LENGTH: 24.0"
TRAVELS - X-AXIS: 7.45"
Z-AXIS: 24.0"
C-AXIS (MAIN SPDL): 360,000 POS.
MAX. X-AXIS TRAVERSE RATE: 1100 IPM
MAX. Z-AXIS TRAVERSE RATE: 2300 IPM
MAIN SPINDLE - SPEED RANGE: 80-8000 RPM
- MOTOR: 20 HP
- CONFIGURATION: A2-6, 20C
- THROUGH-HOLE: 2.4"
- ROUND COLLET CAP.: 2"
SUB SPINDLE - SPEED RANGE: 60-6000 RPM
- MOTOR: 10 HP
- CONFIGURATION: A2-5, 16C
TOOL OFFSET CAPABILITY: .00010"
TURRET CAPACITY: 12 STATION
LIVE TOOL MAX SPINDLE SPEED: 6000 RPM
EQUIPPED WITH:

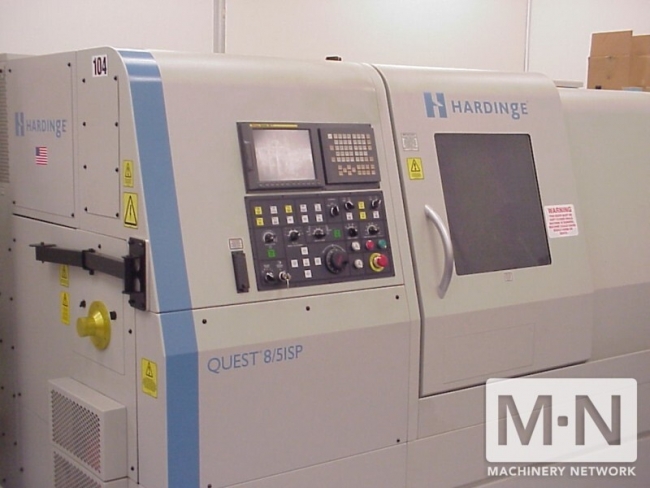

FANUC 18i CONTROL
QCB401BL SUB-SPINDLE WITH BELTED SPINDLE MOTOR
LIVE TOOLING WITH C-AXIS CONTOURING
AIRBLAST SYSTEM
AUTOMATIC TOOL TOUCH PROBE
PART PROBE, TOOL HOLDER

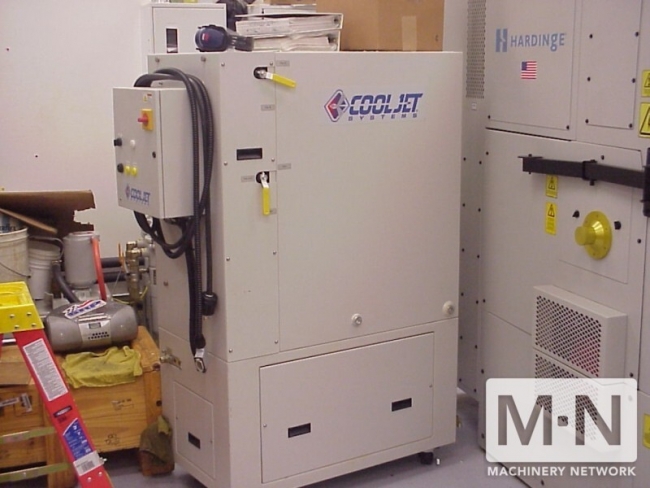

H/P COOLJET SYSTEM
PARTS REMOVAL SYSTEM WITH SUB-SPINDLE
CHIP CONVEYER
NEW 2005
SPECIFICATIONS:
MAX. TURNING DIAMETER: 12"
MAX. TURNING LENGTH: 24.0"
TRAVELS - X-AXIS: 7.45"
Z-AXIS: 24.0"
C-AXIS (MAIN SPDL): 360,000 POS.
MAX. X-AXIS TRAVERSE RATE: 1100 IPM
MAX. Z-AXIS TRAVERSE RATE: 2300 IPM
MAIN SPINDLE - SPEED RANGE: 80-8000 RPM
- MOTOR: 20 HP
- CONFIGURATION: A2-6, 20C
- THROUGH-HOLE: 2.4"
- ROUND COLLET CAP.: 2"
SUB SPINDLE - SPEED RANGE: 60-6000 RPM
- MOTOR: 10 HP
- CONFIGURATION: A2-5, 16C
TOOL OFFSET CAPABILITY: .00010"
TURRET CAPACITY: 12 STATION
LIVE TOOL MAX SPINDLE SPEED: 6000 RPM
EQUIPPED WITH:
FANUC 18i CONTROL
QCB401BL SUB-SPINDLE WITH BELTED SPINDLE MOTOR
LIVE TOOLING WITH C-AXIS CONTOURING
AIRBLAST SYSTEM
AUTOMATIC TOOL TOUCH PROBE
PART PROBE, TOOL HOLDER
H/P COOLJET SYSTEM
PARTS REMOVAL SYSTEM WITH SUB-SPINDLE
CHIP CONVEYER
