MAZAK V-655/60
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
V-655/60
Condition:
Not Specified
Year:
1996
Stock #:
25304
Status:
Sold
Description:
M PLUS, 25.625 x 68.625" PLLT, 59.05" x 25.59" x 25.59", CAT 50, 6K RPM, 60 ATC, 25HP, COOLANT THRU, CC,
Location:
Minnesota, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

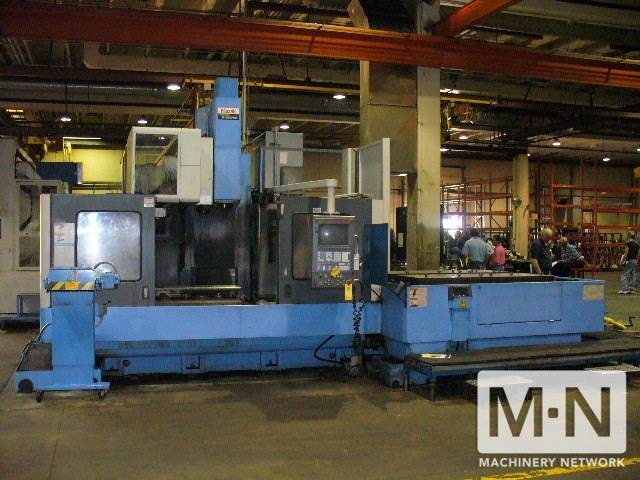

(1) USED MAZAK V-655/60 CNC TWIN PALLET VERT MACHINING CENTER
WITH A.P.C NEW 11/1996
SPECIFICATIONS:
PALLET SIZE:..................... 68.5" X 25.6"
X-AXIS TRAVEL:.................. 59.06"
Y-AXIS TRAVEL:.................. 25.59"
Z-AXIS TRAVEL:.................. 25.59"
DIS. SPDLE CTR - PALLET TOP...... 7.87" - 33.46"
SPINDLE NOSE..................... CAT #50
SPINDLE HORSEPOWER (30 MIN/CONT). 25 HP/20 HP
OBTAINS FULL HP @ (30 MIN)....... 22-223 RPM /
1500 - 4500 RPM
CONSTANT TORQUE RANGE............ 559 FT - LBS.
SPINDLE RPM...................... 25 - 6000 RPM
SPINDLE SPEED INCREMENT.......... 1 RPM
NUMBER OF RANGES................. 2
TOOL CLAMPING FORCE.............. 3,960 LBS.
SPINDLE BEARINGS FRONT........... ANG.CONT.BALL BGS
(5.91 OD/3.94 ID)
SPINDLE BEARINGS REAR............ ANG.CONT.BALL BGS
(5.91 OD/3.94 ID)
AUTOMATIC TOOL CHANGER
MAGAZINE CAPACITY............... 30
TOOL-TO-TOOL TIME............... 2.4 SEC.
CHIP-T0-CHIP TIME (APPROX.)..... 6.0 SEC.
MAXIMUM TOOL DIAMETER........... 4.92"
MAXIMUM TOOL LENGTH............. 15.74"
MAXIMUM TOOL WEIGHT............. 44 LBS.
FLOOR SPACE REQUIRED............. 175" X 139.3"
MACHINE HEIGHT .................. 115.9"
POWER REQUIRED (MACHINE ONLY).... 43.1 KVA
MACHINE WEIGHT................... 24.250 LBS.
MAXIMUM TABLE LOAD............... 4,400 LBS.
MAXIMUM WORKPIECE HEIGHT......... 30.31"
EQUIPPED WITH:
MAZATROL M PLUS 3-AXIS CONTROL.
PART PROBING SYSTEM WITH PROBE(M.P-3)
RIGID TAPPING.AUTOMATIC TOOL LENGTH .
COOLANT THRU' SPINDLE(200 P.S.I)
CHIP CONVEYOR
WITH A.P.C NEW 11/1996
SPECIFICATIONS:
PALLET SIZE:..................... 68.5" X 25.6"
X-AXIS TRAVEL:.................. 59.06"
Y-AXIS TRAVEL:.................. 25.59"
Z-AXIS TRAVEL:.................. 25.59"
DIS. SPDLE CTR - PALLET TOP...... 7.87" - 33.46"
SPINDLE NOSE..................... CAT #50
SPINDLE HORSEPOWER (30 MIN/CONT). 25 HP/20 HP
OBTAINS FULL HP @ (30 MIN)....... 22-223 RPM /
1500 - 4500 RPM
CONSTANT TORQUE RANGE............ 559 FT - LBS.
SPINDLE RPM...................... 25 - 6000 RPM
SPINDLE SPEED INCREMENT.......... 1 RPM
NUMBER OF RANGES................. 2
TOOL CLAMPING FORCE.............. 3,960 LBS.
SPINDLE BEARINGS FRONT........... ANG.CONT.BALL BGS
(5.91 OD/3.94 ID)
SPINDLE BEARINGS REAR............ ANG.CONT.BALL BGS
(5.91 OD/3.94 ID)
AUTOMATIC TOOL CHANGER
MAGAZINE CAPACITY............... 30
TOOL-TO-TOOL TIME............... 2.4 SEC.
CHIP-T0-CHIP TIME (APPROX.)..... 6.0 SEC.
MAXIMUM TOOL DIAMETER........... 4.92"
MAXIMUM TOOL LENGTH............. 15.74"
MAXIMUM TOOL WEIGHT............. 44 LBS.
FLOOR SPACE REQUIRED............. 175" X 139.3"
MACHINE HEIGHT .................. 115.9"
POWER REQUIRED (MACHINE ONLY).... 43.1 KVA
MACHINE WEIGHT................... 24.250 LBS.
MAXIMUM TABLE LOAD............... 4,400 LBS.
MAXIMUM WORKPIECE HEIGHT......... 30.31"
EQUIPPED WITH:
MAZATROL M PLUS 3-AXIS CONTROL.
PART PROBING SYSTEM WITH PROBE(M.P-3)
RIGID TAPPING.AUTOMATIC TOOL LENGTH .
COOLANT THRU' SPINDLE(200 P.S.I)
CHIP CONVEYOR
