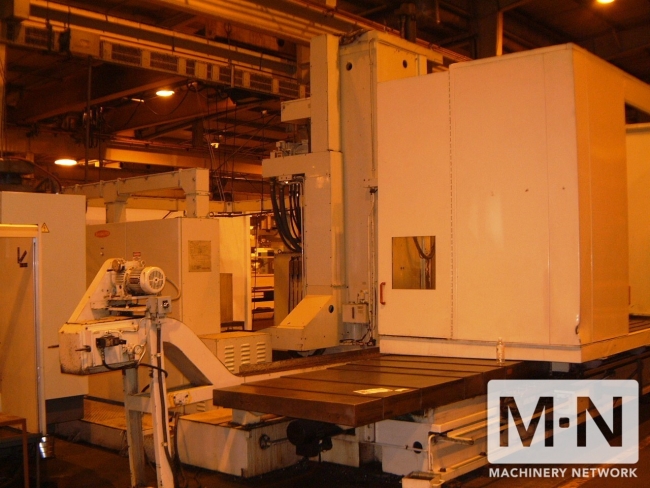

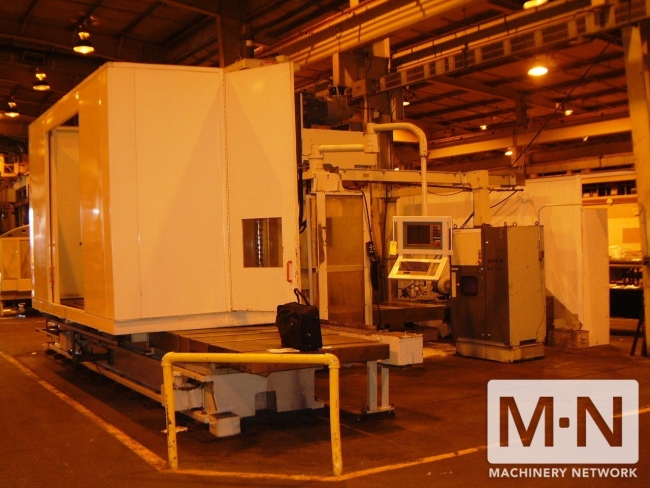

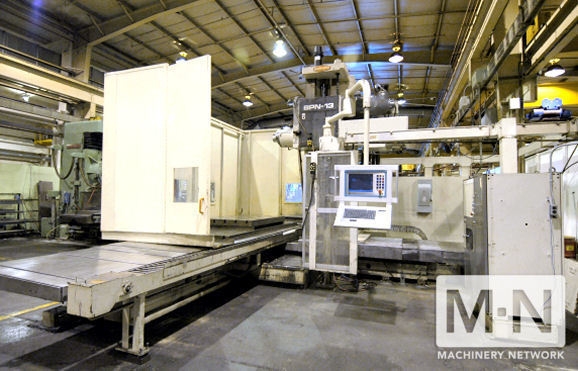

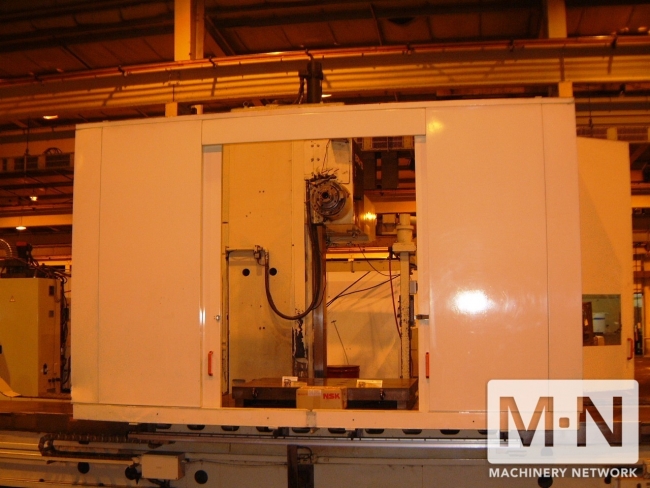

TOSHIBA BPN-13P5
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
TOSHIBA
Model:
BPN-13P5
Condition:
Not Specified
Year:
1986
Stock #:
21559
Status:
Sold
Description:
5.18" toshiba
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
5.18" TOSHIBA BPN13-P5 CNC TABLE TYPE- CNC
HORIZONTAL BORING MILL RETROFITTED BY CREATIVE
EVOLUTION CONTROL IN 1999 AND UPGRADED IN 2002
S/N:230005
SPINDLE DIAMETER: 5.18"
TABLE SIZE: 59" X 118"
VERTICAL TRAVEL (Y): 86.6"
CROSS TRAVEL OF TABLE (X): 118"
COLUMN TRAVEL (Z): 43.3"
SPINDLE TRAVEL (W-AXIS): 19.7"
SPINDLE RPM (UPGRADED FROM 2000 RPM): 2500 RPM
SPINDLE MOTOR: 30 HP
RAPID TRAVERSE,UPGRADED TO: 400 IPM
MAXIMUM LOAD CAPACITY: 22000 LBS
SPINDLE TAPER: 50 TAPER
EQUIPPED WITH:

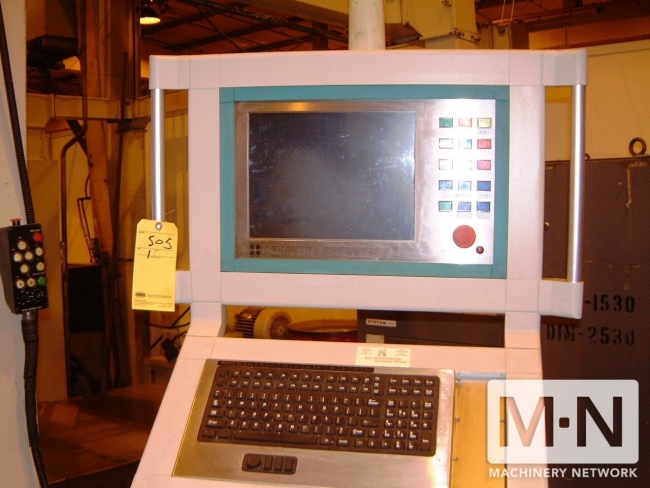

CREATIVE EVOLUTION CONTROL WITH LOOK-AHEAD
SOFTWARE, D.N.C. CAPABLE, BALL SCREWS, SPINDLE
STOP ORIENTATION STOP DEVICE PULL STUDS, GLASS
SCALE, CHIP CONVEYOR, HEIDENHAIN FEED-BACK SCALES
ON 3 AXIS.
HORIZONTAL BORING MILL RETROFITTED BY CREATIVE
EVOLUTION CONTROL IN 1999 AND UPGRADED IN 2002
S/N:230005
SPINDLE DIAMETER: 5.18"
TABLE SIZE: 59" X 118"
VERTICAL TRAVEL (Y): 86.6"
CROSS TRAVEL OF TABLE (X): 118"
COLUMN TRAVEL (Z): 43.3"
SPINDLE TRAVEL (W-AXIS): 19.7"
SPINDLE RPM (UPGRADED FROM 2000 RPM): 2500 RPM
SPINDLE MOTOR: 30 HP
RAPID TRAVERSE,UPGRADED TO: 400 IPM
MAXIMUM LOAD CAPACITY: 22000 LBS
SPINDLE TAPER: 50 TAPER
EQUIPPED WITH:
CREATIVE EVOLUTION CONTROL WITH LOOK-AHEAD
SOFTWARE, D.N.C. CAPABLE, BALL SCREWS, SPINDLE
STOP ORIENTATION STOP DEVICE PULL STUDS, GLASS
SCALE, CHIP CONVEYOR, HEIDENHAIN FEED-BACK SCALES
ON 3 AXIS.
