KURAKI KBT 13DXA
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC
Manufacturer:
KURAKI
Model:
KBT 13DXA
Condition:
Not Specified
Year:
1995
Stock #:
21291
Status:
Sold
Description:
FANUC 15M; 40 ATC; 157" ON X
Location:
New York, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

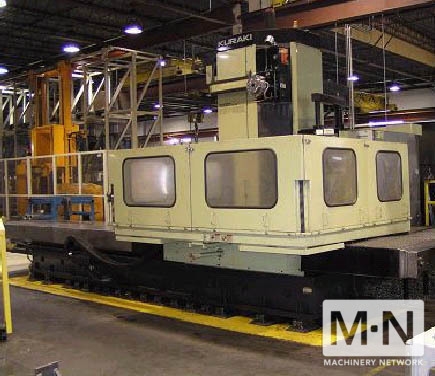

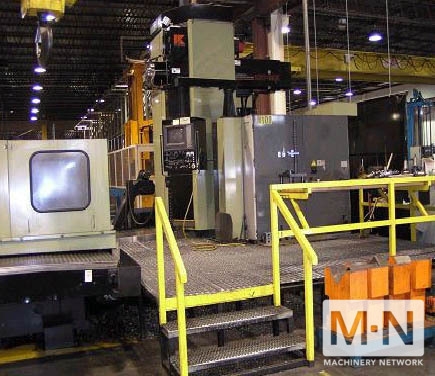

(1) USED KURAKI MODEL KBT-13 DXA TABLE-TYPE
CNC HORIZONTAL BORING MILL, NEW 1995
SPECIFICATIONS:
TRAVELS X-AXIS: 157.00"
Y-AXIS: 79.00"
Z-AXIS: 51.00"
W-AXIS: 28.00"
ROTARY TABLE: .001 DEGREE
TABLE SIZE: 63" X 71"
SPINDLE SPEED: 5 - 2500 RPM
RAPID TRAVEL: 472" (X,Y,Z)
236" (W)
FEED RATES: 0.4-157 IPM
MAIN MOTOR: 29 HP
SPINDLE TAPER : CAT# 50
SPINDLE DIAMETER: 5.1"
FLOOR SPACE: 264"X264"
MACHINE WEIGHT: 70,400 LBS
MACHINE HEIGHT: 188"
EQUIPPED WITH:
FANUC 15M CNC CONTROL
COOLANT TANK
CHIP CONVEYOR
CHIP GUARDS
14" COLOR MONITOR
PRICE:
PRICE
CNC HORIZONTAL BORING MILL, NEW 1995
SPECIFICATIONS:
TRAVELS X-AXIS: 157.00"
Y-AXIS: 79.00"
Z-AXIS: 51.00"
W-AXIS: 28.00"
ROTARY TABLE: .001 DEGREE
TABLE SIZE: 63" X 71"
SPINDLE SPEED: 5 - 2500 RPM
RAPID TRAVEL: 472" (X,Y,Z)
236" (W)
FEED RATES: 0.4-157 IPM
MAIN MOTOR: 29 HP
SPINDLE TAPER : CAT# 50
SPINDLE DIAMETER: 5.1"
FLOOR SPACE: 264"X264"
MACHINE WEIGHT: 70,400 LBS
MACHINE HEIGHT: 188"
EQUIPPED WITH:
FANUC 15M CNC CONTROL
COOLANT TANK
CHIP CONVEYOR
CHIP GUARDS
14" COLOR MONITOR
PRICE:
PRICE
