MAZAK V 515/40
Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
V 515/40
Condition:
Not Specified
Year:
1994
Stock #:
20860
Status:
Sold
Description:
MAZATROL M-32 ; 30 ATC ; 2 PALLET CHANGER,tsc,6k,ct,30holders
Location:
Texas, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

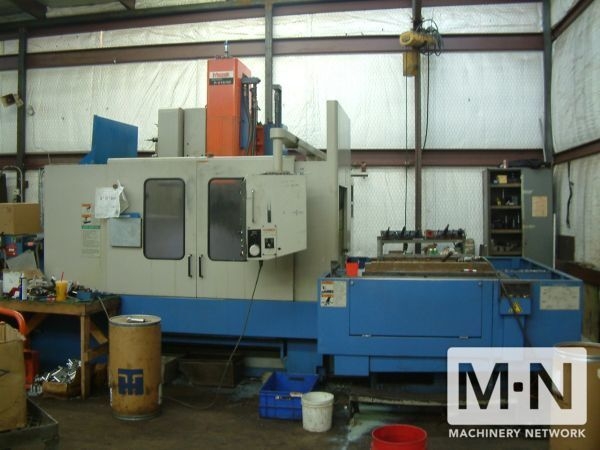

(1) USED MAZAK V515-2APC CNC TWIN PALLET VERTICAL
MACHINING CENTER NEW-1994
SPECIFICATIONS:
NUMBER OF TABLES: 2
TABLE SIZE: 21.7"x51.2"
TABLE TRAVEL X-AXIS: 41.3"
Y-AXIX: 20.1"
Z-AXIS: 22"
DISTANCE: SPINDLE NOSE - TABLETOP: 7.8"-29.8"
TABLE LOAD CAPACITY: 3,300 LBS.
RAPID TRAVERSE RATES: 945 X,Y IPM
708 Z IPM
CUTTING FEED RATES: .04-197 IPM

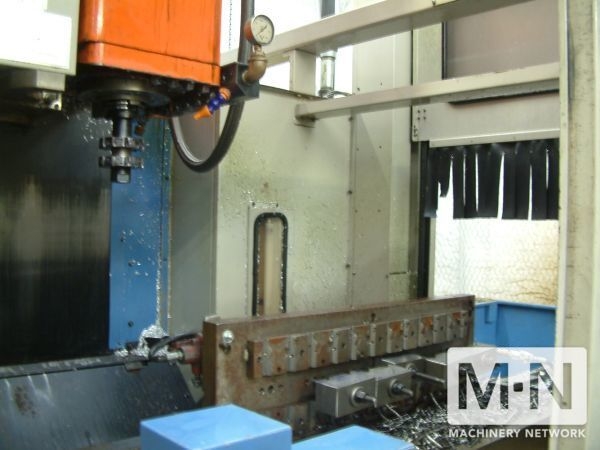

SPINDLE NOSE: CAT 50
SPINDLE SPEED: 25-6,000 RPM

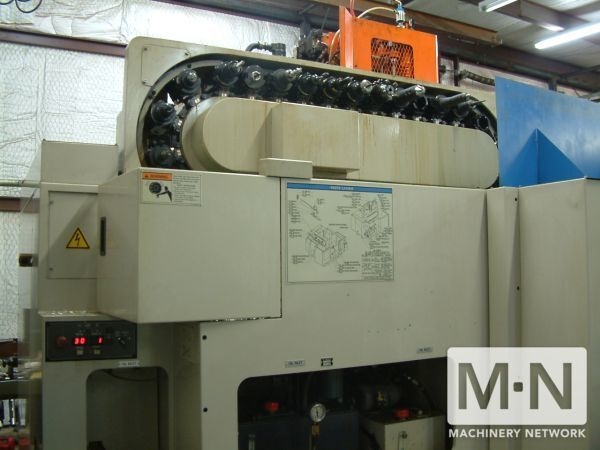

TOOL MAGAZINE: 30 ATC
MAIN MOTOR: 30 HP
MACHINE WEIGHT: 18,700 LBS.
EQUIPPED WITH:

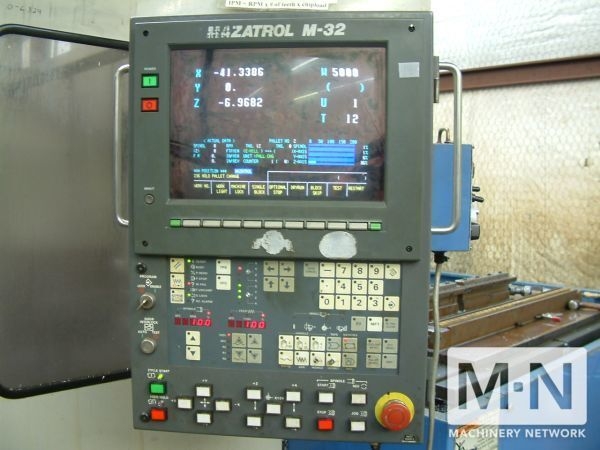

MAZATROL M32B CNC CONVERSATIONAL CONTROL
EIA/ISO
CHIP CONVEYOR,THRU' THE SPINDLE COOLANT.
MONITORING SYSTEM B
SYNCRHONIZED TAPPING

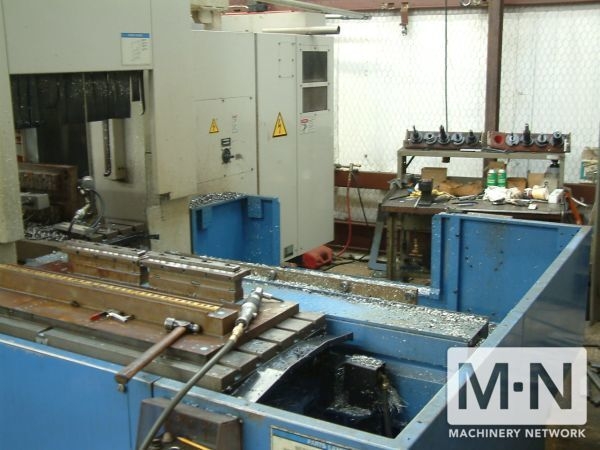

2-PALLET FACTORY PALLET CHANGER
TOOL LIFE MONITORING
TOOL BREAKAGE DETECTION
AUTOMATIC TOOL LENGTH MEASUREMENT
HELICAL INTERPOLATION
MANUALS,TOOLING
FLOOD COOLANT
FULL ENCLOSURE
ALL AVAILABLE MANUALS
