LION C11T-103

Type:

LATHES, ENGINE

Manufacturer:

LION

Model:

C11T-103

Condition:

Not Specified

Stock #:

37025

Status:

Sold

Description:

20" X 60"

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

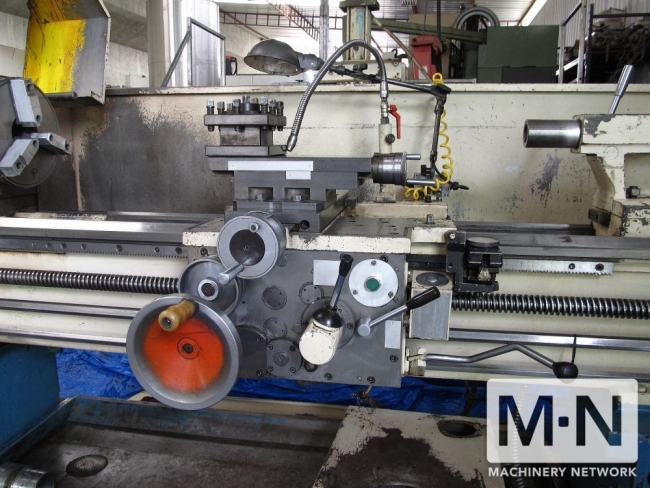

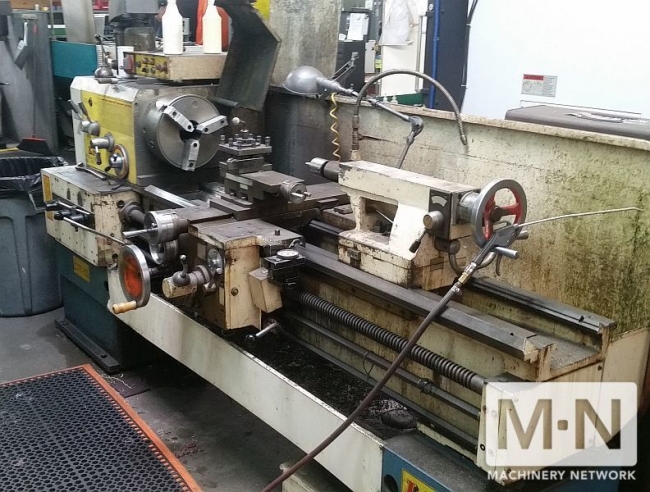

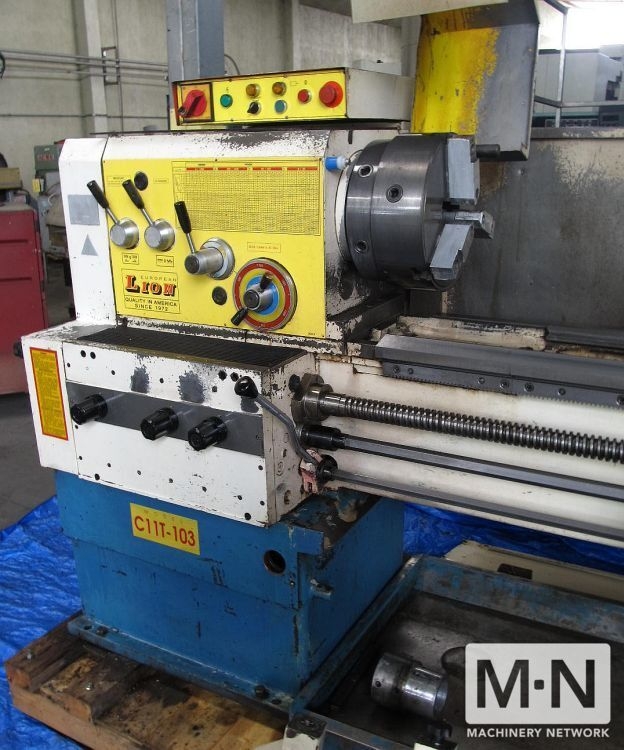

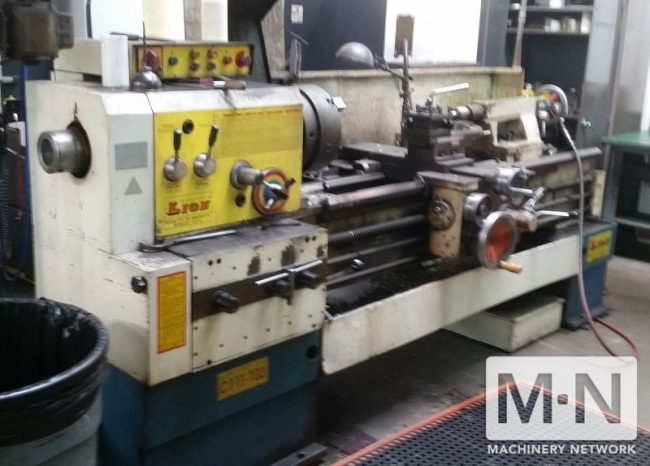

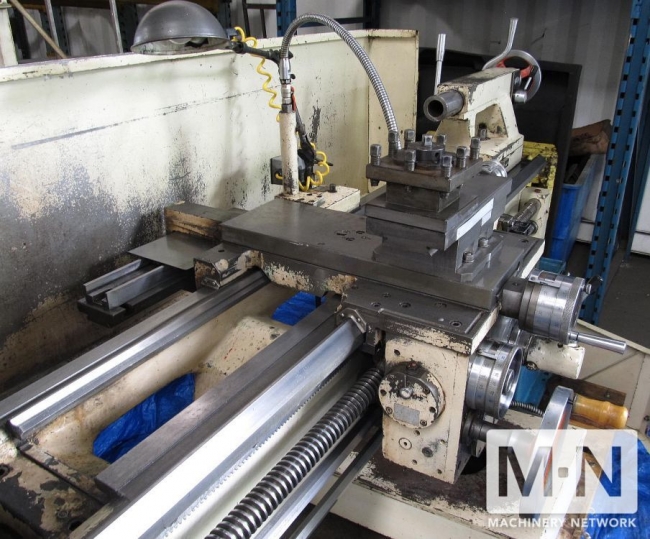

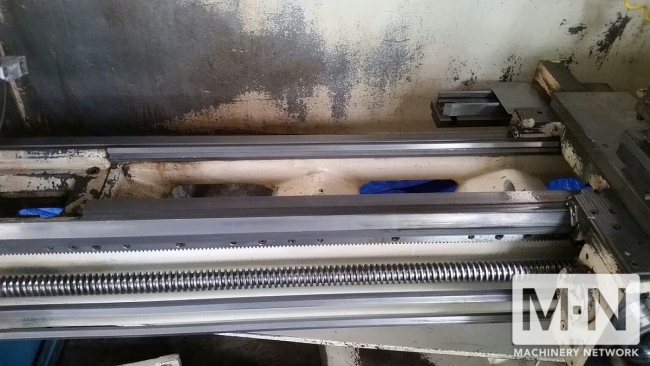

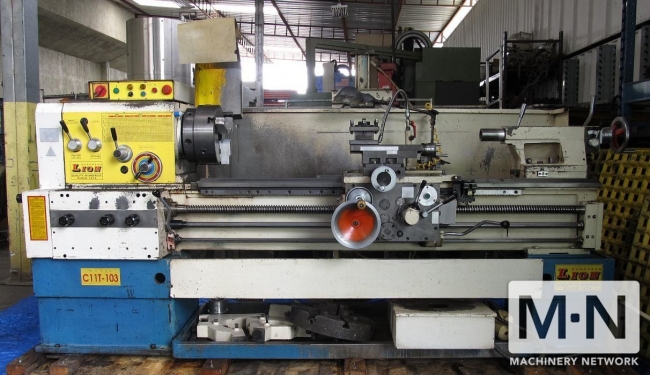

(1) USED 20" X 60" LION MODEL C11T-103 GAP BED ENGINE LATHE NEW MID 1990'S
SPECIFICATIONS: SWING OVER BED ................. 20" SWING THRU GAP ................. 26" SWING OVER CROSS SLIDE ......... 11.5" DISTANCE BETWEEN CENTERS ....... 60"
LENGTH OF GAP .................. 9" SPINDLE BORE ................... 4"
SPINDLE SPEEDS (18) ............ 8 - 1400 RPM
SPINDLE MOTOR .................. 10 HP
SPINDLE TAPER .................. D1-8
FEEDS - LONGITUDINAL ........... 0.0019 - .5 IPR
- CROSS .................. 0.0007 - .5 IPR
RAPID TRAVERSE ................. 148 IPM
THREADING (64) - INCH .......... 120 - 1/4 TPI
- METRIC ........ .25 - 120
- MODULAR ....... 0.062 - 30
TAILSTOCK - TAPER .............. MT #5
- QUILL DIAMETER ..... 2.75"
- STROKE ............. 8 1/4"
DIMENSIONS ..................... 120"L x 48"W x 50"H
WEIGHT ......................... 6000 LBS

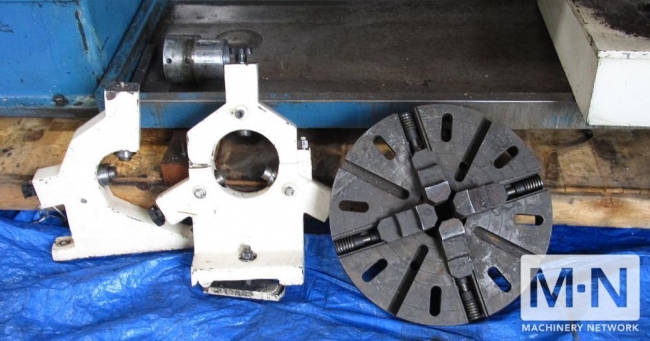

EQUIPPED WITH: 12" 3-JAW,
18" 4-JAW FACE PLATE STEADY REST & FOLLOW REST TAPER TURNING ATTACHMENT TOOL POST
COOLANT TANK & PUMP
