ACER DYNAMIC 1440G
Type:
LATHES, ENGINE
Manufacturer:
ACER
Model:
DYNAMIC 1440G
Condition:
Not Specified
Year:
2000
Stock #:
30483
Status:
Sold
Description:
14"x40", DRO
Location:
Ohio, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

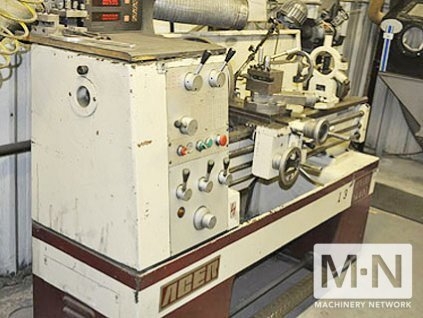

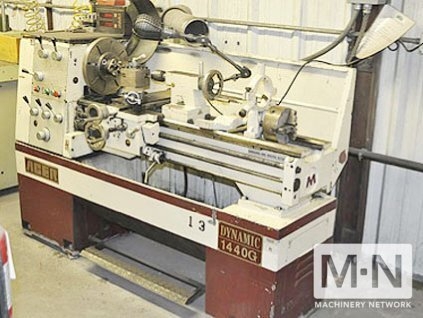

(1) Used 14"x40" Acer Model Dynamic 1440G Engine Lathe - New 2000
Center Height 6-3/4" Swing Over Bed 14" Swing Over Gap (gap type only) 21" Swing Over Cross Slide 9" Distance Between Centers 40" Spindle Nose D1-4 or A1-5 Spindle Bore Diameter 1-9/16" Type of Spindle Nose MT#5 Taper of Center
MT#3 Spindle Speeds
65-2000 RPM (8 steps) Cross Slide Travel 8-5/8" Compound Rest Travel 3-3/4" Max Size Cutting Tool
3/4" x 3/4" Spindle Diameter 1-9/16" Spindle Travel
4-1/4" Bed Length
58" Bed Width 10" Width of Gap 10" Metric Pitch Threads 0.25 - 6mm/pitch (22 kinds) Inch Pitch Threads
3-56 TPI (32 kinds) Range of Longitudinal Feeds 0.002" - 0.04"/rev. 0.05 -1.0mm/rev. Range of Cross Feeds 0.001"-0.02"/rev. 0.025 - 0.5mm/rev. Main Drive Motor 5 hp Floor Dimensions 75" x 30" Gross Weight 2550 lbs.
Equipped with:

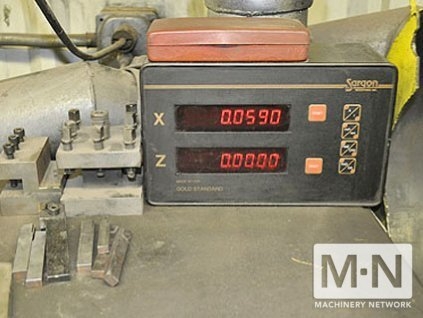

2 Axis Sargon DRO

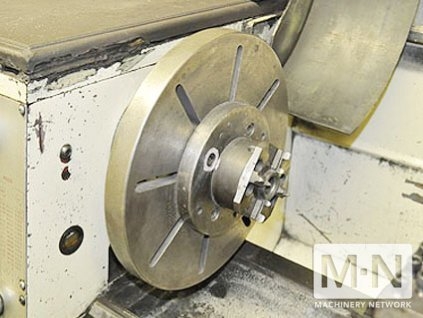

6" 3 jaw chuck & 11" face plate
Micrometer carriage stop

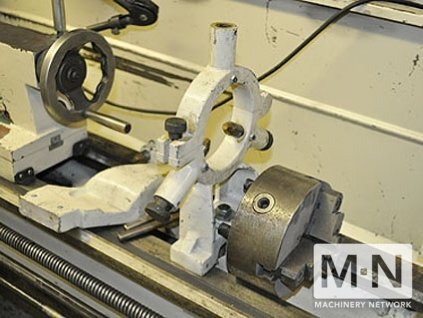

Steady rest & follow rest

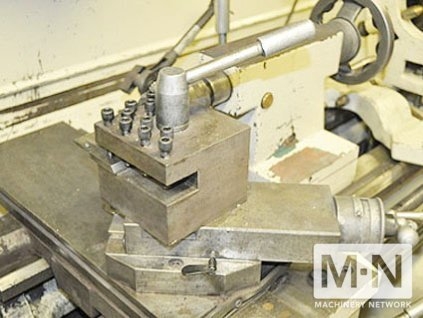

4-way tool post
Built-in Coolant system
Full length splash guard
Foot Brake
Work light
Center Height 6-3/4" Swing Over Bed 14" Swing Over Gap (gap type only) 21" Swing Over Cross Slide 9" Distance Between Centers 40" Spindle Nose D1-4 or A1-5 Spindle Bore Diameter 1-9/16" Type of Spindle Nose MT#5 Taper of Center
MT#3 Spindle Speeds
65-2000 RPM (8 steps) Cross Slide Travel 8-5/8" Compound Rest Travel 3-3/4" Max Size Cutting Tool
3/4" x 3/4" Spindle Diameter 1-9/16" Spindle Travel
4-1/4" Bed Length
58" Bed Width 10" Width of Gap 10" Metric Pitch Threads 0.25 - 6mm/pitch (22 kinds) Inch Pitch Threads
3-56 TPI (32 kinds) Range of Longitudinal Feeds 0.002" - 0.04"/rev. 0.05 -1.0mm/rev. Range of Cross Feeds 0.001"-0.02"/rev. 0.025 - 0.5mm/rev. Main Drive Motor 5 hp Floor Dimensions 75" x 30" Gross Weight 2550 lbs.
Equipped with:
2 Axis Sargon DRO
6" 3 jaw chuck & 11" face plate
Micrometer carriage stop
Steady rest & follow rest
4-way tool post
Built-in Coolant system
Full length splash guard
Foot Brake
Work light
