HWACHEON HL460

Type:

LATHES, ENGINE

Manufacturer:

HWACHEON

Model:

HL460

Condition:

Not Specified

Year:

1996

Stock #:

35839

Status:

Sold

Description:

18" X 40" gap bed, I/M threading

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

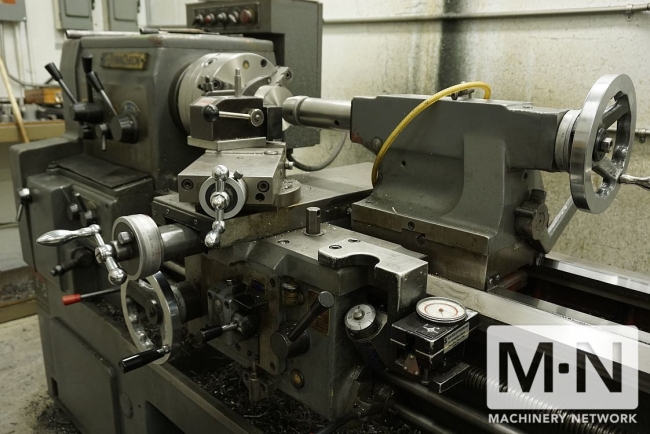

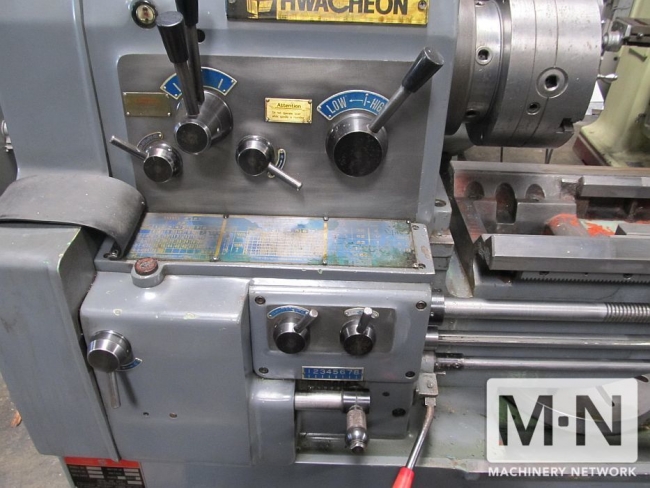

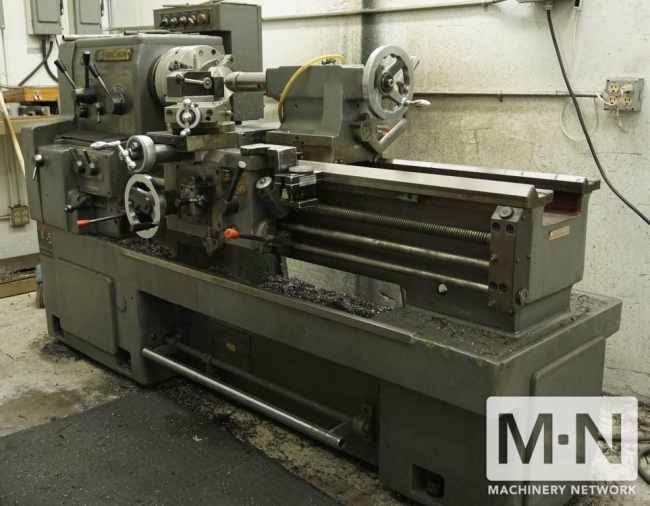

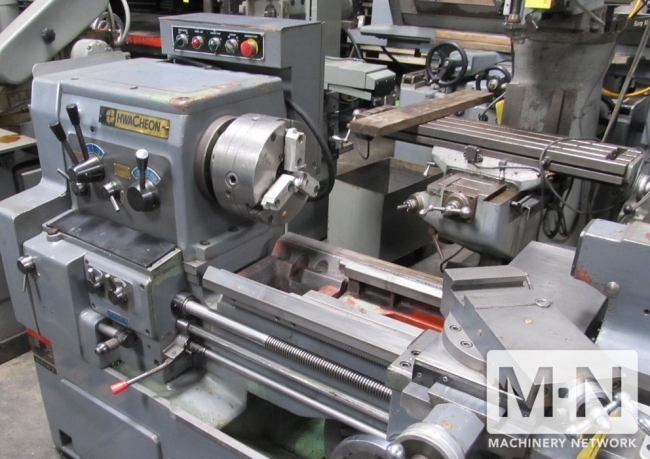

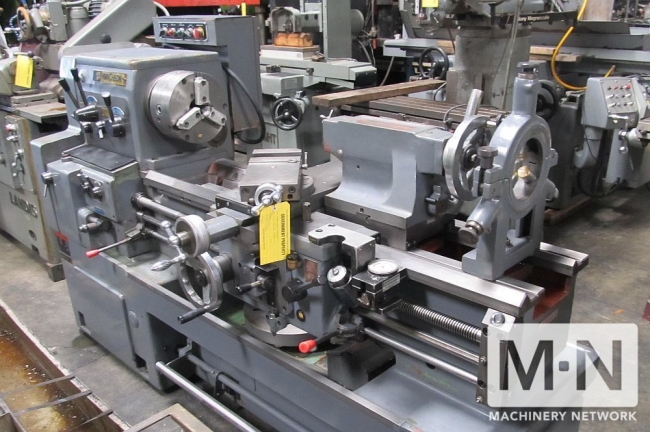

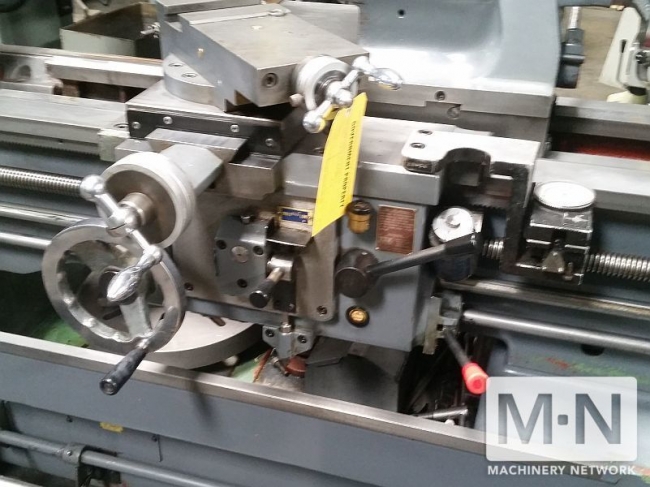

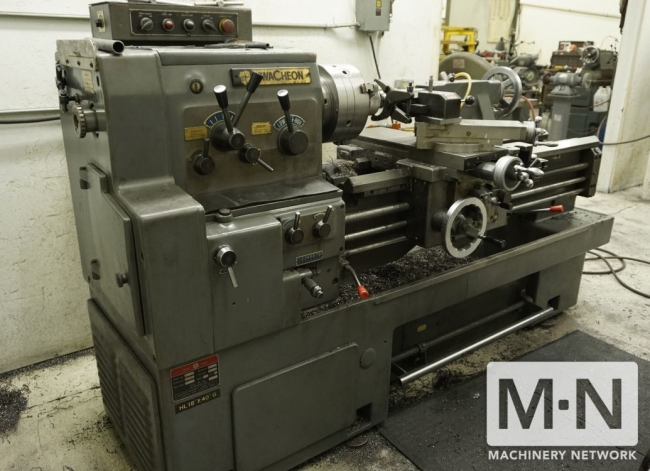

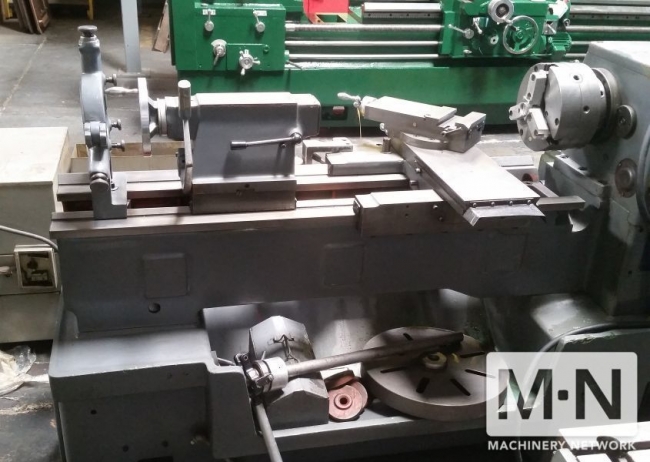

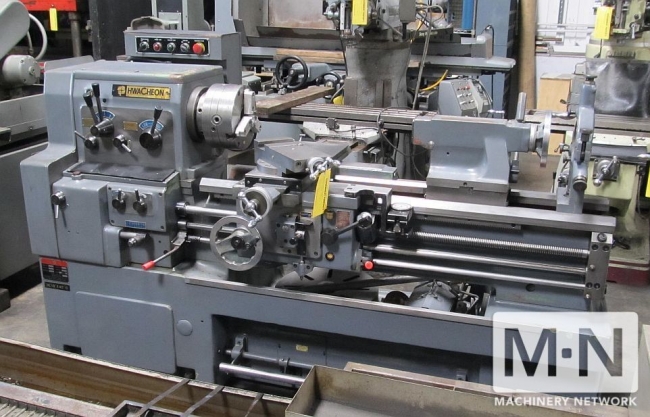

(1) USED 18" X 40" HWACHEON HL-460 GAP BED ENGINE LATHE

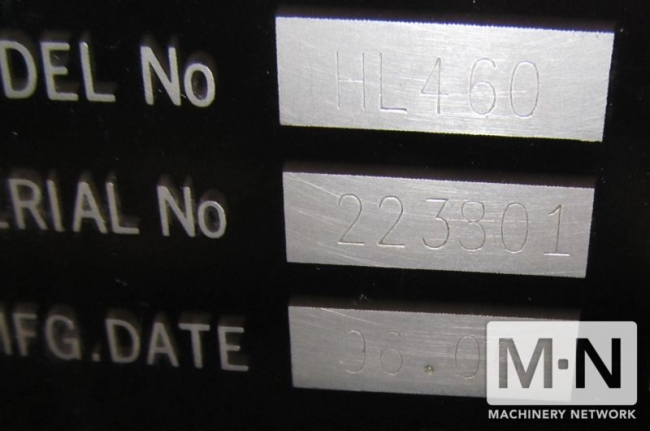

s/n 223801, New 1996

SPECIFICATIONS:
SWING OVER BED:..................... 18 3/8"
SWING OVER CROSS SLIDE:............. 11.2"
SWING THRU GAP:..................... 26.8"
DISTANCE BETWEEN CENTERS:........... 40"
SPINDLE BORE:....................... 2"
SPINDLE SPEEDS (12):................ 32 - 1800 RPM
SPINDLE MOTOR:...................... 7 1/2 HP
SPINDLE NOSE:....................... D1-6
THREADING - INCH:................... 4 - 80 TPI
- METRIC:................. 0.25- 7 MM
APPROX DIMENSIONS:.................. 95"L X 35"W X 55"H
APPROX WEIGHT:...................... 4600 LBS

EQUIPPED WITH:
3-JAW CHUCK
QUICK CHANGE TOOL POST
TRAV-A-DIAL
FACE PLATE
COLLET CLOSER
