VICTOR 1440G
Type:
LATHES, ENGINE
Manufacturer:
VICTOR
Model:
1440G
Condition:
Not Specified
Year:
1999
Stock #:
31310
Status:
Sold
Description:
DRO, CC, QC
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

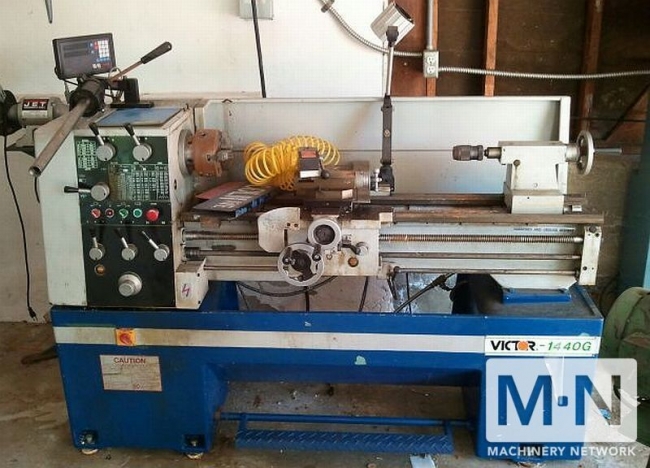

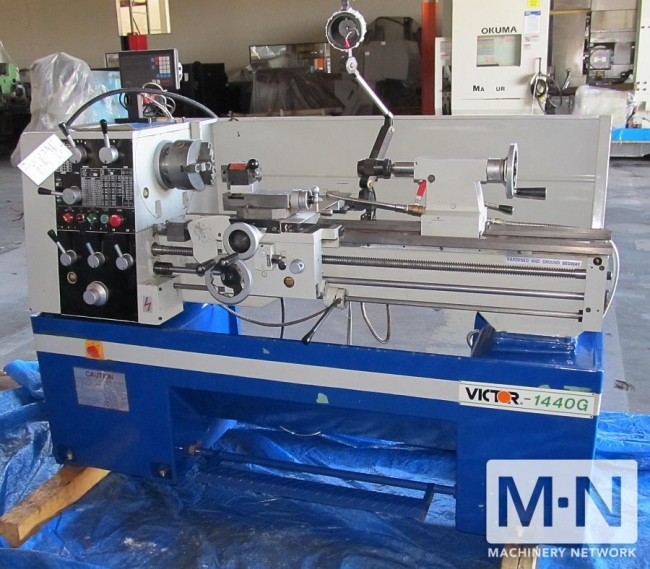

(1) Used 14"x40" Victor Model 1440G Gap Bed Engine Lathe
S/N: 922118, New 1992
Specifications:
Swing over bed 14"
Swing over cross slide 9"
Swing thru gap 21"
Distance between centers 39.4"
Spindle bore 1 9/16"
Spindle nose D1-4
Spindle taper MT-3
Spindle speeds (16) 42 - 2,000 RPM
Longitudinal feeds .002 - .04 IPR
Cross feeds .001 - .02 IPR
Threading - inch (40) 4 - 112 TPI
Threading - metric (22) .25 - 6 MM
Spindle motor: 3 HP
Equipped with:

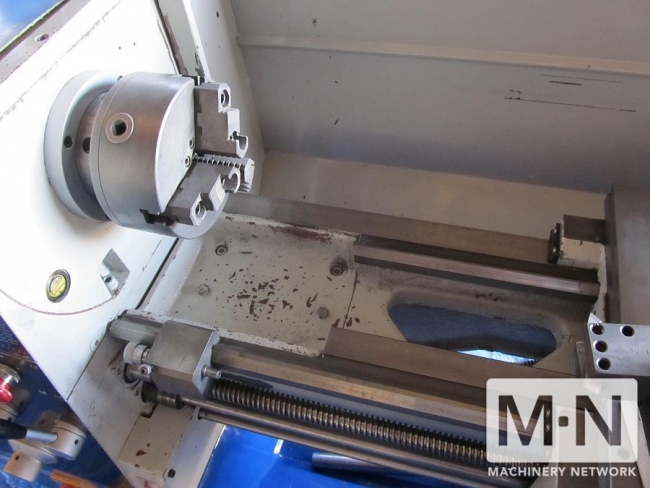

6" 3-Jaw chuck
Lever type collet closer

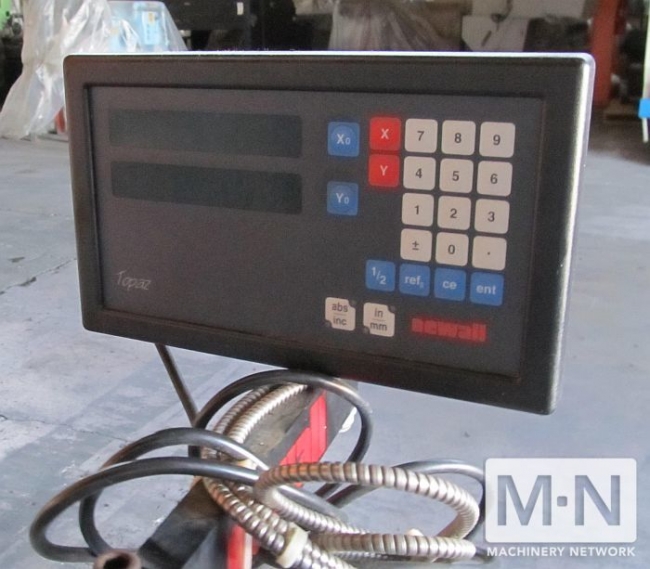

Newall 2 Axis DRO
KDK Quick change toolpost
S/N: 922118, New 1992
Specifications:
Swing over bed 14"
Swing over cross slide 9"
Swing thru gap 21"
Distance between centers 39.4"
Spindle bore 1 9/16"
Spindle nose D1-4
Spindle taper MT-3
Spindle speeds (16) 42 - 2,000 RPM
Longitudinal feeds .002 - .04 IPR
Cross feeds .001 - .02 IPR
Threading - inch (40) 4 - 112 TPI
Threading - metric (22) .25 - 6 MM
Spindle motor: 3 HP
Equipped with:
6" 3-Jaw chuck
Lever type collet closer
Newall 2 Axis DRO
KDK Quick change toolpost
