MAKINO A61
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MAKINO
Model:
A61
Condition:
Not Specified
Year:
2005
Stock #:
36518
Status:
Sold
Description:
MAKINO PROFESSIONAL 3 , FULL 4TH, 28"X2"X28", CAT 40, 12K RPM
Location:
Pennsylvania, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

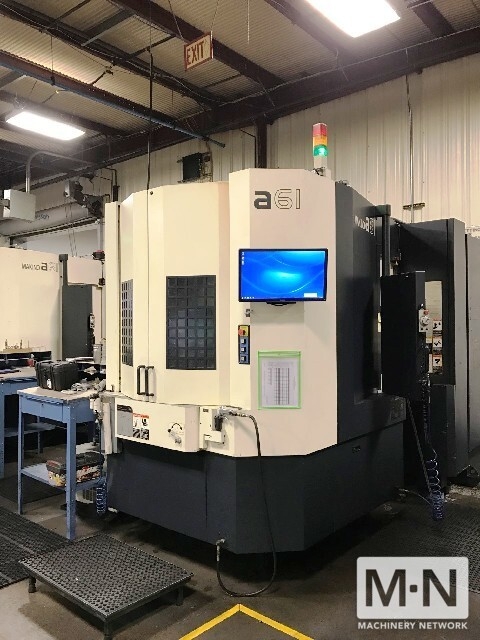

(1) USED MAKINO A61 4-AXIS CNC HORIZONTAL MACHINING CENTER
NEW: 2005
SPECIFICATIONS:
PALLET SIZE: 19.7" X 19.7" TAPPED
TRAVELS:
X-AXIS: 28.7"
Y-AXIS: 25.6"
Z-AXIS: 28.7"
SPINDLE NOSE TO PALLET CENTER: 2.76" - 31.5"
SPINDLE CENTER TO PALLET: 3.15" - 28.74"
NUMBER OF PALLETS: 2
PALLET CHANGE TIME: 8 SECONDS
MAX PAYLOAD: 500 KG
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR: 25 HP CONTINUOUS
SPINDLE TAPER: CAT 40
EQUIPPED WITH:
MAKINO PROFESSIONAL 3 CNC CONTROL
FULL 4TH AXIS NC ROTARY TABLE

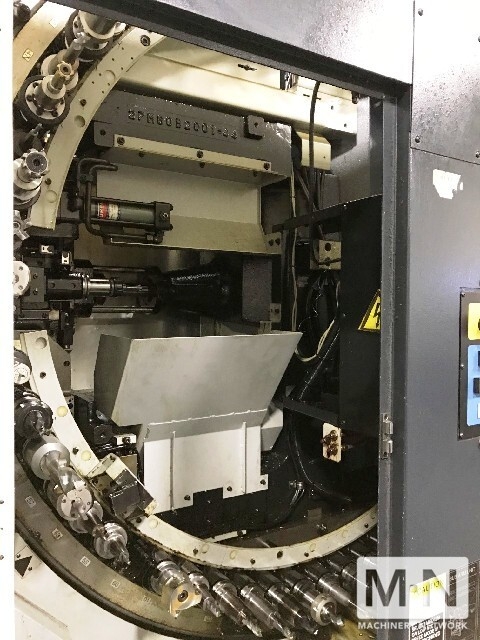

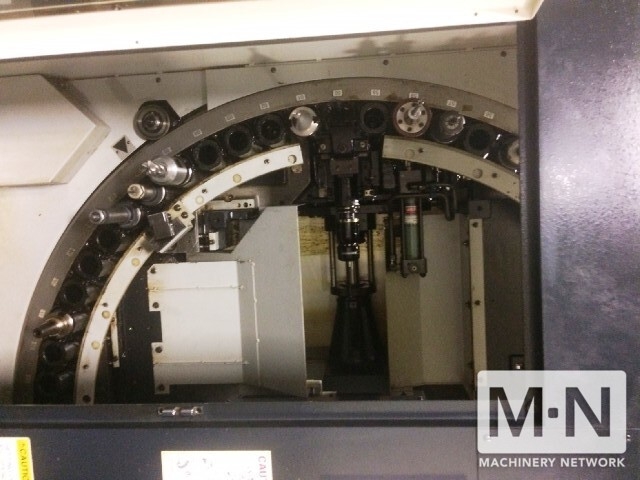

60 TOOL ATC

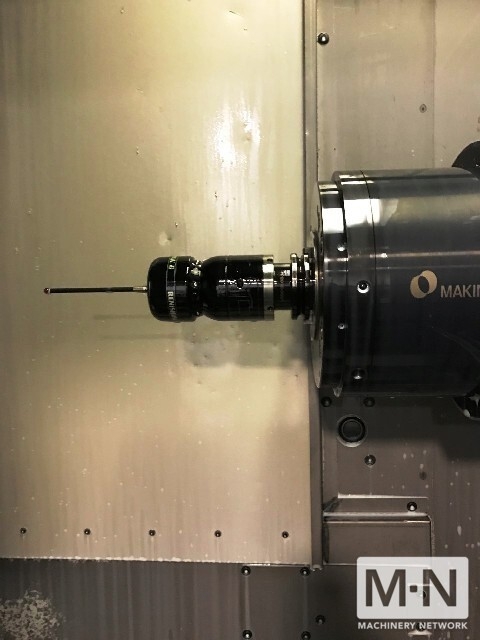

RENISHAW PROBE
NC4 TOOL BREAKAGE DETECTION (UPGRADED FROM NC1 LASER IN 2015)
JS RETENTION STUD
PALLET CHANGER W/ SAFETY COVER, DOOR INTERLOCK
300 PSI THRU SPINDLE COOLANT
COOLANT SYSTEM W/ 26 NOZZLES

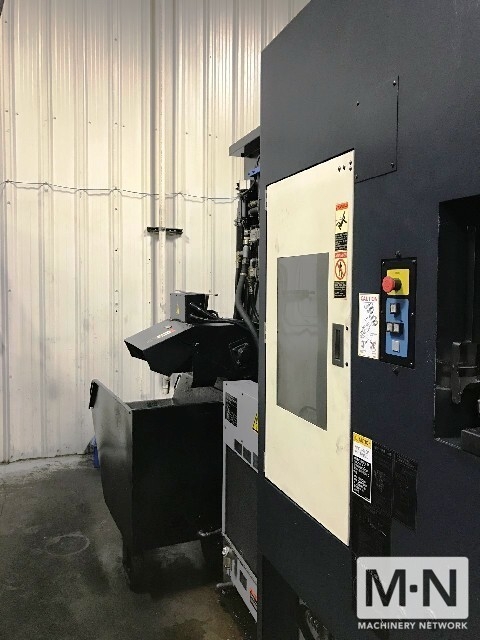

LIFT-UP CHIP CONVEYOR
SPLASH GUARD
TRANSFORMER
HELICAL INTERPOLATION
ALL AVAILABLE MANUALS
NEW: 2005
SPECIFICATIONS:
PALLET SIZE: 19.7" X 19.7" TAPPED
TRAVELS:
X-AXIS: 28.7"
Y-AXIS: 25.6"
Z-AXIS: 28.7"
SPINDLE NOSE TO PALLET CENTER: 2.76" - 31.5"
SPINDLE CENTER TO PALLET: 3.15" - 28.74"
NUMBER OF PALLETS: 2
PALLET CHANGE TIME: 8 SECONDS
MAX PAYLOAD: 500 KG
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR: 25 HP CONTINUOUS
SPINDLE TAPER: CAT 40
EQUIPPED WITH:
MAKINO PROFESSIONAL 3 CNC CONTROL
FULL 4TH AXIS NC ROTARY TABLE
60 TOOL ATC
RENISHAW PROBE
NC4 TOOL BREAKAGE DETECTION (UPGRADED FROM NC1 LASER IN 2015)
JS RETENTION STUD
PALLET CHANGER W/ SAFETY COVER, DOOR INTERLOCK
300 PSI THRU SPINDLE COOLANT
COOLANT SYSTEM W/ 26 NOZZLES
LIFT-UP CHIP CONVEYOR
SPLASH GUARD
TRANSFORMER
HELICAL INTERPOLATION
ALL AVAILABLE MANUALS
