MAKINO A61

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MAKINO

Model:

A61

Condition:

Not Specified

Year:

2005

Stock #:

36290

Status:

Sold

Description:

PROFESSIONAL 5 CNC CONTROL, 28"X25"X28", 12K RPM, HSK 63

Location:

New Jersey, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

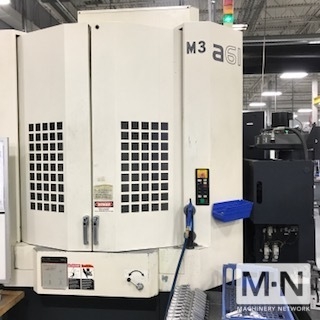

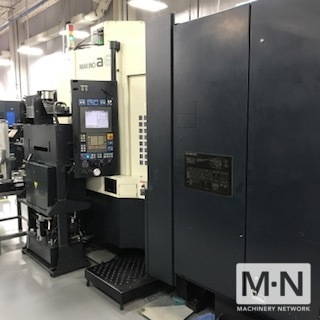

(1) USED MAKINO A61 HORIZONTAL MACHINING CENTER
NEW: 2005

SPECIFICATIONS:
PALLET SIZE .......................... 19.7" X 19.7" (500MM)
MACHINE TRAVELS (X/Y/Z) .............. 28.7" X 25.6" X 28.7"
SPINDLE NOSE TO PALLET CENTER DISTANCE 2.76" - 31.5"
SPINDLE CENTER TO PALLET DISTANCE .... 3.15" - 28.74"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING FULL 4TH AXIS ........ (.001)
MAX PALLET LOAD ...................... 1,540 LBS.
PALLET CHANGE TIME ................... 8 SECONDS
RAPID TRAVERSE RATE (X/Y/Z) .......... 1,960 IPM
MAX CUTTING FEED RATE ................ 1,960 IPM
SPINDLE TAPER ........................ HSK 63
SPINDLE SPEEDS ....................... 0 - 12,000 RPM
TOOLCHANGER CAPACITY ................. 134 STATIONS
MAX TOOL WEIGHT ...................... 26.4 LBS.
MAX TOOL LENGTH/DIAMETER ............. 14.17" X 2.76" /6.69"
TOOL TO TOOL TIME .................... 0.9 SECONDS
SPINDLE DRIVE ........................ 25 HP
APPROXIMATE MACHINE DIMENSIONS ....... 90"L X 178"W X 117"H
APPROXIMATE WEIGHT ................... 20,900 LBS.

EQUIPPED WITH:

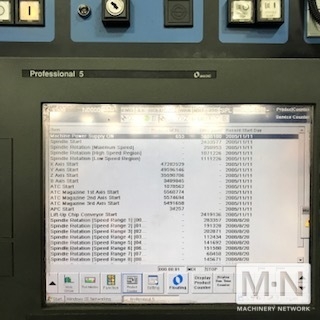

-PROFESSIONAL 5 CNC CONTROL,

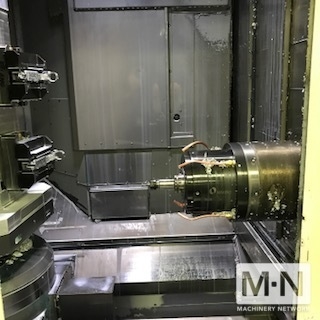

-25 HP HIGH POWER SPINDLE DRIVE, 12,000 RPM SPINDLE,
-THRU-SPINDLE COOLANT, 300 PSI
-2 PALLETS,
-FULL 4TH AXIS (.001 DEGREE) PROGRAMMABLE PALLET,

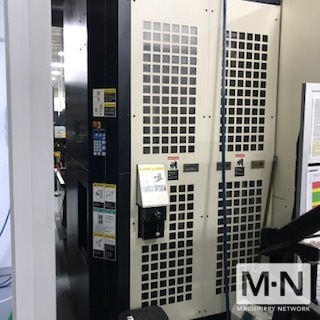

-134 STATION AUTOMATIC TOOL CHANGER
-CHILLER,

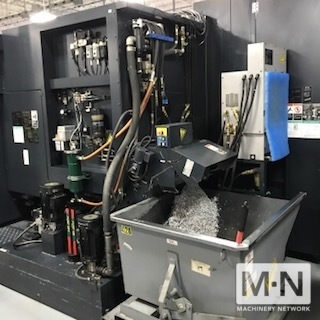

-SIDE DISCHARGE CHIP CONVEYOR,

INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE
