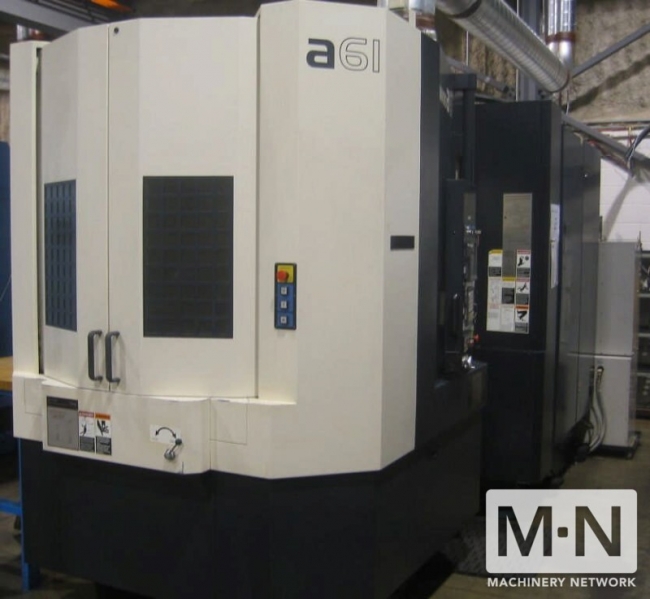

MAKINO A61

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MAKINO

Model:

A61

Condition:

Not Specified

Year:

2004

Stock #:

25399

Status:

Sold

Description:

FANUC 16i PRO3 CTRL, (2) x 19.7" PLLTS, 28.74" x 25.59" x 28.74" , 18K RPM, HSK A-63

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED MAKINO A61 HORIZONTAL MACHINING CENTERS
MODEL YEAR: 2004, INSTALLATION DATE: 2005

SPECIFICATIONS:
TRAVELS SIZE:
X AXIS:............... 28.7"
X AXIS:............... 25.6"
X AXIS:............... 28.7"
PALLET SIZE:................. 19.7" x 19.7"
PALLET CAPACITY:............. 31.5" x 39.4"
PALLET LOAD:................. 1,543 LBS
PALLET CHANGE TIME:.......... 8 SECS
SPINDLE:..................... HSK A-63
SPINDLE MOTOR:............... 25 HP AC
SPINDLE SPEEDS:.............. 18,000 RPM HIGH SPEED
RAPID TRAVERSE (Y/Z):........ 2360 IPM
FEED RATES (Y/Z):............ 1968 IPM
POSITIONS:................... 360,000 POS, BI DIRECTIONAL
MACHINE WEIGHT:.............. 21,400 LBS

EQUIPPED WITH:
FANUC 16i PRO3 CONTROL
NC ROTARY TABLE
40 TOOL ATC
TROUGH TOOL COOLANT 1.5-MPA
MOIRE SCALE FEEDBACK
500MM T-SLOT PALLET
AUTO AIR BLOWER NOZZLE
COOLANT TEMPERATURE CONTROLLER WITH HEATER
ROTARY WINDOW ON SPLASH GUARD
AIR DRYER
DAIKIN AUTO LUBE UNIT
AUTO WORK PIECE MEASURING DEVICE, MARPOSS (PROBE)
RETRACTABLE AUTO TOOL LENGTH MEASUREMENT SYSTEM
RUN HOUR METER
HELICAL INTERPOLATION
125 REGISTERED PROGRAMS
DATA SERVER
HIGH SPEED SKIP FUNCTION
ENHANCED SG1.4 CONTROL (HIGH SPEED SURFACING)
ROTARY DYNAMIC FIXTURE OFFSET
